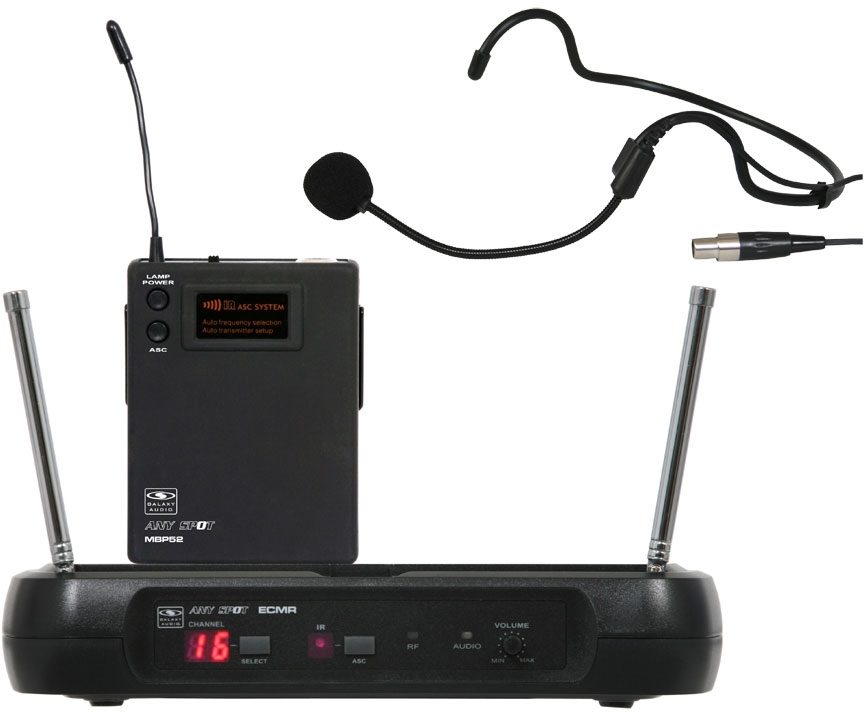

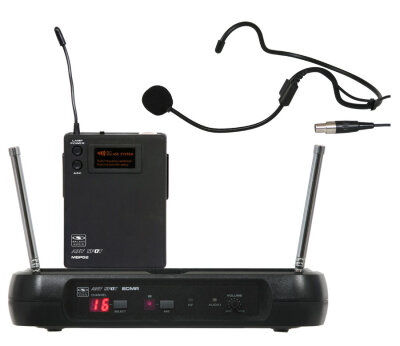

Galaxy ECM UHF Headset Wireless Microphone System

Enjoy wireless freedom with this hands-free headset microphone from Galaxy -- perfect for live presenters, with 200-foot range and 16 selectable channels. 1 Person rated this product: Rate and Review This Product
Ships to: Can ship to United States Can ship to Puerto Rico
Can ship to APO/FPO
Roll Over to Enlarge Main

Product Description

Presenters and performers enjoy the high quality of the Galaxy ECM headset wireless system. Featuring 16 user selectable channels and diversity reception plus infrared (IR) channel sync is possible between the receiver and transmitter. The Galaxy ECM headset system brings mobility and ease of use to local musicians, houses of worship, singers/dancers and etc. Cut the cord and enjoy the freedom of wireless with the Galaxy ECM headset system.

Features

ECM Receiver
- 16 Selectable Channels
- 200 Foot Range
- Diversity Antennas
- Frequency Range 655 to 679 MHz
- Output Volume Control
- AF Level Indicator
- IR Sync
- Squelch Adjustment
- XLR and 1/4 inch Outputs
- Rugged Plastic Casing

MPB52 Bodypack
- IF Sync
- 2 AA Batteries
- Mic/0/-10 dB
- 3 Position Swith
- Low Battery Indicator
- 2.8 oz (80 g)

The ECM headset wireless system includes the ECMR receiver, one 1/4 inch cable, MPB52 bodypack, headset mic, power adapter and manual.

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. zZounds is an authorized dealer of Galaxy Audio products.
System
- Frequency Range: 655~679MHz
- Transmitter Output Level: 10dBm
- Band: UHF
- Operating Range: Under Typical Conditions 150' (50m)
- Note: actual range depends on RF signal absorption, reflection, and interference
- Audio Frequency Response: +/-3dB 70Hz~16KHz
- Total Harmonic Distortion: +/-30KHz deviation 1KHz tone <1%
- Dynamic Range: >90dB A-weighted
- Operating Temperature: Range 14oF to 122oF (-10 Co to +50 Co)
- Note: battery characteristics may limit this range

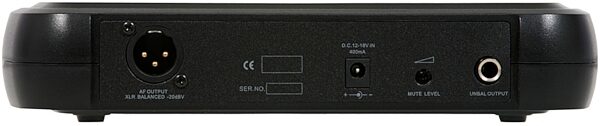

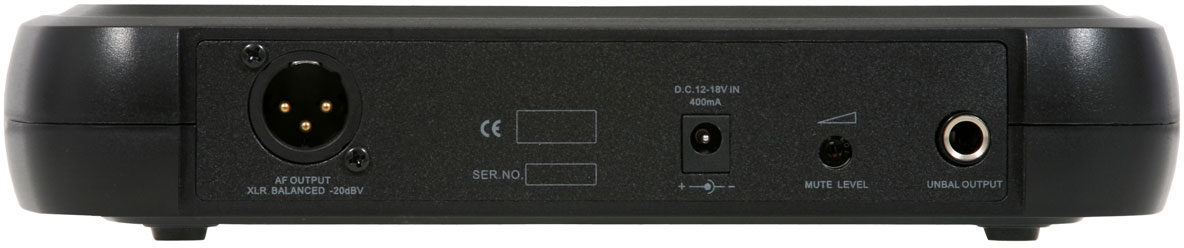

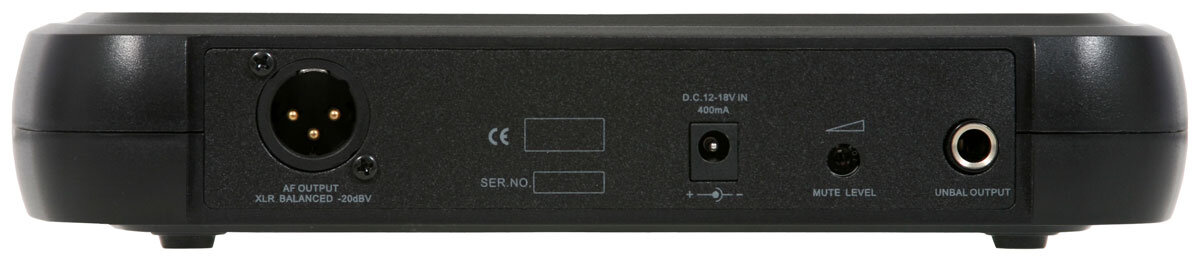

ECM Receiver
- Audio Output Level: (+/-30KHz deviation, 1KHz tone) XLR connector (into 600 Ohms load) -12dBV 1/4 inch connector (into 3KOhms load) -18dBV
- Output Impedance: XLR connector 200Ohms 1/4 inch connector 1KOhms
- XLR output: Impedance balanced
- Pin1:Ground (cable shield)
- Pin2:Audio
- Pin3:No Audio
- Sensitivity: -93dBm for 30dB
- Image Rejection: >90dB
- Dimensions (HxWxD): 1.75 x 9.25 x 4.75 inches, (44.45 x 235 x 121mm)
- Weight: .85lbs (.39kg)
- Power Requirements: 13.5 V dc at 300mA, supplied by external power supply.

MBP52 Bodypack Transmitter
- Max Audio Input Level: 0 dBV to +10 dBV
- Gain Adjustment Range: 20dB
- Input Impedance: 5K?
- Dimensions (HxWxD): 3.3 x 2.6 x 1 inches (85 x 65 x 24 mm)
- Weight: 3.0oz (85 g) (without batteries)
- Power Requirements: 2 AA Batteries alkaline or rechargeable batteries
- Battery Life: About 8 hours
Dimensions and Weight in Packaging
Frequency Band L
Shipping Weight: 3 lbs
Shipping Dimensions: 18 x 12 x 3 in
Galaxy Audio Warranty
Galaxy Audio Warranty
If you have additional warranty questions, please call the manufacturer at 800-369-7768
Our extended 30-Day 100% Satisfaction Guarantee applies on this product. Buy it, and if it isn't just right for you, return it!
What Our Customers Are Saying About zZounds "I purchase from zZounds regularly. I like the ease of the purchase and all of the fantastically helpful reviews." - customer on April 22nd, 2012
Have a purchase order? We invoice schools, government entities, and churches. Info
New, Frequency Band L
$219.95
Play as You Pay
on orders $249+ details
List: $309.99
Savings: $90.04 (29%)
In Stock Will Ship May 29   Seen it for less?
Free Ground Shipping
Faster Shipping
Frequency Band L, Warehouse Resealed
$197.95
List: $309.99
Savings: $112.04 (36%)
Only 1 Left! Will Ship May 29
Free Ground Shipping
Faster Shipping
Customer Reviews
5 out of 5 (1 ratings) Rate and Review This Product
Galaxy ECM UHF Headset Customer Review
Sound: My club just used our wireless headset microphone for the first time. It set up easily, and was easy to use. The sound was great.
