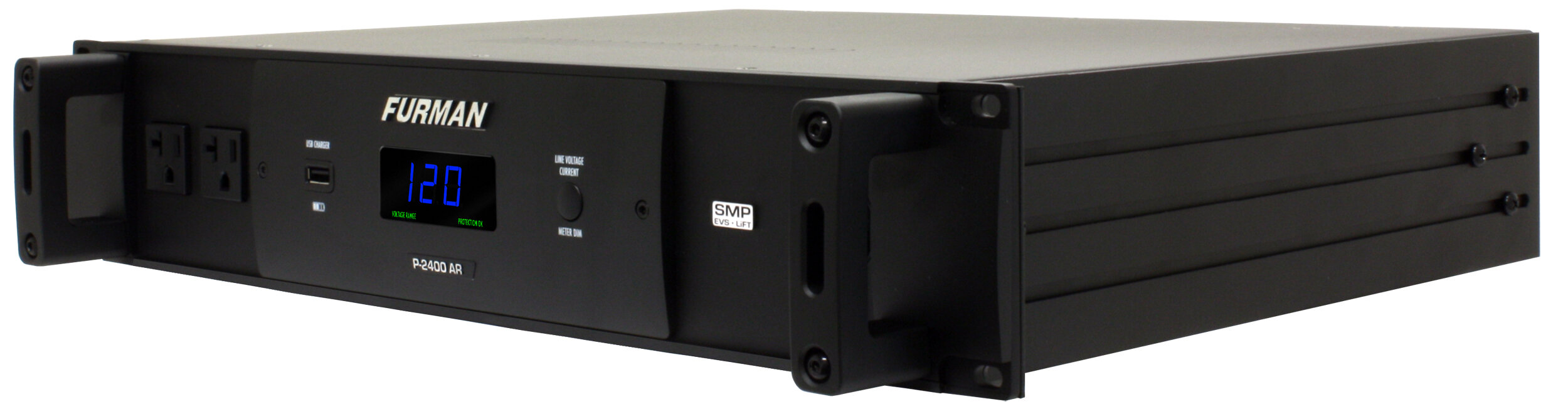

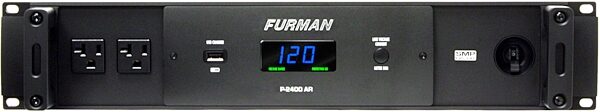

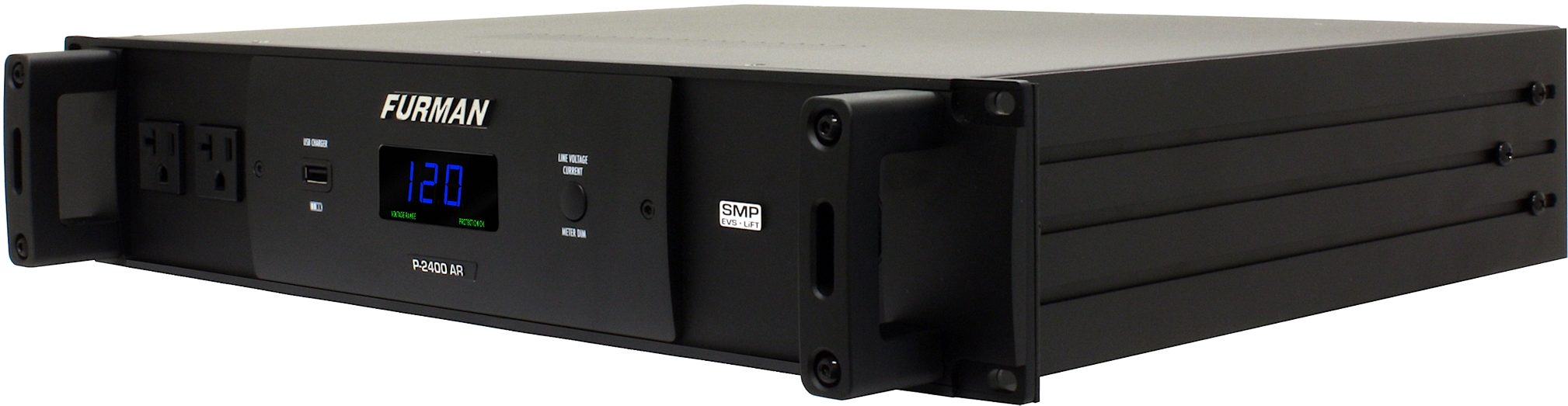

Furman P2400AR Voltage Regulator and Power Conditioner
No longer available at zZounds
Protect your gear from voltage irregularities, power surges and in-line noise. The Furman P2400AR is a wise addition to any rack unit.
Overview
The 20 amp P-2400 AR delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltages - all of which can cause sensitive electronic equipment to malfunction or sustain damage. The P-2400 AR accepts input voltage between 97V-137V and transforms it to a constant output of 120V, +/-5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance. With it's robust 20A capacity, the P-2400 AR is ideal for high-current equipment such as power amplifiers or powering A/V racks in large installations.
Additionally, the P-2400 AR is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Furman's Linear Filtering Technology (LiFT), but it will also be fully protected by the exclusive Series Multi-Stage Protection (SMP) and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protecti on available.
True RMS Voltage Regulation
True RMS Voltage Regulation delivers a stable 120 volts of AC power to protect equipment from problems caused by AC lne voltage irregularities.
Surge Protection
Furman's exclusive SMP technology provides the highest level of surge & spike protection available.
Noise Filtration
LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
Voltage Protection
Advanced… read more EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
Diagnostic Lights
LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
Voltmeter / Ammeter

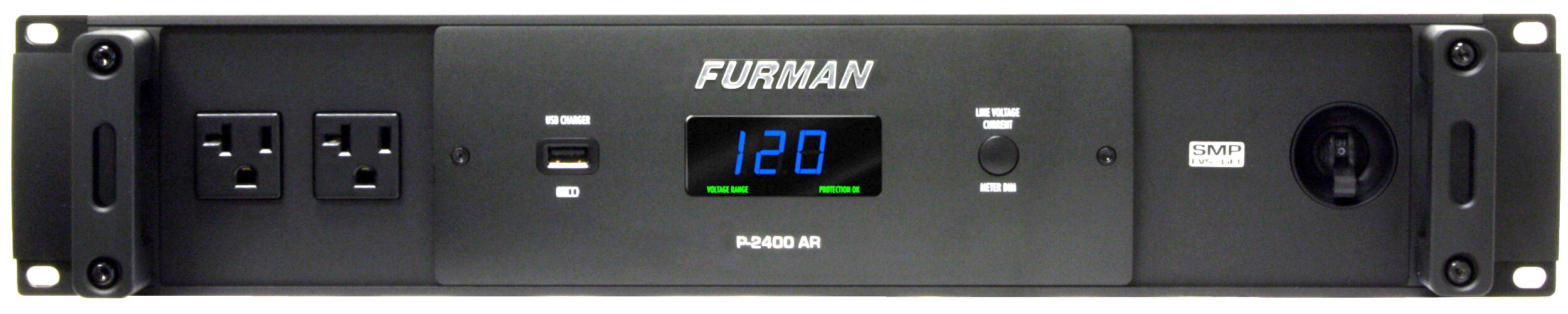

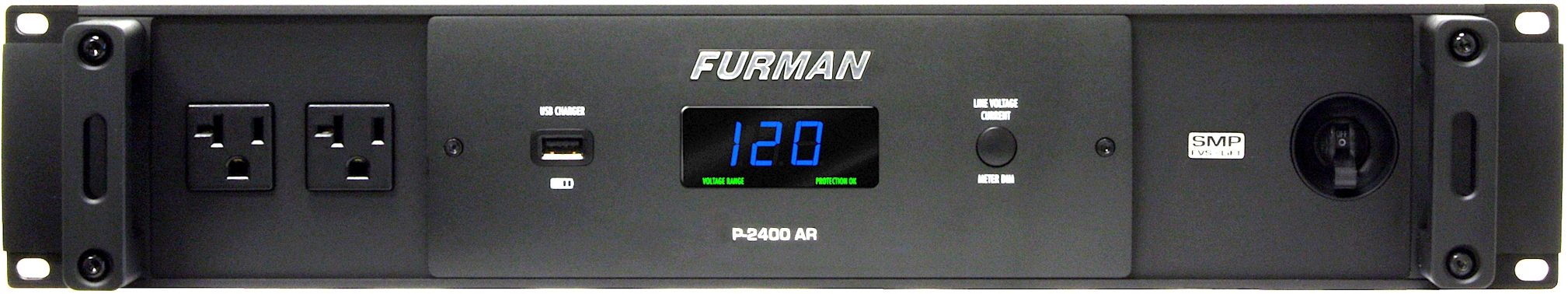

Large LED voltmeter/ammeter displays incoming voltage and output current draw.
Isolated Banks
Isolated outlet banks minimize inter-component interference and noise contamination.
USB Charger
Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp.
20 Amp Rating
20 Amp rating featuring a high inrush thermal circuit breaker for added protection.
14 Total Outlets
14 total outlets (twelve rear panel outlets and two front panel convenience outlet). read less
Additionally, the P-2400 AR is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Furman's Linear Filtering Technology (LiFT), but it will also be fully protected by the exclusive Series Multi-Stage Protection (SMP) and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protecti on available.
True RMS Voltage Regulation
True RMS Voltage Regulation delivers a stable 120 volts of AC power to protect equipment from problems caused by AC lne voltage irregularities.
Surge Protection
Furman's exclusive SMP technology provides the highest level of surge & spike protection available.
Noise Filtration
LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
Voltage Protection
Advanced… read more EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
Diagnostic Lights
LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
Voltmeter / Ammeter
Large LED voltmeter/ammeter displays incoming voltage and output current draw.
Isolated Banks
Isolated outlet banks minimize inter-component interference and noise contamination.
USB Charger
Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp.
20 Amp Rating
20 Amp rating featuring a high inrush thermal circuit breaker for added protection.
14 Total Outlets
14 total outlets (twelve rear panel outlets and two front panel convenience outlet). read less
Specs
Maximum Current: 20 amps (De-rate 170mA/V for inputs less than 120VAC
Line Cord: Captive 3/12 AWG, 10 FT, black cord with NEMA 20 plug
receptacles: Two front panel 20A NEMA5-20R outlets

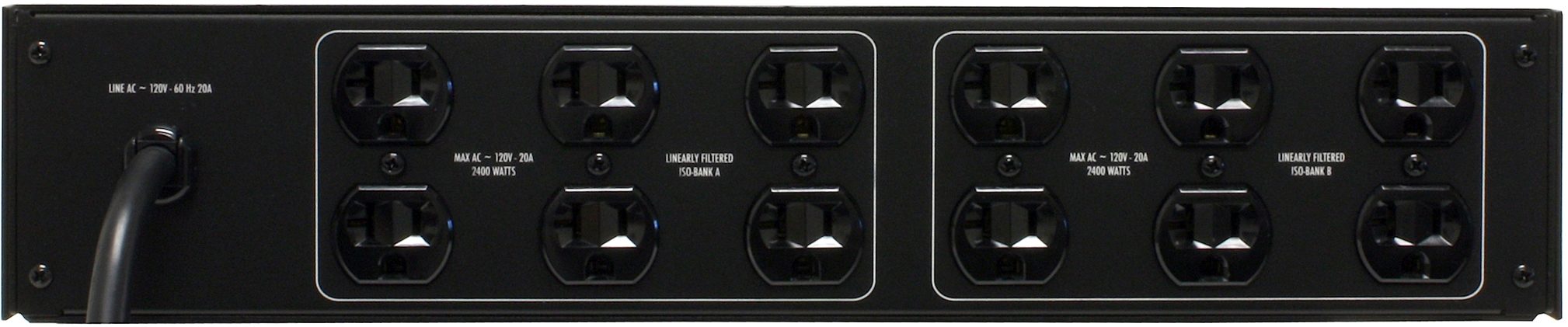

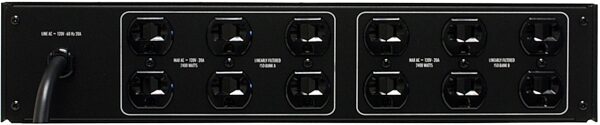

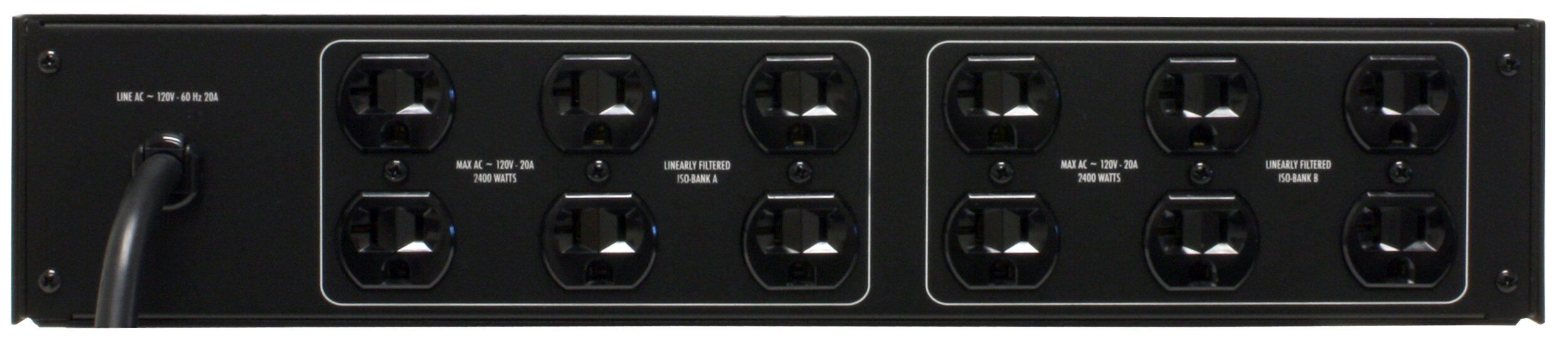

Twelve rear panel 20A NEMA5-20R outlets
Operating Voltage: 90 to 139 VAC
Over-Voltage Shutdown: 145 VAC Nominal
In Regulation Range: 97 to 137 VAC
Spike Protection Mode: Line to neutral, zero ground leakage
Spike Clamping Voltage: 188 VAC peak @ 3,000 Amps
Response Time: 1 nanosecond
Maximum Surge Current: 6,500 Amps
Noise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz
Dimensions: 19 W x 12 D x 3.5 H inches (483mm W x 305mm D x 89mm H)
Weight: 39 lbs. (18 kg.)
Power Consumption: 13 watts
Line Cord: Captive 3/12 AWG, 10 FT, black cord with NEMA 20 plug
receptacles: Two front panel 20A NEMA5-20R outlets
Twelve rear panel 20A NEMA5-20R outlets
Operating Voltage: 90 to 139 VAC
Over-Voltage Shutdown: 145 VAC Nominal
In Regulation Range: 97 to 137 VAC
Spike Protection Mode: Line to neutral, zero ground leakage
Spike Clamping Voltage: 188 VAC peak @ 3,000 Amps
Response Time: 1 nanosecond
Maximum Surge Current: 6,500 Amps
Noise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz
Dimensions: 19 W x 12 D x 3.5 H inches (483mm W x 305mm D x 89mm H)
Weight: 39 lbs. (18 kg.)
Power Consumption: 13 watts
