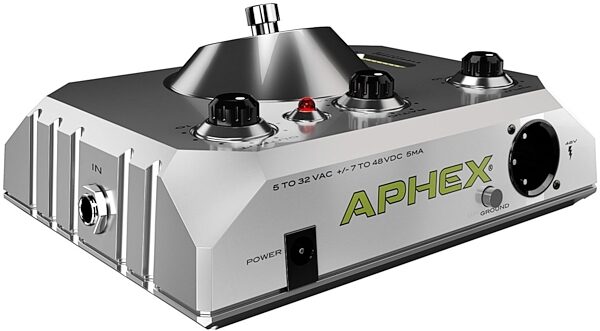

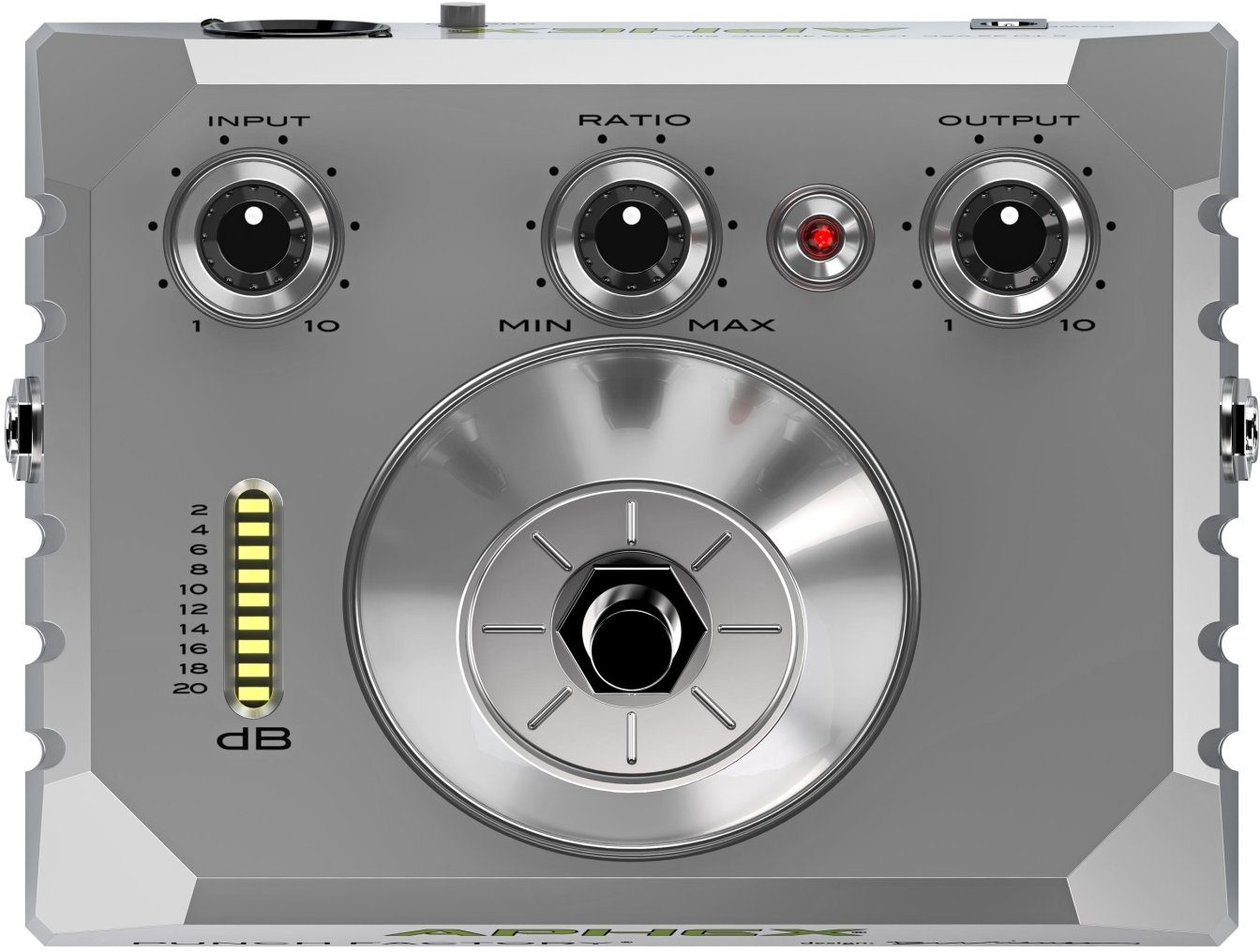

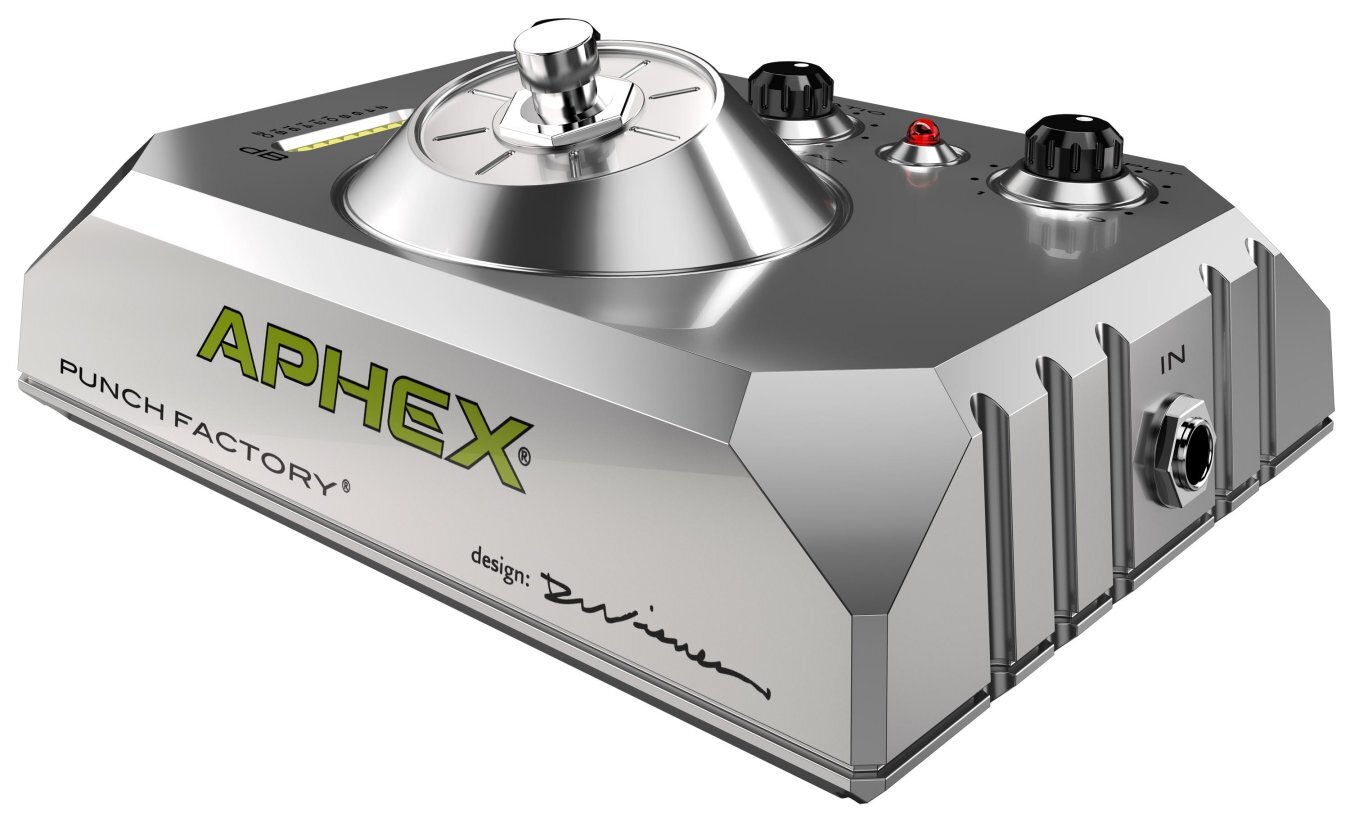

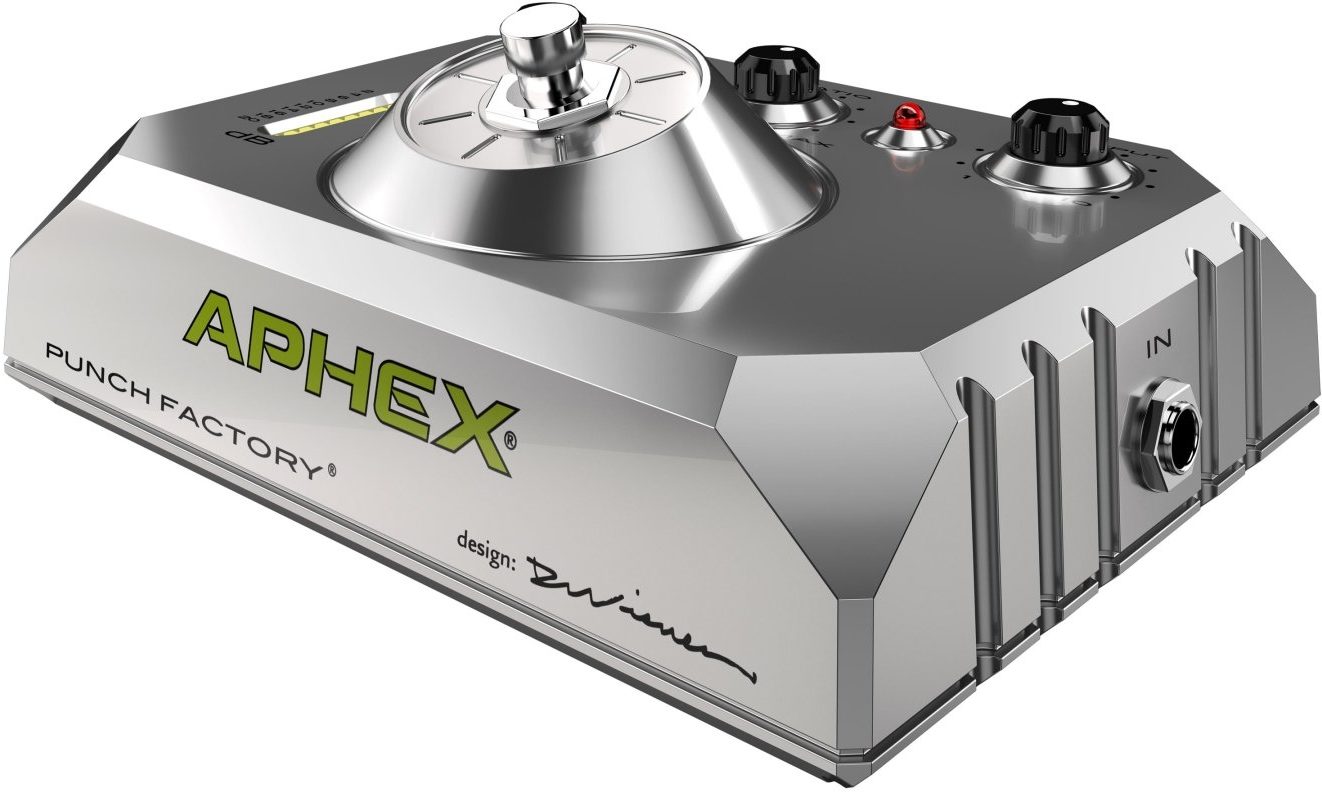

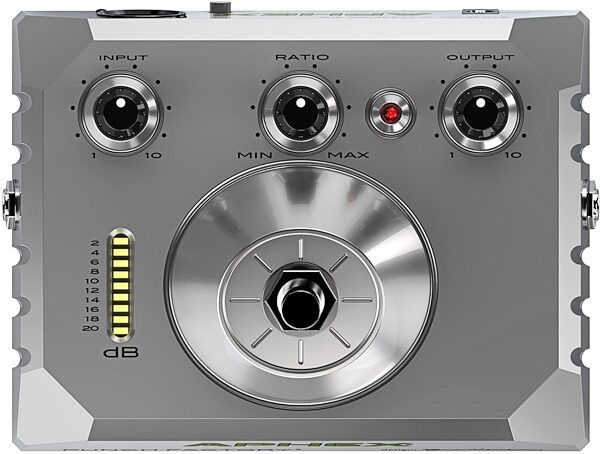

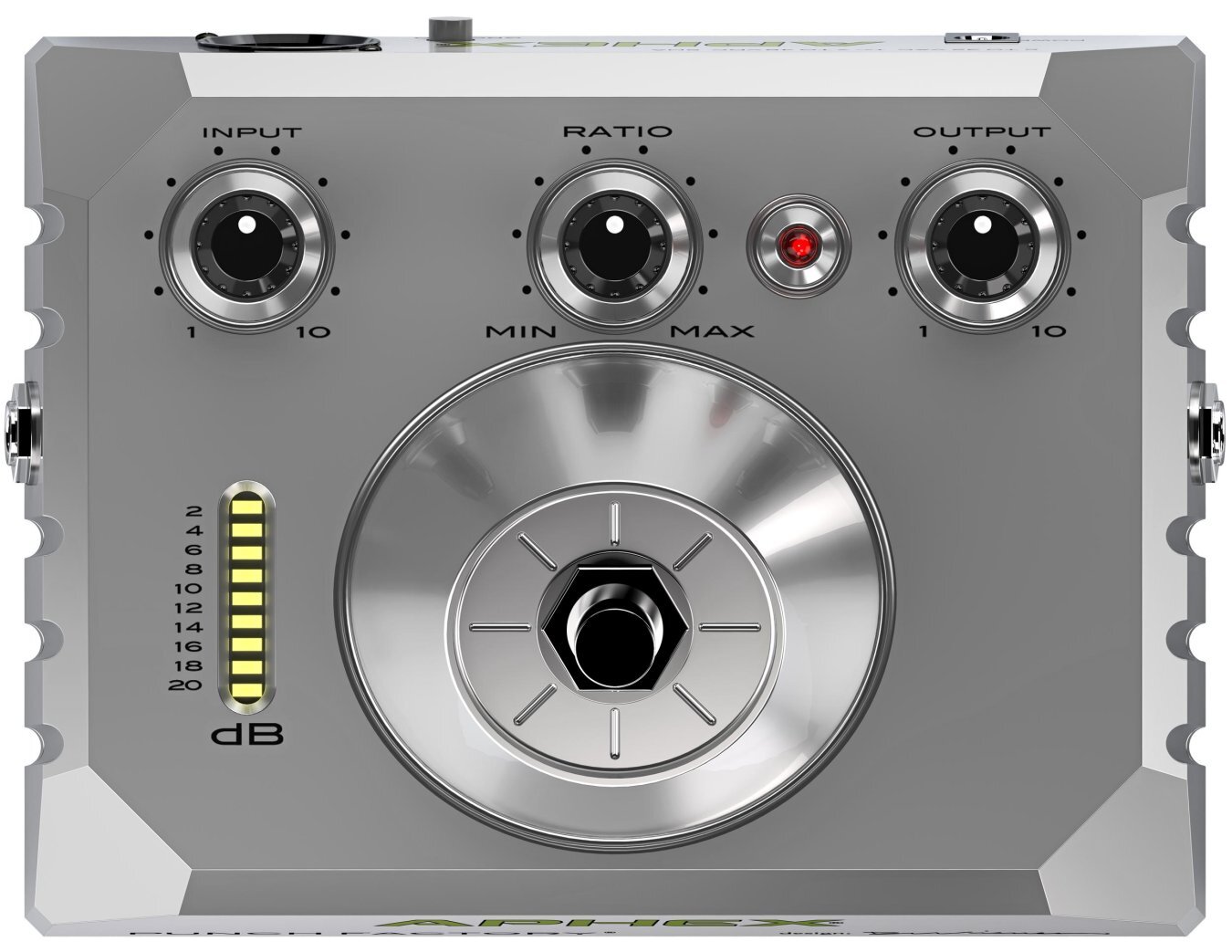

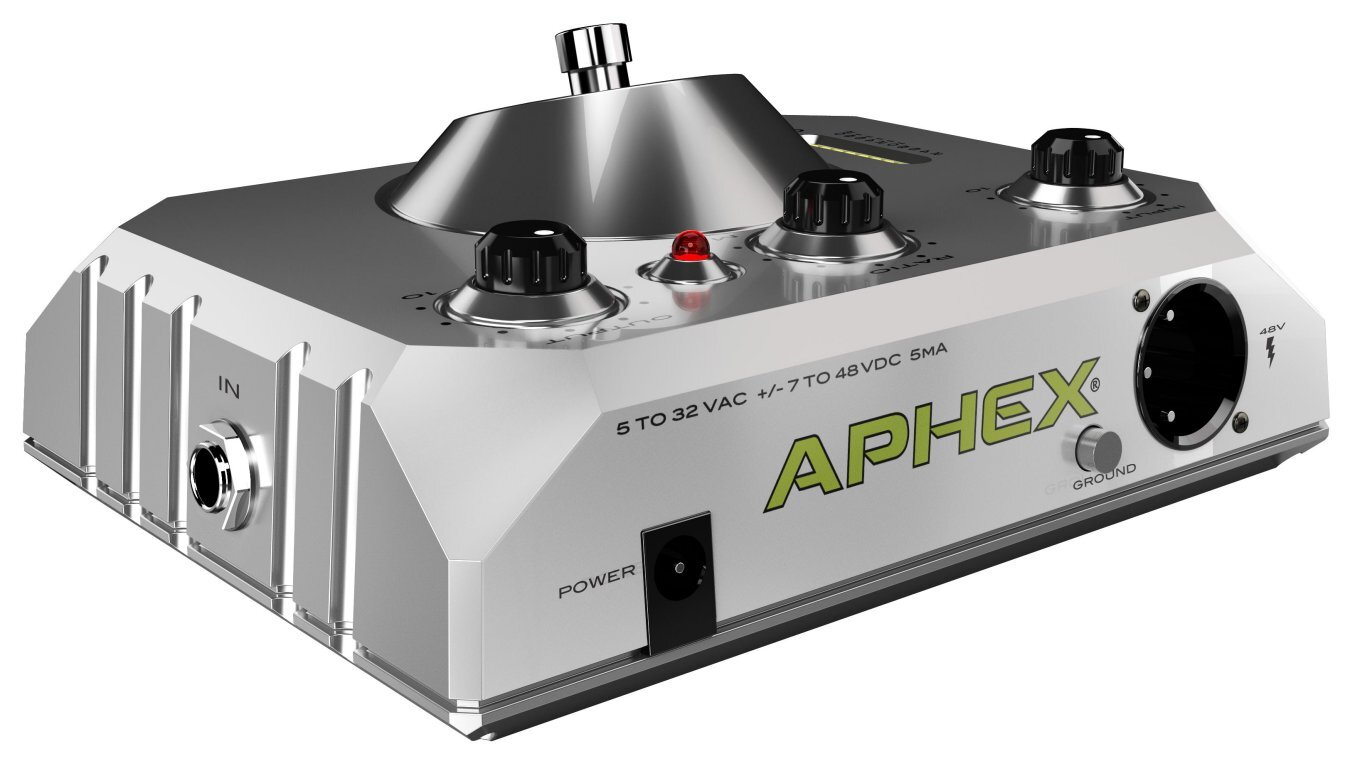

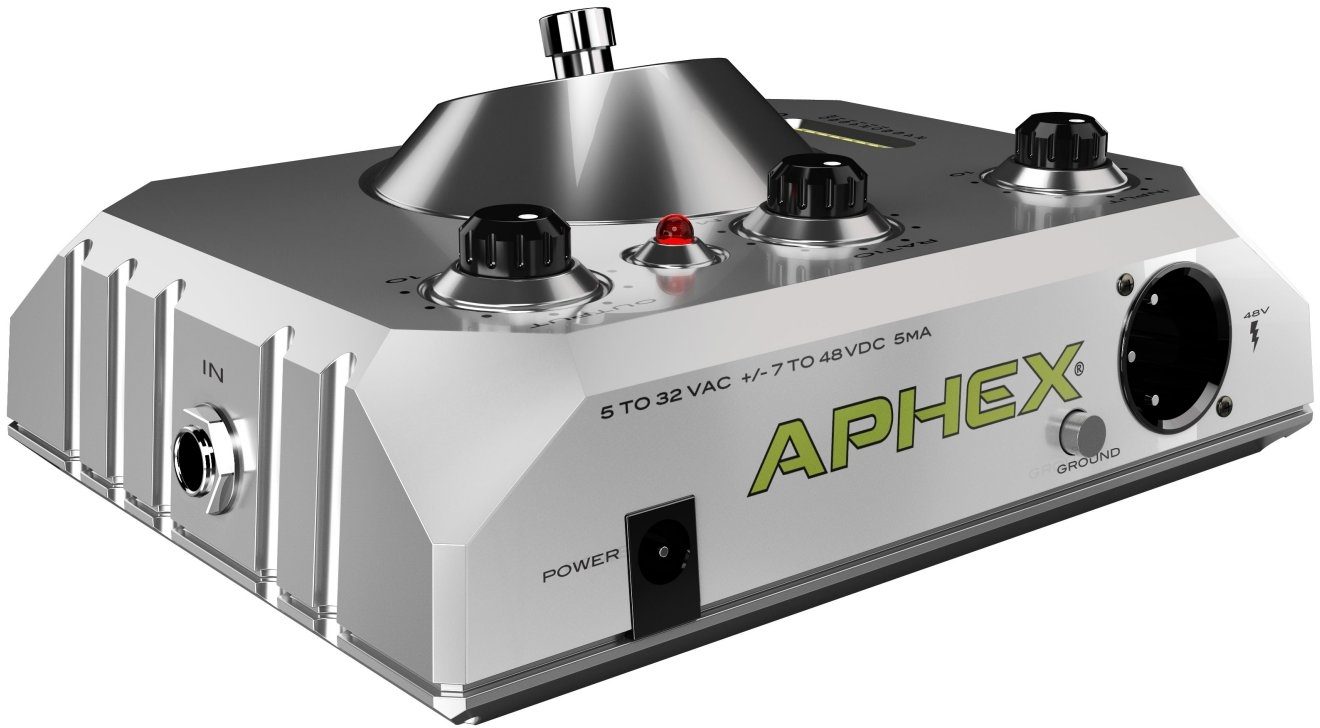

Aphex Punch Factory Optical Compressor Pedal

Add the power of optical compression to your pedalboard. The Aphex Punch Factory Optical Compressor Pedal features technology usually found in pro studios.
Ships to: Can ship to United States Can ship to Puerto Rico
Can ship to APO/FPO
Roll Over to Enlarge Main

Product Description

The Aphex Punch Factory pedal provides studio quality optical compression for guitar and basses. The Punch Factory takes Aphex's legendary optical technology - normally only found in expensive rack-mounted studio gear - and puts it at your feet and into your live performance. It's truly the most transparent, uncolored compression you can find at any price.

Punch Factory levels out volume peaks and dips, maintaining a consistent level within your mix. Quiet passages no longer get lost, and louder passages don't overpower. All without the pumping, "breathing" artifacts commonly found in most compressor pedals. The new Punch Factory has something that most other optical compressors don't have. zZounds is an authorized dealer of Aphex products.
- Input Z: 10Meg Ohms
- Output Z:
- Instrument: 1K Ohms
- D.I.: 150 Ohms
- Maximum Input Level: 1.5V RMS
- Frequency Response: 10Hz - 30kHz +/- 1dB
- SNR (Typical): 70dB
- Compression Ratio Variable: Approx 1.5:1 to 10:1
- Maximum Gain: 30dB
- Max Compression Range: >30dB
- Power Drain: 5mA
- Battery Type: 9V (Alkaline recommended)
- External Power: 5-32VAC
- Must be CE certified: 7-48 VDC, +48V Phantom
Dimensions and Weight in Packaging
Shipping Weight: 2 lbs
Shipping Dimensions: 11 x 8 x 10 in
Aphex Warranty
Aphex Warranty
If you have additional warranty questions, please call the manufacturer at 818-767-2929
