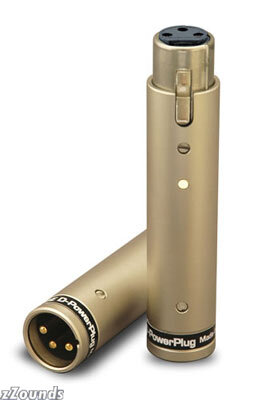

Rode D-PowerPlug Inline Cable Mounted Amplifier

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
Rode D-PowerPlug Inline Cable Mounted Amplifier, Main
Rode D-PowerPlug Inline Cable Mounted Amplifier, Main
Rode D-PowerPlug Inline Cable Mounted Amplifier, Main Rode D-PowerPlug Inline Cable Mounted Amplifier, Main
Phantom powered. Boosts level for longer cable runs.

The D-PowerPlug is effectively a 'Turbo Charger' for Dynamic microphones!

Features an instrumentation grade pre-amplifier circuit, D-PowerPlug will turn any standard dynamic microphone into a high level electronically balanced output device. Using conventional microphones with long multi-core cables results in a dramatic loss of signal strength, and of course sound quality due to cable resistance and capacitance. Powered by standard P48 V, D-PowerPlug can drive cables in excess of 100 meters with negligible loss of signal quality or power.

Compatible with standard XLR connectors.

Gain: +20 dB.

Input level (nominal): 1 mV.

Output level (nominal): 10 mV.

Frequency response: 20 Hz ~ 20 kHz (-3 dB).

Input impedance: 100 kilohms balanced per arm.

Output Impedence: 100 ohms balanced.

Noise: -116 dB A-Wt RTI.

Maximum input: 0.8 Vp-p.

Maximum output: + 11.4 dBu @ 1% THD (8 Vp-p).

Input connector: XLR 3 PIN female.

Output connector: XLR 3 PIN male.

Pin assignment: pin 1 GND, pin 2 signal(+), pin 3 signal(-).

Current consumption: 3 mA @ 48V.

Weight approx.: 73.8 grm

Dimensions: 94 mm

For support or warranty questions, please contact the manufacturer:
Phone: 562-364-7400
Web: https://rode.com/en/support/contact
Application and Spec Sheet 1
Application and Spec Sheet 2

Reviewers gave this product an overall rating of 5 out of 5 stars. (2 ratings)
Submitted February 5, 2008 by a customer from aol.com

"Excellent design and execution"

Overall: 5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
excellent and intelligent design - well executed.
Sound
It is very quiet and sounds fine. It does not change the sound of the microphone except to boost the level by 20 db.
Features
Simple and effective
Ease of Use
Just plug it in between the mic and the cord.
Quality
Nicely build - metal - solid and well built
Value
None necessary
The Wow Factor
I am ordering another one so I will have a pair

Musical Background:

hobbyist

Musical Style:

wide variety
