Zoom RFX1100 24-Bit Digital Multi-Effects
No longer available at zZounds
zZounds Gear Experts Say...
11 effects. 3 banks. 11 variations. 1U rack mount.
Overview
From Zoom, the masters of effects, come the new studio, club and road-ready RFX Series Processors. Each comes packed with customizable high-resolution audio processing tools that will take your sound to new levels without compromising any of your signal's original purity.
Reverb and top-notch processing
121 reverb character settings and 44.1kHz 24-bit processing
The RFX-1100 offers a huge array of reverb settings: 121 acoustic character settings, including 11 distinct types, each with 11 settings
Reverb types: Hall, Room, Plate, Vocal, Ambience, Dimension, Percussion, Ensemble, Power, Gate, Reverse

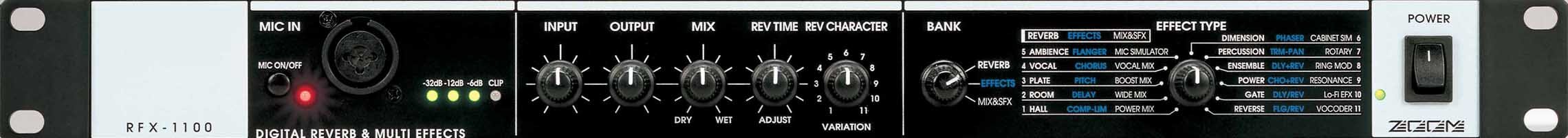

Intuitive controls with analog feel
Selecting an effect type, changing a parameter or adjusting the balance between dry and wet-every operation is controlled quickly and intuitively with front panel knobs. Making a change on the fly in a live or DJ setting is effortless.
XLR input allows direct microphone connection
The combined XLR / phone connector on the front panel lets you use the unit as a stand-alone effect processor for vocals. A Mic Simulator with condenser mic characteristics is convenient for recording vocals or acoustic instruments. Connect a synthesizer to the rear-panel Input jacks and use the mic to control the Vocoder effect.
Mixdown effects take your creations to the next level
When transferring a song created on a multi-track machine to a master recorder, the mixdown effects of this unit make it easy to provide sound quality compensation and adjust the overall… read more tone. It's also perfect for transferring old sources, such as cassette tapes or records to digital media.
Multi-use effect programs for various environments
There's a lot more here than just reverb: Six-voice stereo chorus for instruments, 8-stage stereo Phaser, Flanger with adjustable bandwidth. There's a broad palette of high-grade effects at your fingertips. For recording, there is a Compressor / Limiter that gives you control over input signal levels as well as a cabinet simulator for that special guitar amp sound.
Effect List: Limiter, Delay, Pitch, Chorus, Flanger, Phaser, Tremolo + Auto Pan, Delay + Reverb, Chorus + Reverb, Delay / Reverb, Flanger / Reverb, Power Mix, Wide Mix, Boost Mix, Vocal Mix, Mic Simulator, Cabinet Simulator, Rotary, Ring Modulator, Resonance, Li-Fi EFX Vocoder read less
Reverb and top-notch processing
121 reverb character settings and 44.1kHz 24-bit processing
The RFX-1100 offers a huge array of reverb settings: 121 acoustic character settings, including 11 distinct types, each with 11 settings
Reverb types: Hall, Room, Plate, Vocal, Ambience, Dimension, Percussion, Ensemble, Power, Gate, Reverse
Intuitive controls with analog feel
Selecting an effect type, changing a parameter or adjusting the balance between dry and wet-every operation is controlled quickly and intuitively with front panel knobs. Making a change on the fly in a live or DJ setting is effortless.
XLR input allows direct microphone connection
The combined XLR / phone connector on the front panel lets you use the unit as a stand-alone effect processor for vocals. A Mic Simulator with condenser mic characteristics is convenient for recording vocals or acoustic instruments. Connect a synthesizer to the rear-panel Input jacks and use the mic to control the Vocoder effect.
Mixdown effects take your creations to the next level
When transferring a song created on a multi-track machine to a master recorder, the mixdown effects of this unit make it easy to provide sound quality compensation and adjust the overall… read more tone. It's also perfect for transferring old sources, such as cassette tapes or records to digital media.
Multi-use effect programs for various environments
There's a lot more here than just reverb: Six-voice stereo chorus for instruments, 8-stage stereo Phaser, Flanger with adjustable bandwidth. There's a broad palette of high-grade effects at your fingertips. For recording, there is a Compressor / Limiter that gives you control over input signal levels as well as a cabinet simulator for that special guitar amp sound.
Effect List: Limiter, Delay, Pitch, Chorus, Flanger, Phaser, Tremolo + Auto Pan, Delay + Reverb, Chorus + Reverb, Delay / Reverb, Flanger / Reverb, Power Mix, Wide Mix, Boost Mix, Vocal Mix, Mic Simulator, Cabinet Simulator, Rotary, Ring Modulator, Resonance, Li-Fi EFX Vocoder read less
Specs
Preset programs: 363 (11 effects x 3 banks x 11 variations)
Sampling frequency: 44.1 kHz
A/D converter: 18-bit, 64 times oversampling
D/A converter: 18-bit, 8 times oversampling
Line input: 2 x 1/4 in. phone jack, Input impedance 10 kOhm (mono), 20 kOhm (stereo), Reference input level: -10 dBm to +4 dBm
Microphone input: XLR-3-31 / 1/4 in. phone combo jack (Balanced operation)
Input impedance: 4.5 kOhm, pin 2 hot (Unbalanced operation)
Input impedance: 50 kOhm, Reference input level: -56 dBm
Outputs: 2 x 1/4 in. phone jack, Output impedance: 500 Ohm, Reference output level: -10 dBm to +4 dBm
Control input: FS01
Power supply: 100 V, 50/60 Hz
Dimensions: 19 in. x 4.5 in. 1.7 in. (482 mm x 115 mm x 44 mm)
Weight: 4 lb. (1.8 kg)
Supplied accessory: Power cord
Sampling frequency: 44.1 kHz
A/D converter: 18-bit, 64 times oversampling
D/A converter: 18-bit, 8 times oversampling
Line input: 2 x 1/4 in. phone jack, Input impedance 10 kOhm (mono), 20 kOhm (stereo), Reference input level: -10 dBm to +4 dBm
Microphone input: XLR-3-31 / 1/4 in. phone combo jack (Balanced operation)
Input impedance: 4.5 kOhm, pin 2 hot (Unbalanced operation)
Input impedance: 50 kOhm, Reference input level: -56 dBm
Outputs: 2 x 1/4 in. phone jack, Output impedance: 500 Ohm, Reference output level: -10 dBm to +4 dBm
Control input: FS01
Power supply: 100 V, 50/60 Hz
Dimensions: 19 in. x 4.5 in. 1.7 in. (482 mm x 115 mm x 44 mm)
Weight: 4 lb. (1.8 kg)
Supplied accessory: Power cord
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 631-542-5270
Email: info@zoom-na.com
Web: https://zoomcorp.com/en/us/contact/
Phone: 631-542-5270
Email: info@zoom-na.com
Web: https://zoomcorp.com/en/us/contact/
Reviews
Submitted April 29, 2005
Zoom RFX1100 Effects Customer Review
Overall this is a great effects processor with most of the effects you'd expect in this class. If you're a budget musician and are tired of cheap Behringer effects, then this is a good choice for quality reverbs and unique effects.
Sound
The soundquality is good, realistic reverbs and clean sound.
Features
It has many useful effects (like the rind mod, yikes!), but a little lcd display would have been nice. I like the XLR-input in the front, handy for the built in vocoder.
Quality
The finish is smooth, and the knobs are very comfortable and easily tweakable.
Value
I payed 1750 NOK for it, about 200$, and its worth it. More expensive than e.g. Behringer fx-processors with the same features but the RFX-1100 has much better quality effects, suitable for professional recording.
Manufacturer Support
Only judning by their website.. which is ok.
The Wow Factor
The design of the unit is quite clean, the design is black and white, with blue text. Sexy with the analog-feeling knobs.
Musical Background:
Studio owner, producer
Musical Style:
Electronic
10 of 10 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
