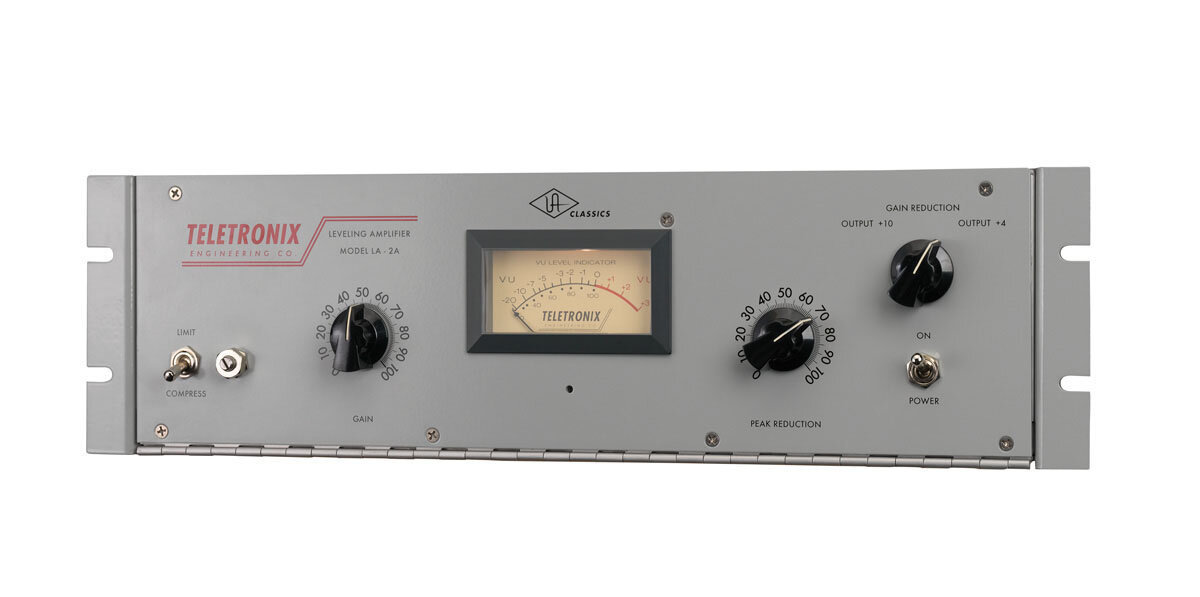

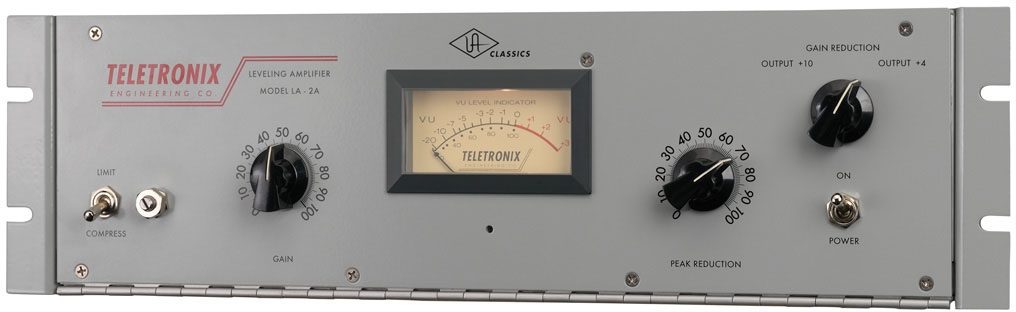

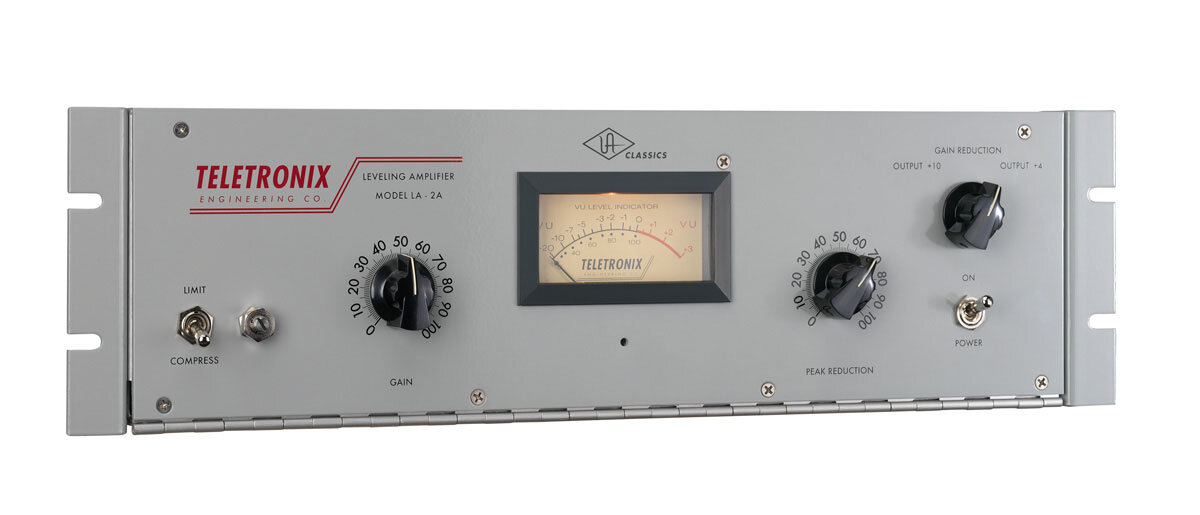

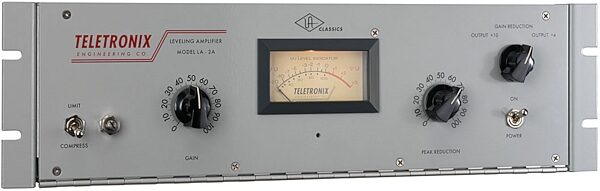

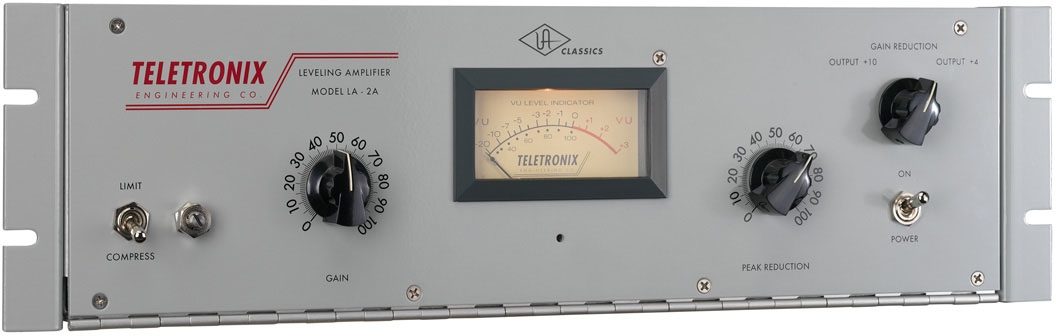

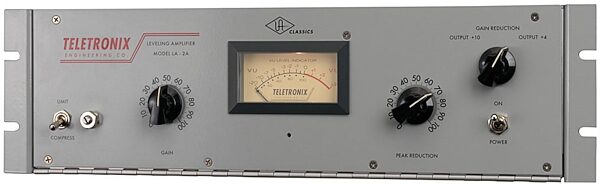

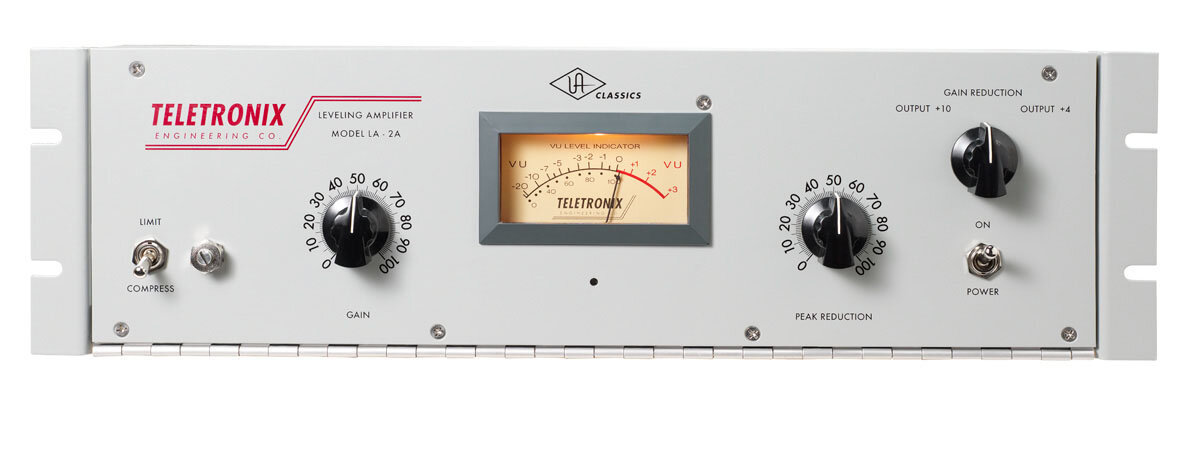

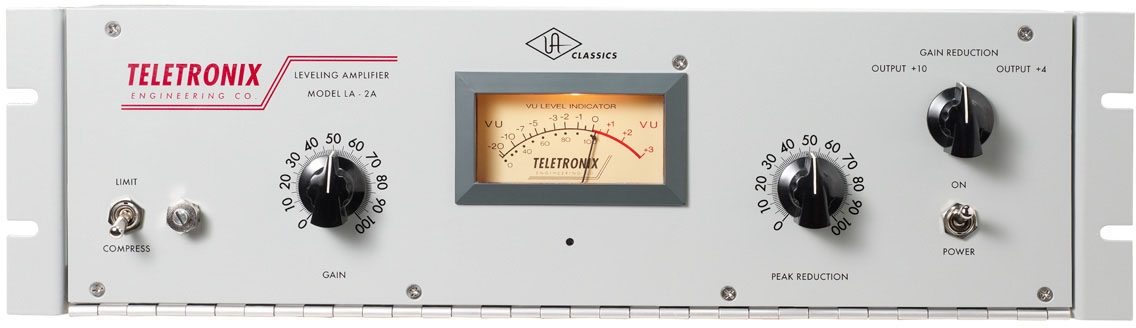

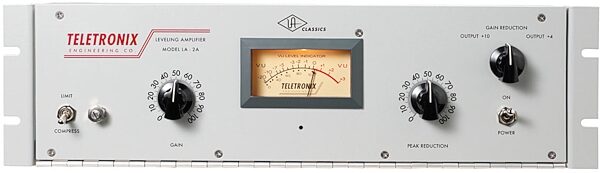

Universal Audio LA2A Classic Leveling Amplifier

No longer available at zZounds
Attention, classic compressor enthusiasts: Universal Audio's LA-2A is true to the original Teletronix in design, manufacturing and performance.

Audio professionals passionate about their compressors revere the LA-2A. The original was immediately acknowledged for its natural compression characteristics. A unique electro-optical attenuator system allows instantaneous gain reduction with no increase in harmonic distortion - an accomplishment at the time, still appreciated today.


- True to the original in design, manufacturing and performance
- Lag free, distortion free optical attenuator system
- Distortion less than 0.5% THD
- 0 to 40 dB gain limiting
- Balanced stereo interconnection
- Frequency response 1 dB, 30 to 15,000 cps
- Output level of 10 dBm and 40 dB gain
- Low noise - less than 70 dB below +10 dBm output

Universal Audio announces the rebirth of the Teletronix LA-2A, a Universal Audio Classics product. Painstaking care has been taken to ensure that every LA-2A provides the performance and characteristics of the original. Each unit is hand built, each component carefully evaluated for authenticity. No expense has been spared to guarantee that this LA-2A will bring that classic sound to your recording. Demand the original. Accept no copy.

- Input Impedance: 50, 150, 250, 600 ohms
- Output Load Impedance: 50, 150, 250, 600 ohms

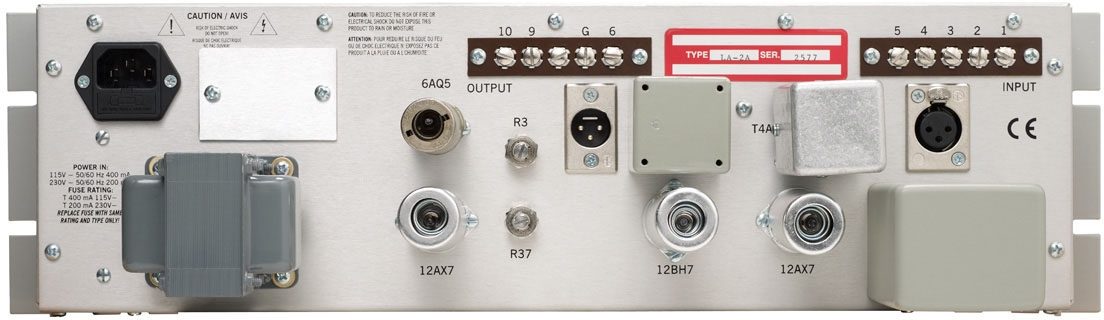

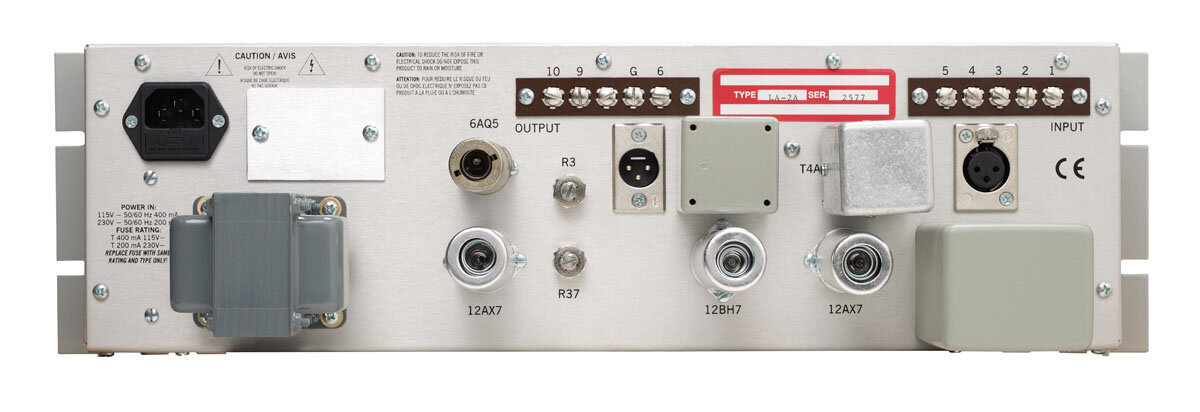

- External Connections: Jones Barrier terminals and XLR connectors
- Frequency Response: +0/-1 dB 30 Hz to 15kHz
- Gain: 40 dB +/-1dB
- Input Level: +16 dB maximum
- Output Level: +10 dB nominal, +16 dB maximum
- Distortion Less: than 0.5% THD (0.25% typical) at +/-10 dBm
- Noise: 70 dB below +10 dBm output level
- Attack Time: 10 milliseconds
- Release Time: 0.06 seconds for 50% release; 0.5 to 5 seconds for complete release
- Meter: dB gain reduction and dB output
- Power Requirements: 35 watts, 120/240 volts, 50/60 Hz
- Environmental: Maximum operating temperature 160*F
- Dimensions: 19-inch Rackmount chassis, 3U
- Weight: 13 lbs.
