Studio Electronics ModMax Filter Pedal

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

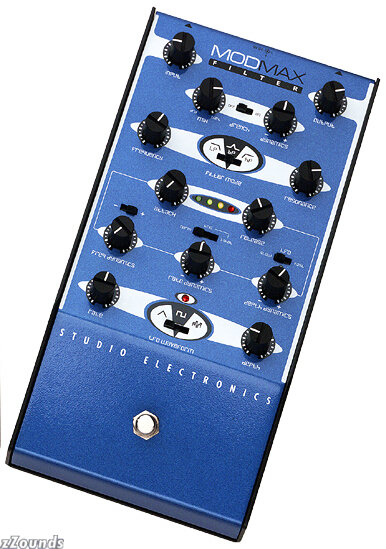

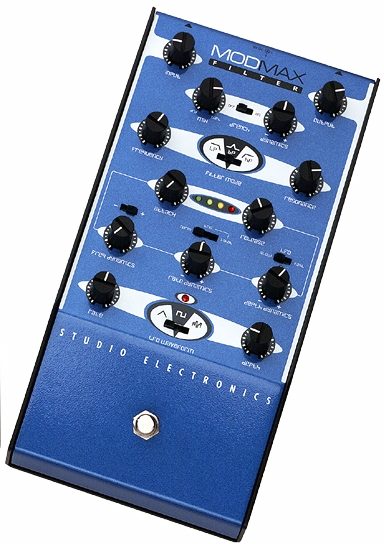

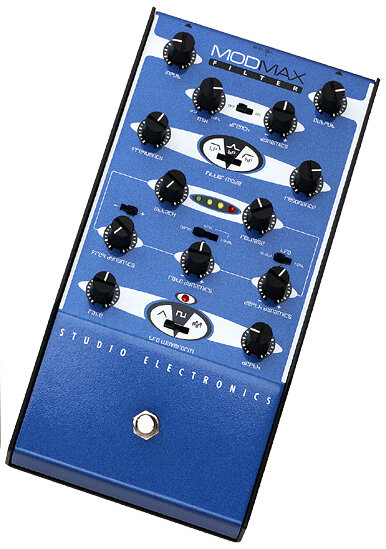

open zoom image for Studio Electronics ModMax Filter Pedal, Main

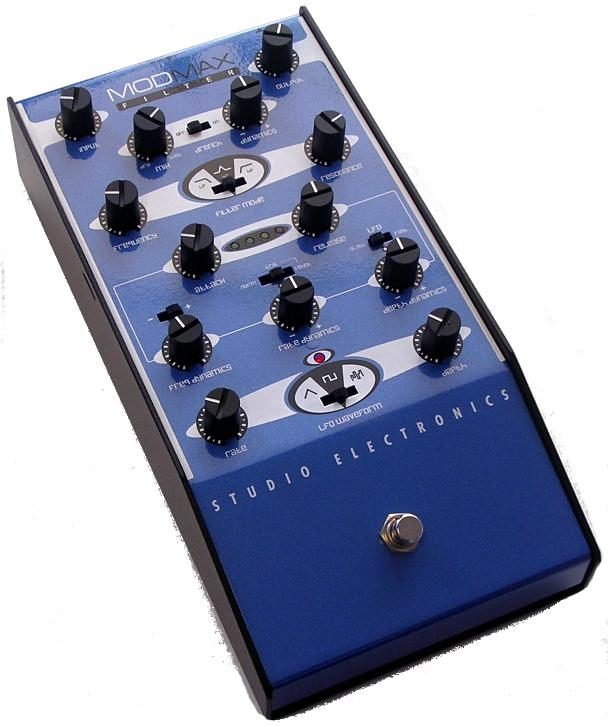

open zoom image for Studio Electronics ModMax Filter Pedal, Alternate
Studio Electronics ModMax Filter Pedal, Main Studio Electronics ModMax Filter Pedal, Alternate
zZounds Gear Experts Say...
High and Band Pass Filter Settings

Who says it has to be a guitar or bass? Let only your desire to imagine... commune with the possible - dictate the inevitable - compel the followers. These Premium Quality Pedals rock the Omega Series potent 12db Filter as only Senior Caswell could. Said to be "the most exciting boxes at the Winter NAMM '03". Freak your source with the Modmax Filter's or square wavy "Effect Soaking" ripped straight outta those juicy ATC-X discrete circuits; Squeeze - as indiscreetly as you please (also irresistible), with the fittingly unforgiving "High and Band Pass Filter Settings". At these prices, the Modmax Filter is truly S.E.'s most approachable Discovery Channels.

13 control potentiometers:

Wide range input for guitars and instruments

Level balancing output

Effect mix 100% dry to 100% wet

Mix dynamics for positive and negative modulation of effect level

Filter cutoff frequency

Resonance

Envelope follower attack

Envelope follower release

LFO rate

LFO depth (A Voltage Controlled Exponential L.F.O.!)

LFO rate dynamics with positive and negative modulation

LFO depth dynamics with positive and negative modulation

Filter frequency dynamics (with positive and negative switch)

6 slide switches:

Effect Soak (Drench) for serious effect level distortion

Filter mode: low pass, band pass, or high pass

Filter dynamics polarity: + or -

LFO rate range: normal to audio frequency

LFO trigger: normal, one shot (for auto-wah), envelope key trigger

LFO waveform: triangle, square, or sample and hold

Face plate necessities:

Effect on/off footswitch with relay bypass

LFO rate LEDs

4 LED envelope threshold indicator)

Back panel jacks:

Input, Output, Power Entry Module for external auto switching 9VDC power supply

For support or warranty questions, please contact the manufacturer:
Phone: 310-640-3546
