Samson AirLine Lavalier Wireless System

No longer available at zZounds
zZounds Gear Experts Say...

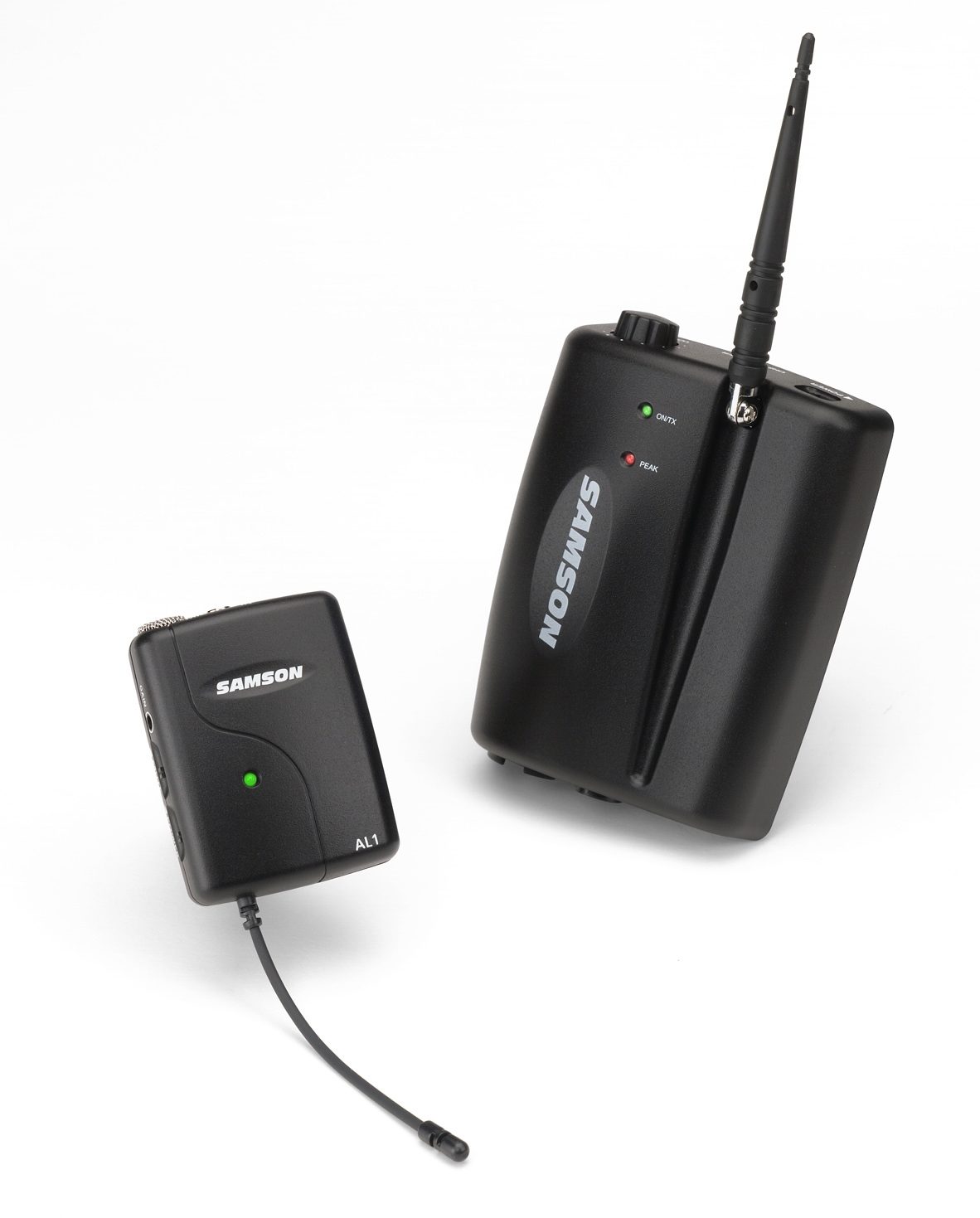

With alligator clip and lanyard. System Includes: AR1 Micro Receiver and AL1 Presentation Transmitter.

AirLine Presentation System
A totally revolutionary idea in lavalier wireless, the AL1 is an all-in-one miniaturized presentation transmitter with a built-in electret condenser microphone! Tiny, the AL1 still has all Power and Mute switches, an Input Level control and a two-function red LED that indicates when the transmitter is on and transmitting signal. Highly flexible, the AL1 lets you use the transmitter's built-in unidirectional electret condenser mic or plug your favorite lavalier mic into the mini input jack. Phantom power is provided for condenser microphones. An alligator clip allows the AL1 to be mounted on a lapel, pocket, or belt. Or you can use the convenient lanyard to wear it around your neck. Featuring the ability to operate on a triple-A battery with 14-hour battery life, AirLine transmitters provide exceptional wireless reception over long ranges. And UHF (Ultra High Frequency) means your wireless system is operating on a clearer frequency band with less interference.

The AirLine system comes standard with the AR1 UHF Receiver featuring both XLR balanced and Õ in. unbalanced outputs and a convenient mounting sleeve.

About Samson Audio
Samson's mission is to create precision audio tools for professionals, all with exceptional sound, a wealth of practical features, and rugged construction to ensure consistent performance and long life in all kinds of applications. Their power amplifiers, equalizers, powered mixers, mixers, specialized products, racklight/power read more distribution systems, microphones, and other unique products to come, are all dedicated to one idea: The art of high technology is best served by making excellence more accessible to everyone.

System Includes: AR1 Micro Receiver and AL1 Presentation Transmitter.
read less

System Includes: AR1 Micro Receiver and AL1 Presentation Transmitter.

Transmitters (AX1, AL1)
Operating Power Voltage: 1.5V Typical, 1.05V Minimum, 2V Maximum

Current Consumption: 60mA Typical

Battery Life: 14 Hours (AAA size battery)

RF Output Power (5mW): -4dB Minimum, +3dB Maximum

Frequency Stability: -40kHz Minimum, 40kHz Maximum

Spurious: 1µW

Modulation Factor: 13kHz Minimum, 15kHz Typical, 17kHz Maximum, Input 1kHz-20dBv

Input Impedance (Mic): 2K ohms

THD: < 2% (1 kHz deviation 15kHz)

Audio Frequency Response: 50Hz - 15kHz (±3.5 dB)

Controls:
AX1 Power Switch, Volume
AL1 Power Switch, Mute Switch Volume

Input:
AX1 XLR (female)
AL1 2.5mm Stereo Jack

Indicators: Power On (LED Flash), Low Battery (LED On)

AR1 Receiver
Receiving Frequencies: USA 801-805MHz (U1-U6), One frequency in Channel Plan

Frequency Type: F3E

Modulation Type: FM

Type of Reception: Single superheterodyne

OSC (Oscillator) System: Crystal controlled OSC (oscillator)

Local Oscillator Frequency: 79MHz Range

Intermediate Frequency: 10.7 MHz

Antenna: 1/4 wave length rod antenna

Operating Distance: 50m (164 ft) receiver in sight
