Samson SWLSCV UHF1 Wireless Headset with QV Vocal Microphone

No longer available at zZounds

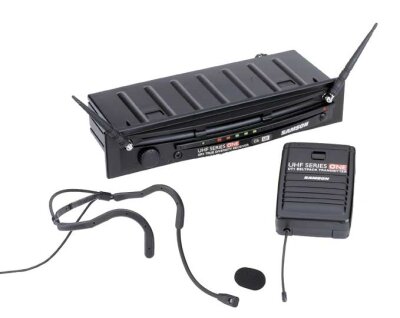

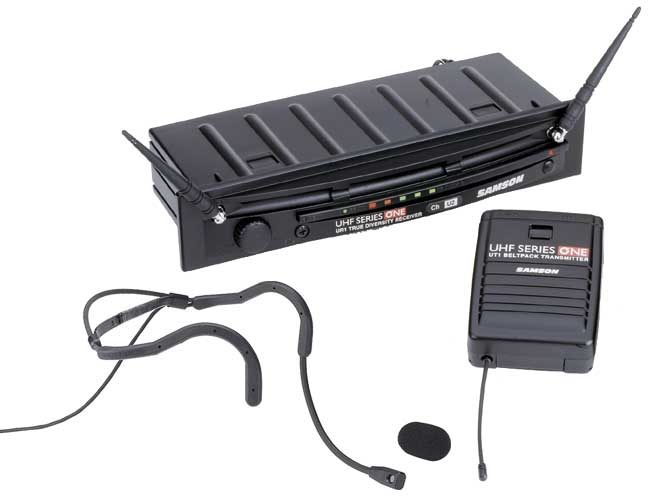

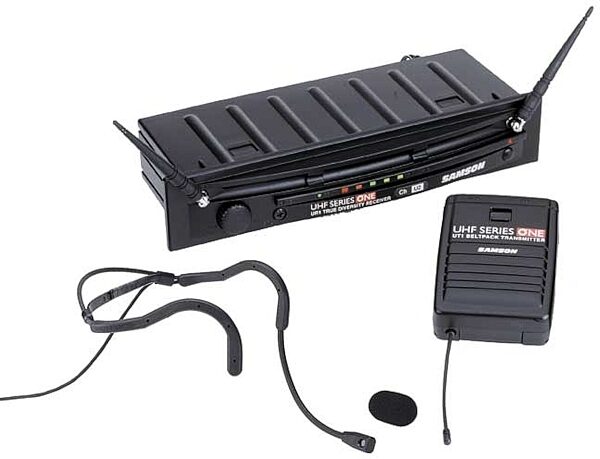

Samson SWLSCV UHF1 Wireless Headset with QV Vocal Microphone, Main

zZounds Gear Experts Say...

Shown with handheld mic and guitar transmitter.Samson QV Headset Mic (included with this system) is not shown.

Overview

This affordable UHF system is the result of Samson's pursuit of high performance and value, delivering the latest in technology for musicians. For the first time, the improved performance of true diversity UHF wireless is available at a price that makes it a practical alternative for speakers, fitness instructors and weekend musicians. True diversity performance means that the receiver actually consists of two internal receivers.

A sophisticated switching system monitors signal levels on each receiver and instantly, silently switches to the strongest signal. Features include balanced 1/4 inch and XLR outputs, a multi-segment level meter that shows the strength of the UHF signal being received, squelch control for increased noise elimination, and a selection of transmitter for every application.

Features
Advanced wireless circuitry for super-reliable RF reception

Detachable 3-pin connector for lavalier and headset mics that locks into position to reduce cable connection problems

Rugged, triple-strength cable strain relief on instrument beltpack transmitter

Receiver features a front panel 5-Segment Audio Level Meter

Balanced XLR and unbalanced 1/4 inch outputs with Mic/Line switch

Extended 18-hour transmitter battery life with 3-Segment LED Battery Life Meter

300 ft. minimum distance transmission range.

Wide selection of popular mic elements to choose from

Samson noise reduction for whisper-quiet performance

6 available channels

3-year limited warranty

Specs

System Specifications
Channels: 6

Frequency Type: F3

Modulation Type: FM

Noise Reduction Type: Compander/Expander

Distance: 300 feet

Transmitter (UH1, UT1L, UT1G)
Oscillation Type Direct PLL

Pre-emphasis 50 microseconds

Antenna:
- UH1 Integral Antenna
- UT1L / UT1G 1/4 Wave Length Wire (Pig Tail)

Input (UT1L) TB3M Switchcraft Connector

Maximum Input Level 3 V p-p

Battery Duracell MN1604 9-volt alkaline

Operating Temperature -20 degrees C / 55 degrees C

Switches / Controls Power ON/OFF, Audio ON/OFF
- UH1 Mic Level Volume
- UT1L / UT1G Audio Level

Display (LED) Battery Low/Mid/High (corresponds to <5.3 V / 5.3 - 7 V / >7V)

Operating Voltage 9 Volts +20% / -40%

Current Consumption 47 mA

RF Power 10 mW

Frequency Stability +/- 20 kHz

Spurious Ratio 2.5 nW

Deviation 20 kHz (16.5 kHz - 23.5 kHz)

T.H.D. (Overall) 0.5% (3% max) (@AF 1 kHz, RF 46 dBu)

AF Frequency Response 50 Hz - 15 kHz (+/- 3 dB overall)

Battery life 12 hours

Receiver (UR1):
Oscillation Type Crystal Controlled

De-emphasis 50 microseconds

IF Frequency 10.7 MHz

Antenna 1/4 Wavelength Rod

In/Out DC Inlet, Balanced Output, Unbalanced Output

Display (LED) Receiver A/B (Green), Power On (Red), Peak (Yellow), RF Level (5 pc)

Level Control Audio Level Volume, Mute Level Control
Operating Temperature 0 degrees C / 50 degrees C Operating Voltage 12 Volts +/- 10%

Current Consumption 170 mA (at all LED lights)

Receiving Frequency Range 801 - 805 MHz

Sensitivity: 18 dBu (@ THD 2%)

Squelch Sensitivity: 0 - 40 dBu (Adjustable)

Selectivity ±150 kHz (AF Out Ratio -60 dB)

T.H.D. (Overall) 1% Max (@AF 1 kHz, RF 46 dBu)

S/N Ratio (Overall) 90 dB (w/IHF-A Filter)

Residual Noise 90 dBv (w/IHF-A Filter)

Band Mute +/- 40 kHz / +/- 100 kHz (RF IN: 46 dBu EMF)

AF Frequency Response 50 Hz - 15 kHz (+/- 3 dB overall)

Audio Output Level - Unbalanced 0 dBv

Audio Output Level - Balanced -20 dBm (Line), -40 dBm (Mic)

Audio Output Impedance - Unbalanced 5 k Ohms

Audio Output Impedance - Balanced 600 Ohms
