RFX 412 Stereo Volume CV Pan Pedal

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

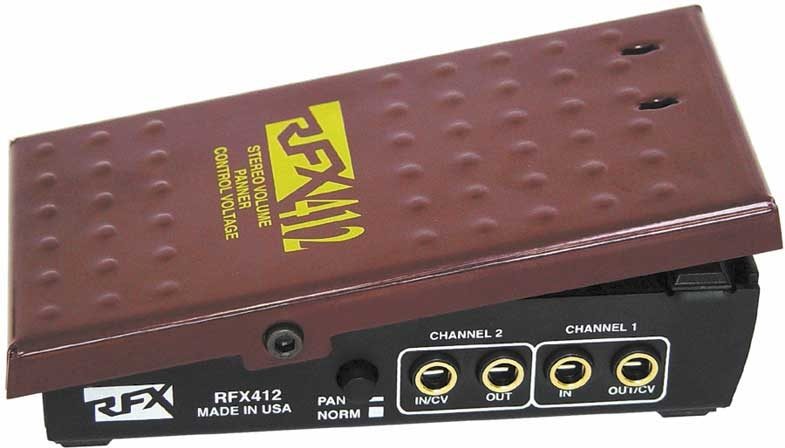

RFX 412 Stereo Volume CV Pan Pedal, Main
RFX 412 Stereo Volume CV Pan Pedal, Main
RFX 412 Stereo Volume CV Pan Pedal, Main RFX 412 Stereo Volume CV Pan Pedal, Main
Use tas either a mono or stereo volume pedal, a control voltage/expression pedal, or a stereo panning pedal.

RFX 412 Stereo Volume CV Pan Pedal
Use this American-made pedal as either a mono or stereo volume pedal, a control voltage/expression pedal, or a stereo panning pedal. The 412 features new, heavy, rugged steel construction but is compact for easy storage and transport. Covered by a full 1 year warranty.

The RFX412 is a compact yet rugged heavy steel (.090CRS) Stereo Volume pedal with the added features of Panning and Voltage Control (100k ohms resistance). The unit is ideal for guitarists and keyboardists who need to control the level of their stereo signal and the CC inputs on the RFX1288. The panning feature takes in a mono signal and pans it to either of the outputs. Many keyboards have expression pedal inputs requiring resistance controllers to vary certain functions - the RFX412 covers all these needs.

Specifications

Maximum Resistance: 100K ohms +/-30%

Jacks: 4 x 1/4 in. unbalanced phone jacks, 2 per channel

Control Wattage Rating: 0.1 watts

Size: 6.5 in. x 3.5 in. x 1.7 in.

Weight: 2 lbs.

For support or warranty questions, please contact the manufacturer:
Phone: 801-263-9053

Reviewers gave this product an overall rating of 4.5 out of 5 stars. (4 ratings)
Submitted December 22, 2010 by a customer from cablelynx.com

"This pedal works great for me."

Overall: 4.5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
I have been using these pedals for over six years since they first came out as the 402P and the later improvement, 412. I have never had a pivot failure, only resistor whear and wiper arm wire failure. If I am playing a 4 Hr gig, it is used for 4 hours, I am very dependant on this pedal in my setup. I use it to switch seamlessly between clean and distorted tones.
Sound
Passes sound with no problems
Ease of Use
No brainer just make sure of which setting you are using, pan or volume.
Quality
Metal but a little fragile. I always carry a spare because the wiper arm wire can break mid-gig.
Value
For the money it has been great.
Manufacturer Support
I have dealt with support on several occasions and they have been very eager to help. They even sent me some replacement wiper arm wires NC whe I called them for a replacement.

Musical Background:

Active Musician

Musical Style:

Classic Rock
1 of 1 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
Rate and Review this Product
Read more reviews

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
