zZounds Gear Experts Say...
Get serious about low end with the RCF SUB-808-AS, a remarkably compact dual-8-inch high-performance subwoofer that fills the room with rich bass.

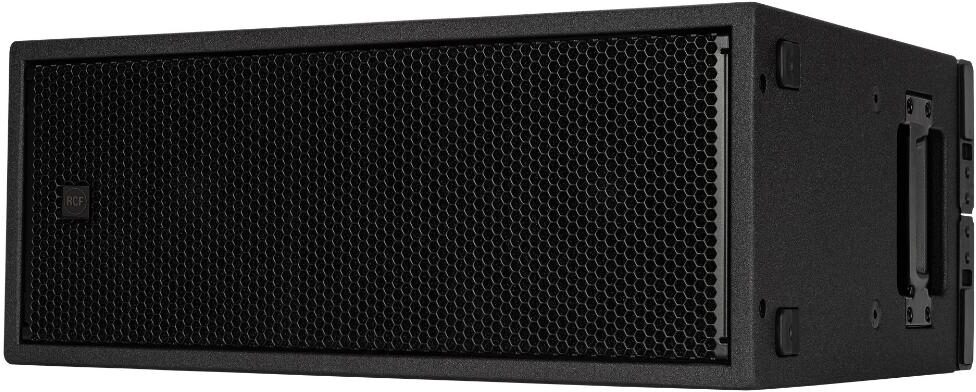

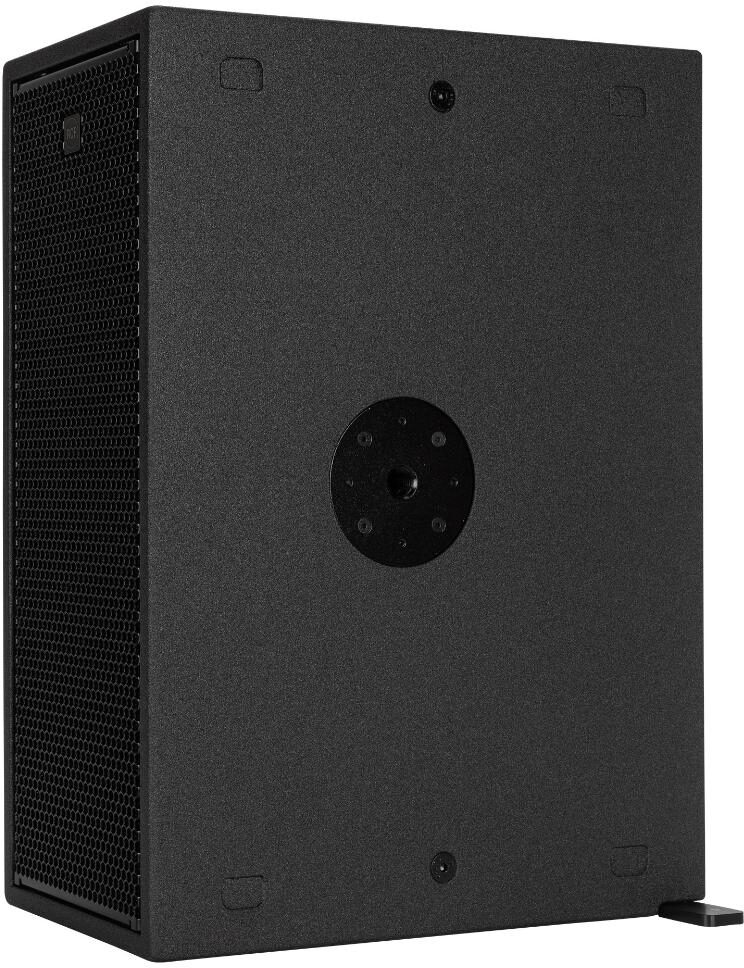

SUB 808-AS is a compact low-profile high-performance active subwoofer. It features two vented-loaded 8" cone woofers powered by a 2000 Watts two-channel amplifier -one for each woofer- on a baltic birch plywood cabinet painted with polyurea and weatherproof treatment. Management and tuning are available via RDNet software. The cabinet features rubber feet on two sides and two threaded pole-mounts for horizontal and vertical placement. Two stabilizing brackets make the vertical placement stable and firm. SUB 808-AS can be used stand-alone, in subwoofer arrays, or as the low-frequency complement for KX 515-A speaker.

The SUB 808-AS includes high-end AD/DA conversion up to 96 kHz - 32-bit floating-point, and onboard DSP for the best sound quality. Thanks to the proprietary RDNet networked management and control, every KX speaker provides in-depth remote monitoring through multiple sensors. The system engineer has immediate feedback of transducer status, fan speed, temperature, VU meters, limiters and much more.

The high-powered Class-D amplifiers, tailored for each transducer, deploy pristine sound with efficient heat dissipation at the lowest possible distortion, along with low power consumption.

Features:

- 129 dB max SPL
- 40 Hz to 400 Hz frequency range
- 2 x 8'' neodymium woofers, 2.5" voice coil
- 2000 W Class-D Amplifier
- RDNet Networked Management
- Bass Motion Control excursion management
- powerCON TRUE1 TOP mains connectors

- Acoustical specifications:
- Frequency Response: 40 Hz / 400 Hz
- Max SPL @ 1m: 129 dB
- Transducers:
- Woofer: 2 x 8'' neo, 2.5'' v.c

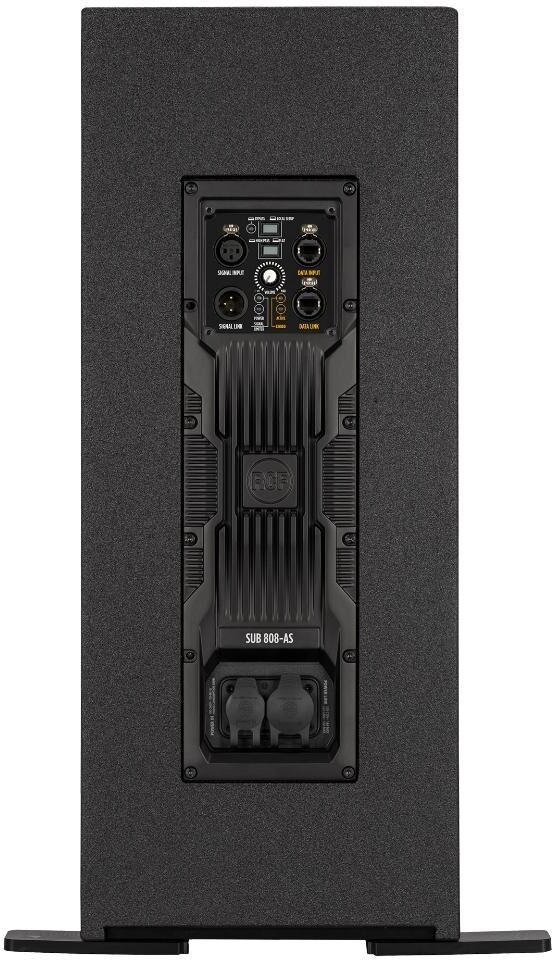

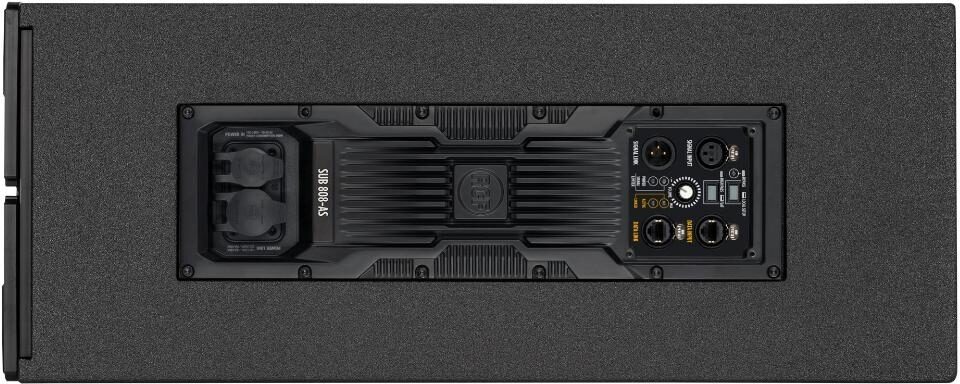

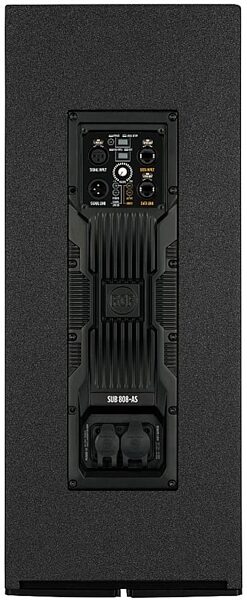

- Input/Output section:
- Input signal: bal/unbal
- Input connectors: XLR, RDNet Ethercon
- Output connectors: XLR, RDNet Ethercon
- Input sensitivity: -2 dBu/+4 dBu

- Processor section:
- Protections: Excurs.
- Limiter: Fast Limiter
- Controls: Volume
- RDNet: Onboard

- Power section:
- Total Power: 2000 W Peak
- Low frequencies: 2000 W Peak
- Cooling: Convection
- Connections: Powercon TRUE1 TOP IN/OUT

- Standard compliance:
- Safety agency: CE compliant

- Physical specifications:
- Cabinet/Case Material: Baltic birch plywood
- Hardware
- 2X M20 TOP AND SIDE
- 8X M10 2X SIDE
- Handles: 1 X SIDE
- Pole mount/Cap: 35 mm insert
- Grille: Steel with clothing

- Size / Weight:
- Height: 243.5 mm / 9.59 inches
- Width: 603.5 mm / 23.76 inches
- Depth: 430 mm / 16.93 inches
- Weight: 20 kg / 44.09 lbs

- Shipping information:
- Package Height: 290 mm / 11.42 inches
- Package Width: 480 mm / 18.9 inches
- Package Depth: 650 mm / 25.59 inches
- Package Weight: 21 kg / 46.3 lbs

Dimensions and Weight in Packaging

Black

  • Shipping Weight: 56.6 lbs
  • Shipping Dimensions: 28 x 19 x 12 in
  • Manufacturer Part Number (MPN): SUB-808-AS

White

  • Shipping Weight: 58.2 lbs
  • Shipping Dimensions: 28 x 19 x 12 in
  • Manufacturer Part Number (MPN): SUB-808-AS-W
