RCF KX515-A 2-Way Point-Source Active Speaker

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

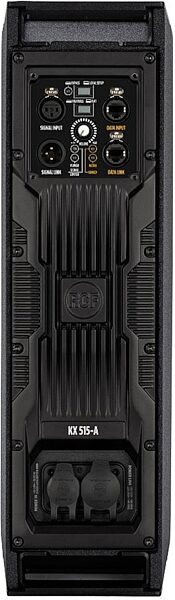

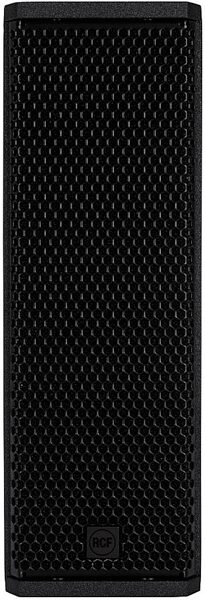

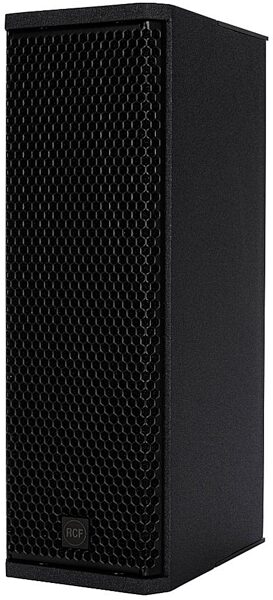

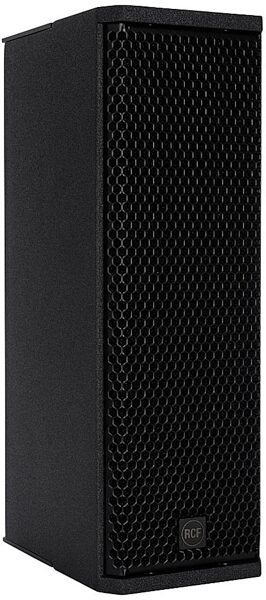

open zoom image for RCF KX515-A 2-Way Point-Source Active Speaker, Black, Action Position Back
open zoom image for RCF KX515-A 2-Way Point-Source Active Speaker, Black, Action Position Back
open zoom image for RCF KX515-A 2-Way Point-Source Active Speaker, Black, Action Position Back
open zoom image for RCF KX515-A 2-Way Point-Source Active Speaker, Black, Action Position Back
RCF KX515-A 2-Way Point-Source Active Speaker, Black, Action Position Back RCF KX515-A 2-Way Point-Source Active Speaker, Black, Action Position Back RCF KX515-A 2-Way Point-Source Active Speaker, Black, Action Position Back RCF KX515-A 2-Way Point-Source Active Speaker, Black, Action Position Back
zZounds Gear Experts Say...
Need a lot of audio in a tight space? The RCF KX515-A speaker delivers in spades with clarity, power, and controlled dispersion.

Flexibility, power, and compactness make the KX 515-A ideal for installed and portable professional applications where size and weight are critical factors. This approach combines the advantages of RCF technology such as controlled dispersion, outstanding clarity and extreme power, multiple flexible rigging accessories, weatherproof protection, and RDNET real-time monitoring and management software with recallable presets.

Its transducer configuration pairs two custom-loaded 5-inch cone drivers to a rotatable CMD waveguide surrounding a titanium 1.75-inch high-frequency compression driver. Whether it's used as a compact main system, as fills, or surrounds in a larger system, KX 515-A is quick to deploy and fast to tune.

Features:

- 127 dB max SPL
- Rotatable 100* x 70* CMD horn
- LF 2 x 5" neodymium woofer, 2" voice coil
- HF 1.75" titanium dome, neodymium comp. driver
- 2 x Class-D amplifiers, 2000 Watts total power
- DSP Processing with FiRPHASE and BMC
- RDNet Networked Management
- powerCON TRUE1 TOP mains connectors

- Acoustical Specifications:
- Frequency Response: 70 Hz / 20000 Hz
- Max SPL @ 1m: 127 dB
- Horizontal coverage angle: 100*
- Vertical coverage angle: 70*

- Transducers:
- Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
- Woofer: 2 x 5.0'' neo, 2.0'' v.c

- Input/Output section:
- Input signal: bal/unbal
- Input connectors: XLR, RDNet Ethercon
- Output connectors: XLR, RDNet Ethercon
- Input sensitivity: -2 dBu/+4 dBu

- Processor section:
- Crossover Frequencies: 1200
- Protections: Excurs.
- Limiter: Fast Limiter
- Controls: Bypass, Linear/High Pass, Volume
- RDNet: Onboard

- Power section:
- Total Power: 2000 W Peak
- High frequencies: 600 W Peak
- Low frequencies: 1400 W Peak
- Cooling: Convection
- Connections: Powercon TRUE1 TOP IN/OUT

- Standard compliance:
- Safety agency: CE compliant

- Physical specifications:
- Cabinet/Case Material: Baltic birch plywood
- Hardware:
- 2X M10 TOP AND BOTTOM
- 2X PIN D.10
- Handles: 2 TOP AND BOTTOM
- Pole mount/Cap: Quick-fit socket
- Grille: Steel with clothing

Dimensions and Weight in Packaging

Black

  • Shipping Weight: 26.2 lbs
  • Shipping Dimensions: 22 x 12 x 8 in
  • Manufacturer Part Number (MPN): KX515-A

White

  • Shipping Weight: 26.25 lbs
  • Shipping Dimensions: 22 x 12 x 8 in
  • Manufacturer Part Number (MPN): KX515-A-W
