zZounds Gear Experts Say...

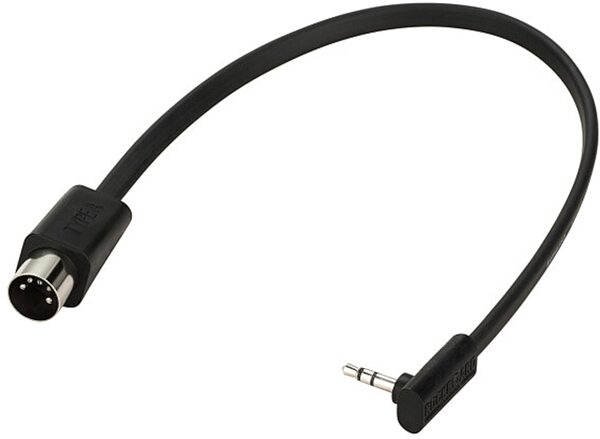

Integrate MIDI into your pedalboard with this RockBoard cable, featuring one flat 1/8" TRS plug and a 5-pin DIN MIDI connector on the other end.

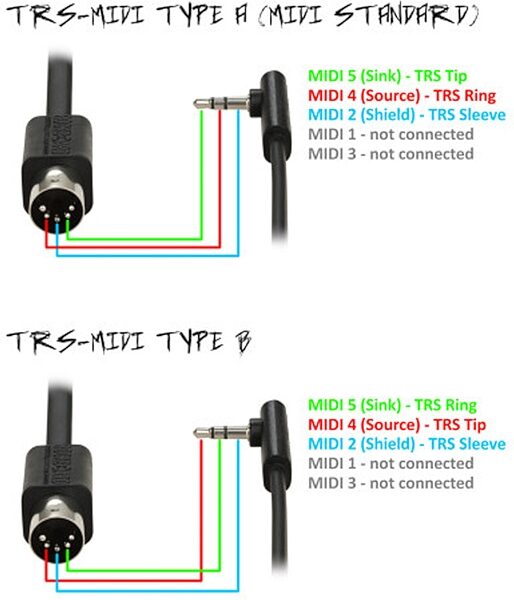

The Flat TRS to MIDI Cable features a rectangular profile and is classified as TRS-MIDI Type A, adhering to the MIDI standard. Its pin assignment includes MIDI 5 (Sink) to TRS tip, MIDI 4 (Source) to TRS ring, MIDI 2 (Shield) to TRS sleeve, with MIDI 1 and MIDI 3 not connected. The flat rectangular design prevents cable breakage and jams. It has a compact straight DIN 5-pin plug to a flat angled 3.5 mm stereo jack plug (TRS). The cable is 30 cm (11 13/16") long and comes in black.

Features:

- Flat TRS to MIDI cable with a Rectangular Profile
- Classification: TRS-MIDI Type A (MIDI standard)
- Pin Assignment: MIDI 5 (Sink) - TRS tip, MIDI 4 (Source) - TRS ring, MIDI 2 (Shield) - TRS sleeve, MIDI 1 and MIDI 3 - not connected
- Flat Rectangular Cable Prevents Cable Breakage and Cable Jams
- Compact Straight DIN 5-pin plug to flat angled 3.5 mm Stereo Jack Plug (TRS)
- Compatible with Devices from Boss, Empress, Korg, Akai, MOD, Make Noise and Many More
- Length: 30 cm (11 13/16")
- Black
- Note: Boss, Empress, Korg, Akai, MOD and Make Noise are the trade names, trademarks or service marks of their respective owners.

- Connector 1: 3.5mm TRS stereo jack (angled)
- Connector 2: 5-Pin DIN male (straight)
- Cable Type: Flat with rectangular cross-section
- Conductor Material: Oxygen free copper
- Conductor Count: Flexible oxygen free copper conductors 5 x 7 x 0.12 mm
- Jacket Material: PVC
- Color: Black

Dimensions and Weight in Packaging

30 centimeter, Type A

  • Shipping Weight: 0.06 lbs
  • Shipping Dimensions: 5 x 5 x 1 in
  • Manufacturer Part Number (MPN): RBO CAB F TMA 30 BK

30 centimeter, Type B

  • Shipping Weight: 0.06 lbs
  • Shipping Dimensions: 5 x 6 x 1 in
  • Manufacturer Part Number (MPN): RBO CAB F TMB 30 BK

60 centimeter, Type A

  • Shipping Weight: 0.08 lbs
  • Shipping Dimensions: 6 x 5 x 1 in
  • Manufacturer Part Number (MPN): RBO CAB F TMA 60 BK

60 centimeter, Type B

  • Shipping Weight: 0.08 lbs
  • Shipping Dimensions: 6 x 4 x 1 in
  • Manufacturer Part Number (MPN): RBO CAB F TMB 60 BK
