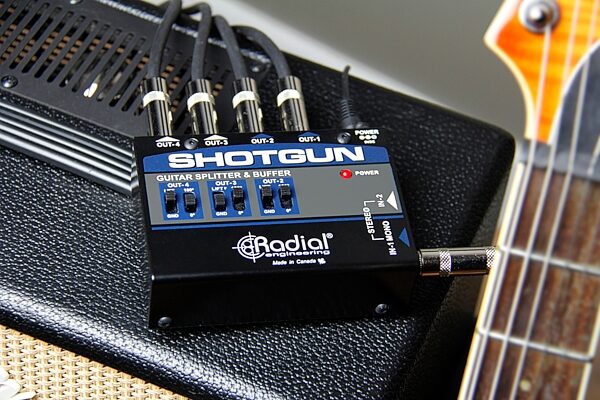

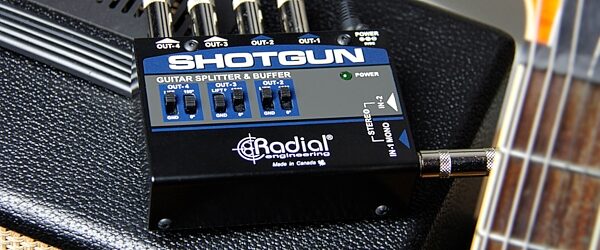

Radial Engineering Shotgun 4 Output Guitar Splitter
zZounds Gear Experts Say...
Maximize your rig potential with this four-output splitter, making it possible to drive multiple amps cleanly and in phase without issues from ground loops.
Overview

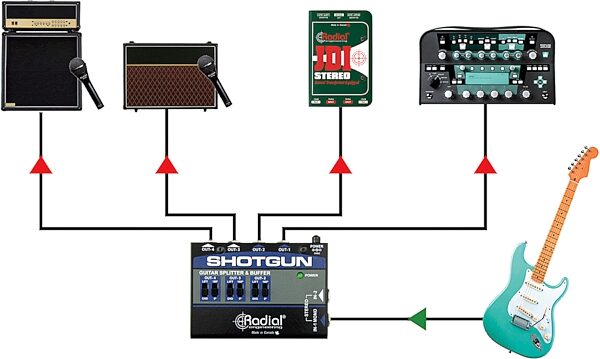

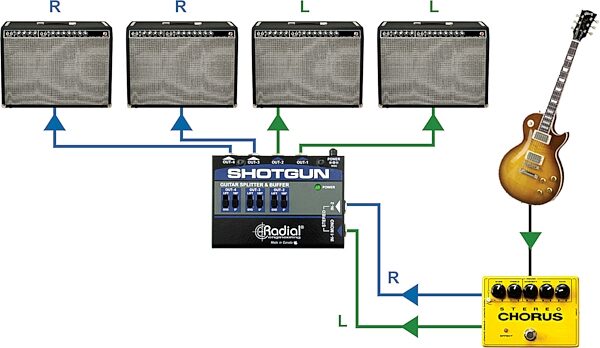

The Shotgun makes it easy to drive multiple amplifiers cleanly and in phase without buzz or hum from ground loops. In mono operation, connect to input-1 of the Shotgun and you can feed up to four amps simultaneously. For stereo setups, the Shotgun automatically reconfigures when both inputs are used; feeding input-1 to the first two amplifiers, and input-2 to the second pair. Isolation transformers and ground lifts are included on the outputs to eliminate ground loop noise, along with 180 degrees polarity reverse switches to ensure all amps are phase-matched.
- Automatic mono or stereo routing with dual inputs
- Built-in isolation transformers and ground lifts to eliminate hum
- 180 degrees polarity switches for proper phase alignment across amps
Features:
- Drive up to four amps at once with clean, noise-free signal- Automatic mono or stereo routing with dual inputs
- Built-in isolation transformers and ground lifts to eliminate hum
- 180 degrees polarity switches for proper phase alignment across amps
Specs
- Audio circuit type: Buffered signal distribution with 3 isolated outputs
- Frequency response: 20Hz ~ 20kHz
- Dynamic range: 92dB
- Gain: 0dB/-0.2dB
- Clip Level: +4dBu
- Total harmonic distortion: <0.02% @ -20dB
- Intermodulation Distortion: ~0.02%
- Input Impedance: 220K
- Output Impedance: 1.8K
- Equivalent Input Noise: -90dBu
- Noise Floor: -86dBu
- Maximum Input: +20dBu
- Frequency response: 20Hz ~ 20kHz
- Dynamic range: 92dB
- Gain: 0dB/-0.2dB
- Clip Level: +4dBu
- Total harmonic distortion: <0.02% @ -20dB
- Intermodulation Distortion: ~0.02%
- Input Impedance: 220K
- Output Impedance: 1.8K
- Equivalent Input Noise: -90dBu
- Noise Floor: -86dBu
- Maximum Input: +20dBu
Dimensions and Weight in Packaging
Base Item
- Shipping Weight: 1.3 lbs
- Shipping Dimensions: 6 x 4 x 3 in
- Manufacturer Part Number (MPN): R800 7215
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 604-942-1001
Web: https://www.radialeng.com/contact/service-repair
Phone: 604-942-1001
Web: https://www.radialeng.com/contact/service-repair
