Radial Engineering Headlight Four Output Amp Selector

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

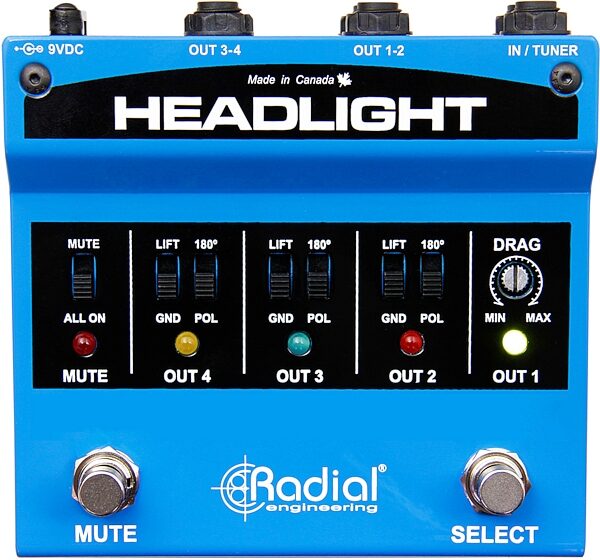

open zoom image for Radial Engineering Headlight Four Output Amp Selector, New, Main
Radial Engineering Headlight Four Output Amp Selector, New, Main
zZounds Gear Experts Say...
Whether you are A/B testing amps in the studio or live switching on the road, this compact amp selectors sends output to four different amps at once!

The Radial Headlight is a compact guitar amp selector that allows up to 4 amplifiers to be selected using a single footswitch The Headlight It has a compact footprint that will fit on any pedalboard, but it's still powerful enough to drive up to four amplifiers without sacrificing on tone.

The input features a class-A buffer along with Drag Control load correction that allows you to optimize the impedance for your pickups and recreate the feel of plugging your guitar directly into an amp. Custom transformers isolate the outputs to prevent buzz and hum from ground loops, with ground lift switches to further alleviate noise problems. Should you really want to get loud, the mute footswitch can be configured as an 'all on' switch, activating all four amp outputs simultaneously.

Features:

- 180 degrees polarity reverse, Ground lift, Drag Control
- 9V adaptor / 80mA (Center Pin Negative) Power
- 30Hz - 30kHz Frequency response
- 116dBu Dynamic Range

- Audio circuit type: Classic Class-A FET
- Frequency response: 30Hz - 30kHz
- Dynamic range: 116dBu
- Gain: -0.5dBu
- Clip Level: +7dB
- Total harmonic distortion: 0.01%
- Intermodulation Distortion: 0.02%
- Phase Deviation: -1.35 degrees @ -20dBu / 1kHz
- Input Impedance: 20k to 1Mohms
- Output Impedance: 1kohms
- Noise Floor: -112dBu
- Maximum Input: +8dB
- Input Connectors: 1/4"
- Output Connectors: 1/4"
- Construction: 14-Gauge Steel
- Size (L x W x D): 5" x 4.7" x 2"
- Weight: 2lb
- Shipping size (L x W x D): 6.5" x 5.1" x 2.5"
- Shipping weight: 2.4lb
- Power: 9V adaptor / 80mA (Center Pin Negative)
- Conditions: For use in dry locations only between 5 degreesC and 40 degreesC
- Warranty: Radial 3-year, transferable

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 2.16 lbs
  • Shipping Dimensions: 7 x 5 x 3 in
  • Manufacturer Part Number (MPN): 6761010 4424 5

For support or warranty questions, please contact the manufacturer:
Phone: 604-942-1001
Web: https://www.radialeng.com/contact/service-repair

Be the first to rate and review this product.

New

$299.99
