Carrier Frequency Range: UHF 530-580 MHz
Frequency Stability: 0.003%
Operating Range: 328ft. Line-of-sight
Dynamic Range: >105 dB
Frequency Response: 50 Hz-18 kHz
Audio Output Level: 1/4 interface: 0-500 mV; XLR interface: 0-500 mV
Working Distance: 100 m/328 ft
XLR Interface: 0-500 mV
Operating Temperature: -10 C- ~ +50 C-

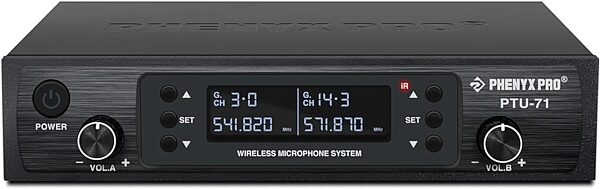

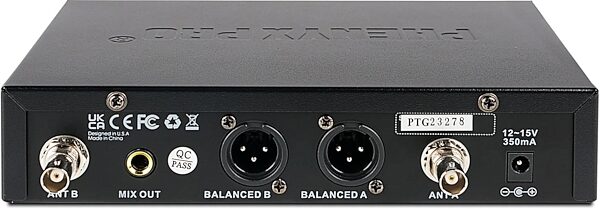

Receiver:
Output Impedance: XLR connector: 2000
RF Sensitivity: -105 dBm
Image Rejection: >110 dB
Spurious Rejection: >90 dB
Power: 5 W
Power Requirement: DC 12-15 V, Current: 300 mA, Extemal power adaptor
Dimension: 210 mm x 160 mm x 45 mm (H x W x D)
Weight: 775 g (27.3 oz)

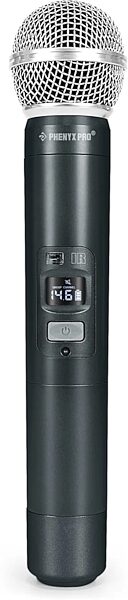

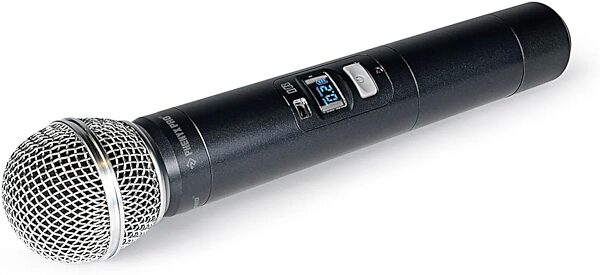

Handheld & Bodypack Transmitter:
Modulation Mode: FM
Maximum Deviation: 75 kHz
Handheld Dimension: 249 mm x 51 mm (9.8 - 2 in)
Handheld Weight: 306 g (10.8 oz) (without batteries)
Power Requirement: 2 AA alkaline batteries (for each transmitter)
Battery Life: At least 8 hours with original batteries included.

Frequency List:
PWR-71: Each channel has 100 frequencies with 0.25 MHz increment.
Channel 1: 536.57 - 561.32 MHz
Channel 2: 562.37 - 587.12 MHz

Dimensions and Weight in Packaging

Base Item

• Shipping Weight: 6.46 lbs
• Shipping Dimensions: 18 x 14 x 4 in
• Manufacturer Part Number (MPN): PTU-71-2H

Consumer Alert

Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
