Overall System:
Frequency stability: -0.003%
Dynamic range: >105dB
Operation temperature: -10 -C to 50 -C
Frequency response: 50Hz - 18kHz
Audio output level: 1/4 interface: 0 - 500 mV;
XLR interface: 0-500mV
Working distance: 80M/260ft

Receiver:
Oscillation mode: PLL Synthesized
Power consumption: >7W
Output impedance: XLR connector:200 ohm.
Antenna connector: 50 ohm
RF sensitivity: -105 dBm
Image rejection: >100 dB
Spurious rejection: >90 dB
Power requirement: DC 12 - 15V, Current 1000mA, External power adapter

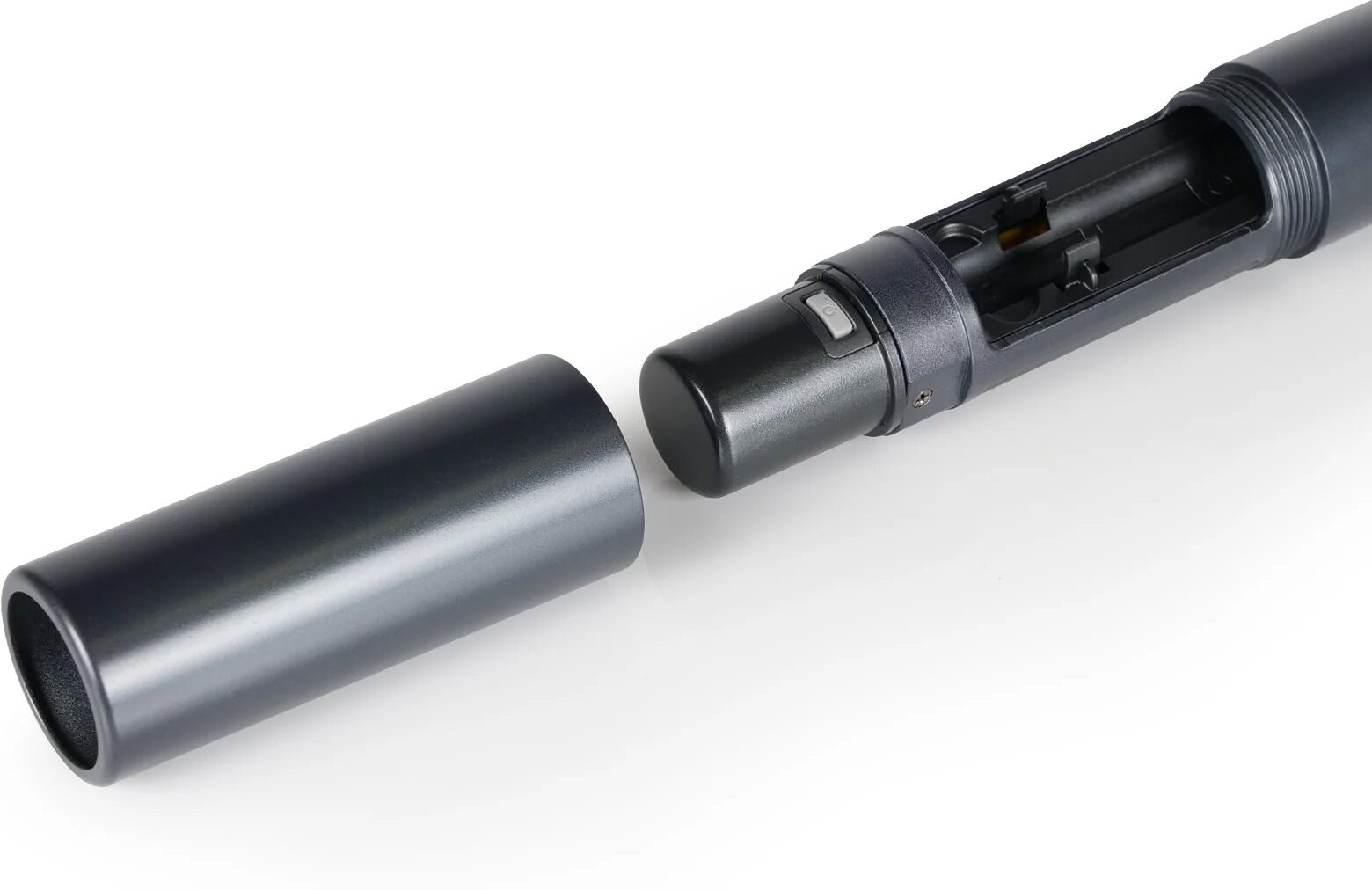

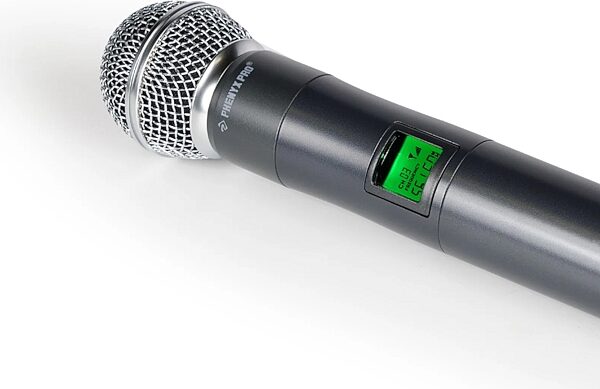

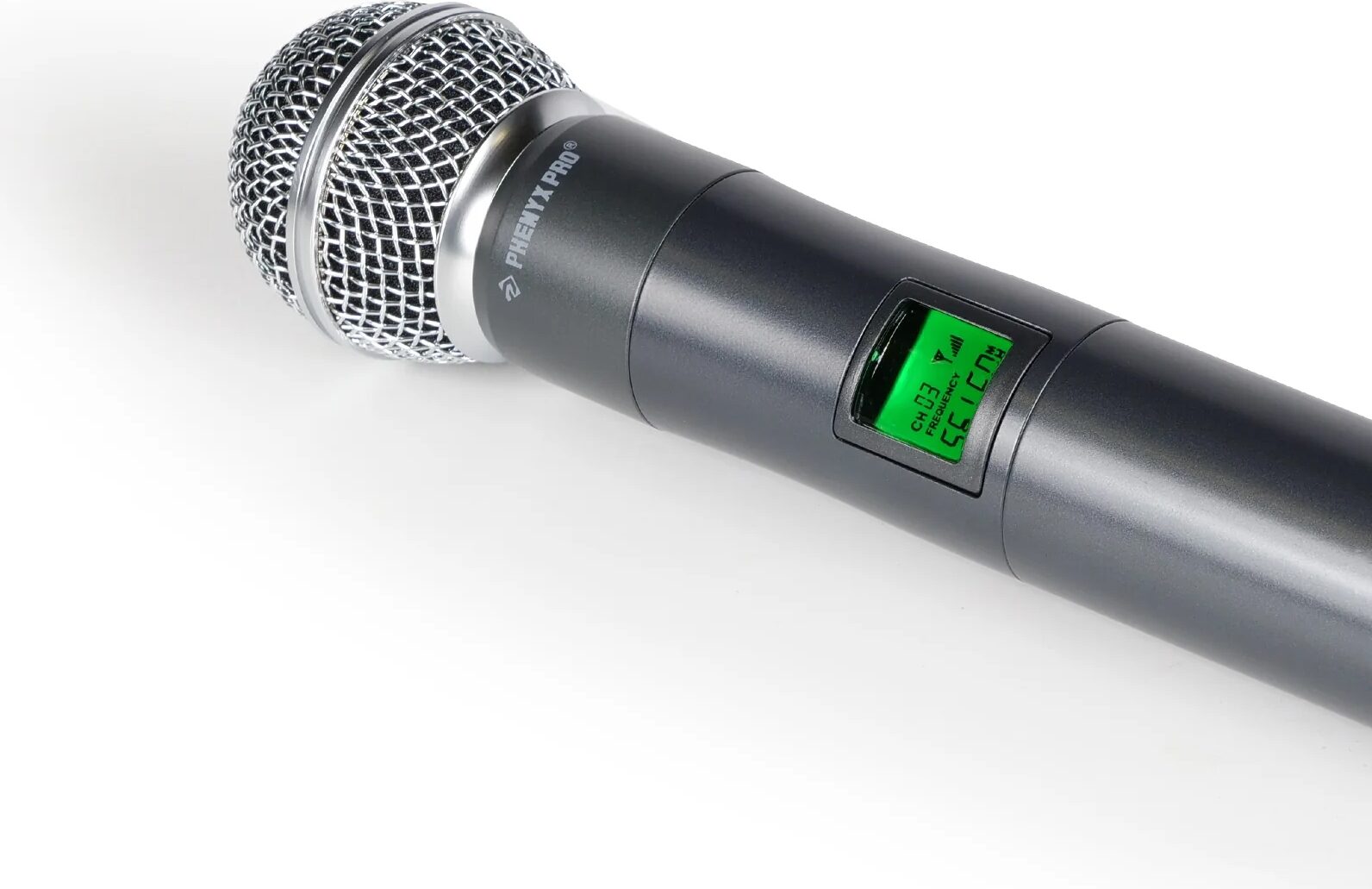

Handheld & Bodypack Transmitter:
Audio input level: Gain: 0dB; -20 dBV maximum-10dB; -0 dBV maximum
Gain adjustment range: 10dB
Power requirement: 2 AA size alkaline batteries for each transmitter
Battery life: At least 8 hours with original batteries for each transmitter

Frequency List:
PWR-5000
Channel and frequency: Compatible antenna
Channel 1: 541.90MHz ANTB-500
Channel 2: 546.30MHz ANTB-500
Channel 3: 561.60MHz ANTB-500
Channel 4: 568.65MHz ANTB-500

Dimensions and Weight in Packaging

Base Item

• Shipping Weight: 10.7 lbs
• Shipping Dimensions: 24 x 16 x 4 in
• Manufacturer Part Number (MPN): PTU-5000-4H

Consumer Alert

Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
