Phenyx Pro PTU-4000-8H 8-Channel UHF Fixed-Frequency Handheld Wireless Microphone System

Phenyx Pro PTU-4000-8H 8-Channel UHF Fixed-Frequency Handheld Wireless Microphone System, New, Action Position Back

zZounds Gear Experts Say...

Get eight channels of reliable wireless vocal channels with the easy-to-operate Phenyx Pro PTU-4000-8H UHF fixed-frequency handheld mic system.

Overview

Available here in the PTU-4000-8H configuration with 8 handheld microphone transmitters, Phenyx Pro's PTU-4000 is the all-in-one microphone system that you need, whether you're hosting an event or singing on stage. Thanks to the easy and intuitive operation, you are free to focus on your content instead of the equipment. With the versatile 8-channel configuration and crystal clear audio, your talent is no longer limited.

Features:

- Crystal clear audio quality with cardioid pickup pattern to minimize noise.

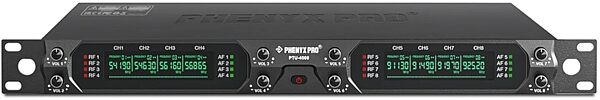

- Rack-mountable with built-in rack ears for easy operation.
- Sturdy all-metal construction for both receivers and handheld mics.

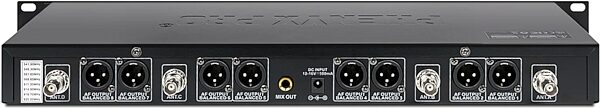

- Eight XLR outputs for each channel and one 1/4" TS unbalanced mixed output for combined audio.
- Up to 260ft long operation range.
- Simple setup operation. Just turn it on and it is ready to go.
- > 8 hours battery life for each microphone.

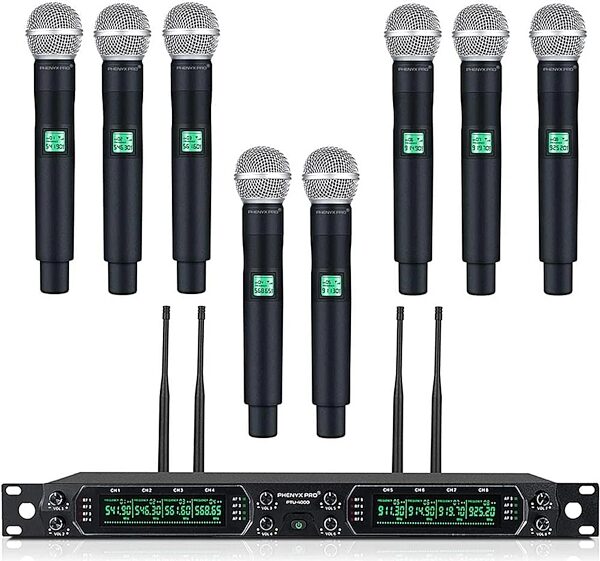

- Comes with 8 durable handheld mics.
- Fixed frequency design in the UHF frequency band. The frequency for this system is 541.9MHz, 546.3MHz, 561.6MHz, 568.65MHz, 911.3MHz, 914.9MHz, 919.7MHz, and 925.2MHz.

Specifications

- System Frequency stability: -0.003%
- System Dynamic range: >105dB
- System Operation temperature: -10 -C to 50 -C
- System Frequency response: 50Hz - 18kHz
- System Audio output level: 1/4 interface: 0 - 500 mV;
- System XLR interface: 0-500mV
- System Working distance: 80M/260ft
- Receiver Oscillation mode: PLL Synthesized
- Receiver Power consumption: >7W
- Receiver Output… read more impedance: XLR connector:200 ohm.
- Receiver Antenna connector: 50 ohm
- Receiver RF sensitivity: -105 dBm
- Receiver Image rejection: >100 dB
- Receiver Spurious rejection: >90 dB
- Receiver Power requirement: DC 12 - 15V, Current 1000mA, External power adapter
- Transmitter Audio input level: Gain:0dB; -20 dBV maximum-10dB; -0 dBV maximum
- Transmitter Gain adjustment range: 10dB
- Transmitter Power requirement: 2 AA size alkaline batteries for each transmitter
- Transmitter Battery life: At least 8 hours with original batteries for each transmitter
- PWR-4000 Frequency List:
- Channel 1: 541.90MHz
- Channel 2: 546.30MHz
- Channel 3: 561.60MHz
- Channel 4: 568.65MHz
- Channel 5: 911.30MHz
- Channel 6: 914.90MHz
- Channel 7: 919.70MHz
- Channel 8: 925.20MHz
- Channel 1-4 Compatible Antenna: ANTB-500
- Channel 5-8 Compatible Antenna: ANTB-900

Specs

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 15.5 lbs
Shipping Dimensions: 22 x 13 x 7 in
Manufacturer Part Number (MPN): PTU-4000-8H

Consumer Alert

Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
