Galaxy Audio PSERHH52 UHF Handheld Wireless Microphone System

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

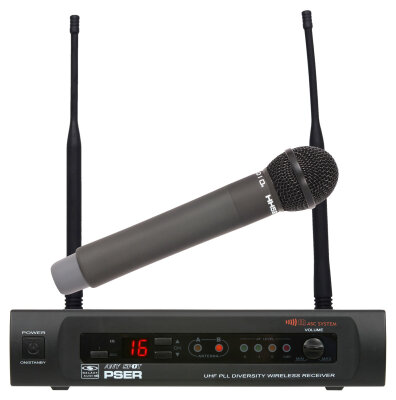

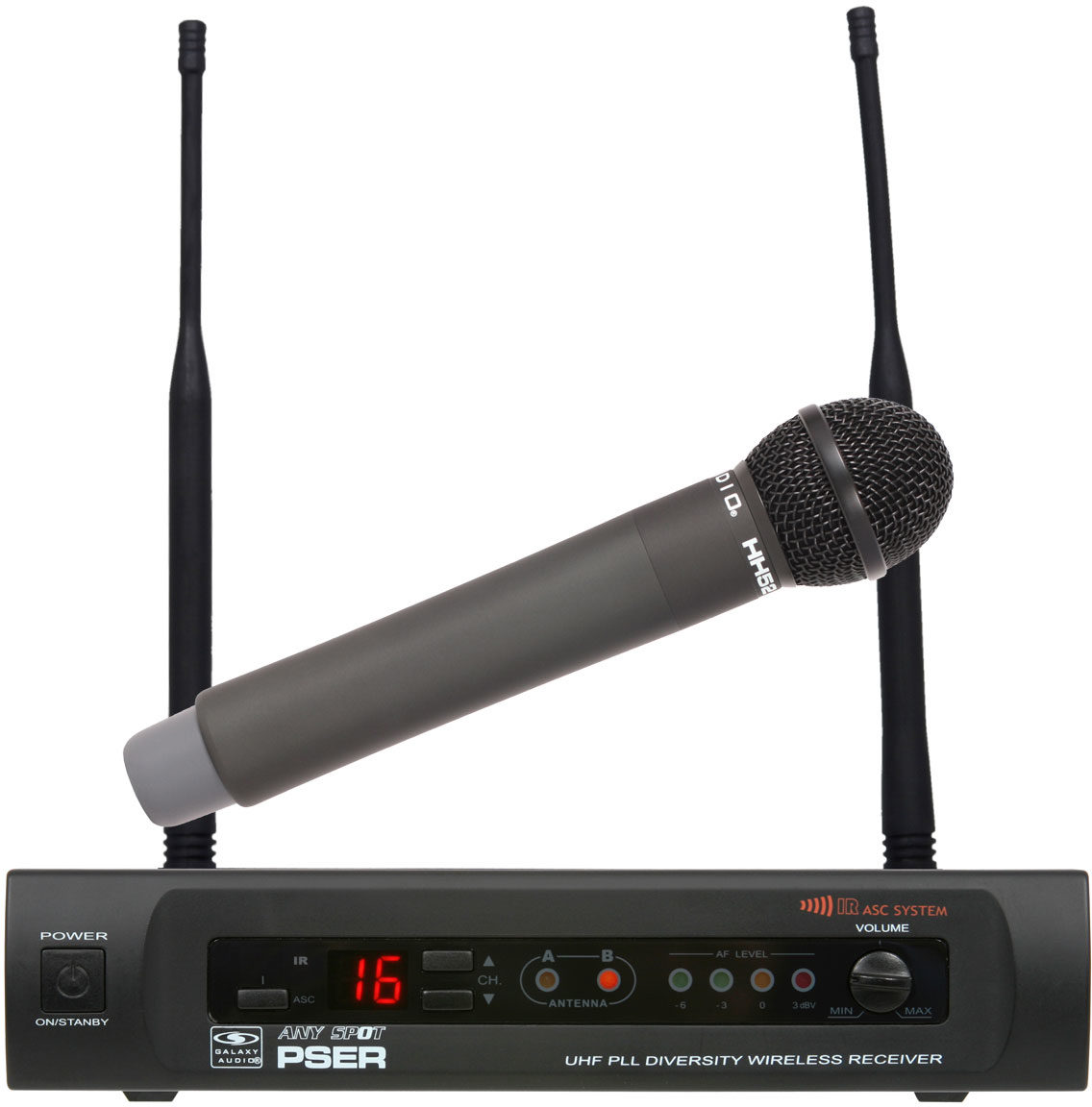

open zoom image for Galaxy Audio PSERHH52 UHF Handheld Wireless Microphone System, Main

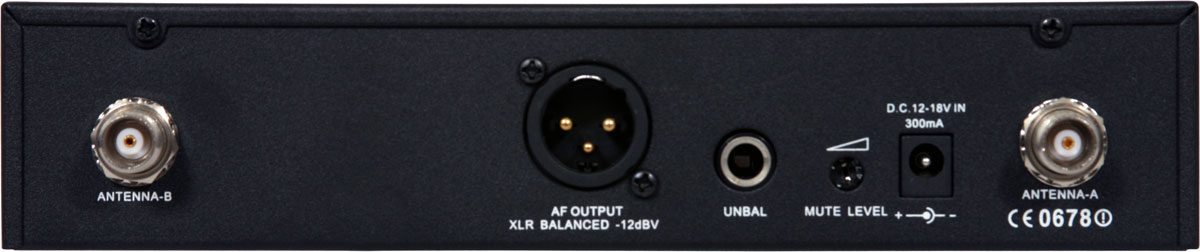

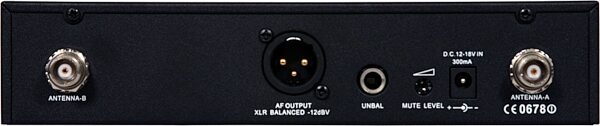

open zoom image for Galaxy Audio PSERHH52 UHF Handheld Wireless Microphone System, Rear
Galaxy Audio PSERHH52 UHF Handheld Wireless Microphone System, Main Galaxy Audio PSERHH52 UHF Handheld Wireless Microphone System, Rear
zZounds Gear Experts Say...
The affordable Galaxy PSERHH52L UHF HandHeld Wireless Microphone will free you up to have more reign on the stage, plus no more cables! Includes a single rack mount kit.

The affordable Galaxy PSERHH52L UHF HandHeld Wireless Microphone will free you up to have more reign on the stage, plus no more cables!

The PSE Receiver (PSER) is in an all metal half rack chassis. The PSER has two rear mounted diversity antenna (front/remote mounting available), both XLR & inch outputs, and squelch adjustment. The PSER has 16 selectable UHF frequencies. RF & AF indicator, channel number, volume output control, channel selector and IR sensor. Once the channel is selected, it will sync the frequency with a body pack transmitter with just the push of a button.

The HH52 microphone has a gain control, an on/off switch, and is powered by 2AA batteries.

Includes a single rack mount kit.

Receiver
Audio Output Level: (+/-30KHz deviation, 1KHz tone) XLR connector (into 600 Ohms load) -12dBV 1/4 inch connector (into 3KOhms load) -18dBV

Output Impedance: XLR connector 200 Ohms, 1/4 inch connector 1 K Ohms

XLR output: Impedance balanced
- Pin1: Ground (cable shield)
- Pin2: Audio
- Pin3: No Audio

Sensitivity: -93dBm for 30dB

Image Rejection: >90dB

Dimensions (H x W x D): 1.7 x 8.3 x 6.3 inches (44 x 212 x 160 mm)

Weight: 31 oz (880 g)

Power Requirements: 12-18 V dc at 400mA, supplied by external power supply

Cardioid Dynamic Element Handheld Microphone Transmitter
Max Audio input level: 0 dBV

Dimensions: 9.8 x 2.1 inches diameter (250 x 53 mm)

Weight: 9.5 oz (270 g) (without batteries)

Power Requirements: 2 AA size alkaline or rechargeable batteries

Battery Life: About 8 hours

For support or warranty questions, please contact the manufacturer:
Phone: 800-369-7768 x101
Email: service@galaxyaudio.com
Manual

Be the first to rate and review this product.

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
