Galaxy Audio PSER52LVL UHF Wireless Lavalier System

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Galaxy Audio PSER52LVL UHF Wireless Lavalier System, Main
open zoom image for Galaxy Audio PSER52LVL UHF Wireless Lavalier System, Rear - Receiver
open zoom image for Galaxy Audio PSER52LVL UHF Wireless Lavalier System, Transmitter
Galaxy Audio PSER52LVL UHF Wireless Lavalier System, Main Galaxy Audio PSER52LVL UHF Wireless Lavalier System, Rear - Receiver Galaxy Audio PSER52LVL UHF Wireless Lavalier System, Transmitter
zZounds Gear Experts Say...

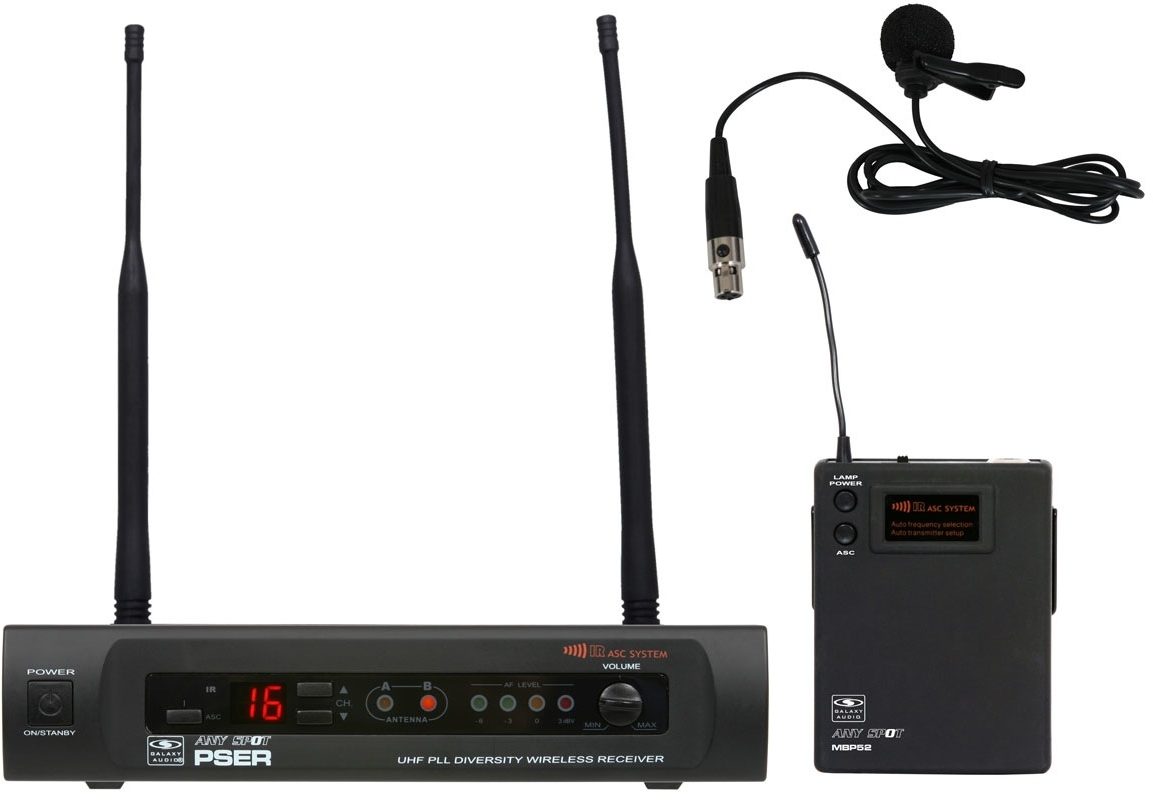

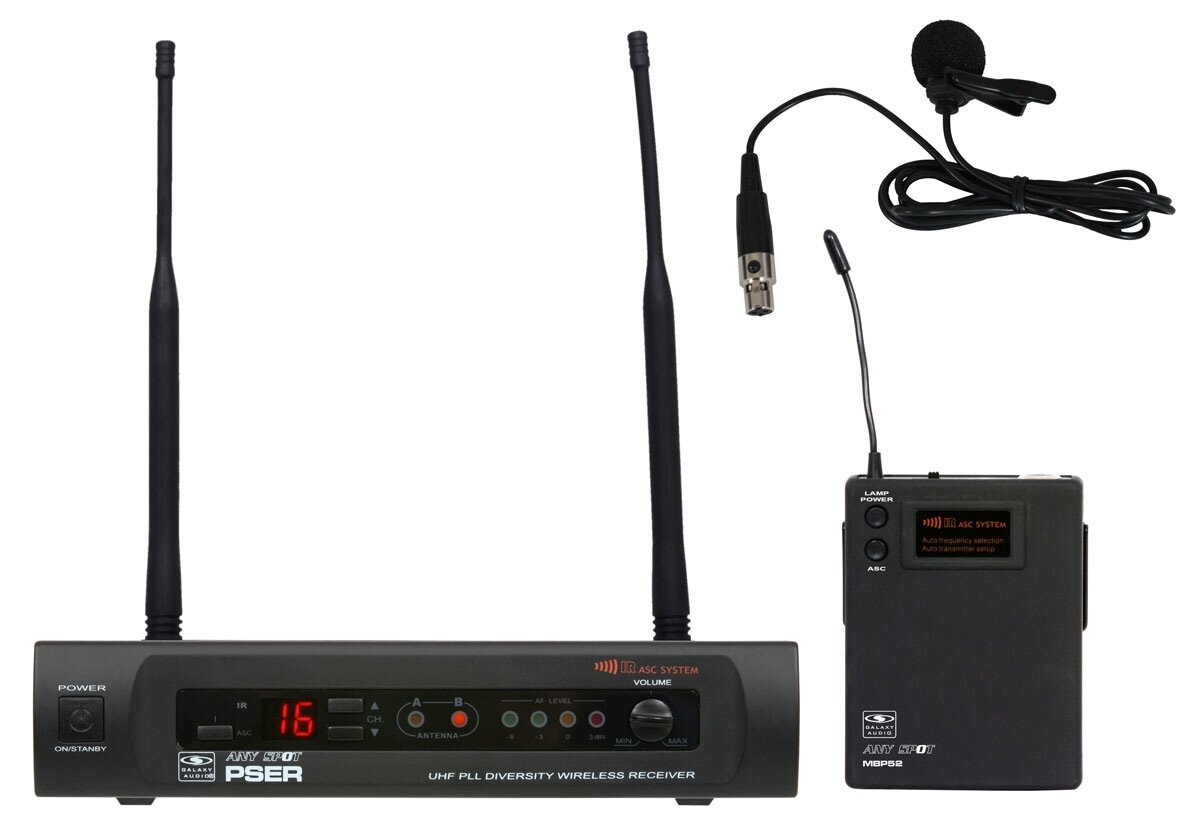

Go hands-free with this Galaxy Audio lavalier wireless system. It includes a 16-channel PSE receiver, HH52 bodypack transmitter and single rack mount kit.

Provide a hands-free professional experience great for speaking and help clear the stage of unwanted clutter with the Galaxy PSER52LVL UHF Wireless Lapel System.

The PSE Receiver (PSER) is in an all metal half rack chassis. The PSER has two rear mounted diversity antenna (front/remote mounting available), both XLR & inch outputs, and squelch adjustment. The PSER has 16 selectable UHF frequencies. RF & AF indicator, channel number, volume output control, channel selector and IR sensor. Once the channel is selected, it will sync the frequency with a body pack transmitter with just the push of a button.

The HH52 has a gain control and an on/off switch. The transmitter is powered by 2AA batteries.

Includes a single rack mount kit.

Receiver
Audio Output Level: (+/-30KHz deviation, 1KHz tone) XLR connector (into 600 Ohms load) -12dBV 1/4 inch connector (into 3KOhms load) -18dBV

Output Impedance: XLR connector 200 Ohms, 1/4 inch connector 1 K Ohms

XLR output: Impedance balanced
- Pin1: Ground (cable shield)
- Pin2: Audio
- Pin3: No Audio

Sensitivity: -93dBm for 30dB

Image Rejection: >90dB

Dimensions (H x W x D): 1.7 x 8.3 x 6.3 inches (44 x 212 x 160 mm)

Weight: 31oz (880 g)

Power Requirements: 12-18 V dc at 400mA, supplied by external power supply

Bodypack Transmitter
Max Audio Input Level: 0 dBV to + 10dBV

Gain Adjustment Range: 20dB

Input Impedance: 5K

Dimensions (H x W x D): 3.3 x 2.6 x 1 inches (85 x 65 x 24 mm)

Weight: 3.0 oz (85 g) (without batteries)

Power Requirements: 2 AA Batteries alkalineor rechargeable batteries

Battery Life: About 8 hours

For support or warranty questions, please contact the manufacturer:
Phone: 800-369-7768 x101
Email: service@galaxyaudio.com
Manual
