Gemini PMX01 2-Channel DJ Mixer

No longer available at zZounds

zZounds Gear Experts Say...

2 convertible phono/line, RCA inputs. 2 band rotary line EQ with +/- 12 dB cut feature.

Overview

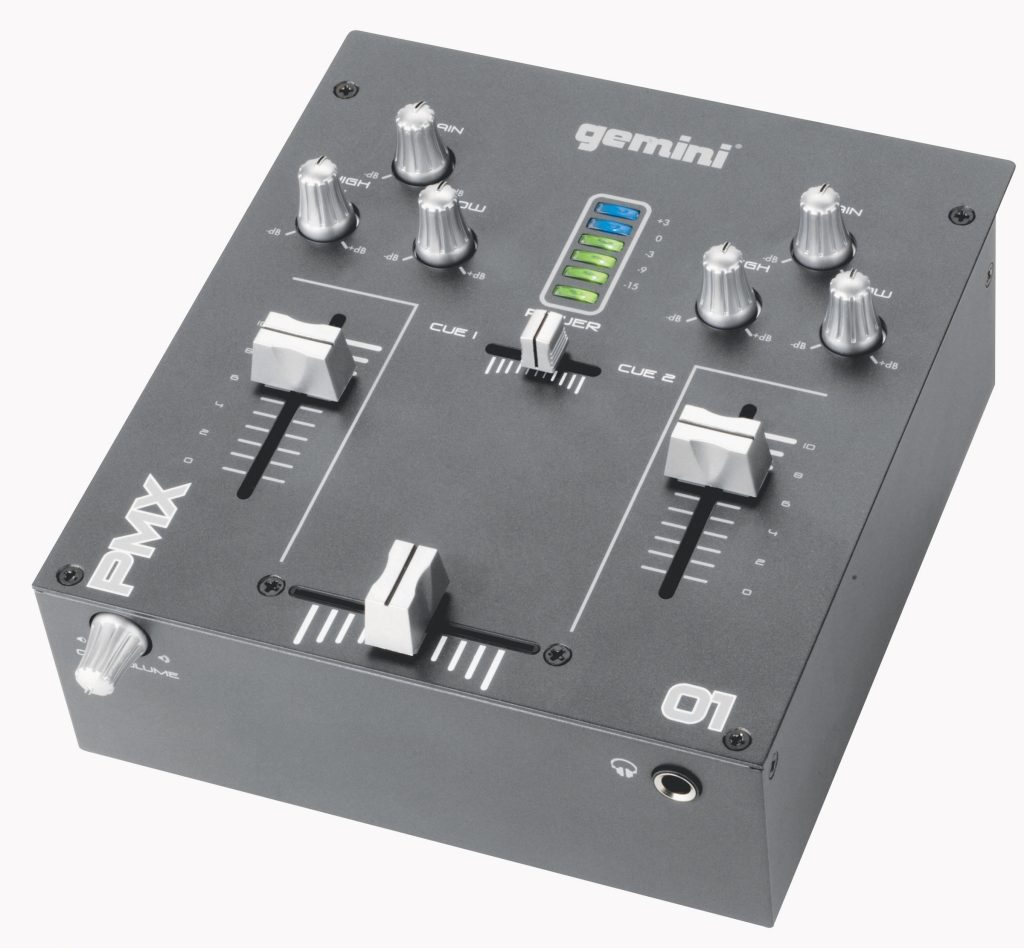

Introducing the PMX-01, 6.5 in. 2 channel stereo mixer from Gemini. The PMX-01 is the perfect battle mixer, designed with the latest advancements to enhance your DJ experience. The gun metal gray, PMX-01 comes equipped with 2 convertible phono/line inputs, 2-band rotary line EQ with cut feature, and an easily removable cross fader for fader replacement.

Features

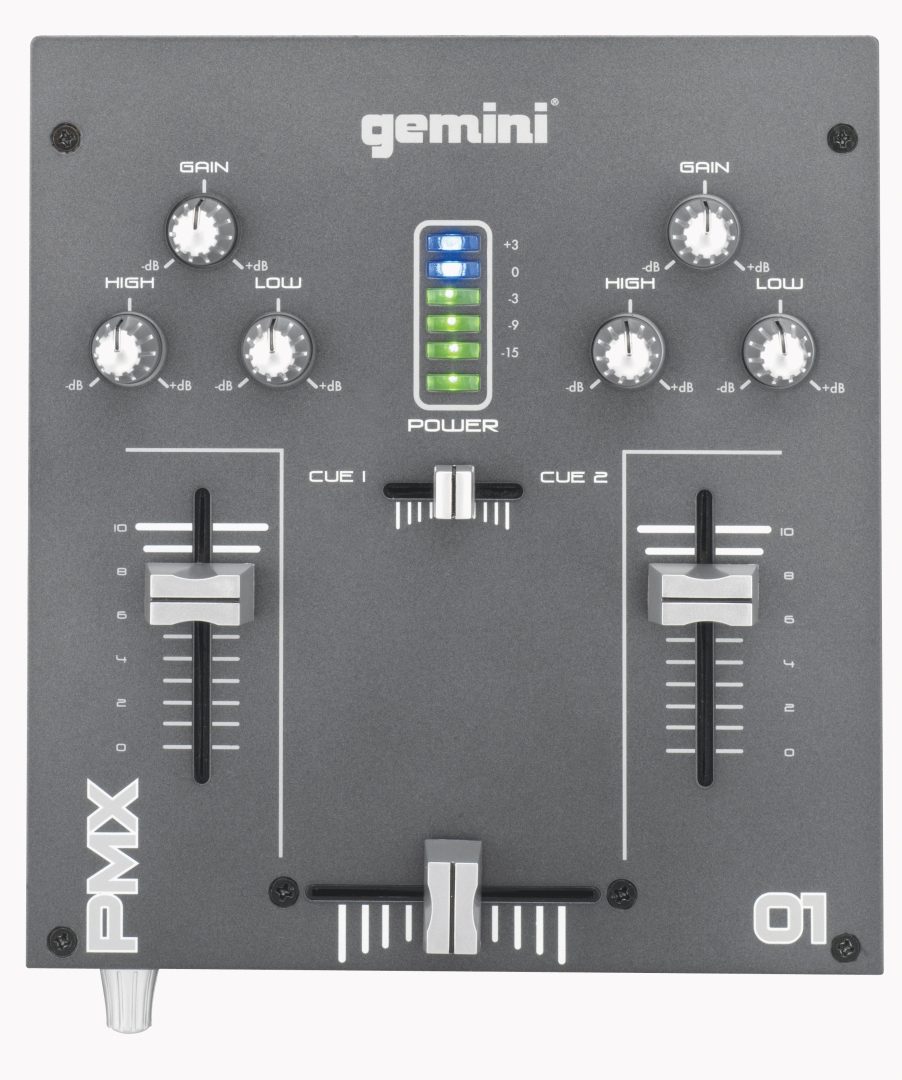

6.5 in. 2-channel stereo mixer

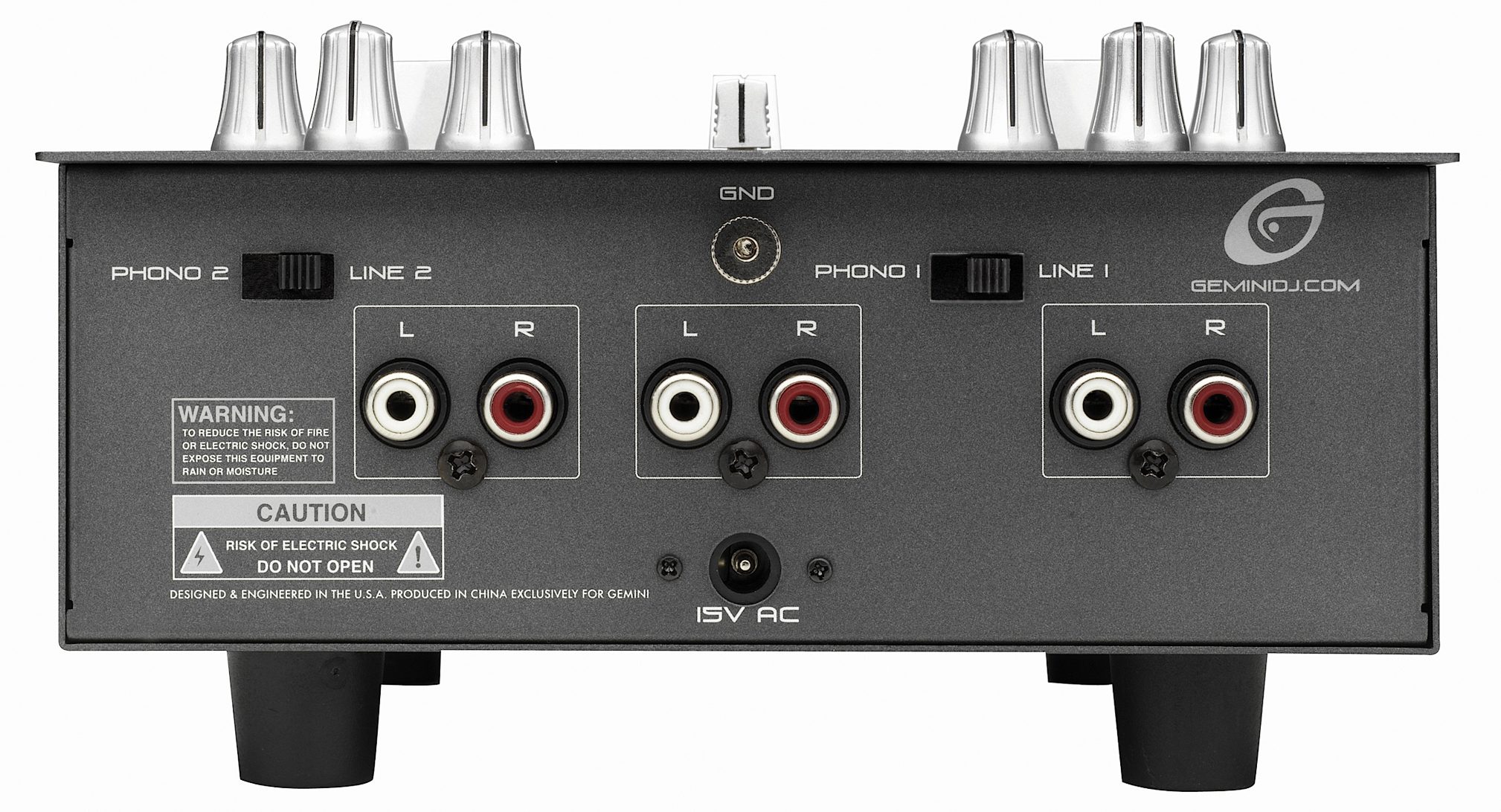

2 convertible phono/line, RCA inputs

2 band rotary line EQ with +/- 12 dB cut feature

Easy removable face plate for user replaceable Rail Glide cross fader

Rotary gain channel control

Display with bright LED

Face plate located rotary cue section fader allowing cue mix

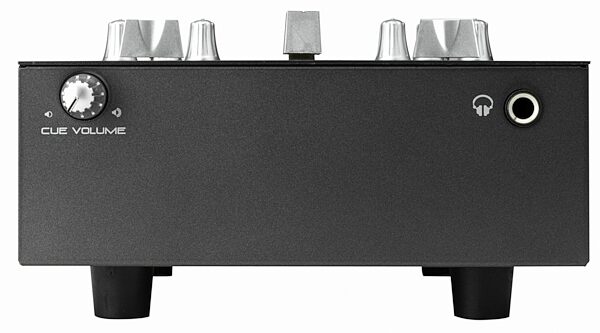

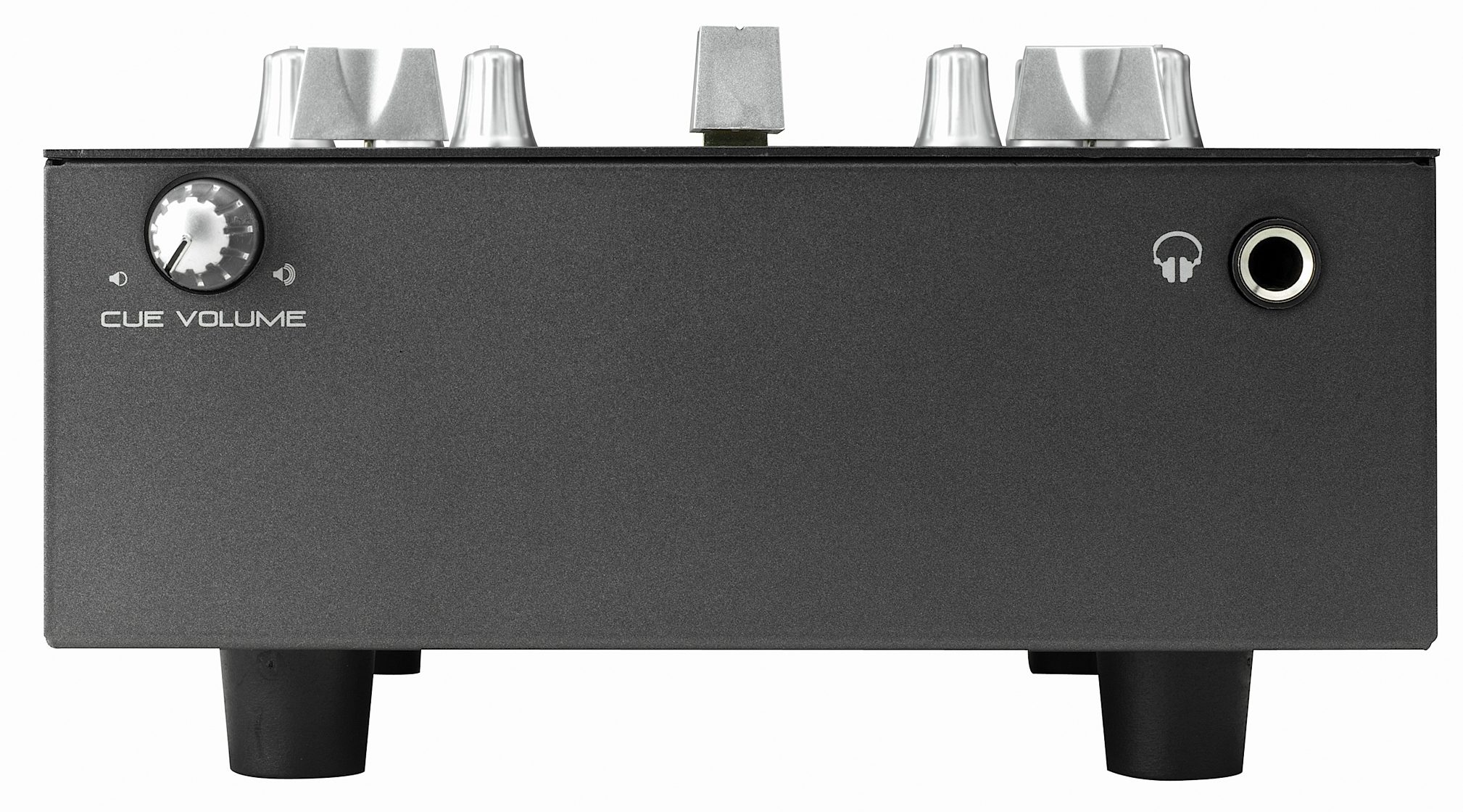

Front panel located rotary cue volume control

Front located headphone output

Specs

Inputs:
-- Phono: 3 mV, 47 kilohm

-- Line: 150 mV, 10 kilohm

Outputs:
-- Amp: 0 dB 1 V, 400 ohm

-- Max: 20 V peak to peak

General:
-- Bass (channels 1-2): +/-12dB

-- High (channels 1-2): +/- 12 dB

-- Gain (channels 1-2): 0 to -20 dB

-- Frequency response: 20Hz - 20 kHz +/- 2 dB

-- Distortion: less than 0.02%

-- S/N ratio: better than 80 dB

-- Headphone impedance: 32 ohm

-- Power source: 115V/15V AC 7.5W

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 732-346-0061 or 844-GEMINI-9
Email: hello@geminisound.com
Web: https://support.geminisound.com

Owner's Manual
