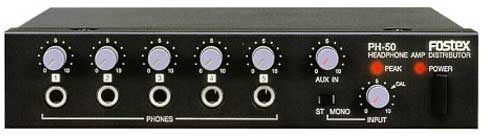

Fostex PH50 Distribution Amplifier

The new PH-50 is a remarkably quiet headphone distribution amplifier. Each output has its own amplifier as well as its own level control - so different individual requirements can be met with ease. Multiple PH-50s can also be cascaded to handle a large number of listeners making it ideal for orchestral, multimedia, education & trade show applications.

The PH-50 is especially handy in the studio environment because an output from the mixer can send a talkback signal to the Aux input (complete with level control) of the PH-50 & be distributed to all headphone outputs. This great cue system makes for more effective communication between engineer/producer & musicians.

Features

5 headphone outs - each with its own amplifier

Each input routes to its direct output, plus Aux 1 source (cuefeed)

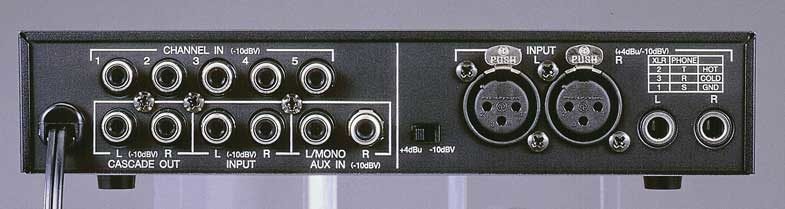

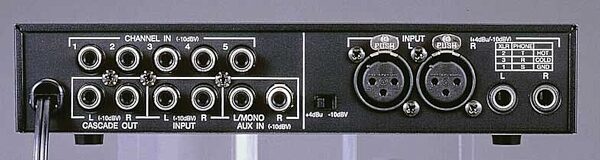

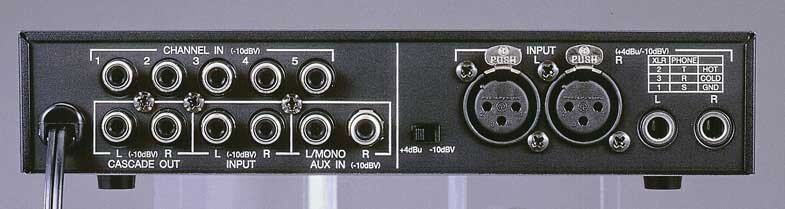

Multiple inputs: XLR, 1/4 in., RCA pin jacks

+4dBu or -10dBV switchable for balanced inputs

Individual level controls with peak reading LED

Stereo or mono input select

Cascade inputs & outputs for 'daisy chaining' units

Aux In with level control for cue feed from main mixer
