zZounds Soundcheck Ready Portable PA System

Product Description

Save money and hassle with this expertly-configured, bargain-priced PA package! We've done all the hard thinking for you--matching great-sounding speakers with powered mixers that have the right wattage to drive the speakers properly; choosing great, durable live sound mics; and selecting all the cables and stands you'll need to get everything connected and ready to use!

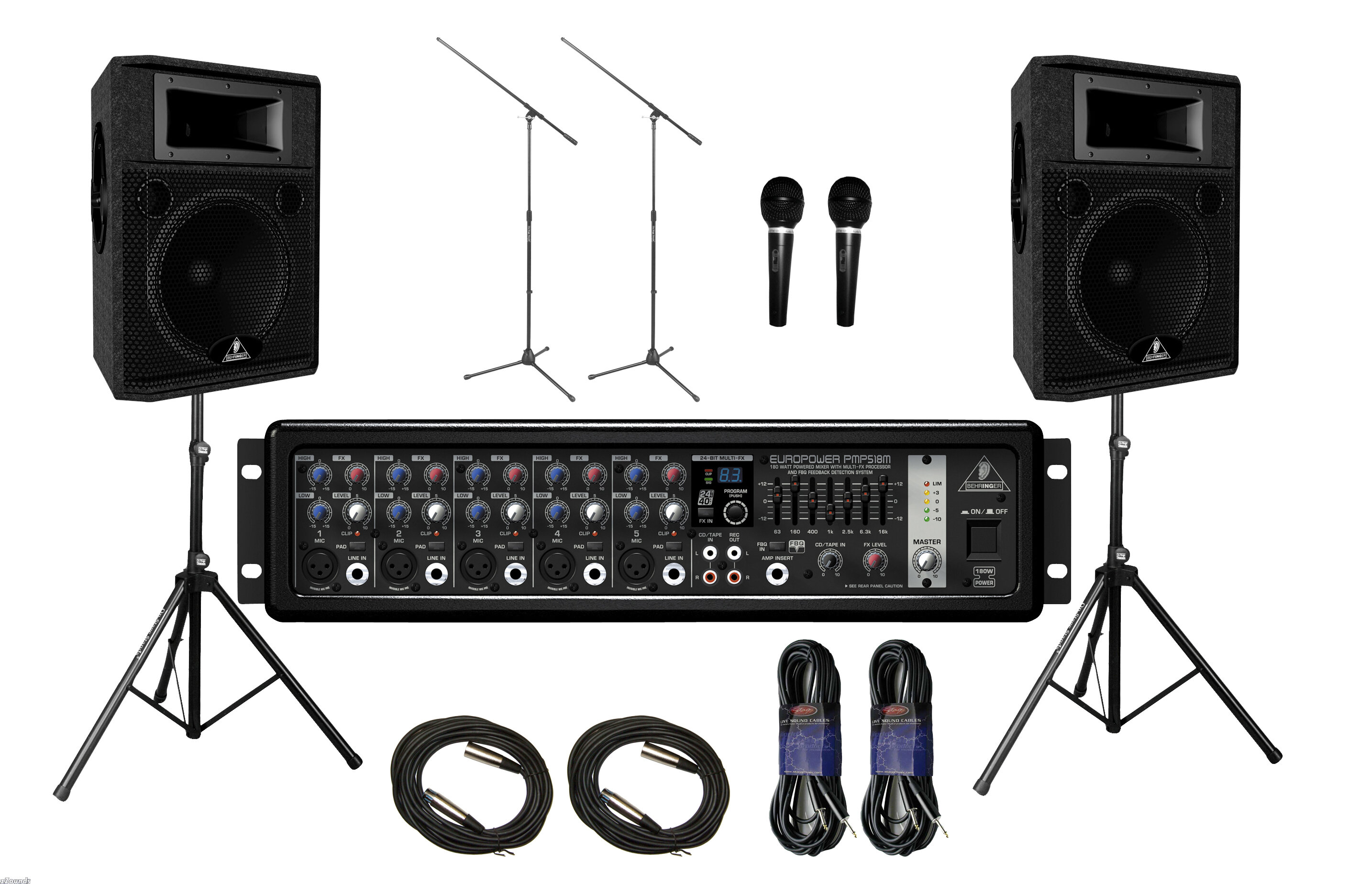

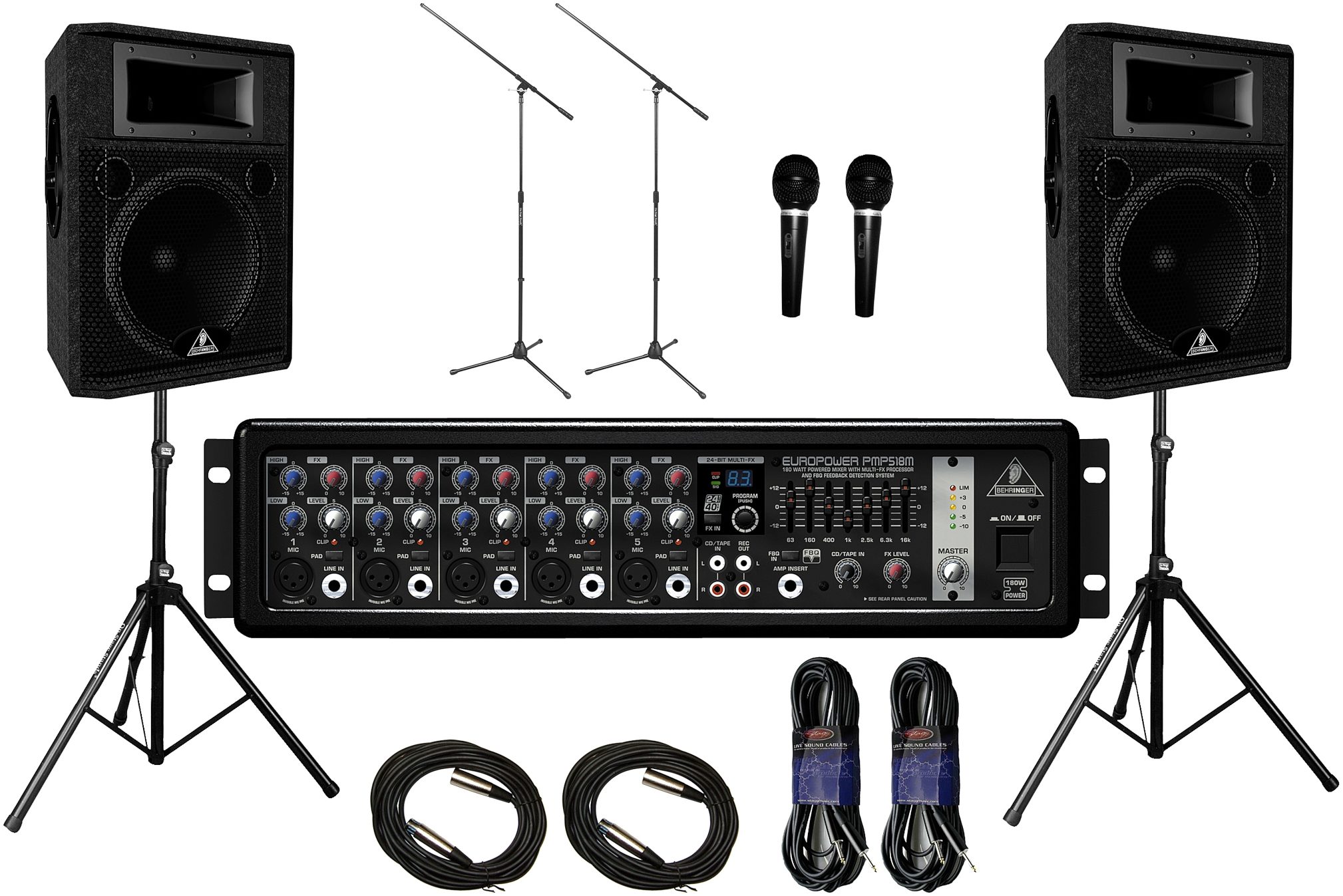

Includes:

1 x Behringer PMP518M 5-Channel Powered Mixer (180 Watts)

2 x Behringer P1220 2-Way Full Range Speaker (320 Watts, 1x12 in.)

2 x OnStage SS7761B Tripod Speaker Stand

2 x Audio Technica ST90MKII Dynamic Microphone

2 x CBI LowZ Microphone Cable (20 Foot)

2 x OnStage 7701B Tripod/Boom Microphone Stand

2 x CBI 16 Gauge 1/4 inch to 1/4 inch Speaker Cable

Behringer PMP518M 5-Channel Powered Mixer
The PMP518M powered mixer delivers more power, better sound at less weight!

The PMP518M mixer delivers 180 Watts of massive power and incredible performance through new-generation amplifier technology, crystal-clear sound plus an ultra-compact and lightweight design. The 24-bit stereo FX processor, IMP mic preamps and more round off this impressive package of power features.

With 5 channels, 5 mic inputs, 180 watts, , and 7-band graphic EQ you've got plenty of room to bring down the house.

Behringer P1220 2-Way Speakers

This Eurolive P1220 is a 320-Watt 2-way PA speaker system, perfect for the requirements of professional musicians and commercial installations. It boasts a powerful 12 in. long-excursion driver for massive acoustic power and a state-of-the-art 1.75 in. titanium-diaphragm compression driver for exceptional high-frequency reproduction.

Features
Professional 320-Watt 2-way PA speaker system

Exceptional sound quality, wide frequency bandwidth and dynamic range

Extremely powerful 12 in. long-excursion driver provides incredibly deep bass and acoustic power

State-of-the-art 1.75 in. titanium-diaphragm compression driver for exceptional high-frequency reproduction

State-of-the-art horn design for ultra-wide sound dispersion

Overload-protection circuitry ensures optimal HF driver protection

Trapezoidal enclosure for easy array and sonic accuracy

Integral tripod and stand adapter

Ergonomically shaped handles for easy transport

Rugged steel grill for optimal speaker protection

Two professional speaker connectors plus 1/4 in. jack connectors

High-quality components and exceptionally rugged construction ensure long life

On-Stage SS7761B Tripod Speaker Stands
An extremely versatile speaker stand, this reversible-shaft design may be used with either 1-3/8 in. or 1-1/2 in. speaker cabinet mounts. Includes the added safety of a locking shaft pin to prevent accidental speaker slippage.

Audio Technica ST90mkII microphones
The ST90mkII is first and foremost a performance vocal mic. It features an on-off switch, plus it's a dynamic mic so it needs no phantom power -- you can use it with just about any mixer or recorder.

On-Stage 7701B Tripod/Boom Microphone Stands
Height adjustable mic stand comes with a durable tripod base and foldable legs for easy storage.

Features:
Solid cast end with standard 5/8-27 threads

Long 30 in. boom with molded plastic counterweight

Euro-Style boom with separate clutches for length and angle of boom. Allows user to make one-handed adjustments of boom angle while performing

Professional quality die-cast zinc clutch locks vertical shaft at any height from 36 - 63 in.

Clip-on cable holder

Steel-reinforced plastic leg housing offers less weight and exceptional strength

Folding legs with plastic endcaps for durability and reduced floor vibration. Base spread: 23 in zZounds is an authorized dealer of zZounds products.

Behringer PMP518M
Microphone Inputs:
Type: XLR, electronically balanced

Mic E.I.N. (20 Hz - 20 kHz):
@ 0 W source resistance -122 dB / -125 dB A-weighted
@ 50 W source resistance -122 dB / -125 dB A-weighted
@ 150 W source resistance -121 dB / -124 dB A-weighted

Frequency response:
< 10 Hz - 100 kHz (-1 dB),
< 10 Hz - 200 kHz (-3 dB)

Gain +33 dB, +8 dB with pad

Max. input level +12 dBu @ 10 dB gain

Impedance: approx. 2.2 kW balanced, 1.1 kW unbalanced

Signal-to-noise ratio: 110 dB / 114 dB A-weighted (-11 dBu in @ +33 dB gain)

Distortion (THD+N): 0.001% / 0.0008% A-weighted

Mono Line Inputs
Type: 1/4 in. TRS connector, balanced

Impedance: approx. 80 kW balanced, 40 kW unbalanced

Max. input level: +30 dBu

EQ
Low 80 Hz / ±15 dB

High 12 kHz / ±15 dB

Loudspeaker Outputs
Type: Neutrik Speakon-compatible, 1/4 in. TS connectors

Load impedance: 4 - 16 W

DSP
Converter: 24-bit Sigma-Delta, Sampling rate 40 kHz

Display
Type: 2-digit, 7-segment LED

Amplifier
Output power: 62 W (8 W), 105 W (4 W) (RMS @ 1 % THD (sine wave))

Output power 100 W (8 W), 180 W (4 W) (Peak Power)

Power Supply
Mains voltages U.S./Canada: 120 V~, 60 Hz

Power consumption: max. 290 W

Fuse: 100 - 120 V~: T 6.3 A H 250 V
220 - 240 V~: T 3.15 A H 250 V

Mains connection: Standard IEC receptacle

Physical/Weight
Dimensions (H x W x D) approx. 4 3/5 x 18 1/2 x 8 7/8 in. / (117 x 470 x 225 mm)

Weight (net): approx. 15.88 lbs (7.2 kg)

Behringer P1220
Continuous Power: 80 Watt

Peak Power: 320 Watt

Type: 2-way full-range speaker

Frequency Response: 60 Hz to 20 kHz

Impedance: 8 Ohm

Sound pressure level: 98 dB (Full Space; 1 W @ 1 m)

Dispersion: 90 x 40 degrees

Crossover frequency: 3.5 kHz

Riggings/fittings
- ergonomically shaped handles
- integral tripod/stand adapter

Components
HF driver: 1.75 in. titanium-diaphragm compression driver

Woofer: 12 in. (307 mm)

Dimensions and Weight
Dimensions (W x H x D): 16.5/10.6 x 21.4 x 13.1 in. (420/270 x 544 x 332 mm)

Weight: 37 lbs (17.1 kg)

Shipping weight: 41.9 lbs (19 kg)
On-Stage SS7761B
200 lb. capacity

Adjustable height (44 - 80 in.)

Black finish

On-Stage 7701B
5/8-27 threads

30 in. boom

Molded plastic counterweight

Adjustable height from 36 - 63 in.

Steel-reinforced plactic leg housing

Folding legs

Plastic endcaps

Base spread: 23 in.
