This product is no longer available at zZounds.

We recommend this product instead:

Zoom B1 Bass Multi-Effects Pedal

New from $59.00 SAVE 40%

Play as You Pay
on orders $249+ details

In Stock

Free Ground Shipping

The amazing new Zoom B1 bass effects pedal features 24-bit/96kHz digital multi-effects and an incredible 40kHz frequency response. In addition to 13 amp/stompbox mod... Learn more... 17 People Rated: 4.5 out of 5

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

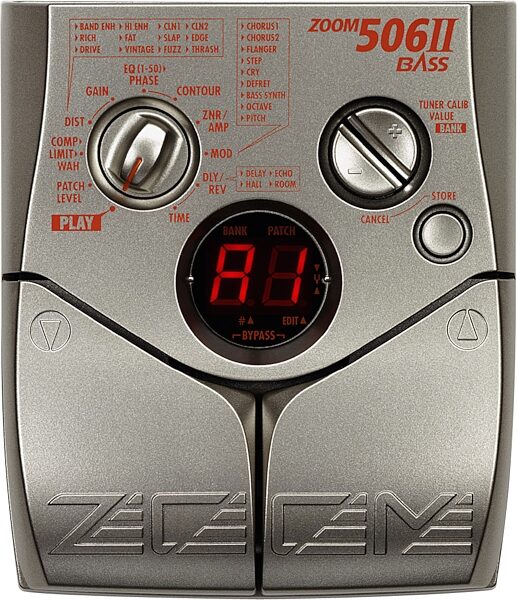

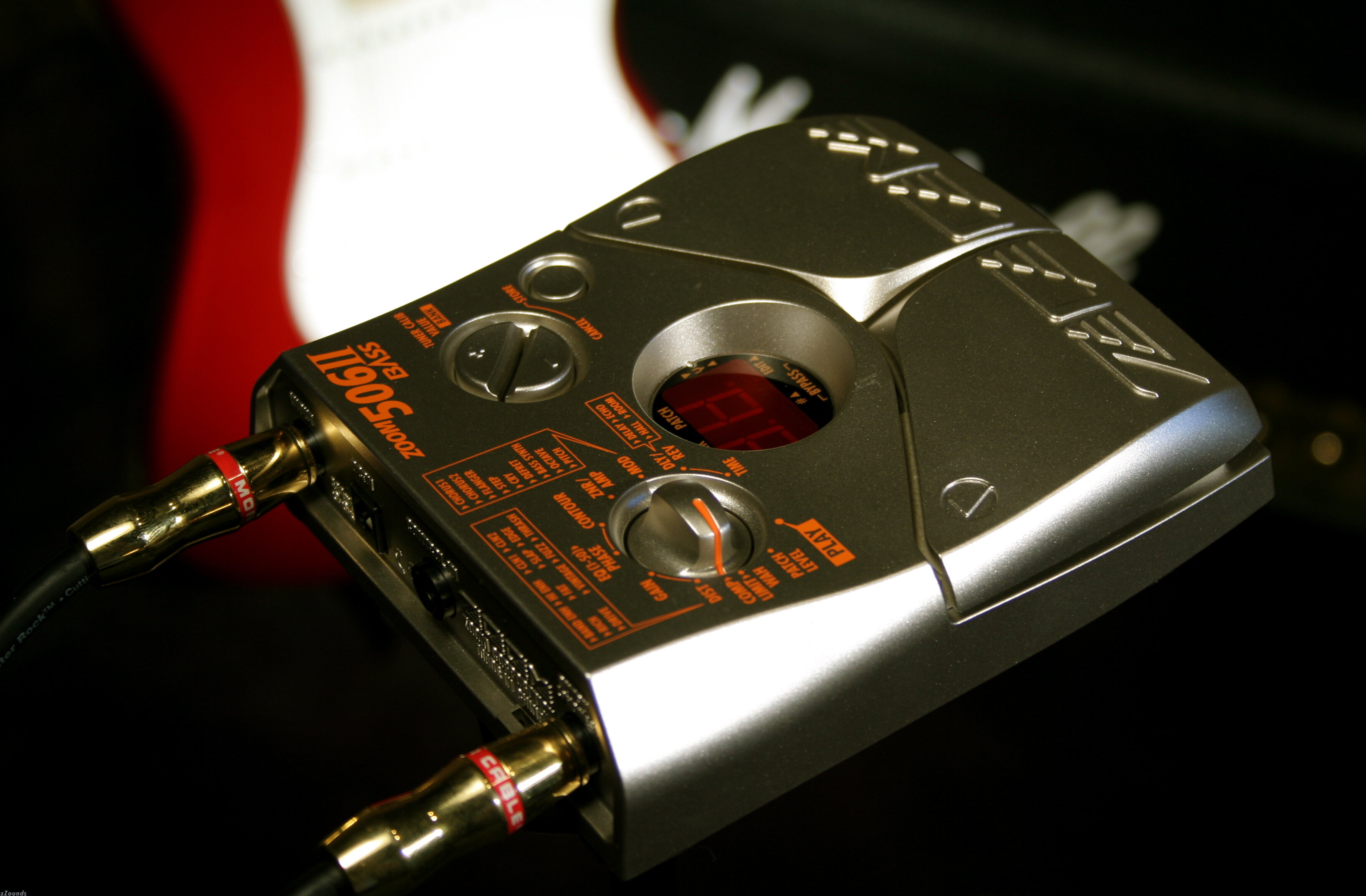

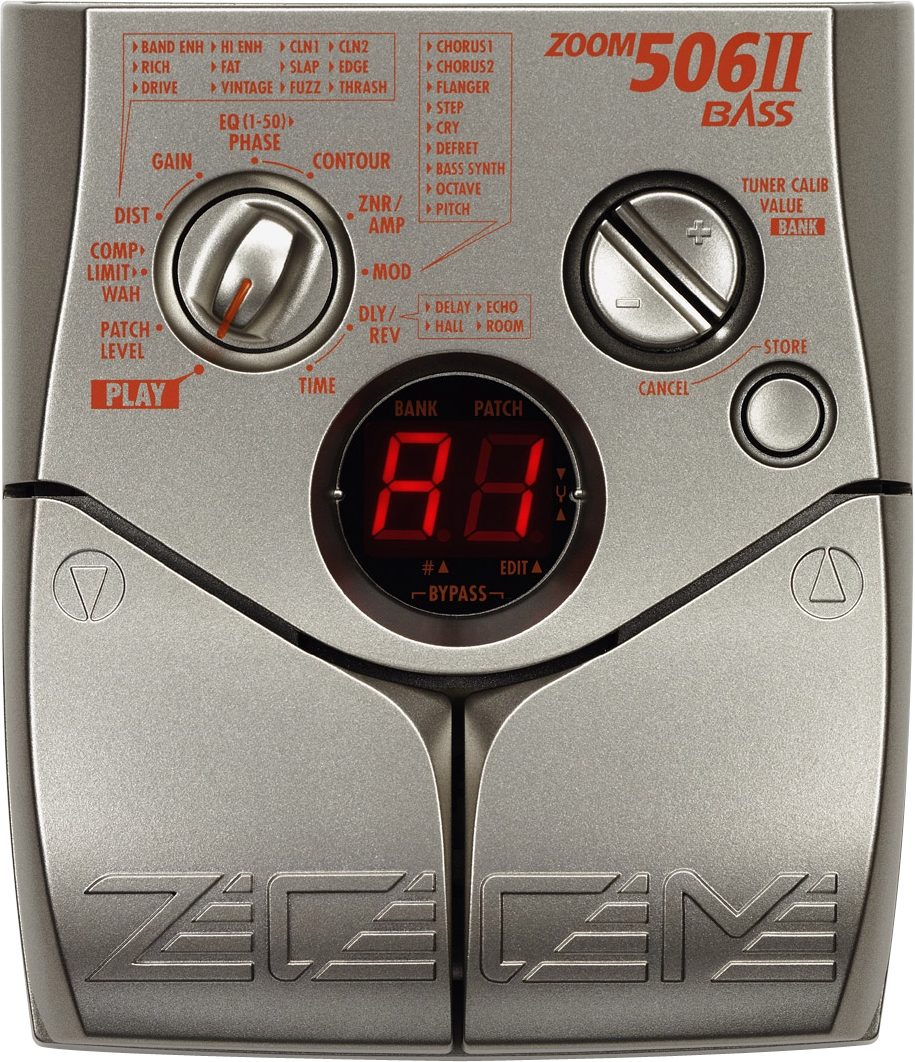

Zoom 506II Bass Multi-Effects Pedal

36 patch locations. Large rotary selector. Easy-to-read red LED display. Foot switches. 161 People rated this product:

Rate and Review This Product

Roll Over to Enlarge

Main

overview specs docs

Product Description

zZounds is an
authorized Zoom dealer

Featuring a sophisticated new design, easy analog operation, and nine new dedicated bass effects, the 506 II Bass takes the world's most popular compact multi-effects bass pedal to a new level of performance.

The 506 MKII's molded chassis with its sleek, flowing lines and Champagne Gold finish offers a sleek, stylish appearance that is built to last. Extremely durable space-age plastic and a flat control surface take the worry out of carrying it in the same case with other pedals.

As part of its enhanced design, the 506 MKII features new bass distortion effects including Rich, Tube, Band Pass Enhancer, and High Pass Enhancer; new bass modulation effects including Cry, Step, Defret, Pitch, Echo, and a range of bass amp modeling effects. The 506 MKII includes a total of 33 bass effects in seven modules. Up to 9 effects can be used at the same time.

A large rotary selector, easy-to-read red LED display and foot switches make the 506 MKII truly user friendly. Sounds can be easily stored in up to 36 patch locations.

Other features include: ZNR (Zoom Noise Reduction); 28 hours of continuous operation with 4 AA alkaline batteries along with AC operation; a rear panel input for an available expression pedal; an integrated auto chromatic tuner; and more. zZounds is an authorized dealer of Zoom products.

Built-in Effects: max. 9 simultaneous/33 total

Effect Modules: max. 7 simultaneous (5 modules + 1 block)

Banks and patches: 6 banks x 6 patches = 36 patches (rewritable, with memory store capability)

A/D converter: 16-bit, 64x oversampling

D/A converter: 16-bit, 8x oversampling

Sampling Frequency: 31.25 kHz

Input: GUITAR input: standard mono phone jack (rated input level -20 dBm/input impedance 470 kilohms)

Output: Standard stereo phonejack (doubles as line and headphone jack) (maximum output level +5 dBm/output load impedance 10 kilohms or more)

Control Input: For optional FP01 or FP02/FS01

Display: 2-digit, 7-segment LED

Power requirements: Seperately available AC adapter, 9V DC, 300 mA (center minus plug) (ZOOM AD-0006), Will also work with a 12V adapter, 4 IEC R6 (size AA) batteries. Battery life: appoximately 28 hours continuous operation (alkaline batteries)/approximately 8 hours continuous operation (manganese batteries)

Dimensions (H x W x D): 40 x 125 x 145 mm

Weight (without batteries): 280 g

Owner's Manual

Zoom Warranty

Zoom Warranty

If you have additional warranty questions, please call the manufacturer at 631-784-2200 Sound Samples

zZounds is an
authorized Zoom dealer

Our extended 30-Day 100% Satisfaction Guarantee applies on this product. Buy it, and if it isn't just right for you, return it!

Our Return Policy

Payment Options

Purchase Orders

What Our Customers Are Saying About zZounds "I would recommend zZounds to anyone looking for quality, professional service." - customer on May 3rd, 2012

Customer Reviews

4.5 out of 5 (161 ratings) Rate and Review This Product

Read all 7 Zoom 506II Bass Multi-Effects Pedal Reviews

"My wife seems to think I'm doing something (different) better than the other Bassist.......Thanks Zoom."

Sound: I have to go direct to the board when we use in-ear monitors. I get every sound I need out of the Zoom 506II and a pre-amp. My gig bag is an old PC laptop soft tote! Feature: Include a power supply! OR Change the Battery to a Lithium 9vdc. Love the tuner. Quality: Keep fresh Batteries in it and your ther. Value: $69.95 is a great price. Manufacturer Support: no clue.......no need. The Wow Factor: Practical. Overall: I'm trying to wear it out just as fast as I can..........the 506II appears to be coffee proof/water proof and resistant to Ropers or Nikes stumbling around on it.

Style of Music: Contemporary Christian/ R&B/ Soft Rock/

3 of 3 people (100%) found this review helpful. Did you?

Thanks for your opinion!

close [x]

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?

"DOES THIS TITLE ATTRACT YOU TO MY REVIEW?????"

Sound: all awsome except the distortion. i use a digitech metal distortion pedal along with this one. had it for a year and a half. its tough. plastic, yes..... wimpy, no.. sounds great for choruses, flangers, compression, wah, everything except distortion. Feature: no accessories. just the pedal. Quality: i can't imagine it breaking. its tough. not joking, don't be fooled just because its plastic. i think it must be some kind of military super plastic or something...... Value: cant beat it. its worth twice the price. Manufacturer Support: havent needed it. the manual is easy to get online when you lose yours. The Wow Factor: its ugly. Overall: won't need any other product, maybe an expression pedal, but doubtful.

Style of Music: Christian/ worship

1 of 1 people (100%) found this review helpful. Did you?

Thanks for your opinion!

close [x]

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?

Read all 7 Zoom 506II Bass Multi-Effects Pedal Reviews
