Yamaha Tyros3 Arranger Workstation: Yamaha's prime arranger model.

Hot on the heals of the hugely successful Tyros2 comes the Tyros3 an even better arranger than before. Arranger workstations, for lack of better terms, are simply keyboards which allow the user to arrange compositions or add accompaniments to a pre-existing song all within the keyboard itself. These workstations usually let you store a finite amount of songs or phrases you can call up at will.

The Tyros3 provides a huge amount of freedom to navigate from the usual strict standards of arrangers. With the Tyros 3 you get over 1,000 voice to use and over 128-notes in polyphony. More voices means greater diversity of styles you can play and more songs you can tweak arrangements with. More polyphony means you get the ability to play more instruments at the same time without running out of space. Super Articulate 2 keyboard technology allows you to get the same expressive response of playing the actual instruments the voices are replicating or go even further and control the minute details to get your own tones. With 8 assignable sliders the Tyros3 lets you instantly assign controls you can manipulate as you play or to controls song mixes as you're making them.

What makes the Tyros3 different from the Tyros2 is the inclusion of an 80GB internal hard drive which lets you store even more sounds and arrangements. You also get USB connectivity that lets you upload or dowload your own sounds and arrangements. Exclusively for Yamaha users is the ability to access more songs and voices through this website. Never feel like you can't keep up with the demands from your audience with the Tyro3! zZounds is an authorized dealer of Yamaha products.

Specifications
General:
- Keyboard: 61 Keys (C1 ~ C6) with After Touch Response
- Polyphony: 128 notes
- Display: Visible from any angle TFT 7.5 inch Color LCD. Contrast and angle are adjustable. Music Score, Lyrics, Text, Wallpaper customize

Voices:
- Voices + Drumkits: 1540
- Super Articulation 2 Voices: 11 voices
- Super Articulation Voices: 53
- MegaVoices: 23 voices
- Sweet! Voices: 26 voices
- Live! Voices: 70 voices
- Live! Drums: 12 drum kits
- Cool! Voices: 58 voices
- Organ Flutes: 20

Voice Expandability:
- Function: Voice Editor (Normal voice and Drum Kit)
- Memory: 4 MB pre-installed. Maximum memory size 1024 MB (optional)
- Memory Type:168 pin DIMM x2

Effects Type:
- Reverb: 42 Presets + 3 Users
- Chorus: 106 Presets + 3 Users
- DSP (For Voice/Style/Mic): 272 Presets+10 Users
- Mic Effects: Noise Gate x 1, Compressor x 1, 3 Band EQ x 1
- Master EQ (5 band): 5 Presets + 2 Users
- Master Compressor:5 Presets + 5 Users
- Part EQ (2 band):29 Parts (R1, R2, R3, Left, Multi Pad, Style x 8, Song x 16)
- Poly/Mono: ON/OFF
- Vocal Harmony: 60 Presets + 10 Users
- Real-time Controllers: Pitch Bend Wheel
- Tempo: 5 ~ 500, Tap Tempo
- Octave Button: Yes
- Transpose: Yes
- Tuning: Yes

Auto Accompaniment:
- Preset Styles: 450 (403 Pro Styles, 47 Session)
- Control: Intro x 3, Main Variations x 4, Fill In x 4, Break, Ending x 3
- Fingering Type: Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
- Style Creator: Yes

Quick Access Memory:
- One-Touch Setting:4 Per Style
- Music Finder: Programmable up to 2500 records
- Registration Memory: 8 Pads x Unlimited Banks
- Multi Pads: 4 x 123 Banks, plus user

Songs:
- Preset Songs: Large Built-In Demo
- Internet Direct Connection: Lan Port Internet Direct Connect (IDC) for free online, on demand music

Memory Devices:
- Flash Memory (Internal): 3.2 MB
- Hard Disk Drive (Internal): 80GB 2.5-inch IDE
- Storage Devices (via USB to DEVICE): USB Flash Memory, USB hard disk drive, etc.

Connectivity:
- USB to Host: Yes, x 1 (USB 2.0)
- USB to Device: Yes, x 2 (USB 2.0)
- MIDI: MIDI A In/Out, MIDI B In/Out
- Display Output: Video Out (NTSC / PAL Composite), RGB Out

Audio:
- Phones: x 1
- Microphones: MIC/Line In (Stereo)
- Loop Send: (L/L+R, R), Aux Out (Level Fixed): Selectable
- Loop Return: (L/L+R, R), Aux In (Level Fixed)
- To Satellite Speaker (L/R), To Sub Woofer (L/R)

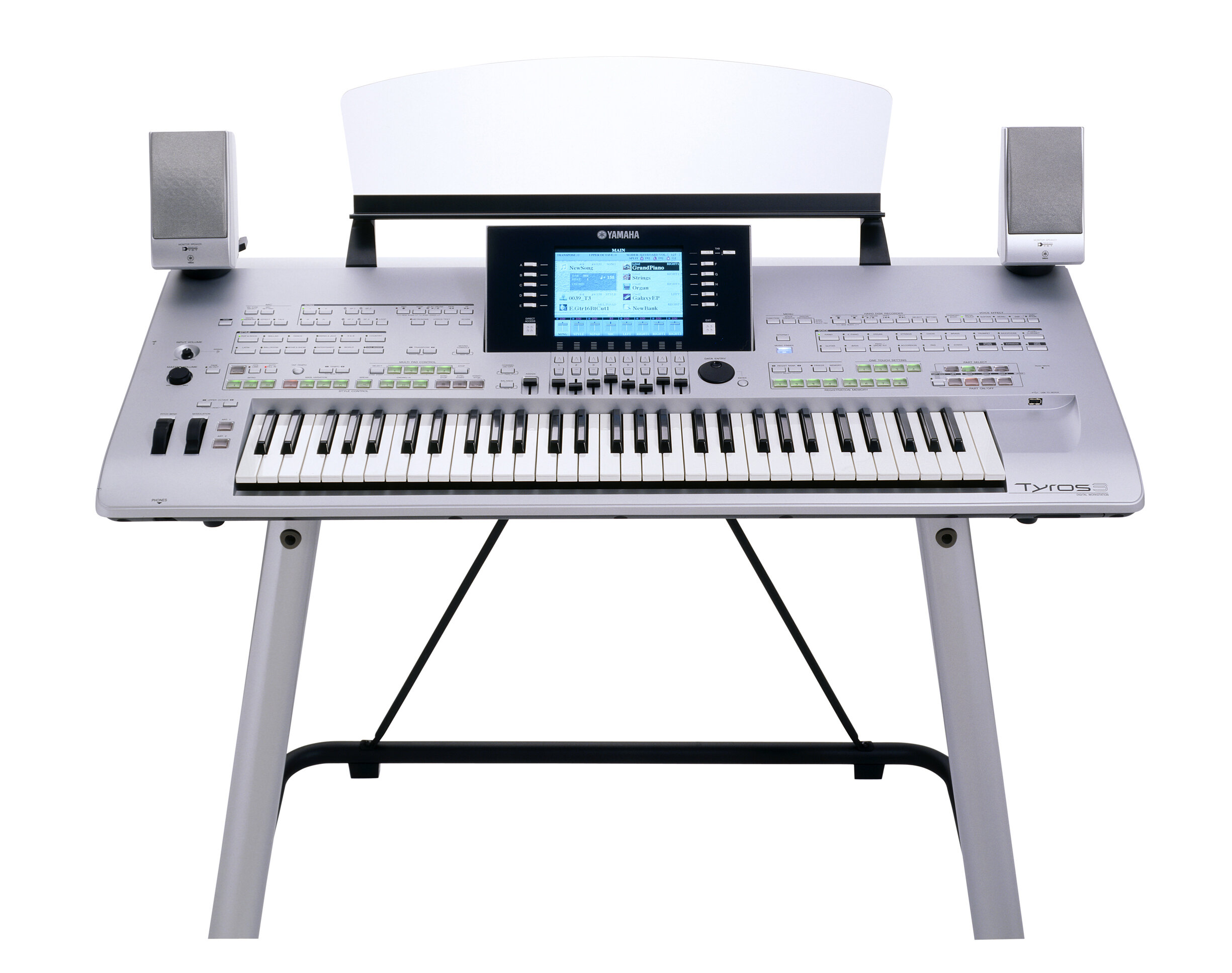

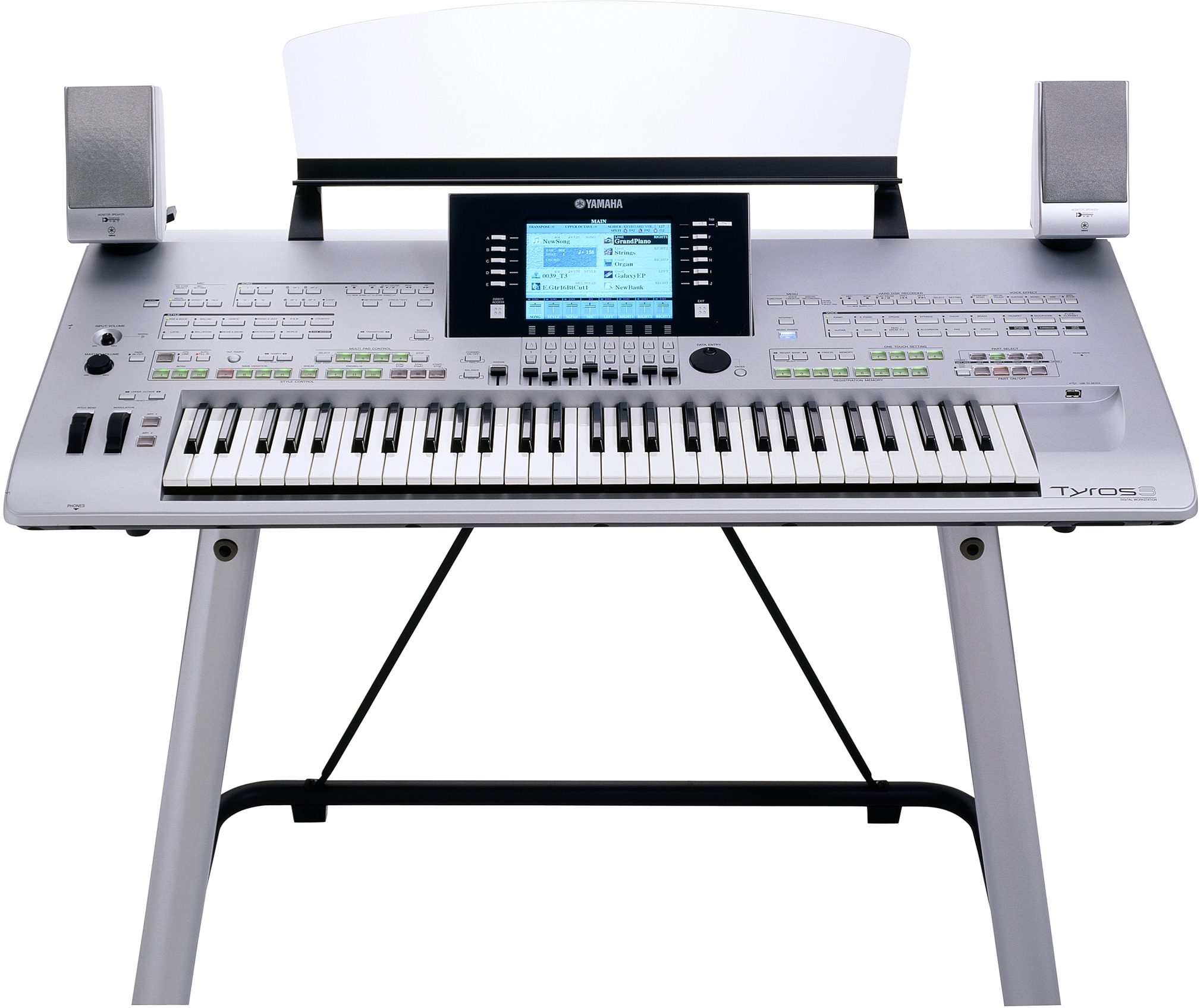

- Amps & Speakers: Optional (TRS-MS02)
- Power Supply: AC (Inlet)

Physical:
- Dimensions: 44.9 x 17.7 x 5.6 inches W x D x H (1,140 x 450 x 142 mm) Without Music Rest and Speakers
- Weight: 33 lbs (15 kg)

Included Accessories:
- AC power cord
- Music rest and brackets
- CD-ROM
- Owner's Manual
- Installation Guide
- User Registration Card

Power Supply:Power Cord (Included)

Product Description

Yamaha Tyros3: The Next-Level Keyboard Arranger

Considered the most powerful, easy-to-use, and top of the line arranger keyboard on the market, the 61 Key TYROS3 provides all the sounds, styles, and features you need to perform the music you want to play! Featuring the highest quality synthesizer keyboard Yamaha has ever made, the easy-to-use packed TYROS3 is the most expressive and musical keyboard in its class. By combining Super Articulation 2 technology and state of the art digital features you get stunning sound quality and musical versatility. Building on the impressive features of the TYROS2, this different, but better, 61 highly touch responsive Key 128 Note Polyphony design includes registration memory buttons on the right side of the keyboard, a first for Yamaha, a new design without chainsaw cutted edges, and a new screen with higher resolution.

Tyros3 Features

- Super Articulation 2 Technology using AEM technology
- 2-track HDR
- Studio Quality Reverb
- Performance Enhancing Control Sliders
- Guitar Accompaniment Algorithm for realistic guitar chord sounds
- New 3-layer piano, voice, guitars, drums and Motif synth sounds
- LAN Port Internet Direct Connect
- RGB/Video Out
- 32 MIDI Channels
- Music Finder
- One Touch Setting

Power Supply:Power Cord (Included)

Tyros 3 Now Featuring Super Articulation 2 Technology

Yamaha introduces a completely new level of sonic realism and musical expressiveness with a brand new technology: Super Articulation 2! Super Articulation 2 is the most advanced tone generation technology on the market, which features detailed samples of special expressive techniques used on specific instruments, adding unique characteristics to every instrument. The TYROS3 contains 11 Super Articulation Voices created with AEM (Articulation Element Modeling) technology, used to stimulate these characteristics to the instruments. Using AEM, the most appropriate sound samples are selected in sequence in real time, from sampled data.

The Tyros3 Has 8 Performance Enhancing Control Sliders

8 sliders have been provided just below the LCD display that allows you to quickly adjust all parameters shown in the display. The additional ASSIGN slider allows you to assign a desired function (volume, reverb, etc.) and control it in real-time during your performance.

Tyros3's Built-in 2-track Hard Disk Recorder

The Hard Disk Recorder lets you record your performances to two audio tracks - Main and Sub. A Bounce recording feature lets you record even more tracks, allowing you to easily record multiple parts in layers.

Tyros3 Now with a Massive 80GB HDD

With 80 GBs, an incredible amount of MIDI data, style data, wav files and more can be stored on the keyboard's internal hard disk without worry of filling it.

The Tyros3's Big LCD Screen

For those wanting to see lyrics and the sheet music that accompanies an artist's song, or even your own, can now get what they want with the Backlit LCD Screen built into the TYROS3 which displays lyrics, chords, and notation. This is a great way to learn how to read music, and since the pages scroll automatically, you don't have to worry about flipping pages to sheet music any longer! Another cool feature you'll find only on the TYROS3 is that the color LCD screen is visible from any angle! Now, no matter where you are on stage or in the studio, you don't have to worry about not seeing the screen!

Tyros3: Convenient Multi Pad Sync function / Registrations and OTS Information

You can add even more to your performance as you play with several preset phrases by using the Multi Pads. These can even be synchronized with Style/Song playback. The information displays for Registration Memory and One Touch Setting allowing you to confirm the registered panel setups easily.

Tyros 3: High-Speed Communication

The built-in LAN Internet Direct Connect (IDC) terminal lets you easily connect your instrument directly to the Internet. IDC lets you connect directly to the Internet - without a computer - letting you delve into the thousands of MIDI songs on Yamaha's website, and download your favorite music for playback. The USB terminals compatible with USB 2.0 High-Speed enable high-speed communication with USB storage devices and computers to online and on-demand music.

Tyros3: Music Finder

When you want to play in a certain genre of music but don't know which settings to choose, what can you do? Use Music Finder! It features over 1800 preset records, each with its own specially selected Style and Voice settings and choice of four registrations, giving you instant professional sounds!

Tyros 3: Voice Expandability

Download additional Voices from the website and load them to the Tyros3 - and increase your selection of available voices (fees apply).
