Yamaha StagePas 500 Portable PA System
2 - 10 in. speaker cabinets, detachable 10-channel 250W + 250W mixer, speaker cables included
Loading...
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
From Our Catalog
News
And now you have a choice of two ways to get there! Yamaha's StagePas 300 has already become the portable PA system of choice for legions of musicians on the move, and now the StagePas 500 is available for situations in which a little extra power and channel capacity is needed.
The basics remain the same: an incredibly lightweight, portable, easy-to-use PA system consisting of a pair of high-performance speakers with a built-in powered mixer. You can be set up and playing in a matter of minutes, and then packed away and on the road again with the same ease and speed when you're done. And all of this is provided with no compromise in sound quality or versatility, plus some advanced features you normally wouldn't expect to find in systems in this class.
Getting great sound for live performance used to be a big deal. Now all you need is a StagePas 300 or StagePas 500! Whichever system you choose, you have a high-performance live-sound system that will deliver your music or message wherever you go, indoors or out.
Complete with Speakers, Powered Mixer, and Cables
All-in-one StagePas systems come with a pair of top-quality passive 2-way speakers, a versatile powered mixer, and even a pair of speaker cables!

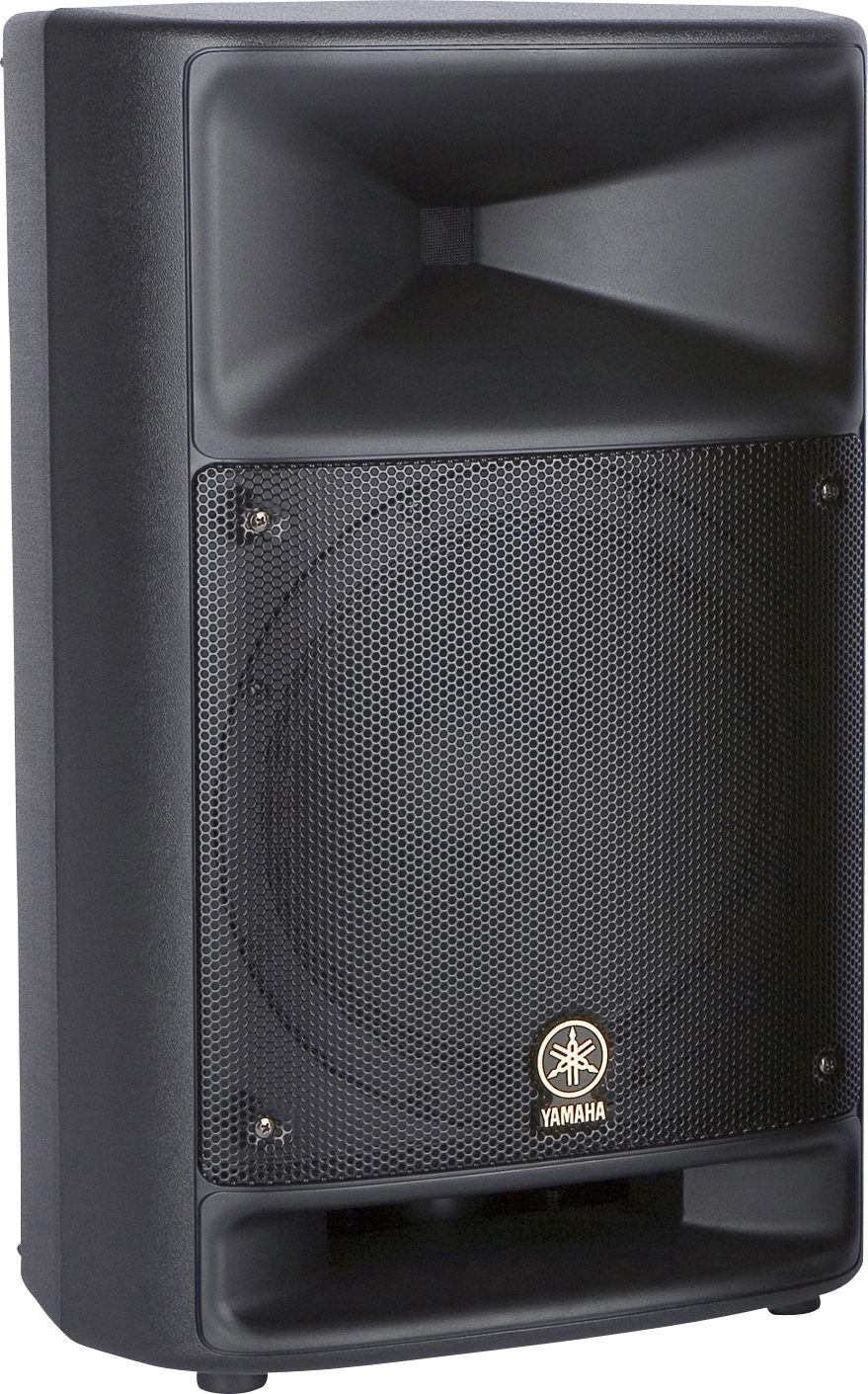

High-performance 2-way Passive Speakers
The StagePas 500 speakers have 10 in. woofers and 1 in. high-frequency units. Both types deliver clean, high-quality sound.

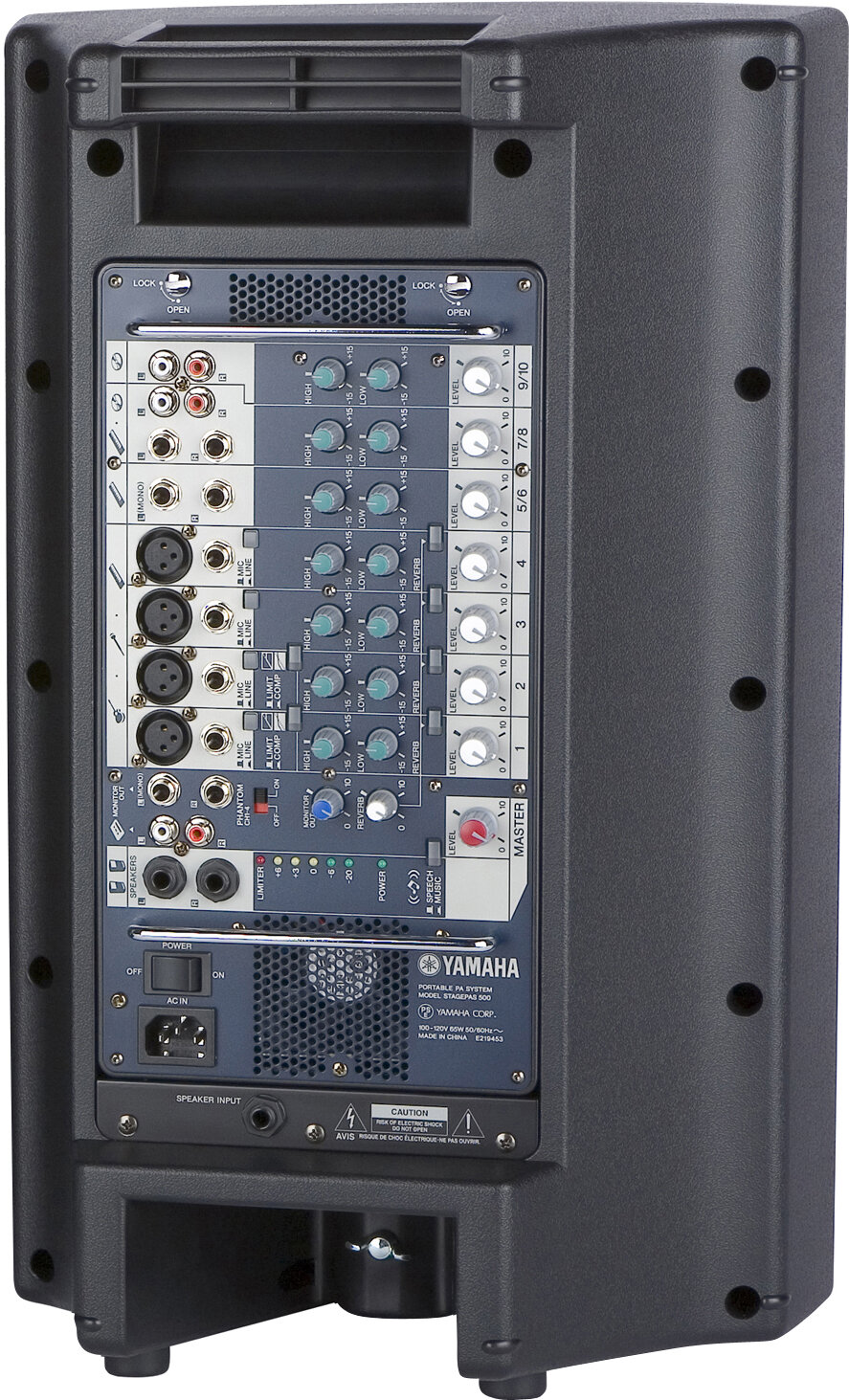

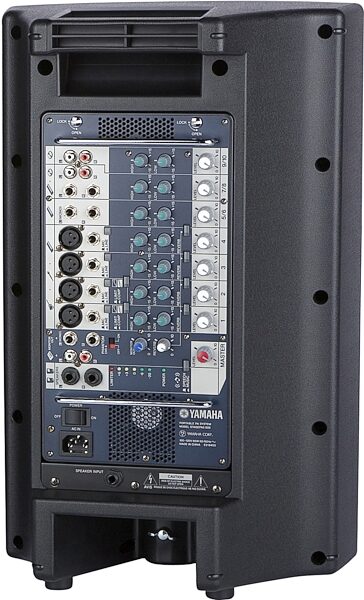

Detachable 10-channel Powered Mixer
The 10-channel 250W + 250W StagePas 500 mixer StagePas 500 can be used either while installed in the speaker compartment or detached for easy positioning and access.
Two-band EQ and Reverb Built In
Built-in equalization and reverb add the finishing touches to your sound.
Convenient Accessory Compartment
StagePas 500 conveniently store cables, microphones, and other small necessities in the speaker accessory compartment for a truly streamlined traveling system.
Optional Microphone Stand Adaptor
The StagePas mixer can be mounted on a microphone stand using the optional BMS-10A adaptor for convenient positioning at any height.
10 Channels and 250W + 250W Power for More Sources and Larger Venues
Dual 250-Watt amplifiers
Two 250-watt power amplifiers can fill surprisingly large clubs or rooms, or project your sound over a considerable distance outdoors. The class-D power amplifier has been painstakingly designed to deliver superior sound quality as well as reliability in a remarkably compact unit.
Versatile 10-channel Mixer with Monitor and Record Outputs
If there are more members in your band than the StagePas 300s 8 input channels can handle, or you simply have a lot of sources to mix, the StagePas 500 gives you 10 input channels in all: four mono microphone/line inputs and three stereo line inputs. The additional stereo channel can used for either a stereo or mono source. In addition to the main speaker outputs the mixer has line outputs that can be used to connect additional powered speakers for monitoring, and to send the mixer's output to a recording device.
Phantom Power for High-performance Condenser Microphones
The StagePas 500 mixer features switchable phantom power for the four microphone/line inputs. This lets you use high-performance phantom-powered condenser microphones in situations where you want the extended, natural response they provide.
Built-in Channel Compression/Limiting
Channels 1 and 2 feature LIMIT/COMP switches that let you apply either limiting or compression to those channels. Limiting can be useful to prevent input overload and distortion with sources that have a wide dynamic range, while compression can add punch to vocals, bass, guitar, and other sources while smoothing out the sound and helping it to ride better in the mix.
2-band Channel EQ and Reverb
Like the StagePas 300 mixer, the StagePas 500 mixer has 2-band EQ controls on each channel, as well as REVERB switches on channels 1 through 4. A separate REVERB level control adjusts the reverb mix.
Other Features
XLR and phone-jack inputs on mono channels, and phone-jack and RCA pin- jack inputs on stereo channels allow connection to a wide range of sources.
MIC/LINE switches select microphone or line level input matching for channels 1 through 4.
Auto Limiter prevents overload damage to power amplifier and speakers.
LED output level meter.
Speaker cables supplied.
Optional BMS-10A Mic Stand Adaptor for the mixer unit.
The StagePas 500 speakers can be stand mounted without standard speaker stand adapters, you can mount the mixer to a stand with BMS-10A or Ultimate Support BMB200K adapter.
For Singers
The built-in high-quality reverb is indispensable for great vocal sound, and on the StagePas 500 system the LIMIT/COMP switch can help to deliver smooth, punchy vocal sound.
For Instrumentalists
The StagePas mixer has more than enough input capability to directly handle a range of instruments from electric-acoustic guitars to electronic keyboards.
For Speech
The "SPEECH" mode optimizes the system settings for maximum clarity with speech. Of course, background music from a CD player or other source can be mixed in with the spoken performance.
For Bands
Multiple microphone inputs make the StagePas systems a good choice for band rehearsals or performances. MSR100 powered monitors (sold separately) can be added for monitoring.
Output Power (RMS): 200 W + 200 W/4ohms at 1 % THD at 1 kHz (Speakers L/R)
Maximum Output Level: 116 dB (1 m)
Frequency Response (Nomimal output level at 1 kHz):
-3 dB, 0 dB, +1 dB @ 20 Hz-20 kHz (Music/Speech=Music) (Monitor Out)
-3 dB, 0 dB, +1 dB @ 80 Hz-20 kHz (Music/Speech = Speech) (Rec Out)
-3dB, 0dB, +1 dB @ 20 Hz-20 kHz, 1 W Output (Music/Speech=Music, without Speaker EQ) (Speakers L/R)
Total Harmonic Distortion: ? 0.5 % at 20 Hz, 1 kHz, 20 kHz +14 dBu Gain = nominal (Monitor Out, Rec Out)
Hum & Noise (Equivalent Input Noise, Rs = 150ohms, Mic/Line = Mic):
? -106 dBu (CH1/2)
? -112 dBu (CH3/4)
? -65 dBu Residual output noise (SPEAKERS L/R)
Crosstalk (1 kHz): ? -70 dB between input channels
Power Consumption: 65 W
Phantom power Switch: On / Off (CH1-4)
Limit/Comp Switch: On = Comp, Off = Limit (CH1/2)
Input Channel Equalization:
+ 15 dB
High: 10 kHz shelving
Low: 100 Hz shelving
Enclosure: 2 way bass-reflex type, Polypropylene, Black
Crossover Frequency: 4.0 kHz (LF: 12 dB/oct, HF: 12 dB/oct)
Frequency Range: 55 Hz-20 kHz (-10 dB)
Speaker Unit:
LF: 10 in. (25 cm) Cone
HF: 1 in. (2.54cm) Compression Driver
Weight : 52.9 lb. (Speaker x 2 + Powered Mixer)
Dimensions (W x H x D):
13.5 x 21.5 x 11.7 in. (Speaker x 1)
330 x 12 x 175 in. (Mixer)
The basics remain the same: an incredibly lightweight, portable, easy-to-use PA system consisting of a pair of high-performance speakers with a built-in powered mixer. You can be set up and playing in a matter of minutes, and then packed away and on the road again with the same ease and speed when you're done. And all of this is provided with no compromise in sound quality or versatility, plus some advanced features you normally wouldn't expect to find in systems in this class.
Getting great sound for live performance used to be a big deal. Now all you need is a StagePas 300 or StagePas 500! Whichever system you choose, you have a high-performance live-sound system that will deliver your music or message wherever you go, indoors or out.
Complete with Speakers, Powered Mixer, and Cables
All-in-one StagePas systems come with a pair of top-quality passive 2-way speakers, a versatile powered mixer, and even a pair of speaker cables!
High-performance 2-way Passive Speakers
The StagePas 500 speakers have 10 in. woofers and 1 in. high-frequency units. Both types deliver clean, high-quality sound.
Detachable 10-channel Powered Mixer
The 10-channel 250W + 250W StagePas 500 mixer StagePas 500 can be used either while installed in the speaker compartment or detached for easy positioning and access.
Two-band EQ and Reverb Built In
Built-in equalization and reverb add the finishing touches to your sound.
Convenient Accessory Compartment
StagePas 500 conveniently store cables, microphones, and other small necessities in the speaker accessory compartment for a truly streamlined traveling system.
Optional Microphone Stand Adaptor
The StagePas mixer can be mounted on a microphone stand using the optional BMS-10A adaptor for convenient positioning at any height.
10 Channels and 250W + 250W Power for More Sources and Larger Venues
Dual 250-Watt amplifiers
Two 250-watt power amplifiers can fill surprisingly large clubs or rooms, or project your sound over a considerable distance outdoors. The class-D power amplifier has been painstakingly designed to deliver superior sound quality as well as reliability in a remarkably compact unit.
Versatile 10-channel Mixer with Monitor and Record Outputs
If there are more members in your band than the StagePas 300s 8 input channels can handle, or you simply have a lot of sources to mix, the StagePas 500 gives you 10 input channels in all: four mono microphone/line inputs and three stereo line inputs. The additional stereo channel can used for either a stereo or mono source. In addition to the main speaker outputs the mixer has line outputs that can be used to connect additional powered speakers for monitoring, and to send the mixer's output to a recording device.
Phantom Power for High-performance Condenser Microphones
The StagePas 500 mixer features switchable phantom power for the four microphone/line inputs. This lets you use high-performance phantom-powered condenser microphones in situations where you want the extended, natural response they provide.
Built-in Channel Compression/Limiting
Channels 1 and 2 feature LIMIT/COMP switches that let you apply either limiting or compression to those channels. Limiting can be useful to prevent input overload and distortion with sources that have a wide dynamic range, while compression can add punch to vocals, bass, guitar, and other sources while smoothing out the sound and helping it to ride better in the mix.
2-band Channel EQ and Reverb
Like the StagePas 300 mixer, the StagePas 500 mixer has 2-band EQ controls on each channel, as well as REVERB switches on channels 1 through 4. A separate REVERB level control adjusts the reverb mix.
Other Features
XLR and phone-jack inputs on mono channels, and phone-jack and RCA pin- jack inputs on stereo channels allow connection to a wide range of sources.
MIC/LINE switches select microphone or line level input matching for channels 1 through 4.
Auto Limiter prevents overload damage to power amplifier and speakers.
LED output level meter.
Speaker cables supplied.
Optional BMS-10A Mic Stand Adaptor for the mixer unit.
The StagePas 500 speakers can be stand mounted without standard speaker stand adapters, you can mount the mixer to a stand with BMS-10A or Ultimate Support BMB200K adapter.
For Singers
The built-in high-quality reverb is indispensable for great vocal sound, and on the StagePas 500 system the LIMIT/COMP switch can help to deliver smooth, punchy vocal sound.
For Instrumentalists
The StagePas mixer has more than enough input capability to directly handle a range of instruments from electric-acoustic guitars to electronic keyboards.
For Speech
The "SPEECH" mode optimizes the system settings for maximum clarity with speech. Of course, background music from a CD player or other source can be mixed in with the spoken performance.
For Bands
Multiple microphone inputs make the StagePas systems a good choice for band rehearsals or performances. MSR100 powered monitors (sold separately) can be added for monitoring.
Technical Info
Output Power (Maximum): 250 W + 250 W (10 %)/4ohms at 10 % THD at 1 kHz (Speakers L/R)Output Power (RMS): 200 W + 200 W/4ohms at 1 % THD at 1 kHz (Speakers L/R)
Maximum Output Level: 116 dB (1 m)
Frequency Response (Nomimal output level at 1 kHz):
-3 dB, 0 dB, +1 dB @ 20 Hz-20 kHz (Music/Speech=Music) (Monitor Out)
-3 dB, 0 dB, +1 dB @ 80 Hz-20 kHz (Music/Speech = Speech) (Rec Out)
-3dB, 0dB, +1 dB @ 20 Hz-20 kHz, 1 W Output (Music/Speech=Music, without Speaker EQ) (Speakers L/R)
Total Harmonic Distortion: ? 0.5 % at 20 Hz, 1 kHz, 20 kHz +14 dBu Gain = nominal (Monitor Out, Rec Out)
Hum & Noise (Equivalent Input Noise, Rs = 150ohms, Mic/Line = Mic):
? -106 dBu (CH1/2)
? -112 dBu (CH3/4)
? -65 dBu Residual output noise (SPEAKERS L/R)
Crosstalk (1 kHz): ? -70 dB between input channels
Power Consumption: 65 W
Phantom power Switch: On / Off (CH1-4)
Limit/Comp Switch: On = Comp, Off = Limit (CH1/2)
Input Channel Equalization:
+ 15 dB
High: 10 kHz shelving
Low: 100 Hz shelving
Enclosure: 2 way bass-reflex type, Polypropylene, Black
Crossover Frequency: 4.0 kHz (LF: 12 dB/oct, HF: 12 dB/oct)
Frequency Range: 55 Hz-20 kHz (-10 dB)
Speaker Unit:
LF: 10 in. (25 cm) Cone
HF: 1 in. (2.54cm) Compression Driver
Weight : 52.9 lb. (Speaker x 2 + Powered Mixer)
Dimensions (W x H x D):
13.5 x 21.5 x 11.7 in. (Speaker x 1)
330 x 12 x 175 in. (Mixer)
500 watts into two 10" 2-way speakers.
10/01
Price cut, New, was $949.99, now only $899.99.
What Our Customers Say About zZounds
"Super affordable gear. Great and affordable shipping... mine was free!" - customer on October 27, 2009
Call
866.ZZOUNDS (996.8637)
and mention priority code: 782VBZN
Item: YAMSTAGEPAS500
related accessories
from $134.95
$124.95
from $29.95
$19.95
from $99.95
Yamaha StagePas 500 Portable PA System Reviews
10 out of 10
zZounds has verified that this customer bought this product from us.
"Get One of These!"
Feature:
Portability and time to set up/tear down are the best features besides the excelent sound. I got the optional roller bags and the mic stan adaptor for the mixer. We were set up in less than 15 minutes with two keys, bass, drum machine, two guitars, two vocal mics and a CD player.
Quality:
The speakers are very durable made with metal screws and faceplate (not plastic). The mixer unit, which can be left in the back of one of the speakers, stayed cool through 3 hours of playing.
Value:
You can't find better sound for the buck...trust me I looked.
Desirability:
This thing is impressive. We walked in the door with two roller bags and the host wasn't afraid that we'd be too loud. Some guests who are musicians marveled at how good of sound we had. Two even said they want to get the system!
Sound:
The sound quality rivals our band's larger PA. Clear highs and surprisingly good lows for 10 inch speakers. It's Yamaha...great sound seems to be their standard.
Ease of Use:
Very easy to use. Simple and straightforward mixing console. While compact, BIG on sound. 500 watts was more than ample to fill a hotel size meeting room with 200 guests.
Support:
Haven't needed support other than in researching the features. Yamaha was responsive and they offer a great waaranty on their gear.
Overall:
This will be the mainstay of our small coffee house/small hotel lounge gigs. We'll reserve our 15's and 14 channel board/monitors for large rooms/outdoors. This little workhorse can carry the load without us breaking our backs or compromising our sound.
Portability and time to set up/tear down are the best features besides the excelent sound. I got the optional roller bags and the mic stan adaptor for the mixer. We were set up in less than 15 minutes with two keys, bass, drum machine, two guitars, two vocal mics and a CD player.
Quality:
The speakers are very durable made with metal screws and faceplate (not plastic). The mixer unit, which can be left in the back of one of the speakers, stayed cool through 3 hours of playing.
Value:
You can't find better sound for the buck...trust me I looked.
Desirability:
This thing is impressive. We walked in the door with two roller bags and the host wasn't afraid that we'd be too loud. Some guests who are musicians marveled at how good of sound we had. Two even said they want to get the system!
Sound:
The sound quality rivals our band's larger PA. Clear highs and surprisingly good lows for 10 inch speakers. It's Yamaha...great sound seems to be their standard.
Ease of Use:
Very easy to use. Simple and straightforward mixing console. While compact, BIG on sound. 500 watts was more than ample to fill a hotel size meeting room with 200 guests.
Support:
Haven't needed support other than in researching the features. Yamaha was responsive and they offer a great waaranty on their gear.
Overall:
This will be the mainstay of our small coffee house/small hotel lounge gigs. We'll reserve our 15's and 14 channel board/monitors for large rooms/outdoors. This little workhorse can carry the load without us breaking our backs or compromising our sound.
Submitted: 12/13/2007
Style of Music: Smooth Jazz, R&B
9 out of 10
"Great Product!Great out output,More than the money worth."
Feature:
The most useful feature is its portability, and the clearity of sound. I wish it has a wider rage of power. I took it for a presentation in UK where they use 240 volts I had to buy another step transformer for it consider making it like the computer where you can switch to any rage of pwer available bearing its portability in mind, this product could be taken any where around the globe.
Quality:
This product is well built with portability and durability in mind. The only suggestion I have is thatin next product it will be great to make it possible to invert the amplifier unit inside out the speaker compartment so as to protect the knob while on transit
Sound:
I do not have any tip I believe the engineers are coming up with stage pass 800 or so. Therefore the great job they did in SP300then 500got better and yet would be much better as it progresses. We cannot ask for much more than rely on them but if they can make it such that powered speakers dont turn off the spplied speakers that would be great I pluged in the Roland 500 to it and the speakers that came with it cut off I thought they blew up but later realized what happend. Please look into it out for out put, clearity and on the fo functions it is great for its price,think of making it possible to use the fiberoptic input for greater sound effect during film and movie presentations.
Ease of Use:
Great and easy to use like I said earlier when my Roland c500 was pluged in, the speakers that came with it cut off. I do not know if anyone has experienced it but I found it a con
Support:
yes not quite easy to reach but very friendly.
Overall:
this is a leading cutting edge portable gear non that close.
The most useful feature is its portability, and the clearity of sound. I wish it has a wider rage of power. I took it for a presentation in UK where they use 240 volts I had to buy another step transformer for it consider making it like the computer where you can switch to any rage of pwer available bearing its portability in mind, this product could be taken any where around the globe.
Quality:
This product is well built with portability and durability in mind. The only suggestion I have is thatin next product it will be great to make it possible to invert the amplifier unit inside out the speaker compartment so as to protect the knob while on transit
Sound:
I do not have any tip I believe the engineers are coming up with stage pass 800 or so. Therefore the great job they did in SP300then 500got better and yet would be much better as it progresses. We cannot ask for much more than rely on them but if they can make it such that powered speakers dont turn off the spplied speakers that would be great I pluged in the Roland 500 to it and the speakers that came with it cut off I thought they blew up but later realized what happend. Please look into it out for out put, clearity and on the fo functions it is great for its price,think of making it possible to use the fiberoptic input for greater sound effect during film and movie presentations.
Ease of Use:
Great and easy to use like I said earlier when my Roland c500 was pluged in, the speakers that came with it cut off. I do not know if anyone has experienced it but I found it a con
Support:
yes not quite easy to reach but very friendly.
Overall:
this is a leading cutting edge portable gear non that close.
Submitted: 09/12/2007
Style of Music: not any of the listed Gospel and classicals
