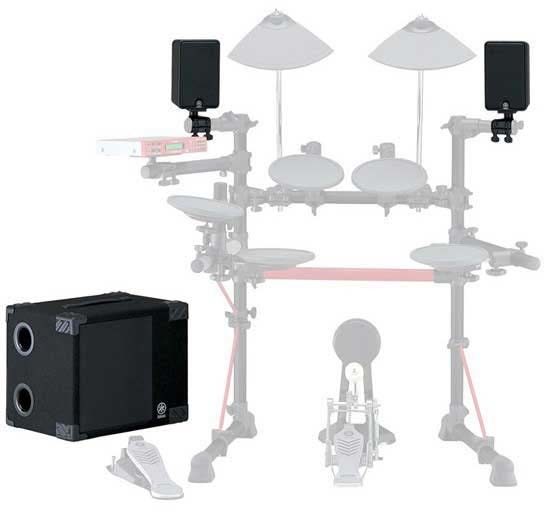

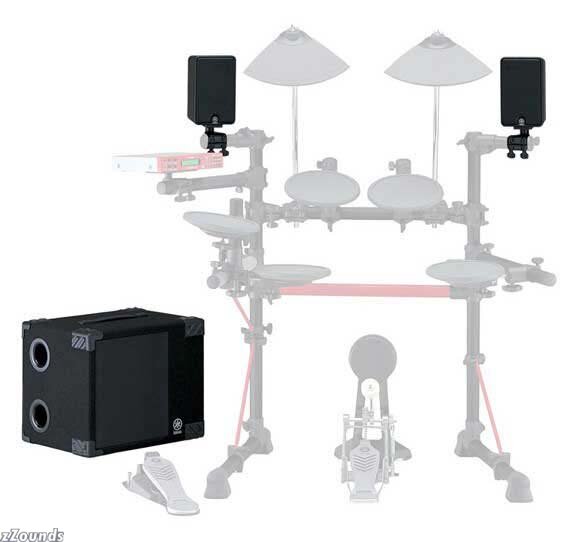

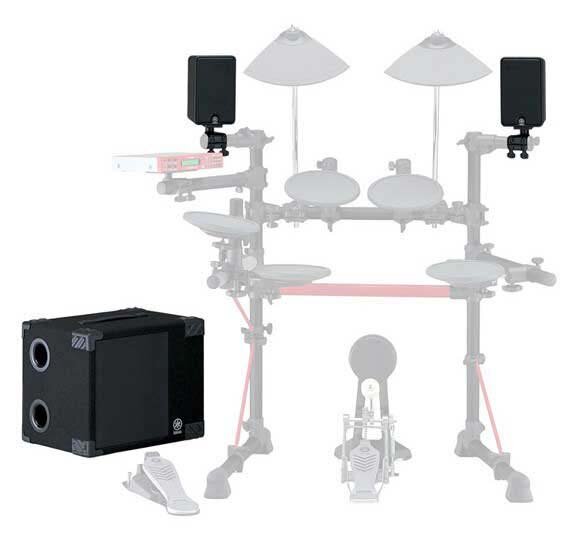

Yamaha MS50DR Drum Monitor System

The MS50DR amplifies your electronic drum kit in true stereo, letting you not only hear but feel what you are playing. The MS50DR is the ideal amplification system for any electronic drum kit in low-mid volume applications such as in your home or apartment.

50-Watt woofer
The 50w bass-reflex sub-woofer reproduces even the deepest kick drum or bass guitar sounds, letting you feel the bottom end and making your electronic kit feel more like an acoustic kit.

3-way satellite speakers
The 20w satellite speakers reproduce the high frequencies of your snare, cymbals or pre-recorded songs. They mount to the rack using the included SPAT-1 speaker mounts making the MS-50DR a compact unit ideal for home use when space is limited.

Simple to use
All you have to do is plug the outputs from your drum module to the inputs in the subwoofer unit, plug the satellite speakers into the left and right speaker inputs (with the included speaker cables) adjust the amount of lows (woofer), and highs (satellites) you want, set the volume and play.

Technical Info

Satellite Speakers: 4 in. woofer + 2 in. Midrange + 1 in. Tweeter

Power Output: 20W/4ohm (x2)

Satellite Speaker Dimensions (WxDxH): 127 x 106 x 205 mm

Weight: 1.5 kg (each)

Subwoofer Unit: 8 in. woofer

Power Output: 50W/4 ohm

Imput Level: Main input -10dBm

Controls: Main input level, Woofer level, power switch

Connections: Main input jacks (L/Mono, R), speaker input jacks (L/R)

Power: UL CSA 117V

Subwoofer Dimensions (WxDxH): 451 x 330 x 380 mm

Weight: 20kg

The ideal drum amplification system for any electronic drum kit in low to mid volume locations.
