Product Description

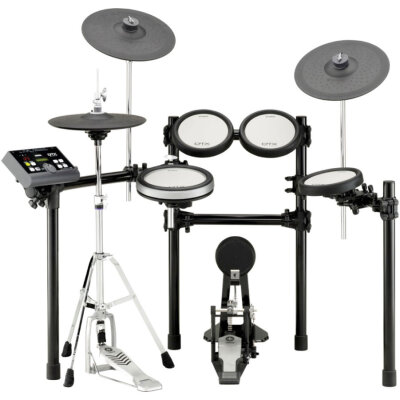

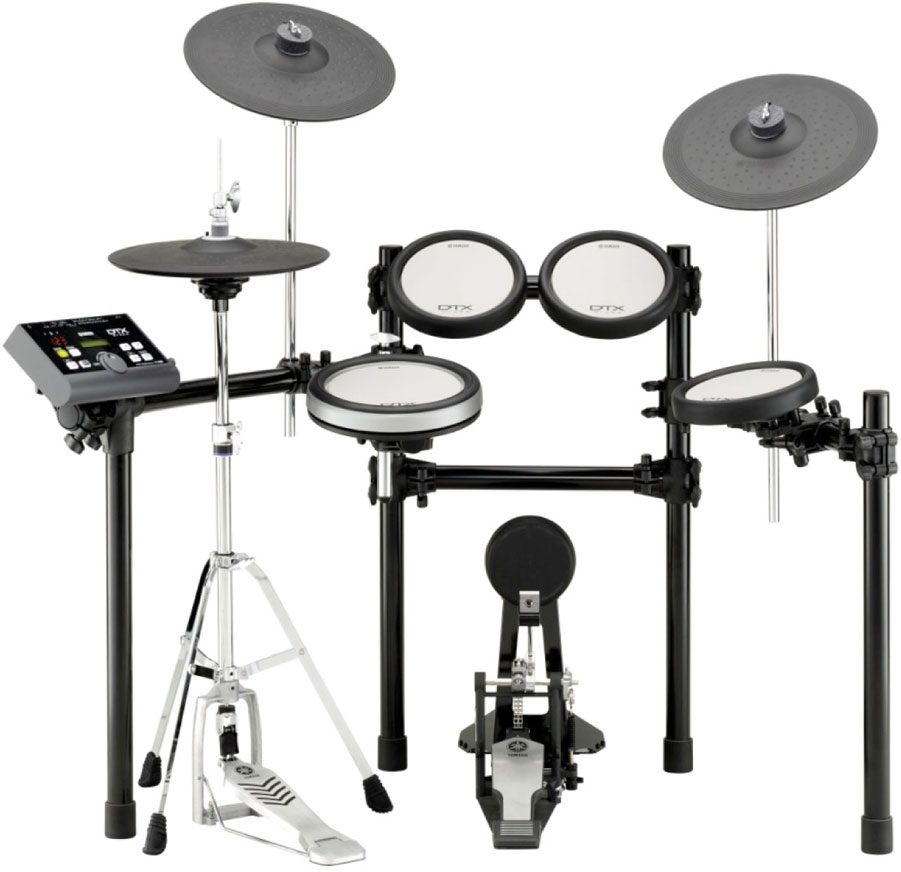

With DTX-PADs for snare and toms, real hi-hat trigger, and two large 3-zone cymbals, the Yamaha DTX560K provides an outstanding value in a professional configuration. Because the DTX-PADs provide a feel close to that of acoustic drums they fell comfortable to play, help to improve your drumming technique, and integrate naturally into a hybrid acoustic-electronic kit. The Yamaha DTX500 module has 427 drum, percussion and effect sounds for any musical situation and offers comprehensive training functions including Groove Check, practice songs, and easy MIDI recording. It is also a very capable MIDI controller for virtual drum instruments.

Yamaha DTX560K Features

- 3-zone 8 inch Textured Cellular Silicone snare for acoustic drum feel (XP80 -NEW!)

- Three 7 inch Textured Cellular Silicone DTX-PAD tom pads (XP70 -NEW!)

- Two large 3-zone choke-able cymbals (PCY135)

- 13 inch real hi-hat provides natural hi hat performance (RHH135)

- DTX500 Drum Trigger Module with 427 drum, percussion and effect sounds

- 50 preset drum kits to cover a diverse range of genres plus 20 user editable drum kits.

- 63 preset songs in a wide range of genres and 20 user songs

- An AUX IN jack lets you connect a CD player or an MP3 player

- High-quality click function that lets you customize rhythm and tone settings

- Challenging groove-check and rhythm-gate functions help you enjoy practicing

- Recording function that lets you capture your drum performances

- On-board high quality digital reverb effects

- MIDI out for controlling external gear and computer software

- 12 trigger inputs compatible with a wide range of pads and triggers

- Standard 5 piece configuration with kick, snare and 3 toms plus real hi-hat and 2 cymbals

- NEW! Pre-assembled RS500 compact rack system for easy setup

NOTE: Bass drum pedal NOT included some assembly may be required. zZounds is an authorized dealer of Yamaha products.

- Configuration:

- Bass Drum Pedal: No

- DTX-PAD: Snare,Toms

- Snare diameter: 8 in.

- 3-zone cymbals: Crash, Ride

- Real Hi-Hat System: Yes

- Trigger Module: DTX500

- Rack System: RS500

- DTP520P (PAD SET) includes:

- XP80

- TP65 x 3

- KP65

- DTP520C (PAD SET) includes:

- PCY135

- PCY100 x 2

- HH65

- HH Holder

- Size/Weight (Trigger Module) :

- Width: 252 mm (9-15/16 inch)

- Height: 147 mm (5-13/16 inch)

- Depth: 52 mm (2-1/16 inch)

- Weight: 898 g (2 lbs)

- Tone generator:

- Maximum Polyphony: 32 notes

- Voices:

- Drum and percussion: 427

- Melodies: 22

- Effects:

- Reverb: 19

- Master EQ: 2 bands

- Drum kits:

- Preset: 50

- User: 20

- Sequencer:

- Note Capacity: Approx. 16,000 notes

- Note Resolution: 96 ppq (parts per quarter note)

- Song recording type: Real-time replace

- Song tracks: 1 track

- Songs:

- Demo: 3

- Practice: 41

- Pad: 19

- User: 20

- Click:

- Tempo: 30 to 300 BPM, Tap Tempo supported

- Beat: 1/4 to 9/4

- Timing:

- Accent

- Quarter note

- Eighth note

- Sixteenth note

- Triplet

- Training Functions:

- Measure break

- Groove check

- Rhythm gate

- Other:

- Connectors:

- OUTPUT [L/MONO] (Standard mono phone)

- OUTPUT [R] (Standard mono phone)

- Trigger Inputs 1, 5, 6, 7 (Standard stereo phone, L: Trigger Input, R: Rim Switch)

- Trigger Inputs 2, 3, 4, 8 (Standard stereo phone, L: Trigger Input, R: Trigger Input)

- HI-HAT CONTROL (Standard stereo phone)

- AUX IN (Stereo Mini)

- PHONES (Standard stereo phone)

- MIDI IN/OUT

- Accessories: Power Adaptor (PA-130A or PA-3C)
