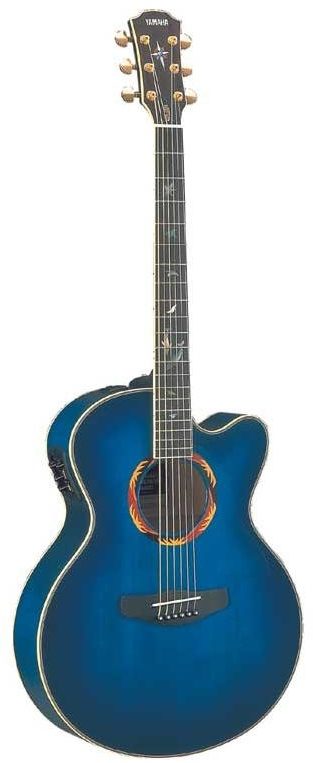

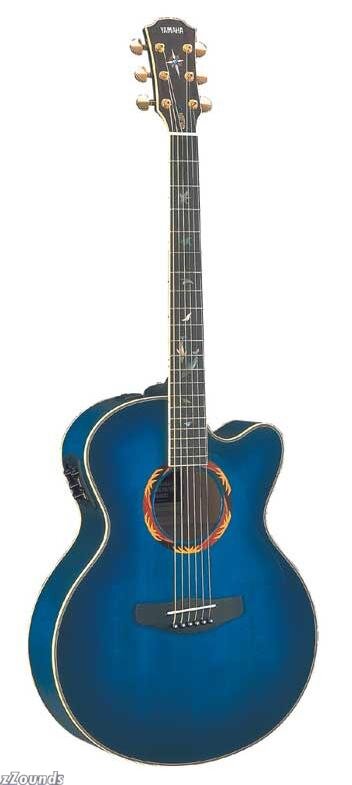

The CPX15S design is influenced by the islands of the Caribbean. The cool Sea-Blue finish over Flamed Sycamore back and sides, multi-wood Palm tree rosette design and dolphin fingerboard inlays, serve as a pleasing counterpoint to this guitar's no-nonsense specifications.
Features:
Thematic Carbbean Design
Solid Sitka Spruce Top
Flamed Sycamore Back and Sides
Mahogany Neck with Ebony Fingerboard
Gold Tuners
System 45 Preamp w/ Piezo Pickup + Microphone
Ocean Blue Burst Finish
Limited Lifetime Warranty
The excellent 2-way piezo/mic system -- the mic mounted in fixed position underneath the bridge plate -- allows both signals to be blended for the ultimate in acoustic-like realism, while the 4-band EQ includes presence for added sparkle and a variable midrange (300Hz - 2kHz) for extended tonal adjustment. The supplied soundhole cover helps prevent feedback in high-volume situations.
CPX15 Controls
The CPX15 features a 2-way pickup system consisting of a piezo pickup mounted in the bridge and a condenser microphone attached to a gooseneck mounted inside the body. While the piezo system reproduces string vibration, the microphone is used to pickup the guitar`s acoustic tone produced within the body.
The CPX15's preamp incorporates a Blend Control to mix Ribbon Transducer pickup's tight electric-acoustic sound with that of the condenser microphone`s rich and warm acoustic tone. The 4-band equalizer equipped with an Adjustable Midrange Frequency (AMF) control offers precise sound tailoring of the overall tone.
Bracing
Bracing is a critical factor in the overall tone produced by the guitar. The Compass series`s use of an X bracing design with placement closer to the sound hole affording greater bass response from the instrument.
Sound Hole Cover
The sound Hole cover supplied with the CPX15 prevents feedback from the condenser microphone when performing live.
Yamaha Factories
Yamaha guitars, basses and amplifiers are not a product of a single shop or factory. A worldwide network of design, development and production facilities translate into a large group of highly talented individuals working as a team to bring forth innovative ideas and designs.
Technical Info
Top Solid Spruce
Back / Sides White Sycamore
Neck Mahogany
Fretboard Ebony
Soundhole Inlay Palm Trees (wood)
Bridge Ebony
Scale 25-1/2 in.
Pickup System LR Baggs
Hardware Gold
Finish Miami Ocean Sunburst
