Product Description

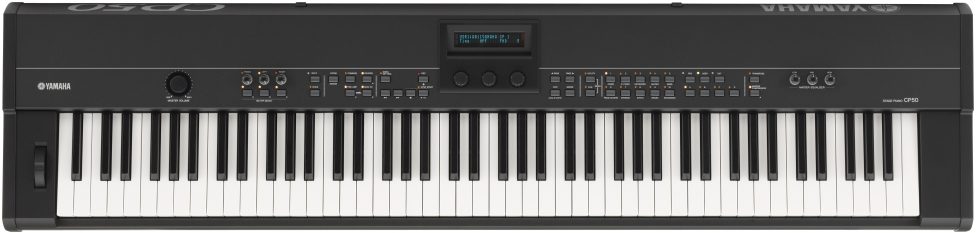

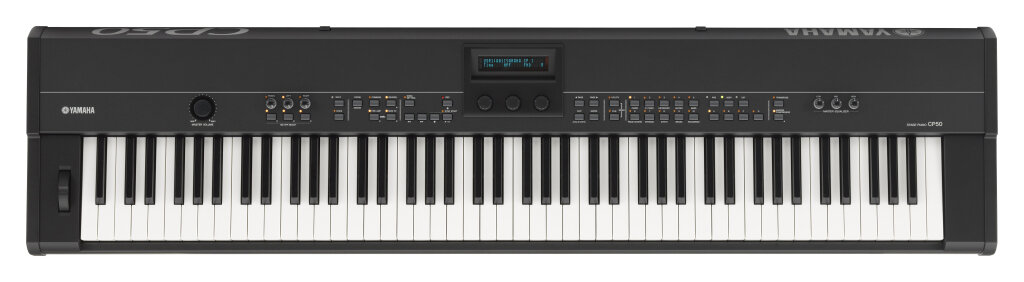

The Yamaha CP50 takes the core sounds and technology of the CP1, but it's flexibility and portability make perfect for the working pro on the go. The CP50 adds a wide range of sounds to the CP1. Clavs, organs, strings and more make the CP50 perfect for church, school and live situations where everything needs to be performed on one keyboard. The CP50 features not only Virtual Circuit Modeling effects, but many effects taken from the Motif XS line of Synthesizers. The CP50 has a graded hammer action and a light-weight, portable design.

Features

- The core sound of SCM (Spectral Component Modeling) technology
- 12 selected acoustic and vintage electric piano sounds
- 215 additional sounds (clavs, organs, strings and more) and various effects
- 88-Key weighted graded hammer action
- Customize function to create your original piano sound
- Record and playback functions for MIDI and audio
- Rhythm patterns for wide range of musical application
- Convenient Master Keyboard function
- Steinberg Cubase AI DAW software bundled

Spectral Component Modeling Technology

A unique new SCM (Spectral Component Modeling) tone generation system faithfully recreates the 12 selected sounds of acoustic and vintage electronic pianos and responds to the player's touch to provide more creative expression than ever before possible. Moreover, CP5 has 215 additional sounds and various effect to make them perfect for wide musical applications.

*The Spectral Component Modeling system starts with a fundamentally different tone generation system than Yamaha has ever used before. By combining Sampling and Modeling technology, it optimizes tone generation for each instrument so that every nuance of the player's touch is translated into expressive tone.

Totally Original Piano Sounds

Allowing you to freely build your own acoustic and electric pianos by selecting different components of piano types, amplifiers, and effects, the Spectral Component Modeling technology makes easy work of recreating standard vintage sounds or realizing unique, original sonic palettes. With your instruments assembled, you can then adjust various parameters of the physical components like Stiriking Position to create an even more diverse range of exciting piano sounds.

88-Key Weighted Graded Hammer Action

The keyboard of the CP50 utilizes Yamaha's GH (Graded Hammer) technology to reproduce the true feel of a grand piano keyboard action, with heavier touch in the lower keys, lighter touch in the higher keys, and subtle gradations of weight and response throughout. Thanks to the input of concert-level, professional pianists during its development, the GH keyboard features superb balance and remarkable consistency.

Record and Playback Functions

Your CP50 can record keyboard performances as MIDI data and store them internally for playback whenever required; alternatively, you can also record these performances as audio data on a USB flash-memory device.

What's more, these and other Wave files from a USB flash-memory device can also be editted by using the bundled Cubase AI5, which offers more convinience for playing demo tracks in live stage or edit live recording in the studio.

Power Supply: PA-150 Power Cord (Included) zZounds is an authorized dealer of Yamaha products.

Voices
Maximum Polyphony: 128

Tone Generator: SCM (Spectral Component Modeling) + AWM2

Performances
Performances:
- Preset: 10 x 4 groups x 3 banks
- User: 10 x 4 groups x 3 banks
- External: 10 x 4 groups x 3 banks

Parts: 3

Voice Block: 12 piano voices(SCM + AWM2) + 215 other voices (AWM2)

Modulation Effect Block: 49 types

Reverb: 8 types

Master Compressor: 3-band

Master Equalizer: 3-band

Rhythm
Number of Kits: 14

Number of Patterns: 100

Control Interface
Keyboard: 88 keys, GH keyboard

Display: 24 character x 2 lines, vacuum fluorescent display (VFD)

Controllers: Pitch bend wheel, Master volume, Knobs 1 to 3, Part volume x 3, Master equalizer x 3

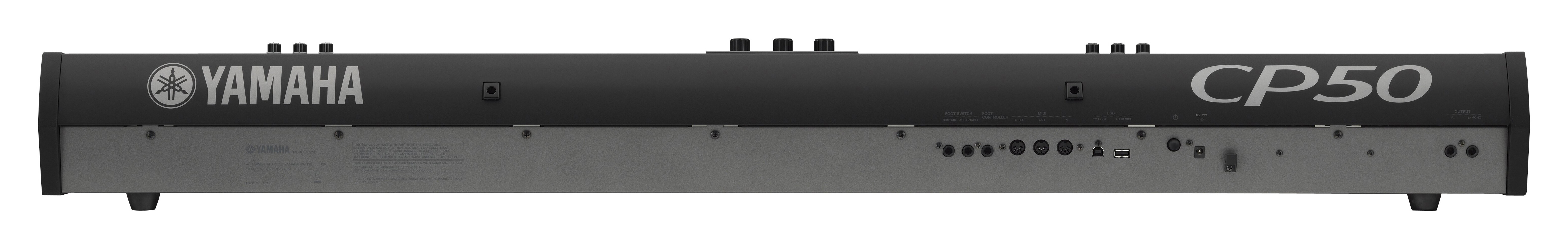

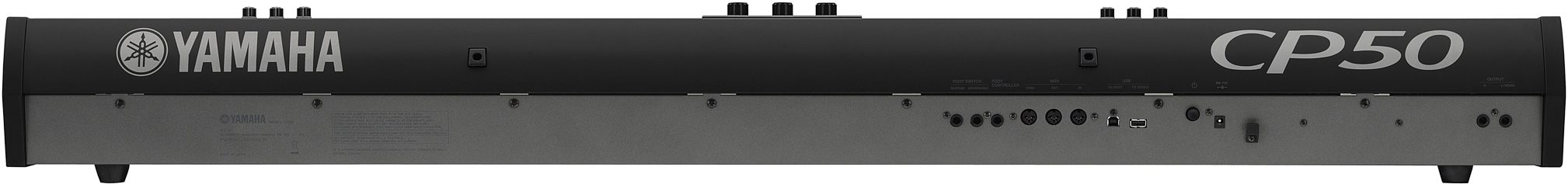

Connectors
Line Out: L/MONO,R (Unbalanced)

Headphones: Headphones jack (stereo-phone)

Foot Switch: SUSTAIN, ASSIGNABLE

Foot Controller: x1

MIDI: IN, OUT, THRU

USB: TO HOST, TO DEVICE

Other
Power Consumption: 7W

Additional package contents: Power adaptor PA-150 (or an equivalent recommended by Yamaha) , Foot pedal FC3, Owner's Manual, Owner's Manual CD-ROM, Software DVD-ROM (Cubase AI)

Size/Weight
Dimensions:
- Width: 1,381 mm
- Height: 165 mm
- Depth: 332 mm

Weight:
- Weight: 20.9 kg

Power Supply: PA-150 Power Cord (Included)

Dimensions and Weight in Packaging

Shipping Weight: 56 lbs

Shipping Dimensions: 63 x 17 x 10 in
