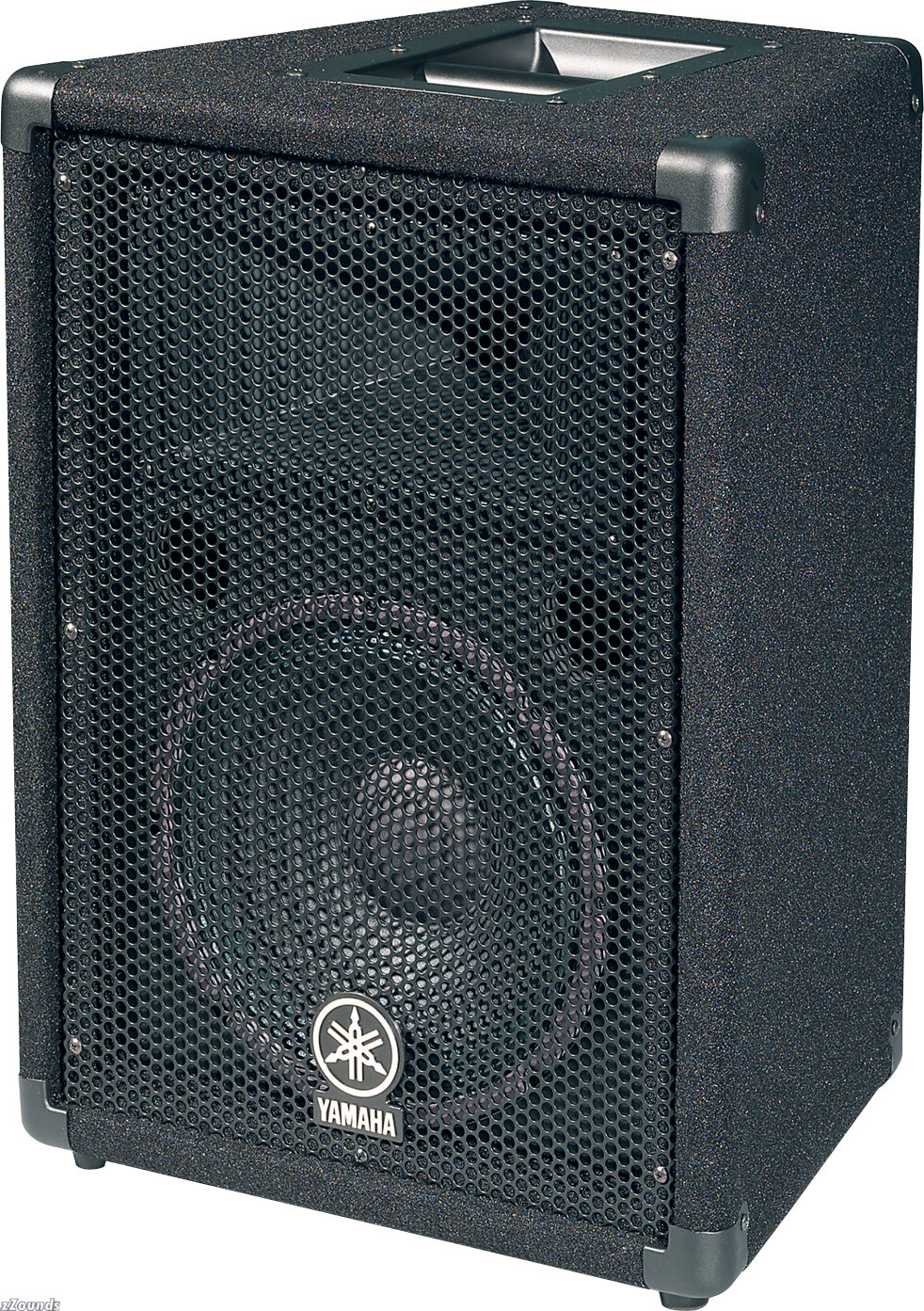

Yamaha BR10 PA Speaker Cabinet (250 Watts, 10 in.)

The new BR-Series from Yamaha combines affordability with high performance. Five BR models are designed to fit the budgets of performing musicians, small churches, and schools, while delivering the full frequency response and high output of more costly systems. While "BR" presents "bass reflex", it also proves very appropriate for describing the line's advanced feature set...

Built Right: Combining their knowledge of acoustics and advanced computer controlled woodworking, Yamaha Music Manufacturing in Thomaston, Georgia, crafts the BR line of sound reinforcement loudspeakers to exacting standards. Each model's large steel handles, corner protectors, and built-in pole sockets, assure both durability and flexibility.

Better Response: BR cabinets are carefully designed for the best balance of small, easy to handle size and great low-frequency response, using Bass Reflex technology. High-frequency response is also enhanced with a 1 in. new titanium HF driver and 90° by 40° non-resonant horn.

Best Reliability: All BR-Series models are covered by a three-year warranty. With integral protection circuitry built into the passive crossover, you can expect a long life of high output and minimal distortion. Whichever model you choose, your message is sure to be heard using BR-Series loudspeakers... and you can take the savings to the bank!

Technical Info

Woofer: 10 in.

Tweeter (diaphragm): 1 in. titanium

Frequency Response (-10dB): 65Hz-20kHz

Power Handling (noise*/program/peak): 125/250/500 Watts

Nominal Impedance: 8 ohms

Nominal Dispersion: 90° H x 40° V C.D.

Sensitivity (1W, 1m): 96dB

Input Connectors: 2 x 1/4 in. Phone

Dimensions (Approximate WxHxD): 14 ¾ in. x 21 in. x 12 ¾ in.

Weight: 31.5 lbs.

* (EIA RS426)

With 10" speaker and horn, handles 250 watts at 8 ohms.
