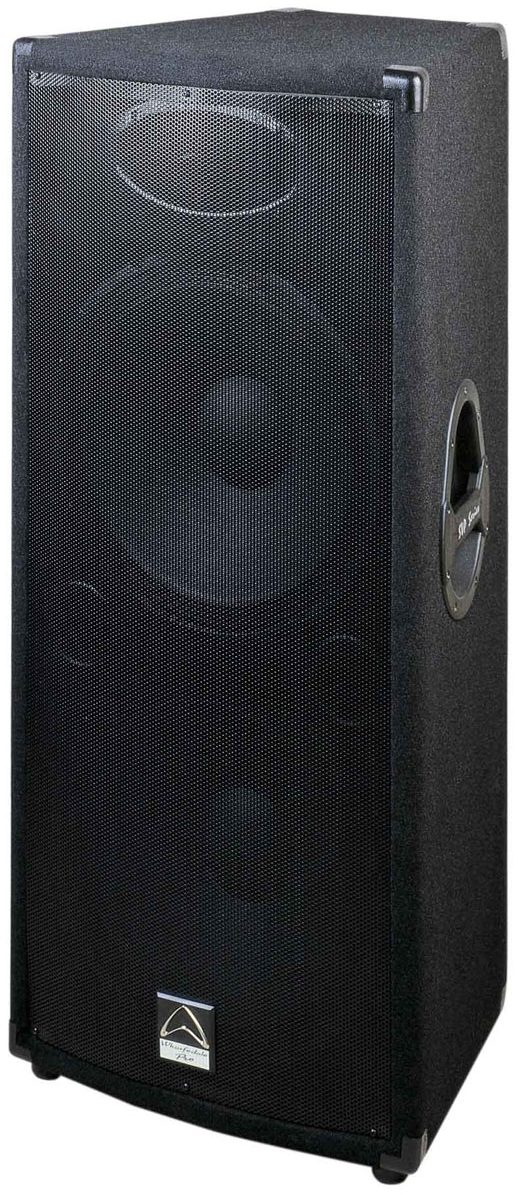

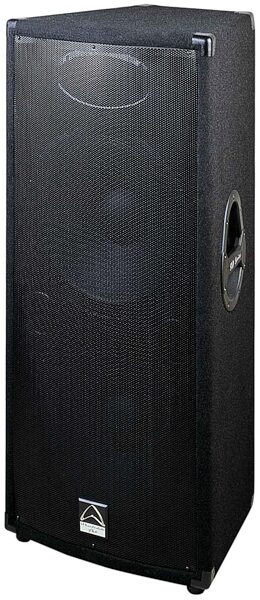

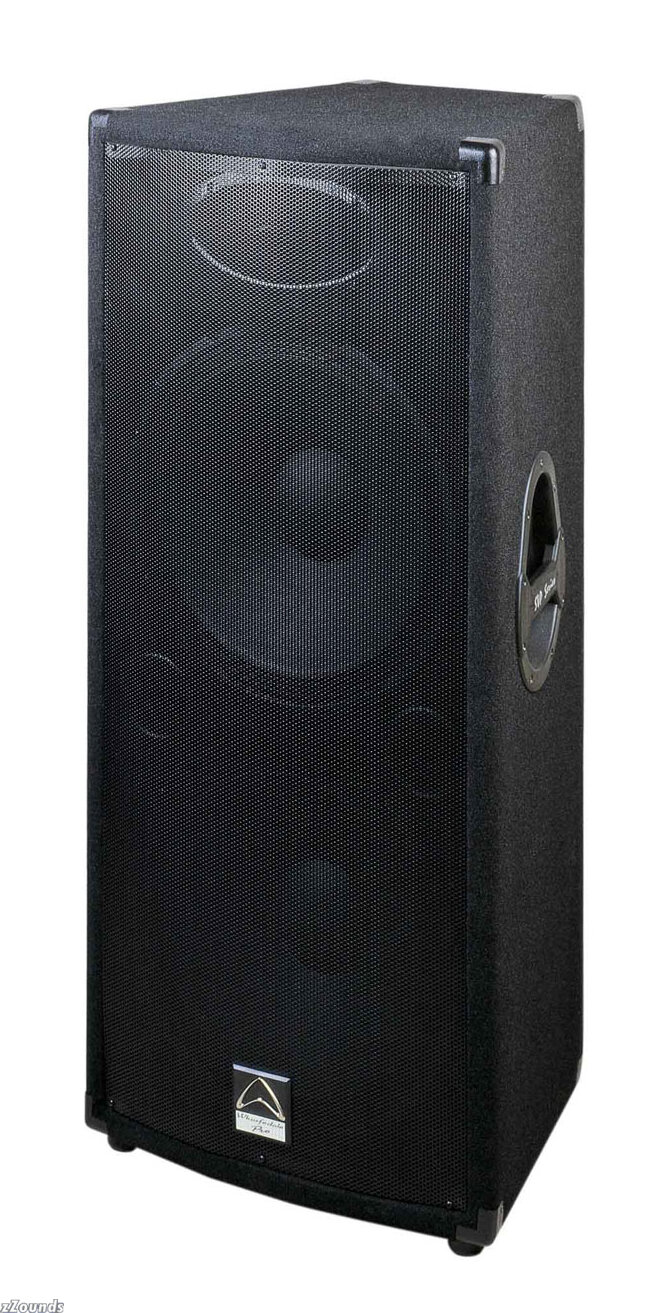

Wharfedale SVP215 2-Way Loudspeaker (500 Watts, 2x15 in.)

The SVP215 dual 15 inch PA speaker stands out from the competition. Genuine Wharfedale Pro cast-frame woofers, high-efficiency compression driver, Elliptical Waveguide (EWG) technology and Protech driver protection all ensure that SVP 215 stands out as the best value in a professional sound loudspeaker.

Elliptical waveguide
The series has been built around the development of an exceptional new compression driver, combined with an elliptical waveguide that brings unprecedented sound quality and performance to this product class. High output capability and low distortion with excellent high frequency extension characterize these new drivers.

Protech driver protection system
Each crossover in the SVP Series is built using the highest quality components and designed specifically for that system. All feature the Protech driver protection system designed to protect the HF driver against damaging signals caused by overloading, seamlessly returning the system to normal operating levels.

Trapezoidal design
The enclosures are lightweight yet tough. The trapezoidal design gives low resonance and sonic accuracy in the low frequency range as well as allowing more compact multiple arrays for higher output and wider coverage.

Durable black carpet
The low-resonant enclosures are finished in durable black carpet covering, with rugged steel corners and protective grills. Also features two 1/4 inch jack sockets.

Features
1 inch ferrofluid compression driver

Elliptical wave guide technology, provides superior control, greater output capability & natural, open, low distortion high frequency reproduction

Trapezoidal enclosures for easy array and sonic accuracy

ProTech driver protection system

Rugged protective steel corners and grills

Integral handles, metal pole stand adaptor

Two 1/4 inch jack socket

Low resonance enclosure design

Durable black carpet covering

Two-way speaker system, 15 inch double woofer

40-20kHz frequency response (+/-3dB)

4 ohms system impedance

Continuous 250W / Music 500W / Peak 1000W power handling

Technical Info

System type: Quasi 3 way 2 x 15 inch 2-way passive

In/Out Panel (Speaker Level): Input 2 x 1/4 inch jacks

Frequency response +/-3DB: 40-20kHz

Sensitivity (db 1w@1m): 101dB

System impedance: 4 ohms

Maximum SPL Peak dB: 129.5dB

Power Handling:
- Continuous RMS: 250
- Program: 500
- Peak: 1000

LF Driver:
- Size: 2 x 15 inches
- LF voice coil size: 38/1.5 inches

HF Section:
- Voice coil size: 25/1 inches
- Horn dispersion (H x V): 90 x 60
- Hf exit size mm / inches: 30/1.2 inches
- Hf horn shape: Elliptical

Crossover Section:
- Crossover Frequency / Filter: 3.2k
- Hf driver protection: Bulb

Finish: Black carpet

Handle quantity: 2

Stand adapter - BOTTOM: No

Enclosure shape: Trapezoid

Dimensions (H x W x D): 1014 x 463 x 390 mm (40 x 18.24 x 15.36 inches)

Net weight ( kg / lbs ): 31.0 / 68.2 (lbs)
