Waldorf Largo Software Synthesizer (Mac and Windows)

Many producers and synthesizer enthusiasts asked for a full-blown Waldorf Synthesizer for their virtual rack. Waldorf listened, and now they proudly present Largo. Largo is the first pure software synthesizer with Waldorf DNA. And again - it is the cutting edge sound that makes the big difference.

No wonder, as Largo mirrors the technology used in Blofeld and Q hardware synthesizers. As for every Waldorf instrument, ergonomics are a core feature on screen as well. Your eyes will be pleased with a clearly structured, graphical user interface that supports your work-flow intuitively.

Largo offers three fat oscillators, two of them with sub oscillators. These oscillators include models of classic analog waveforms as well as a selection of waves from the PPG and Waldorf Wave stored in two Wavetables. All these run through two Waldorf multi-mode filters with steep cutoff, resonance up to self-oscillation and a drive stage to add even more punch and grainy-ness to the sound. Ultra-fast envelope generators and flexible LFOs as well as an easy to understand, yet extremely versatile modulation matrix make for a sound designer's dream.

The filters have always been a core part of any Waldorf instrument. With outstanding expertise in both analog and digital synthesis, our developers took utmost care in developing the filters. And you can hear a significant difference when working with a Waldorf filter - they just sound right! Use the comb filters for plucked, stringed or blown sounds. Band pass, high pass, low pass and notch filters are all available with 12 dB and 24 dB slope. All of them sound extremely accurate and add pure sonic quality to the sound of your music.

Largo contains a flexible arpeggiator with 16 freely programmable steps as known from the exclusive Q synthesizer line plus an array of high quality effects such as Chorus, Flanger, Phaser, Overdrive, Delay and Reverb.

The clearly arranged user interface helps you to create your own powerful synthesizer sounds in a breeze. Oscillators and filters are always in direct access while the submodules are only a mouse click away. It has the same exclusive voice architecture as the Q and Blofeld synthesizer line, fully integrated into the total recall system of your Digital Audio Workstation.

Largo works as a VST and AudioUnit instrument.

Technical Info

Specifications
General Features:
- up to 256 voices per instance (depending on available CPU power)
- up to 4 layers per sound
- 4 stereo outputs (alternatively 1 stereo sum)
- host automation of almost all parameters
- MIDI Controller automation of the most important parameters

Per Voice:
- 5 Oscillators
-- 3 Main Oscillators
-- 2 Sub Oscillators
- Virtual Analog Models:
-- Pulse with Pulse Width Modulation
-- Sawtooth
-- Triangle
-- Sine
- Wavetables:
-- 68 wavetables taken from the legendary Microwave and Wave synthesizer as also Q and Blofeld wavetables

Frequency Modulation between Oscillators and Noise Generator

Oscillator Synchronization

Ring Modulator for Osc 1 / 2

Noise Generator with Noise Colour

- 2 independent Multi Mode Filters
-- Filter FM
-- Resonance up to Self-Oscillation
-- Low Pass 24 dB / 12 dB
-- Band Pass 24 dB / 12 dB
-- High Pass 24 dB / 12 dB
-- Notch 24 dB / 12 dB
-- Comb Filter with positive / negative Feedback
- 2 Drive Stages per voice with adjustable Drive Gain and selectable Curves
-- Clip
-- Hard
-- Medium
-- Soft
-- Sine Shaper
and more

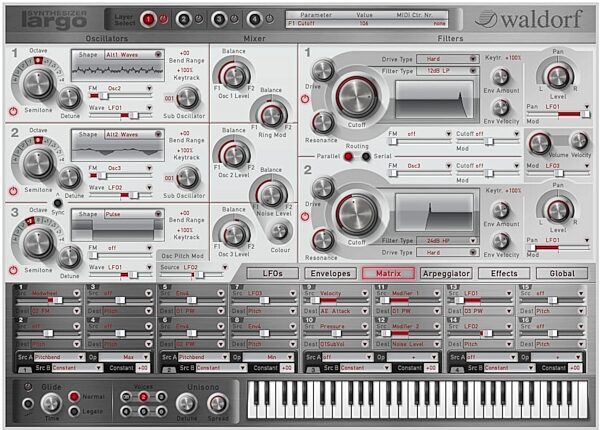

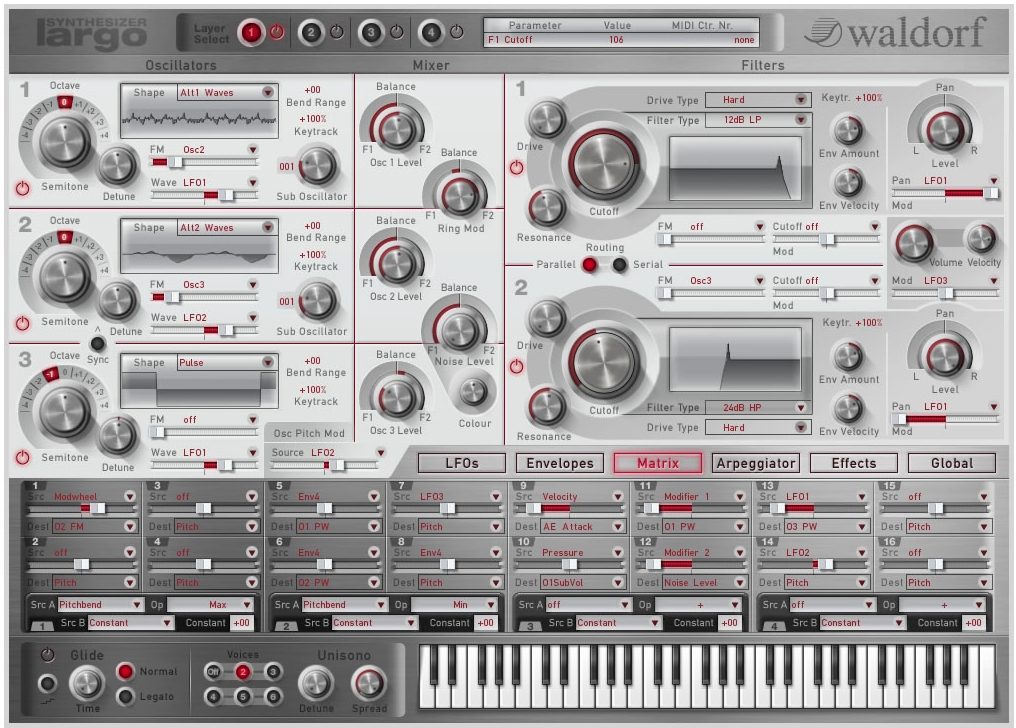

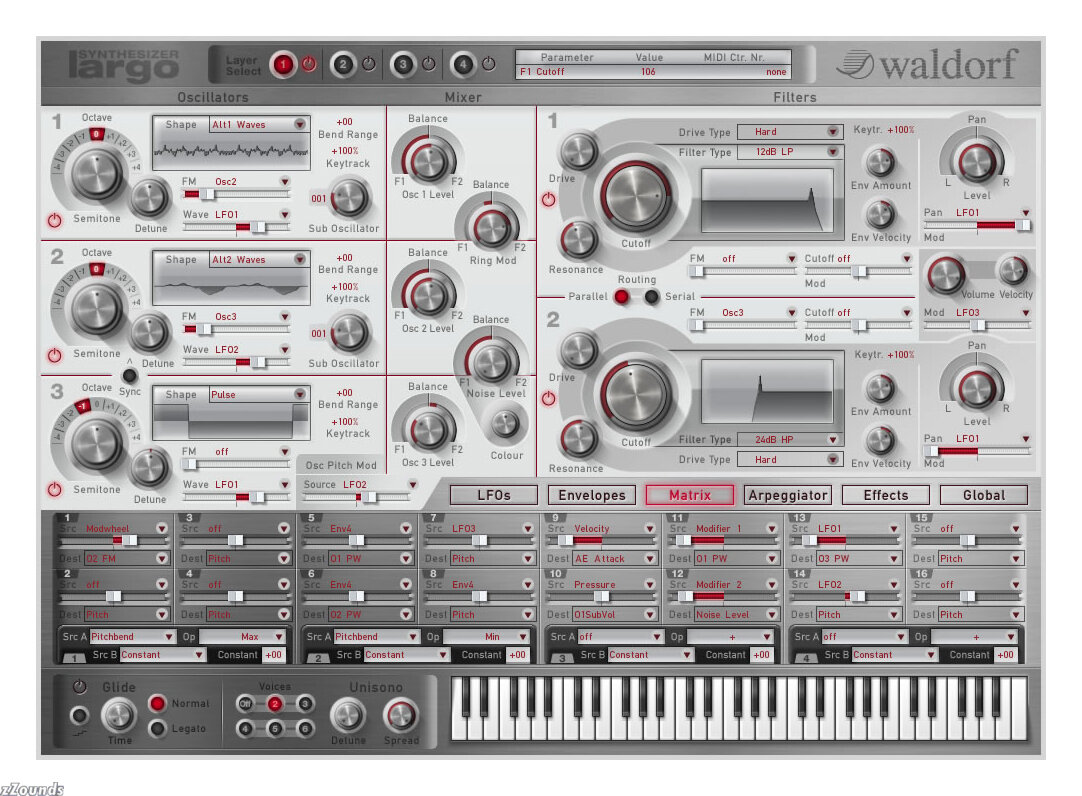

Modulation Matrix with 16 Slots, freely programmable

Modulation Speed far into Audio Range

Modulation Sources include all internal Modulation Sources plus various

MIDI messages:
- Modulation Destinations for almost all continuous sound parameters
- various pre-routed Modulation Destinations with selectable Sources:
-- Pitch Modulation
-- Oscillator 1 / 2 / 3 Frequency Modulation
-- Oscillator 1 / 2 / 3 Pulse Width Modulation
-- Filter 1 / 2 Cutoff Modulation
-- Filter 1 / 2 Frequency Modulation
-- Pan 1 / 2 Modulation
-- Amp Modulation

4 Modifiers for transforming Modulation Sources with various Algorithms

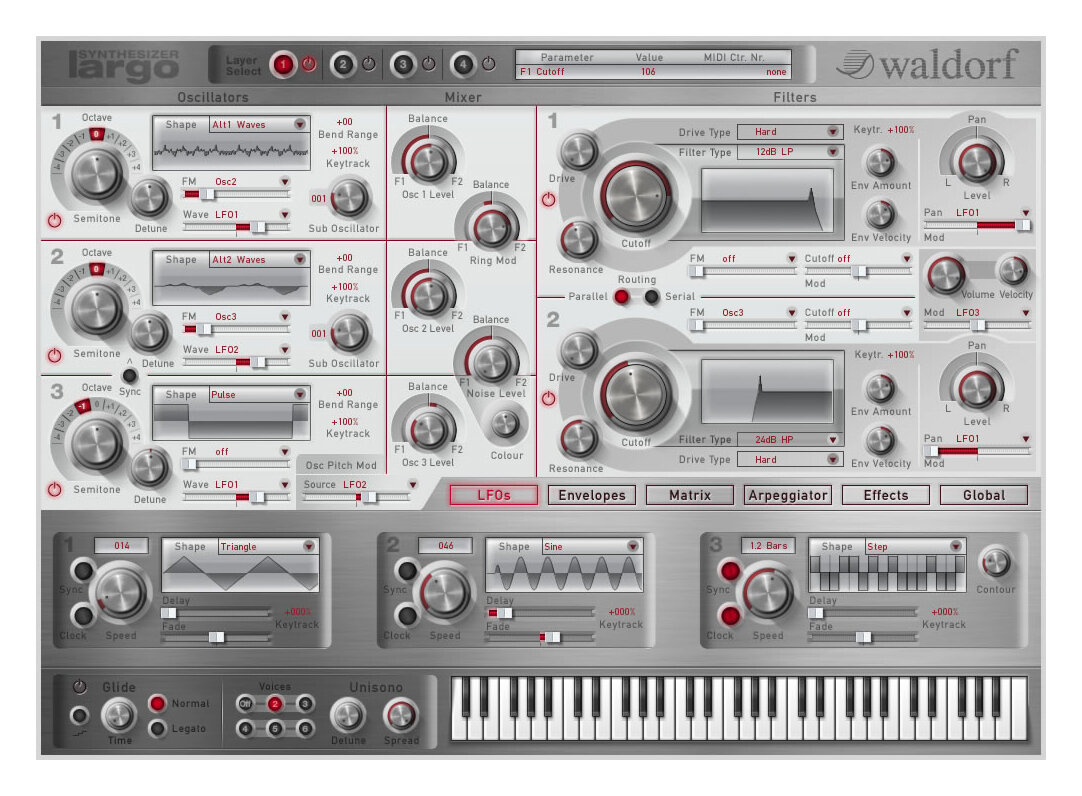

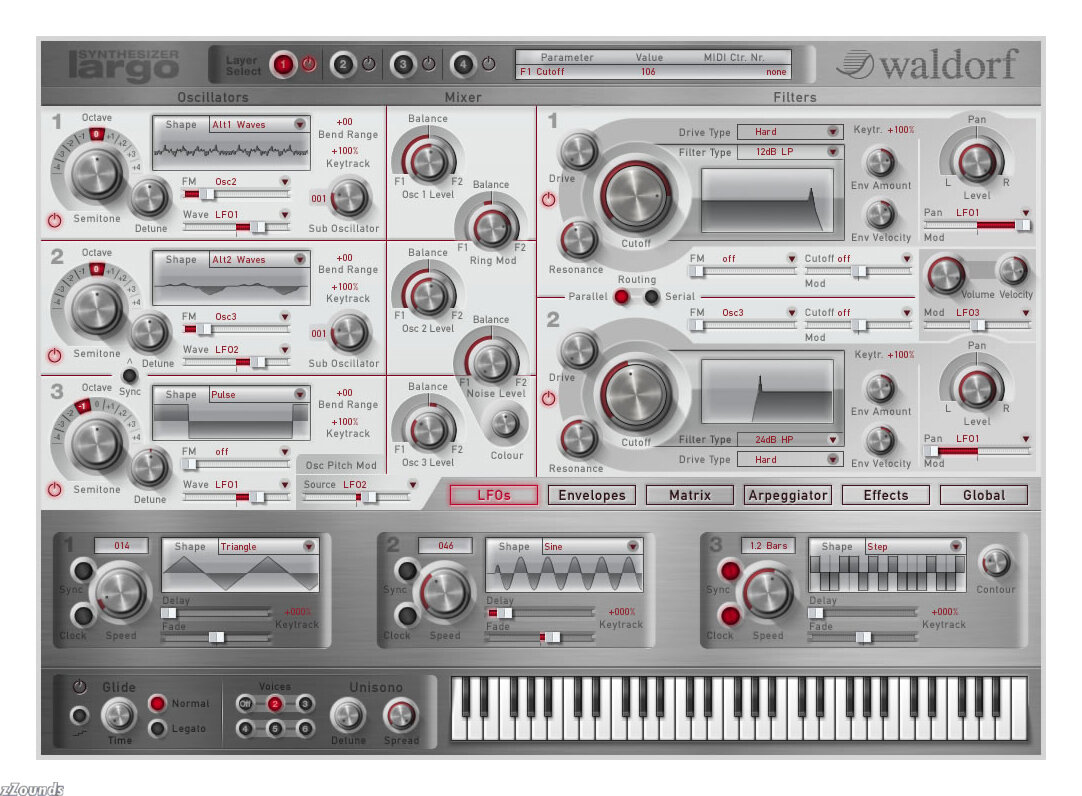

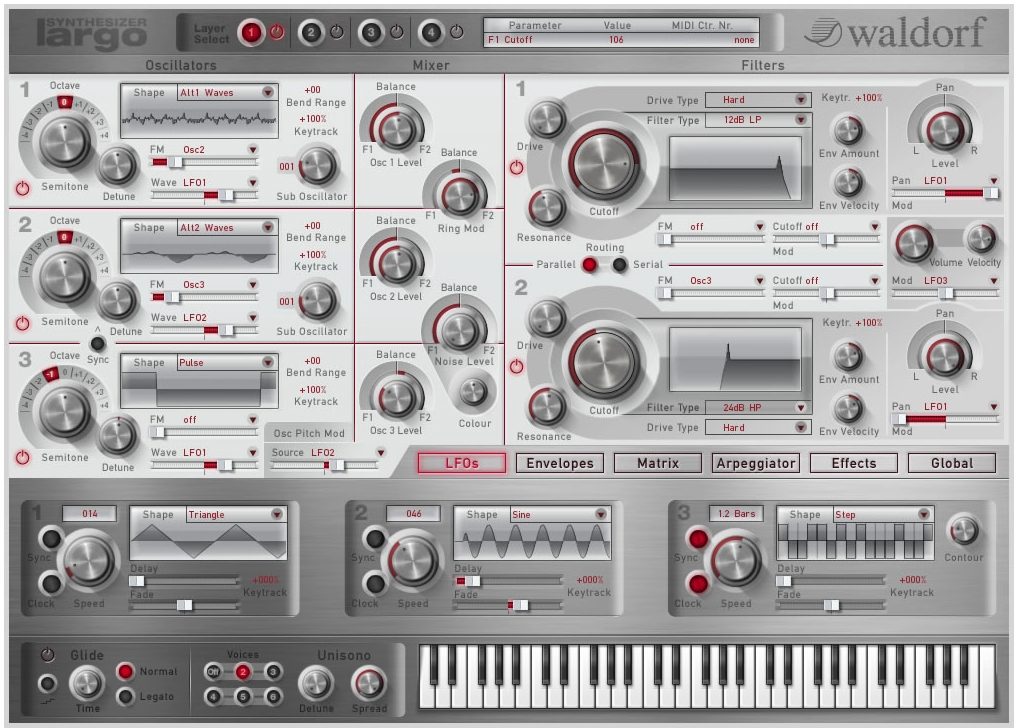

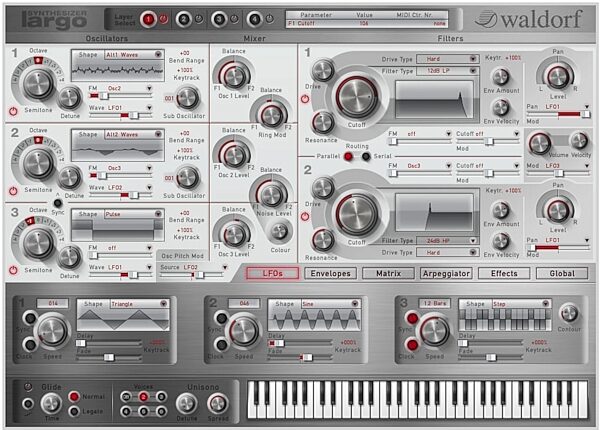

3 fast LFOs:
-- syncable to MIDI Clock
-- Note Retrigger with adjustable Start Phase
-- monophonic LFO
-- Keytrack
-- freely drawable LFO waveform with 16 steps (only LFO3)

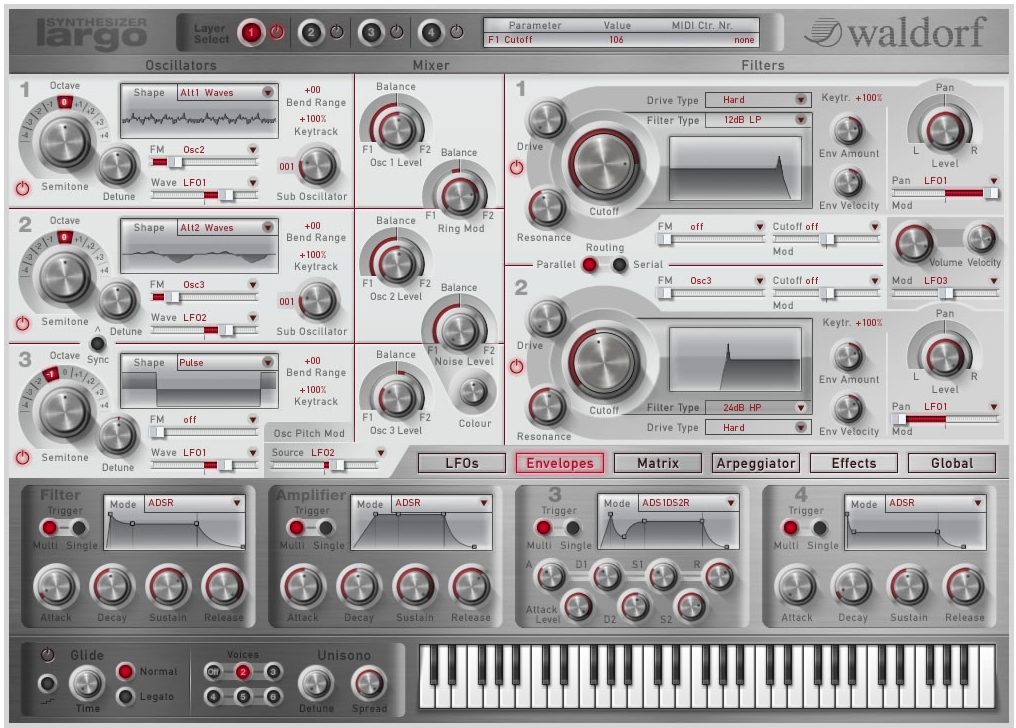

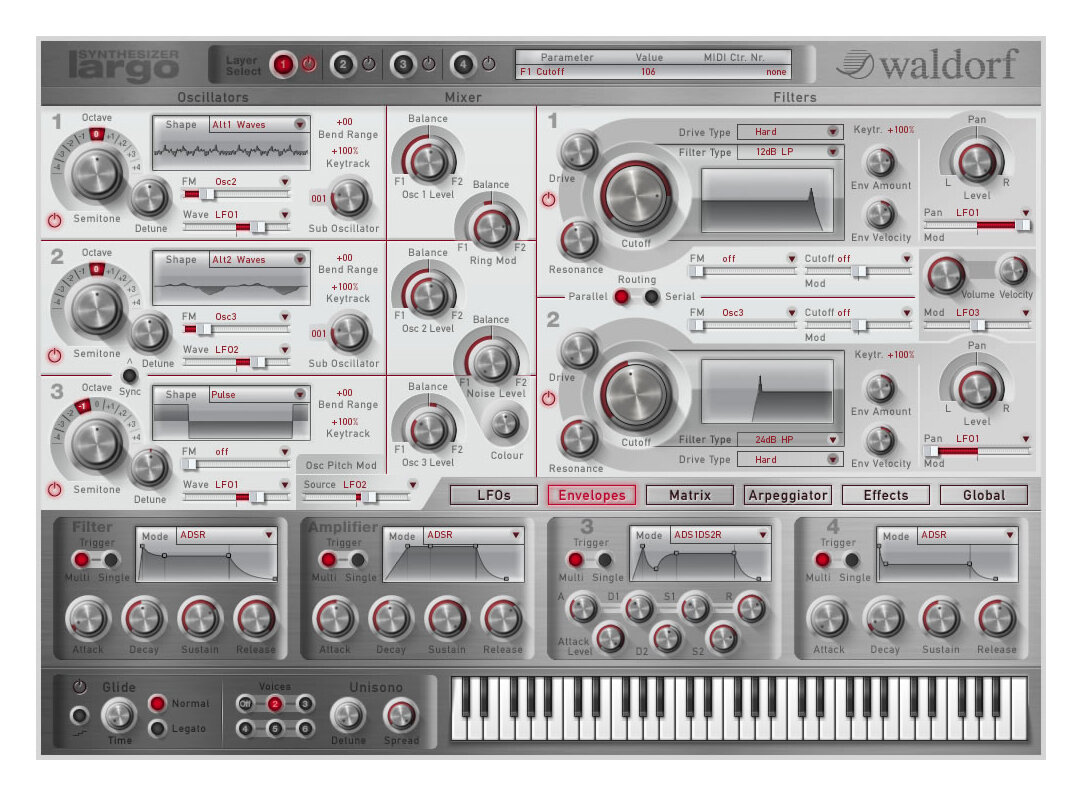

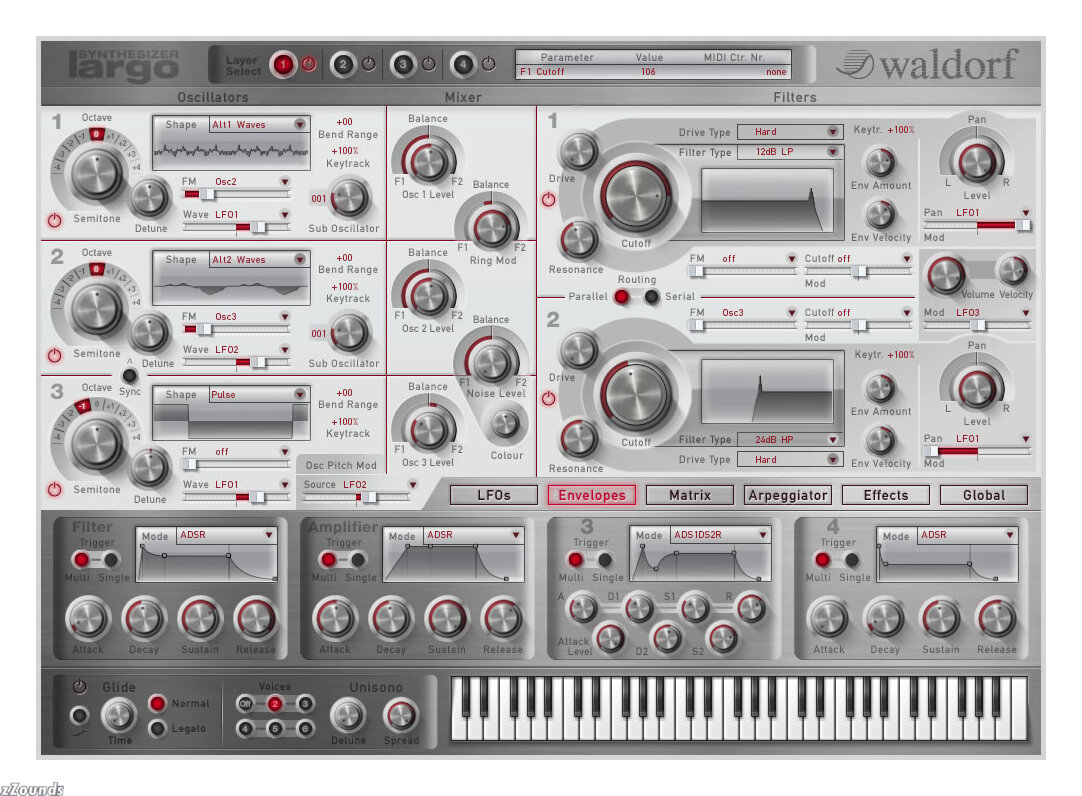

4 fast Envelopes with selectable types:
-- Single Trigger / Retrigger per Envelope
-- ADSR
-- ADS1DS2R (2 Decay/Sustain stages plus adjustable Attack Level)
-- One Shot
-- Loop S1S2 (Loop between Sustain 1 and 2)
-- Loop All (Loop over all stages)

Poly, Mono, Dual or Unisono Mode with selectable Voice Count, Unisono Detune and Stereo Spread

Per Layer:

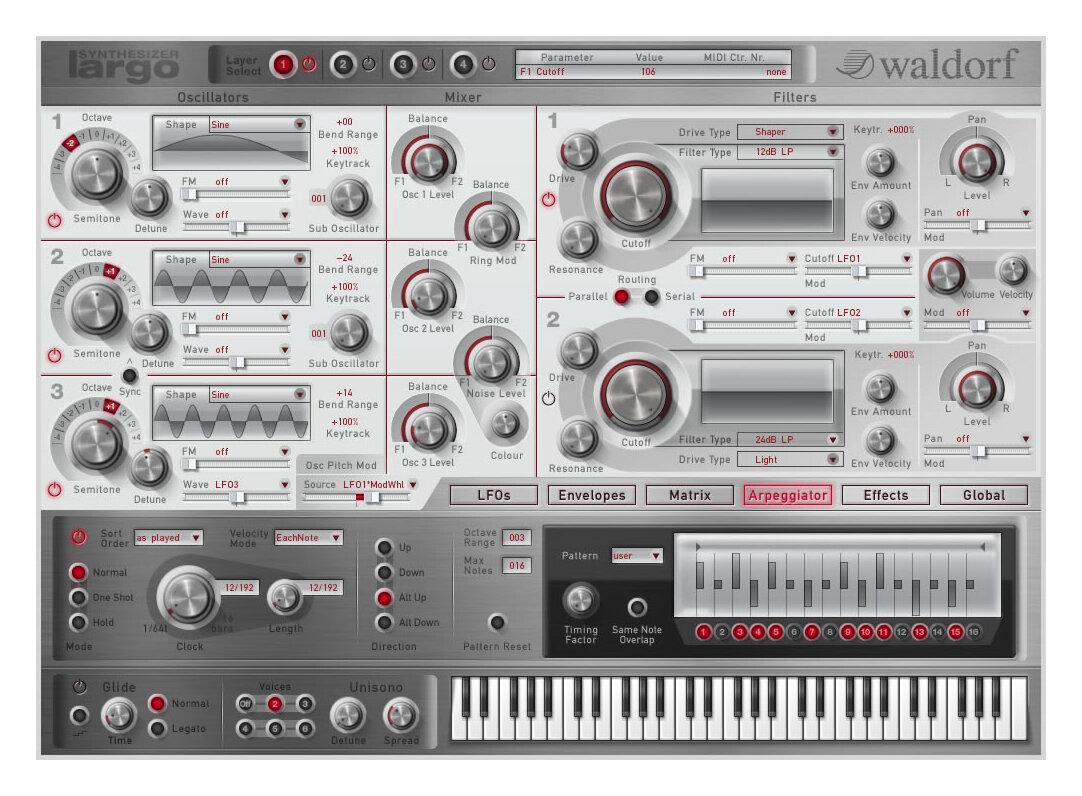

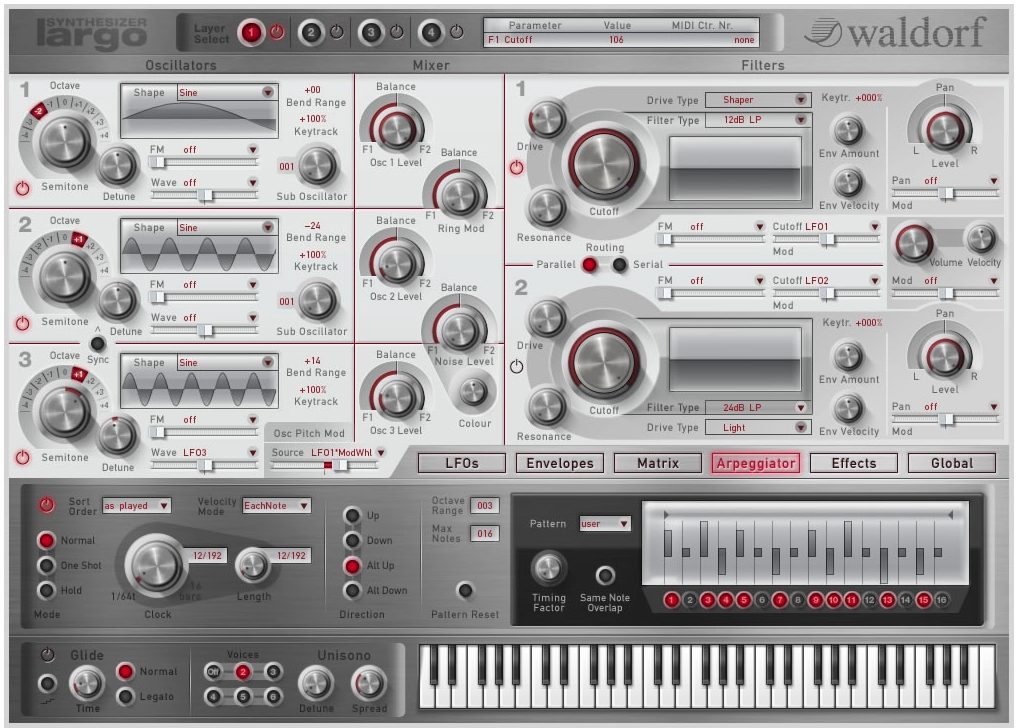

- Powerful Arpeggiator:
-- Hold and One Shot modes
-- syncable to MIDI Clock
-- Direction Up, Down, Alternate
-- Range up to 10 Octaves
-- various methods to modify Note Sort Order
-- freely programmable Arpeggiator Pattern with up to 16 Steps
- Programmable per Step:
-- Accent
-- Timing
-- Length
-- Pause

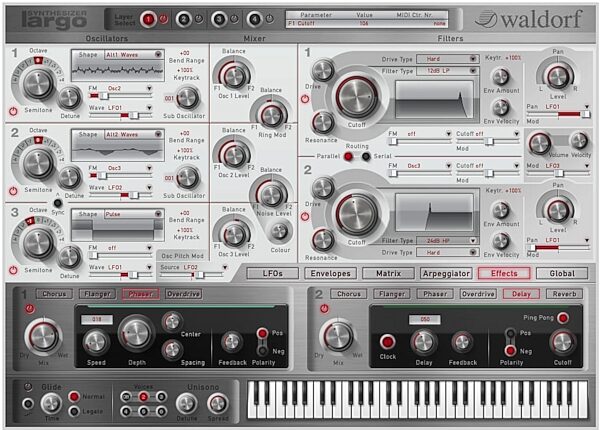

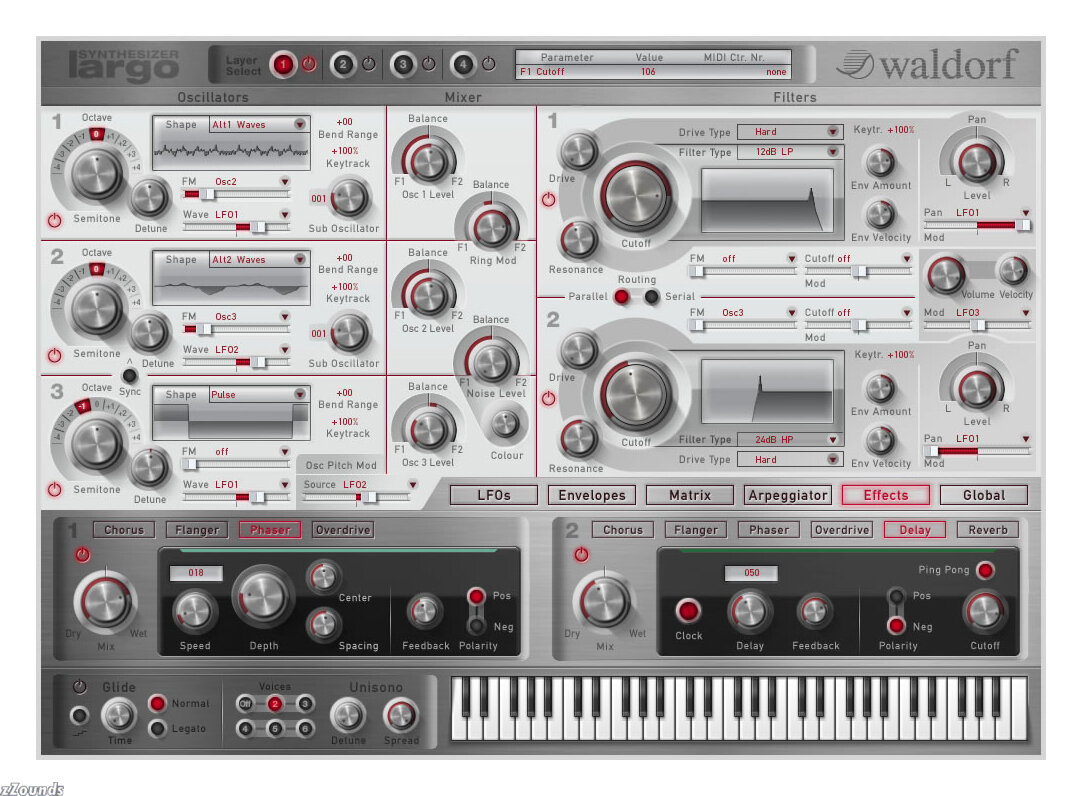

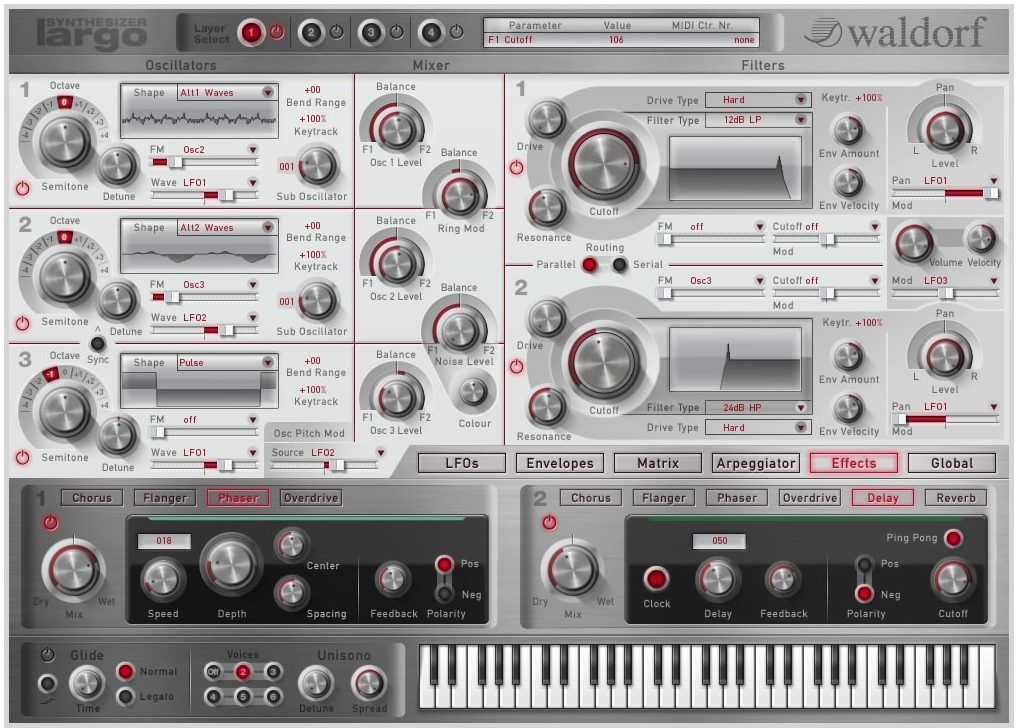

2 Effect slots per layer

Effect Types:
-- Chorus
-- Flanger
-- Phaser
-- Overdrive
-- Delay (2nd effect slot only)
-- Reverb (2nd effect slot only)

System Requirements
Windows:
- Windows XP or better
- Intel Pentium 3, 1 GHz or better
- AMD Athlon, 800 MHz or better
- 64 MB free RAM
- VST 2.4 compatible host software that supports virtual instruments, such as Cubase VST or higher, Cubase SX/SL, Nuendo 1.5 or better
- PC equipped according to the specifications of the VST host software

Macintosh:
- Mac OS X 10.3.9 or better
- PowerPC: G4, 800 MHz or better
- Intel: any processor
- 64 MB free RAM
- VST 2.4 compatible host application that supports virtual instruments, such as Cubase SX/SL, Nuendo 1.5 or better or
- AudioUnit 2.0 compatible host application that supports AudioUnit Instruments, such as Apple Logic or GarageBand
- Macintosh equipped according to the specifications of the host software
