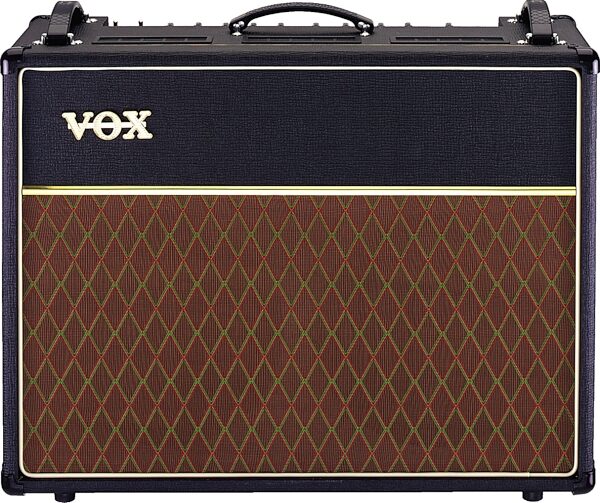

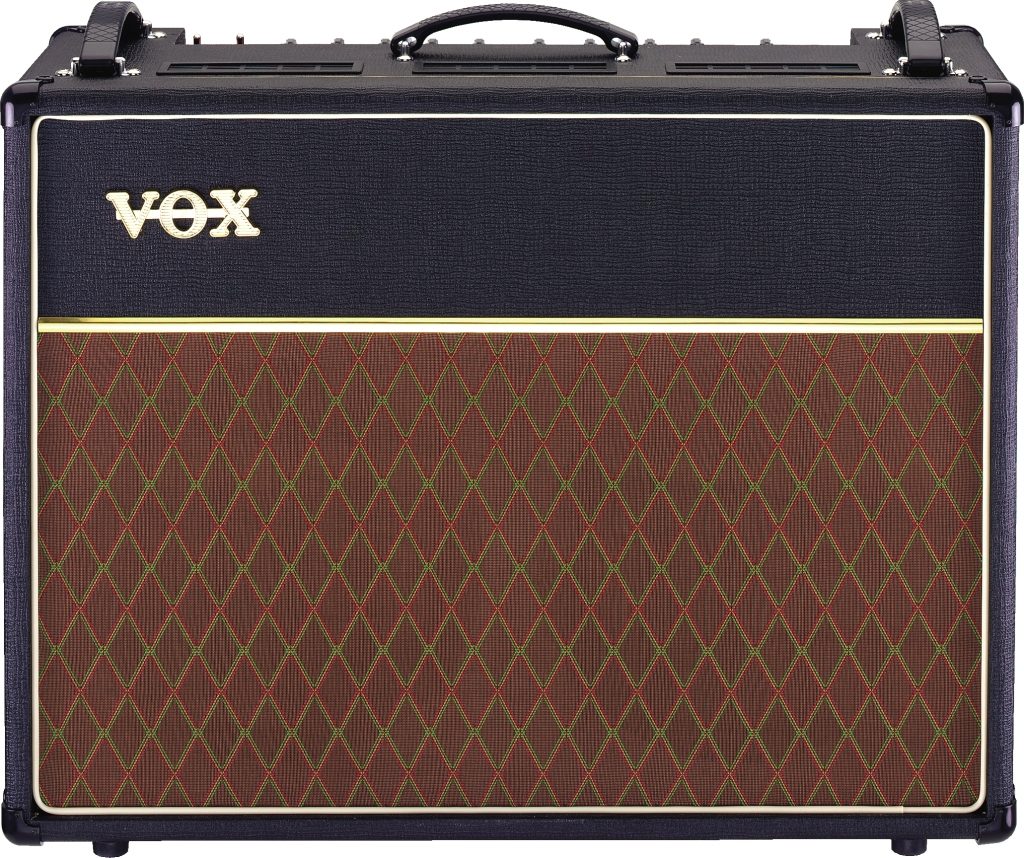

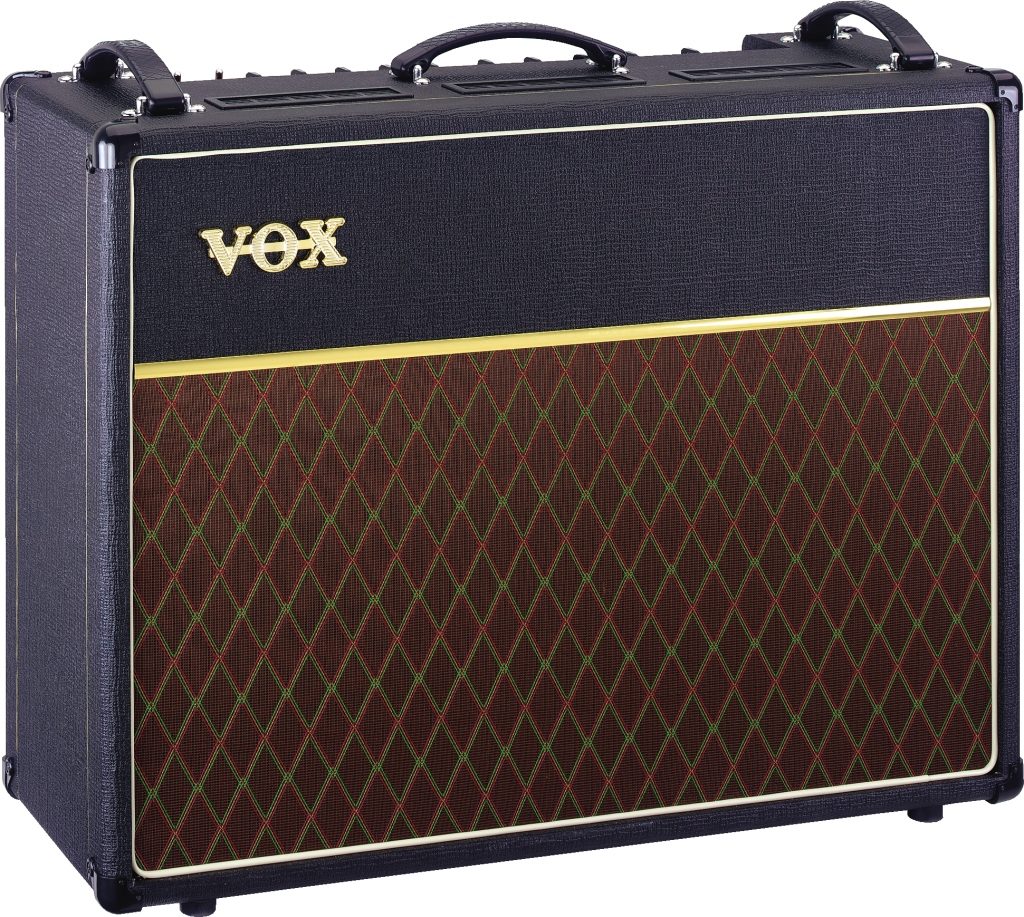

The new AC30 Custom Classic is the culmination of over 45 years of high quality, guitar amplifier design and fabrication. Vox has taken the best AC30 designs and added a number of useful, very cool features to create the most tonally flexible and affordable AC30 to date!
History in the making
Why has the AC30 been an icon for decades? It's the amplifier's unique, warm tone, its player friendly "feel" and its primeval circuit design. With its straightforward "what you see is what you get" control format, the AC30 was a hit with artists from the very beginning. Back then, Vox owned the '60s "British invasion" and to this day the AC30 is widely used by all kinds of guitarists performing in a huge range of musical styles.
With a number of modern enhancements including blendable channels, a true bypass FX loop, spring reverb and master volume, to name just a few, the new AC30 Custom Classic is an evolution of the original that is sure to become a classic in its own right.
Attaining the highest standards
In order to achieve tonal nirvana, this AC30 is manufactured in the Vox vertically integrated manufacturing facility. What this means for you is that we have total control of the design, the quality and the sound of your amplifier. Their factory is capable of many processes not found in most guitar amplifier factories. They design and manufacture their own transformers, speakers (except for the venerable Vox "Blue" & "Neodog" which are manufactured by Celestion), cabinets, and they build their own electronics. All components have been designed, manufactured or selected so that the performance and sound of your AC30 Custom Classic is second to none.
An evolution in tone
When they set out to create the AC30 Custom Classic, Vox started from their most highly acclaimed model to date, the AC30 Hand Wired. With twin inputs (high and Low) and a Master Volume circuit, these amps offer highly interactive Bass and Treble tone controls, as well as the Vox Tone Cut control (which varies the presence in the power amp section) for even greater tonal variety. They also included Classic Tremolo with variable Depth control and a tube-driven Accutronics reverb with Level and Tone controls as well as a Dwell switch.
Two blendable channels, a first
Not only does the AC30 Custom Classic include two channels, it also offers the ability to blend those channels together (a first for the AC30!). The Top Boost Channel serves up that classic AC30 tone, while their new expanded Normal Channel now offers two modes, Normal and Bright, which allow you to achieve the sounds of an assortment of vintage AC30s. Use the channels individually or blend them together for increased tonal flexibility to create a unique sound and feel that's all your own.
Control freaks rejoice!
The AC30 Custom Classic is fully equipped with well thought out and easy to use controls. With a Custom/Normal EQ switch, Tone control and Dwell switch for the spring reverb, Master Volume, fully variable Tremolo on all channels and a true bypass Effects Loop, they've thought of everything! Vox has even included a switchable cathode resistor that lowers power output and increases tube life. Of course, the AC30 Custom Classic comes with their standard controls like Treble, Bass, Tone, Volume, Standby and more.
Technical Info

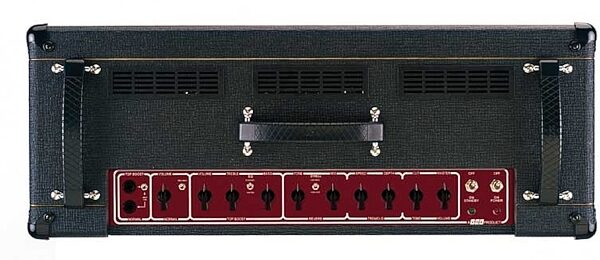

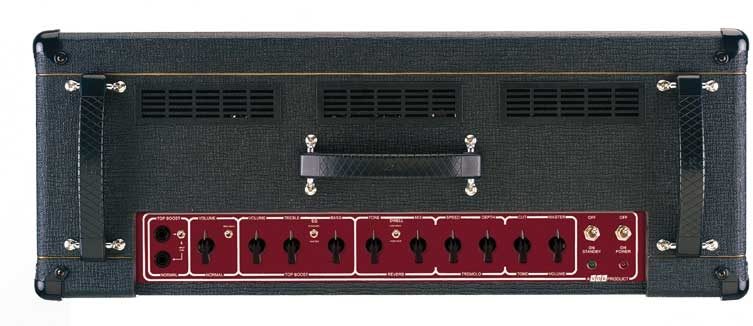

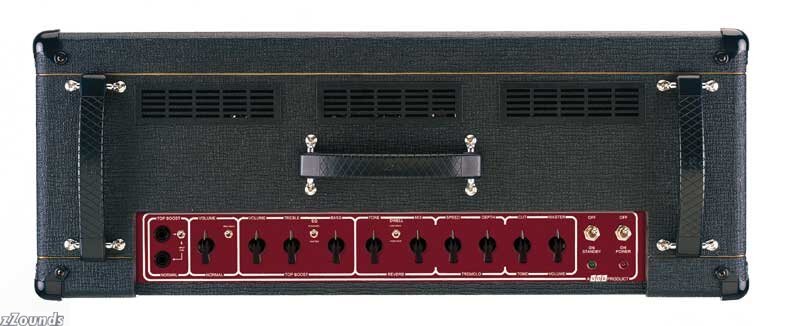

Front panel controls: Inputs x 2 (Top Boost & Normal), Input Link Switch for blending channels, Normal Volume, Brilliance Switch, Top Boost Volume, Treble,
EQ Standard/Custom Switch, Bass, Reverb Controls (Tone, Mix, Dwell Switch), Tremolo Speed & Depth, Tone Cut, Master Volume, Standby Switch, Power Switch

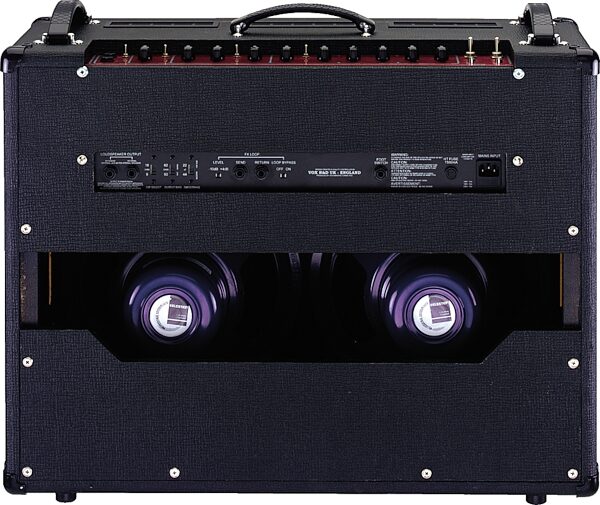

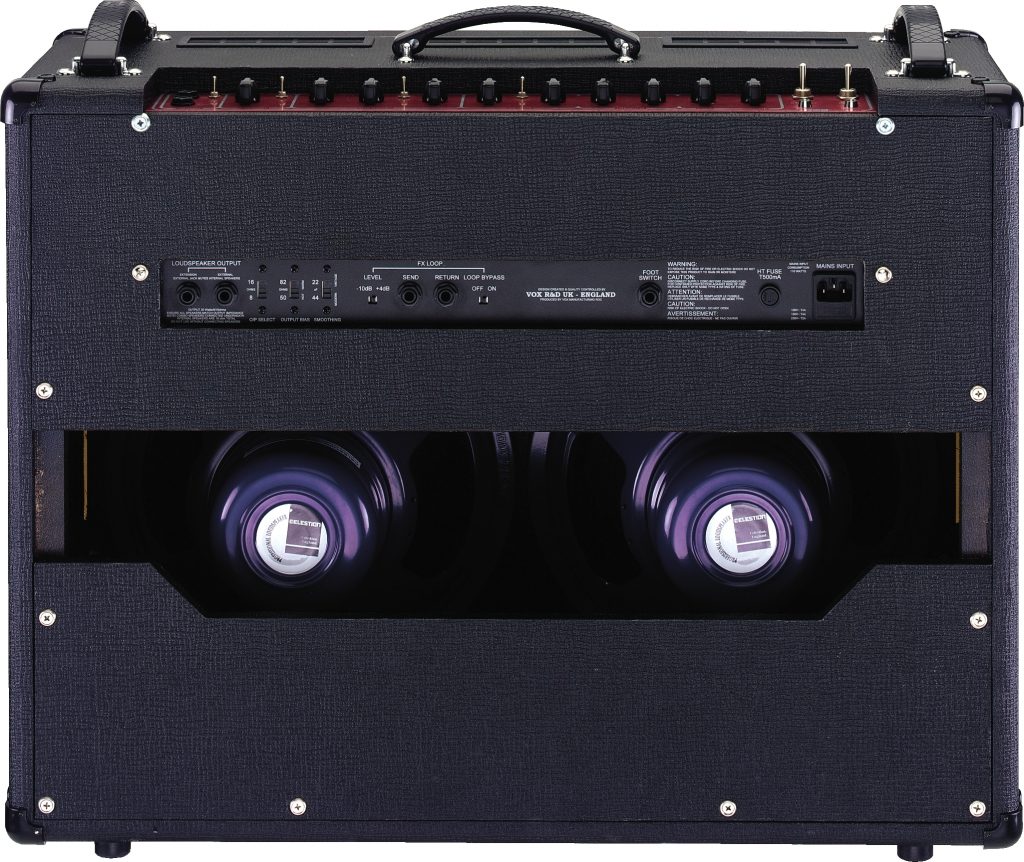

Rear panel controls:
Loudspeaker output jack x 2 (Extension & External), Output (O/P) Impedance Select (8 or 16 Ohm), Output Bias (82 "Warm" or 50 "Hot"), Smoothing (22uF "Vintage" or 44uF "Modern"), FX Loop (Send, Return and Bypass Switch), Footswitch Jack (Tremolo and Reverb), HT Fuse, Mains Input, Mains Fuse
Dimensions (W x D x H):
AC30CC2: 27.75 in. x 10.4 in. x 21.25 in.
AC30CC2X: 27.75 in. x 10.4 in. x 21.25 in.
Weight:
AC30CC2: 70.5 lbs.
AC30CC2X: 70.5 lbs.
