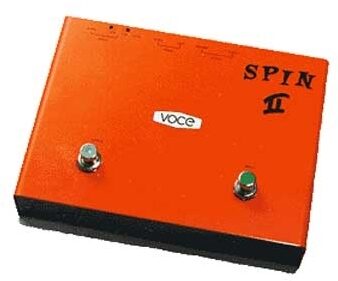

Voce SPIN II Rotary Speaker Effect

The new Spin II is the successor to Voce's highly regarded Spin rotary speaker simulator. It accurately duplicates the effect of a rotating speaker cabinet "mic'd" with up to 4 microphones (2 for the horn and 2 for the lower rotor). Spin II utilizes the same rotor simulator technology used in the original Spin and the V3 Tone Wheel Organ Synthesizer. However, they made some important changes and improvements. Spin II is a "stomp box" version of Spin that utilizes a simple and intuitive user interface allowing you to start using it as fast as you can plug in the power and audio cables.

New features included in Spin II are footswitches for bypass and rotor speed, controls to adjust acceleration, slow and fast rotor speeds, selectable input level allowing Spin II to be used with guitars, as well as keyboards, and an adjustable output level for interfacing to sensitive guitar amps. Other features include stereo outputs, small footprint, and direct AC line power (no wall wart!)

With their compact size, ease of use, authentic sound, and great price, the V5 and Spin II are an ideal combination.

Features
Ý Analog electronics based rotating speaker simulation featuring 2 separate delays per rotor — for a total of 4 parallel delays

Ý Simulated 800 Hz crossover with horn rotor resonance

Ý Sturdy footswitches for rotor speed and bypass function

Ý Adjustable acceleration, adjustable slow and fast rates

Ý High-impedance guitar input is also selectable for line level

Ý Stereo output with adjustable level for interface to sensitive guitars amplifiers

Ý AC line powered (no batteries or wall warts)

Technical Info

Mechanical: 7.4 x 5.5 in. (18.80 x 13.97mm)

Rotor Simulation: Dual rotor with 2 analog delays per rotor

Crossover: 12 dB/Oct 800 Hz crossover with simulated horn resonance

Controls: Foot-switched for bypass, and rotor speed, slide switch for input level, variable controls for output level, rotor acceleration, slow and fast rotor rates

Connectors: 1/4 in. input connector, 1/4 in. stereo output connector

Input: 1 M Ohm impedance, line or guitar level selectable

Output: adjustable from -infinity to line level.

Power: 120 VAC @ 6 Watts
