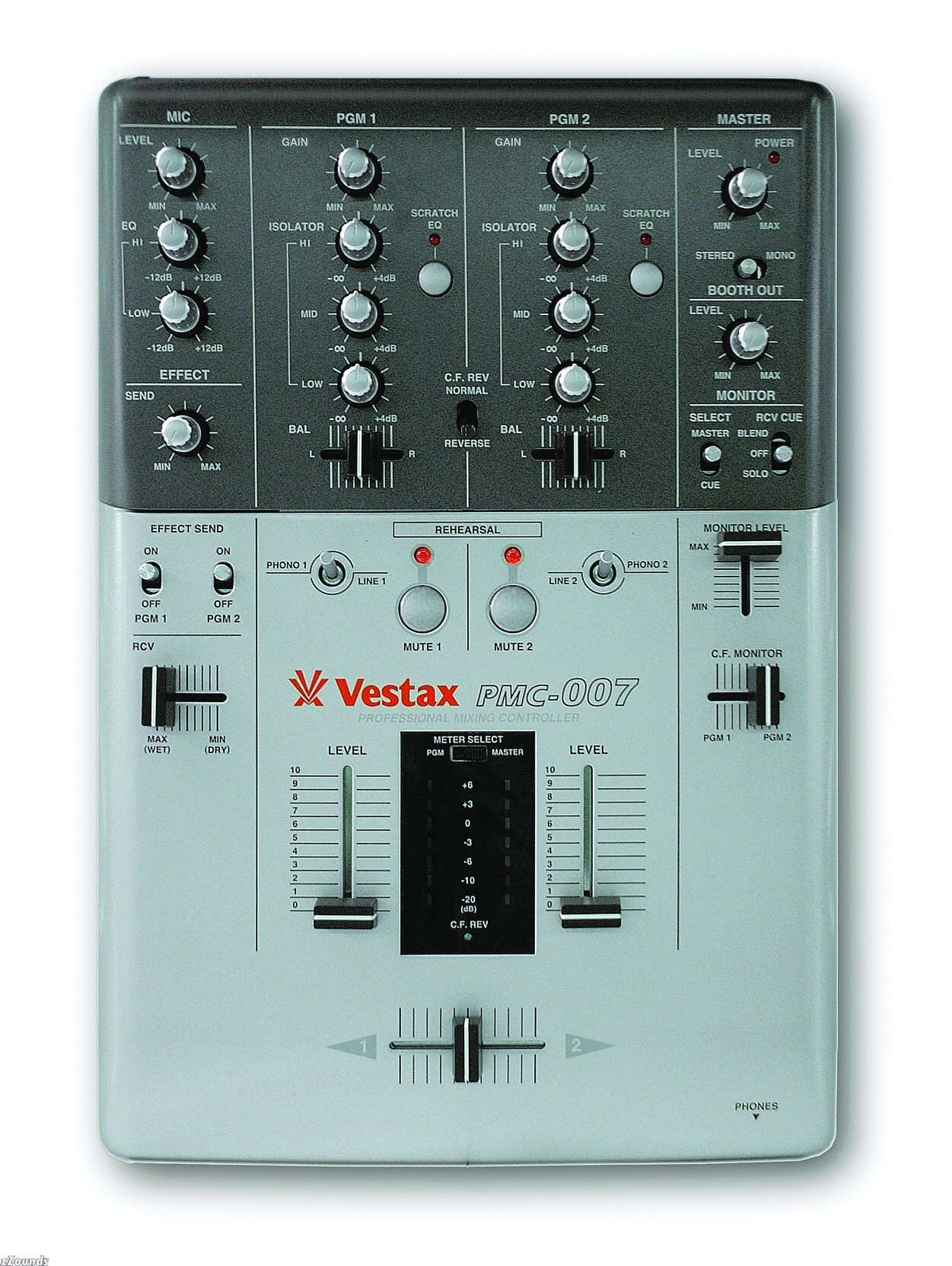

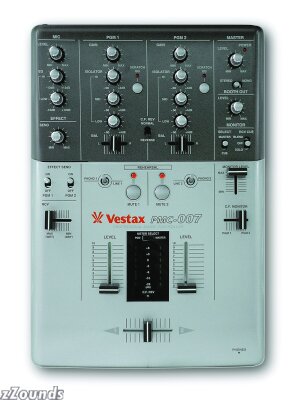

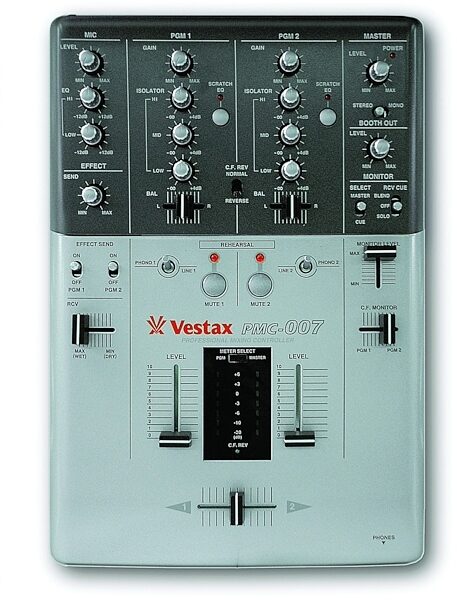

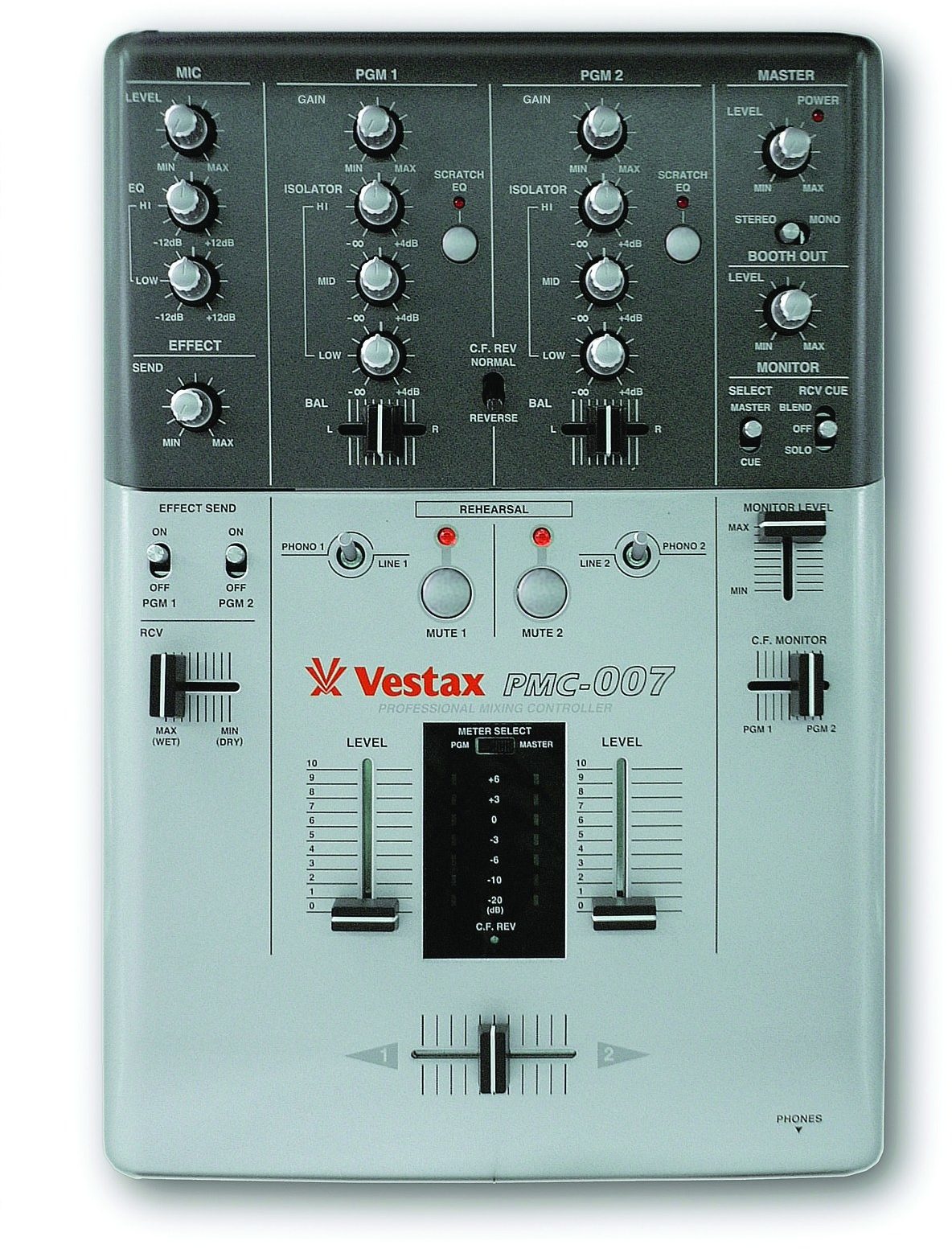

Vestax PMC007 2-Channel Scratch Mixer

The performance and professional mixer born directly from the scene, the PMC-007 is the perfect formula for your needs -- a new mixer with the technology to allow you to mix music the way you want!

Bonnet-syle face plate
By loosening the screw underneath the body and pulling forward the face plate pops up just like a car hood (bonnet). Also, the design is centered to give a soft and warm 3 dimensional feel and aesthetic giving comfort and concentration to the user.

Rapid exchange fader
Time for replacing the fader has been a longtime hassle, but now has been cut to a minimum. It's as easy as just pinching each side of the fader panel, disconnecting and replacing it with a new one. No more worrying about losing screws or forgetting your screwdriver!

Balanced XLR output
Ever have the problems from feed back or electrical distortion from lights and other equipment in the club? A balanced transmission is extremely important and effective in certain situations, that is why the PMC-007 has applied balanced XLR output, much superior to the usual RCA pins or Phone jacks.

Fader curve control
Whether you scratch or mix, the cross fader can be delicately controlled with rotary knobs to set your personal setting. The input fader has a 3-step switch that can be quickly and efficiently switched whenever the input fader turns for the scratch.

Cross fader rehearsal mute/freezer
Ever have times when you couldn't scratch on the master fader without the sound blasting out through the master? Now you can with the 007. Introducing a button function where the master output freezes and what ever is done on the master fader only comes out only to be heard on the headphone monitors.

Effects send/return
On/Off switching can be done instantly on both channels and can also control levels with the mini fader allowing the monitoring to system to be highly advanced. The mini fader can also be used to control master and receiving volume balance by switching the mini switch underneath the face plate.

3-band isolator/scratch EQ
A Vestax infinity cut and +4dB boost is equipped on each 3-band isolater PGM. To balance an optimal scratch, the new EQ buttons are supplied to instantly set the isolater EQ on the specific channel. If you're a serious scratch DJ, this feature is a must.

Technical Info

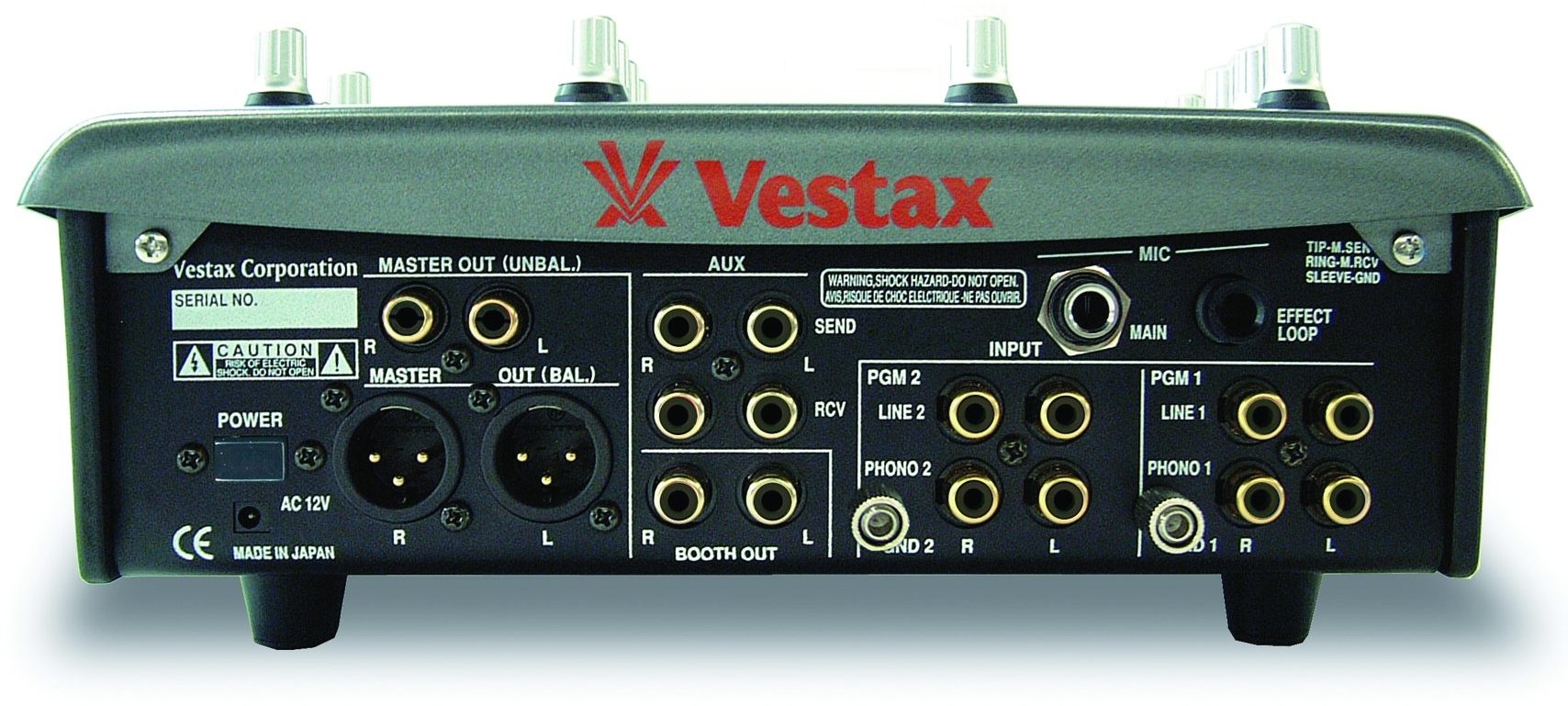

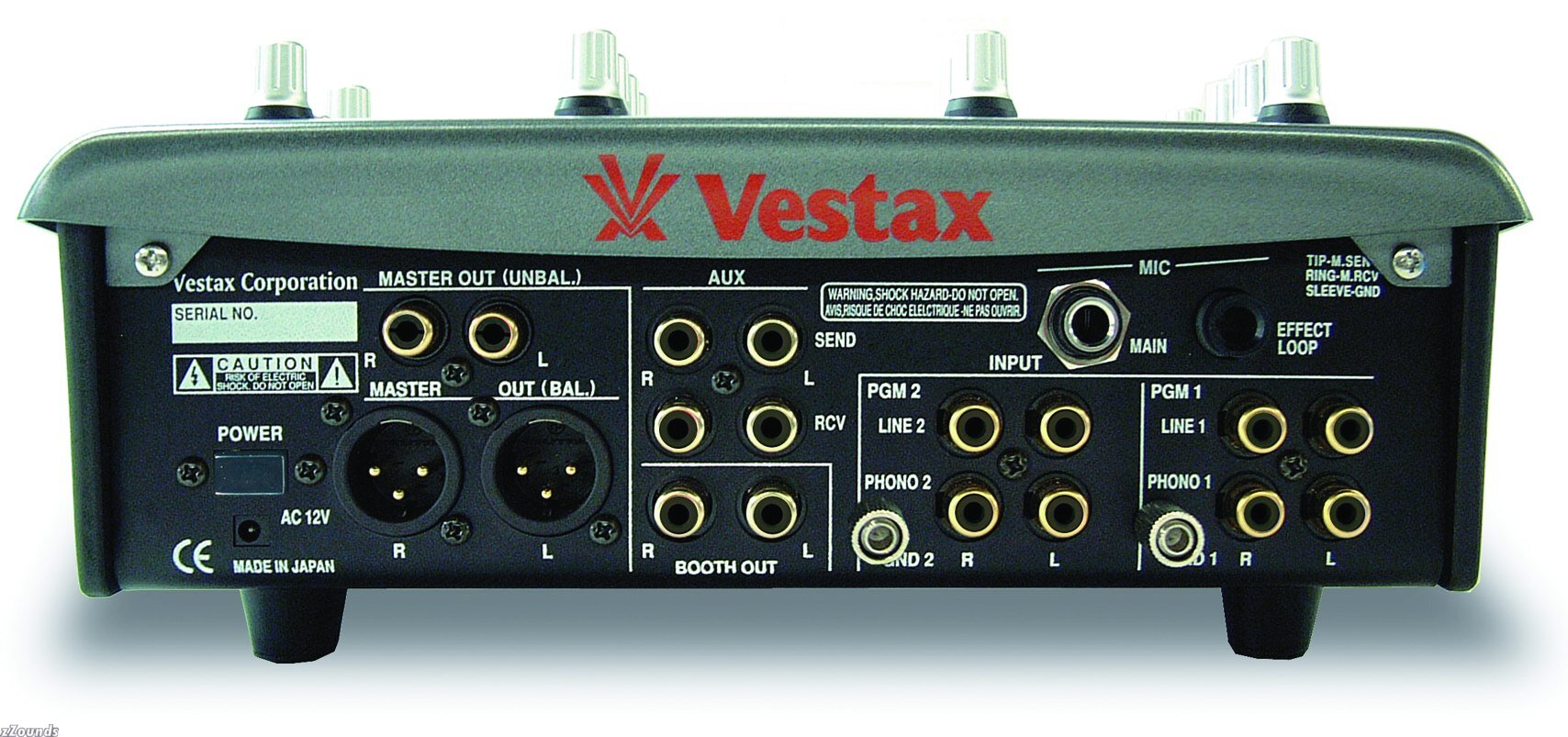

Inputs
(2) Line, phono RCA

(1) Mic, 1/4 in.

(1) Mic effects loop, 1/4 in.

(1) Auxiliary, RCA

Outputs
Master outs (stereo): (2) XLR, (2) RCA

Booth out: (1) RCA

Aux Send: (1) RCA

Headphone out: (2) 1/4 in, (1) phone, (1) mini-jack

Fader: CF-RX / IF-RX

Dimensions: 10.2 in. (260mm) Width
