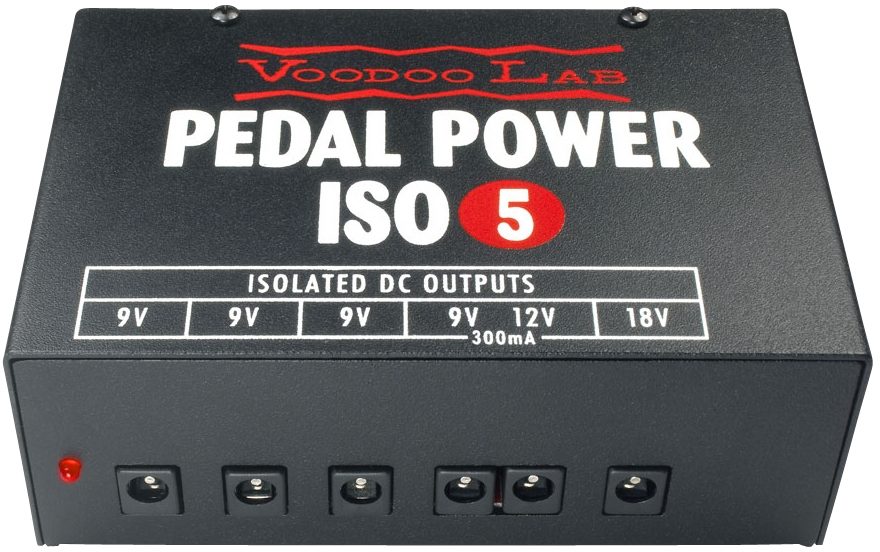

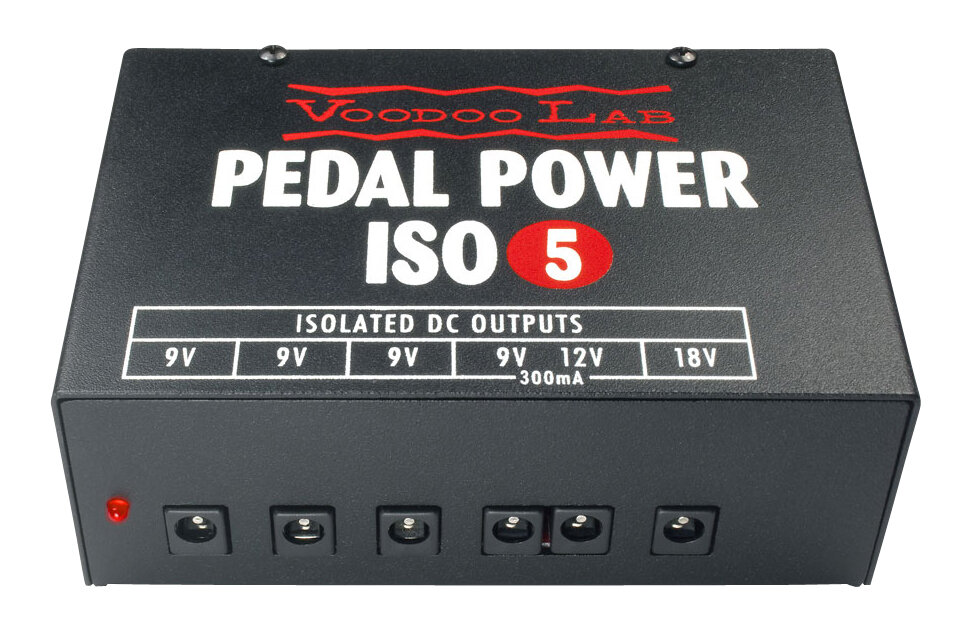

Voodoo Lab Pedal Power ISO-5 Isolated Power Supply

Power your pedals and accessories and keep them quiet when they're not in use. This power supply includes 9, 12, and 18-volt outputs. 1 Person rated this product: Rate and Review This Product
Ships to: Can ship to United States Can ship to Canada
Can ship to Puerto Rico Can ship to APO/FPO
Roll Over to Enlarge Main

Product Description

The Voodoo Lab Pedal Power ISO 5 is an isolated power supply for powering guitar pedal effects and accessories. It's the ultimate compact solution for smaller pedalboards, rack shelves, or even as an additional power supply for larger boards. With five isolated, filtered and regulated output sections, the Voodoo Lab ISO 5 keeps even the most sensitive vintage and boutique analog pedals dead quiet.

The Voodoo Lab Pedal Power ISO 5 includes a high-current output which will properly power modern digital power-hungry effects like those from Eventide, Line 6, and TC Electronic. There's also a dedicated 18V output for those pedals which need the higher voltage for extra headroom.

Designed to meet the needs of professional users, the Voodoo Lab Pedal Power ISO 5 will provide clean, consistent power, even with the poor AC line conditions often found on stage. Completely isolated output sections eliminate ground loops and unwanted interactions between effects, resulting in lower noise and noticeably improved tone.

Features

- Five isolated outputs
- Compatible with all battery operated pedals
- Includes high current 9V and 12V outputs, plus dedicated 18V output
- Powers Boss Twin, Eventide, Line 6 modelers, and TC Electronic Nova pedals
- Linear regulation and toroidal transformer for lowest possible noise
- Compact design fits small pedalboards and rack shelves
- Includes cables and detachable AC line cord
- Engineered and handmade in the USA
- 5-year warranty

Short Circuit Protection

Every output on Pedal Power ISO 5 is individually short-circuit protected. This means that if you have a short in a power cable, or one of your pedals malfunctions, ISO 5 will turn off the power to only that pedal. All other outputs will continue to function normally with no long-term damage. zZounds is an authorized dealer of Voodoo Lab products.
Input:
- Detachable IEC (computer-type) line cord
- 120V 50/60Hz

Outputs:
- 5.5x2.1mm barrel connectors center negative (Short circuit protected)
- 9VDC (3) - 100mA
- 9/12VDC - 300mA
- 18VDC - 100mA

Included Cables:
- 5.5x2.1mm right angle barrel connectors (4)
- 5.5x2.1mm right angle to straight barrel connector (1)
- 5.5x2.5mm right angle red barrel (1)
- 3.5mm right angle mini plug (1)

Physical:
- 4.9 wide x 3.4 deep x 1.8 inches tall (124 x 86 x 44 mm)

Weight: 1.24 lbs (0.56 kg)

Special: Toroidal power transformer
Dimensions and Weight in Packaging
Shipping Weight: 2 lbs
Shipping Dimensions: 11 x 8 x 2 in
