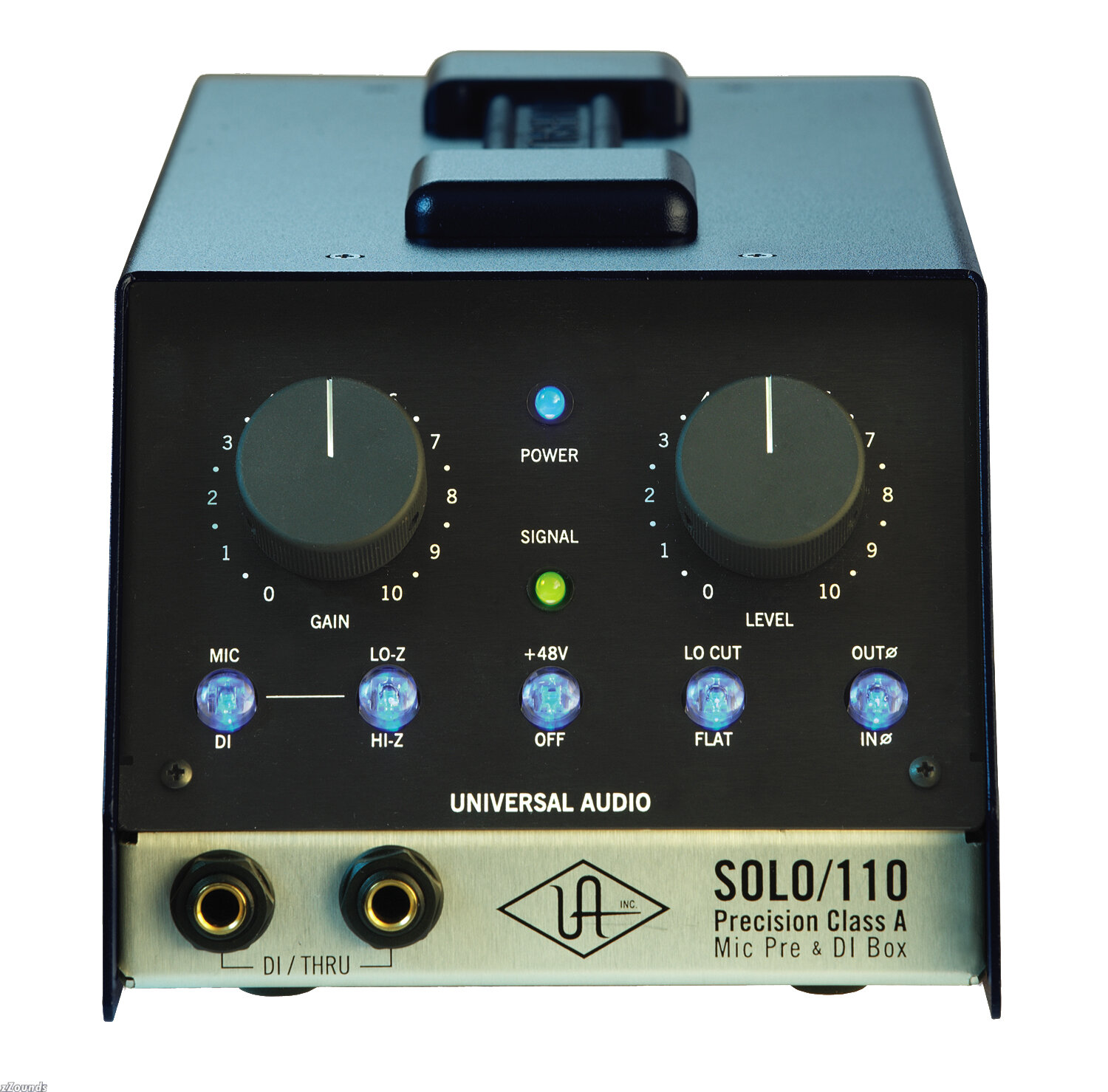

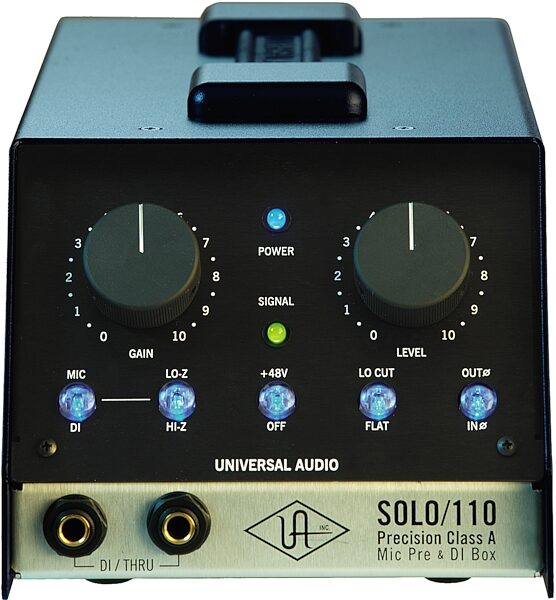

Universal Audio Solo/110 Microphone Preamp

The SOLO/110 brings the "ultra fidelity" and tonal variety of UA's flagship Precision 110 series mic preamplifiers to the single channel format in a rugged, highly versatile form factor at a price every project studio can afford. The Class A Precision SOLO/110 delivers uncompromised dynamics and clarity while still sounding warm and friendly with an all-discrete, class-A, direct-coupled circuit path. The SOLO/110 will flatter the cheapest to the most esoteric microphone with its signature sound. Unlike stationary rack gear, the SOLO 110 can be conveniently used in the control room or recording room, on stage or desktop, due to its portable "go anywhere" design. Functionally lean but sonically mean, the SOLO/110 mirrors the sound of UA's flagship Precision line, and has the same solid build and audiophile components from the Precision 8110/4110.

The SOLO/110 offers Mic and DI inputs, and features continuous Gain and Level control and combines the tonal variety of the Precision "Shape" switch found on its more expensive cousins right into the unit's gain structuring. The SOLO/110 has all the essential features like 48v Phantom Power, Lo Cut filtering, Phase Reverse, and for even greater tonal variety, maintains the Precision's flexible dual impedance selection for both Mic and DI inputs. The SOLO/110 also includes essential DI features like Thru for when used in conjunction with an amplifier, plus Ground Lift and and a versatile Mic/Line level output switch. The SOLO/110 is hand-assembled by Universal Audio in the USA.

Features:
Universal Audio's flagship All Discrete Mic Preamplifier and DI

World-class "ultra fidelity" mic pre at project studio price

Gain, Level, and impedance selection for maximum tonal variety

Portable design for studio, desktop or stage

Rugged construction-steel chassis

DI features like Thru and Mic/Line level output

UA build quality and heritage, hand-assembled in USA

Technical Info

Input Impedance;
Mic Input; Selectable 500 ohms (Lo-Z) or 2k ohms (Hi-Z)
DI Input; Selectable 2.2M ohms (Lo-Z) or 47k ohms (Hi-Z)

Maximum Mic Input Level; +3 dBu, 1.0% THD+N Ratio

Recommended Minimum Load; 600 ohms

Maximum Instrument Input Level; +19 dBu, 1.0% THD+N Ratio

Maximum Output Level into 600 ohms; +19 dBu, 1.0% THD+N Ratio

Maximum Output Level into 100k ohms; +31 dBu, 1.0% THD+N Ratio

Maximum Gain Instrument Input; 57 dB

Maximum Gain Mic Input; 75 dB (2k input), 77 dB (600 ohms input)

Internal Output Impedance; 95 ohms

Mic/Instrument In Frequency Response; 10 Hz to 60 kHz, +/- 0.2 dB

Power Requirements; 90-250 VAC, 50 - 60 Hz

Maximum Power Consumption; 18 watts

dimensions; H: 5 in. W: 5 3/4 in. L: 14 in.

Weight; 5.4 lbs.

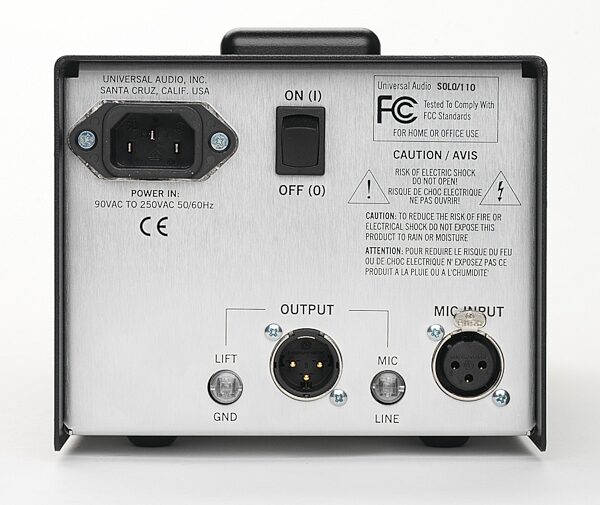

Sonic precision in a go-anywhwere box! Superb dynamics and clarity with the warmth of an all-discrete, class-A circuit. Instrument DI input with thru. Input gain and output level controls, with switches for high/low impedance, phantom power, low cut, and phase. XLR and 1/4" I/O.
