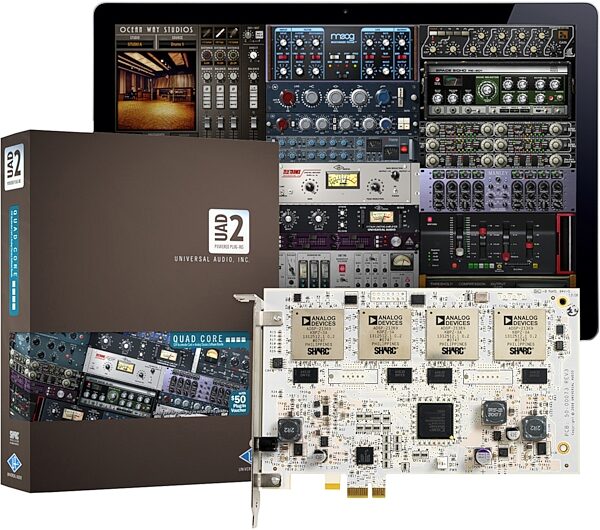

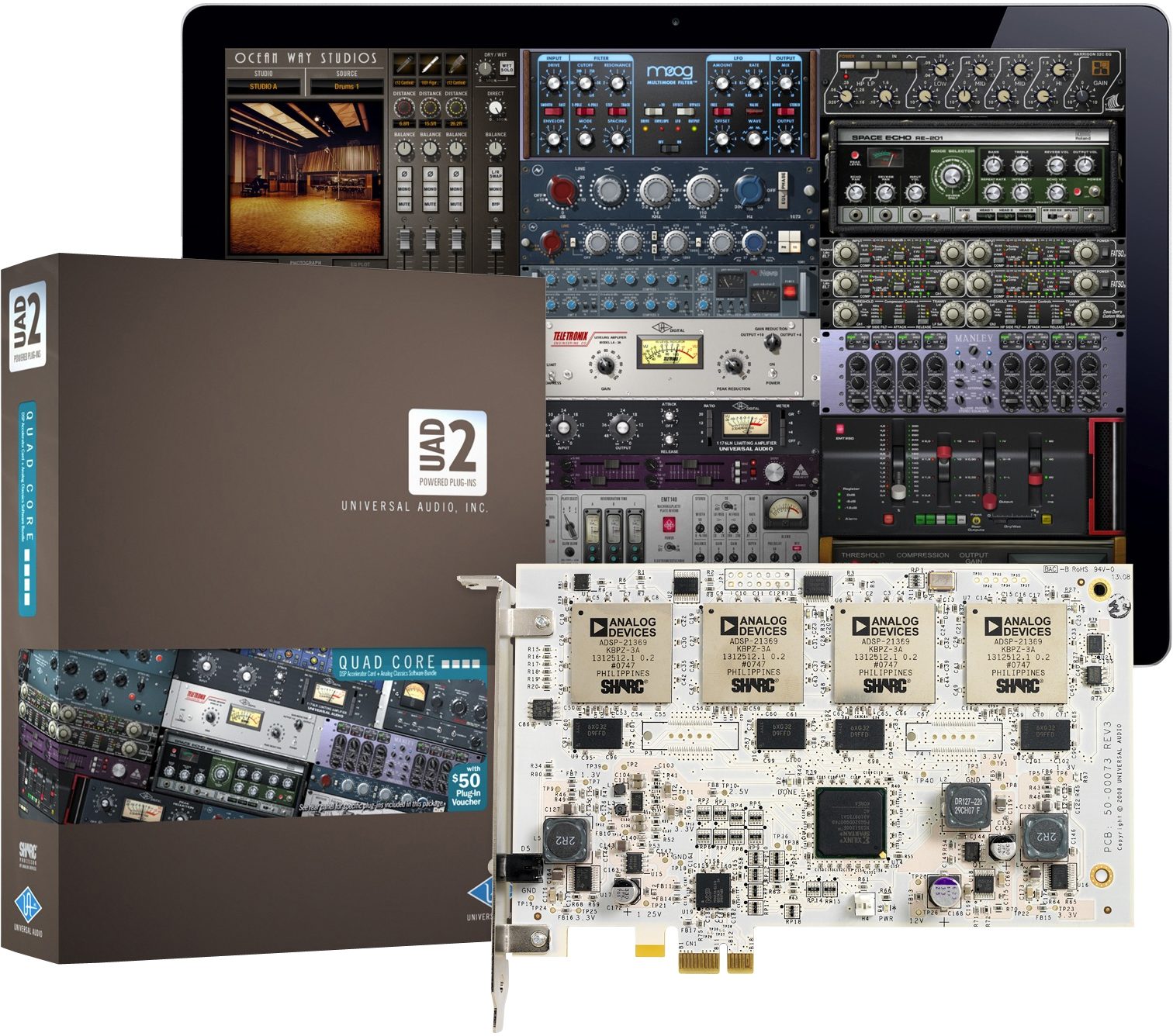

Universal Audio UAD2 Quad DSP Accelerator Card (Macintosh and Windows)

The UAD-2 QUAD DSP Accelerator Card is Universal Audio's most powerful and flexible processing hardware, giving producers and engineers full, professional access to award-winning UAD Powered Plug-Ins on Mac or PC. This PCIe card features four Analog Devices SHARC chips to "power" the largest collection of the world's finest analog emulation plug-ins -- including classics from Neve, Roland, BOSS, Empirical Labs, EMT, Fairchild, Harrison, Helios, Little Labs, Pultec, SPL, Teletronix and more.

With its four SHARC processors, the UAD-2 QUAD lets you run large professional mixes with ultra high-quality plug-ins, freeing up your Mac or PC's internal processor for other mixing or virtual instrument duties. Whether you use Pro Tools, Logic, Cubase, Nuendo or Performer, a UAD-2 QUAD offers rich, analog sound quality that would be difficult or impossible to achieve with a native Mac- or PC-based system.

Developed by the industry's finest engineering team, and backed by frequent new software and plug-in releases, UAD-2 QUAD cards have found a home with many of the world's leading engineers and producers, powering multiple Platinum-selling and Grammy-winning records.

Features
- Flagship quad-processor DSP Accelerator Card for UAD Powered Plug-Ins on Mac or PC

- Access the world's finest emulations of analog classics: Neve, Roland, BOSS, Empirical Labs, EMT, Fairchild, Harrison, Helios, Little Labs, Pultec, SPL, Teletronix and more

- Run large, professional mixes in Pro Tools, Logic, Cubase, Nuendo, Performer and more -- without taxing host computer CPU

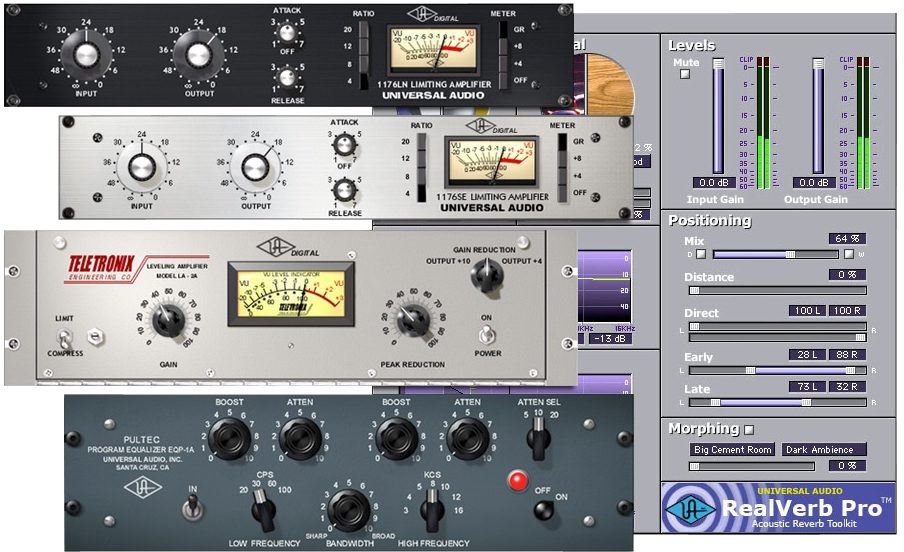

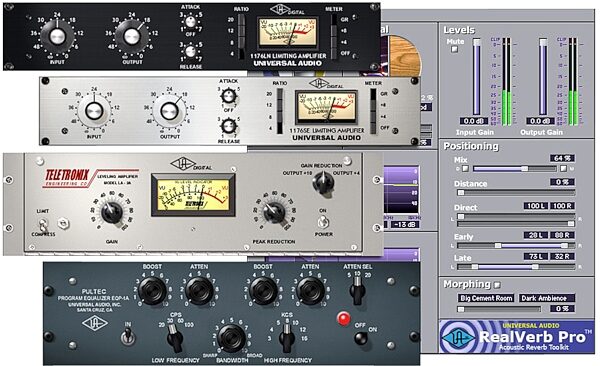

- Includes 1176SE Compressor, Pultec EQP-1A, Realverb Pro & CS-1 Channel Strip

- Free UAD software upgrades, plus access to more plug-ins at UA's Online Store

- Auto Delay Compensation for Pro Tools LE via Mellowmuse ATA plug-in

- VST, AU, RTAS support; Mac OS X Tiger/Leopard/Snow Leopard and Windows XP/Vista compatible

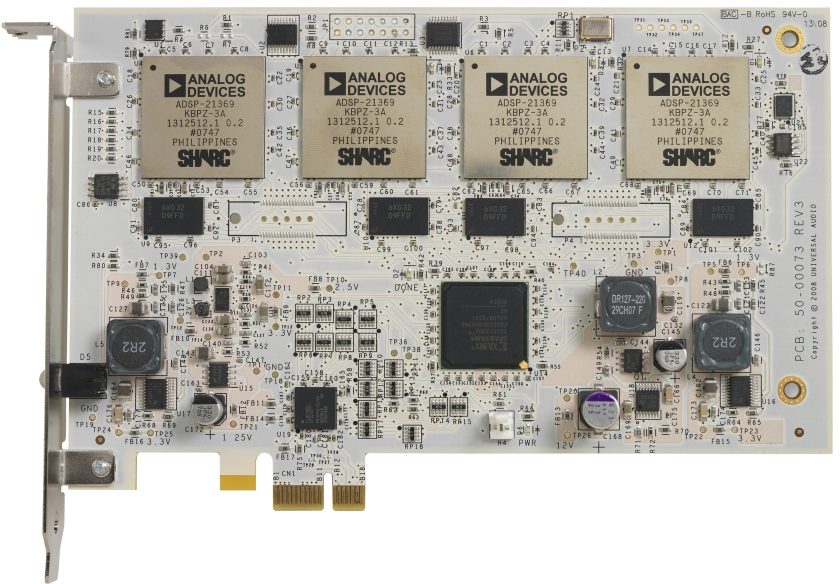

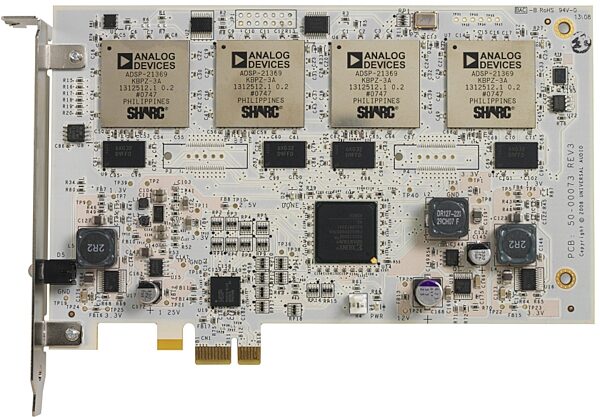

- High-bandwidth PCIe card w/ (4) Analog Devices SHARC floating-point processors

- Use up to 4 UAD-2(s) in one system; can be combined with UAD-1 cards

- Includes $50 voucher for plug-in purchases via UA's Online Store

- 1-year Limited Warranty

Technical Info

Specifications
High-bandwidth x1 PCI Express (PCIe) card (can be used in x1/x4/x8 and x16 slots, PCIe 2.0 compatible)

Form Factor:
- UAD-2 Solo Low-Profile, Half-Height, Short PCIe card designed to fit modern small form factor systems
- UAD-2 Duo/Quad Full-Height, Short PCIe card for easy installation even in compact PC cases

1, 2 or 4 Analog Devices SHARC 21369 floating-point processors

2.5X(Solo), 5X(Duo), 10X(Quad) the power of UAD-1*
- *UAD-2 individual plug-in instances per DSP chip will vary based on the plug-in combination selected with the average session being around 2.5x

World's best plug-in library with premier titles from Neve(R), Roland(R), Moog(R), SPL(R), Pultec, and more...

Multi-card support for up to 8 cards - mix and match up to 4 UAD-2's and 4 UAD-1/1e/Xpanders in one system/group

Cross-Platform for Mac OS X Tiger(10.4), Leopard(10.5) and Windows XP/x64, Vista32/64

VST and AU Support
- NOTE: RTAS is NOT supported in Version 5.0 software. RTAS support will be available in a future software update

44.1, 48, 88.2, 96, 176.4, 192kHz sample rate support

Cutting edge drivers - optimized for modern multi-thread and multi-processor architectures

Real-time and faster than real-time processing for mix bounces (unlike some other DSP solutions)

High-speed memory bus for running reverb/delay type effects (unlike some other DSP solutions)

LiveTrack(TM) (Low-Latency Mode) allows UAD-2 plug-ins to behave just like host plug-ins with no additional latency added* - now you can use UAD-2 plug-ins for monitoring, tracking and instrument processing
- Only works on select hosts. See the compatibility page for more details.

SessionMap(TM) bi-directional UAD-1<>UAD-2 session compatibility* (via ID sharing) and in session multi-card DSP management - use your UAD-1 alongside your UAD-2, or work with other collaborators using UAD
- *Session recall is limited to availability of plug-in authorizations and available hardware
- *Nigel has been discontinued for UAD-2
- *As of v5.0 the following Powered Plug-Ins are not yet available for UAD-2:
-- Roland RE-201
-- Precision Maximizer
-- Precision De-Esser
-- Precision Buss Compressor
-- Precision Enhancer kHz
-- SPL Transient Designer
-- VCA VU

- These Powered Plug-Ins are currently being ported to UAD-2, and will be released very soon in a software update. If you already own any of these plug-ins on UAD-1, you can still crossgrade your UAD-1 plug-in licenses to UAD-2. Just download the latest version software when it becomes available and update your Authorization File.

L.O.D.E.(TM) (Live Optimizing DSP Engine) the UAD-2's DSP engine automatically balances resources to maximize your plug-in instantiations

LoadLock(TM) reserves maximum DSP for guaranteed Plug-In loading

Redesigned Plug-In Toolbar and Meter & Control Panel application featuring...
- UAD-2/UAD-1 resource metering
- Improved preset management, with easy cut/copy/paste between SE and full versions
- Demo management, and plug-in purchase direct from the plug-in toolbar
- Simplified Registration/Authorization process - no more copying of card ID's or serials
- Help and support tab to get you up and running and to keep you going

Featuring UAi(TM) UA's unique modeling technology that captures the real magic of analog

14-day full function Demo for all plug-ins so you can try before you buy

Powered Plug-Ins(TM) available 24/7 @ uaudio.com

Easy license transfer for existing UAD-1/1e/Xpander users

Great launch crossgrade promotions for all existing UAD-1/1e/Xpander users

Designed and Made in U.S.A.

Minimum System Requirements:
Windows:
Microsoft Windows XP (Home, Professional, or x64 Edition), Windows Server 2003, or Windows Vista (x86 or x64)

Macintosh:
Mac OS X 10.4.x "Tiger" or 10.5.x "Leopard", Processor upgrade cards are not officially supported

General:
1 available PCIe (PCI Express) x1/x4/x8 or x16 slot

256 MB RAM (512 MB is strongly recommended)

1024 x 768 or higher resolution monitor

CD-ROM drive or internet connection for software installation

125 MB available hard drive space for UAD-2 or UAD-1 installation

250 MB available hard drive space for combined UAD-2 plus UAD-1 installation

Internet connection required for registration and plug-in authorization

Compatible VST or Audio Units plug-in host application software.

Multi-Card (Add More DSP!)
Need more raw DSP horsepower to run more UAD plugs in your mixes or simply want to run all your sessions at higher sample rates? The UAD was designed as a multi-card system allowing up to 4 UAD2 cards and 4 UAD1 cards to run on an OSX Mac/Win XP/Vista computer/expansion chassis system. Your existing plug-in licenses can be used across cards after registering a new card to your my.uaudio.com account and downloading the new plug authorization file.

Easily expand your DSP power with extra cards (up to 4 UAD-1/1e/Xpander, and 4 UAD-2 Cards per system)

L.O.D.E. (Live Optimizing DSP Engine) the UAD-2's DSP engine automatically balances resources to maximize your plug-in instantiations

Plug-In Licenses Valid for up to 4 UAD-2 and 4 UAD-1 cards in a system ( no need to re-purchase)

Use any combination of cards (PCI or PCIe)

Quad DSP Processor. Includes $50 plug-in voucher.
