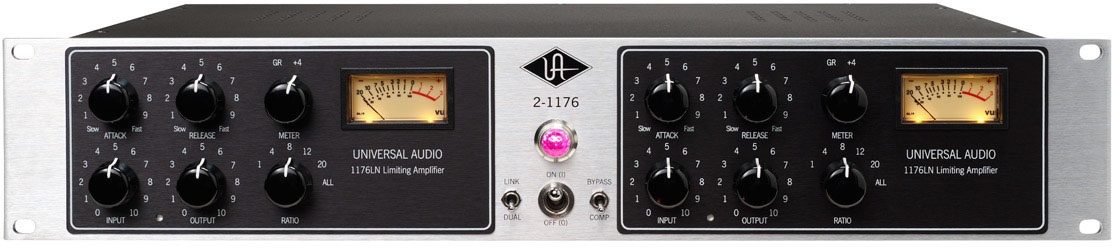

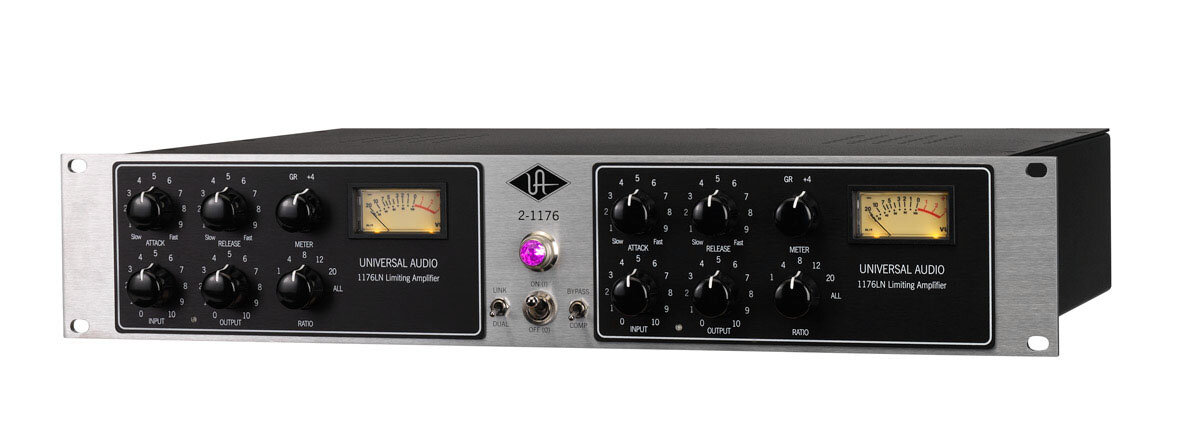

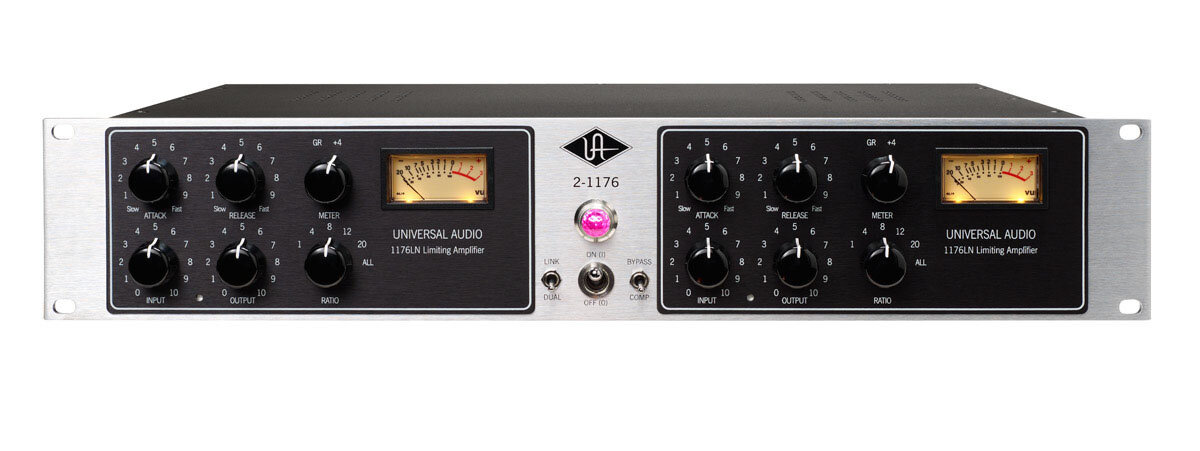

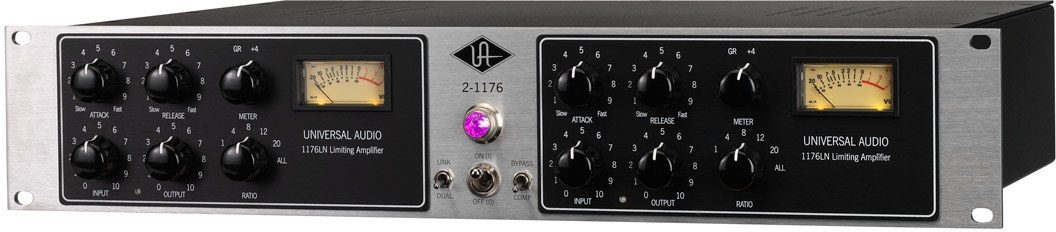

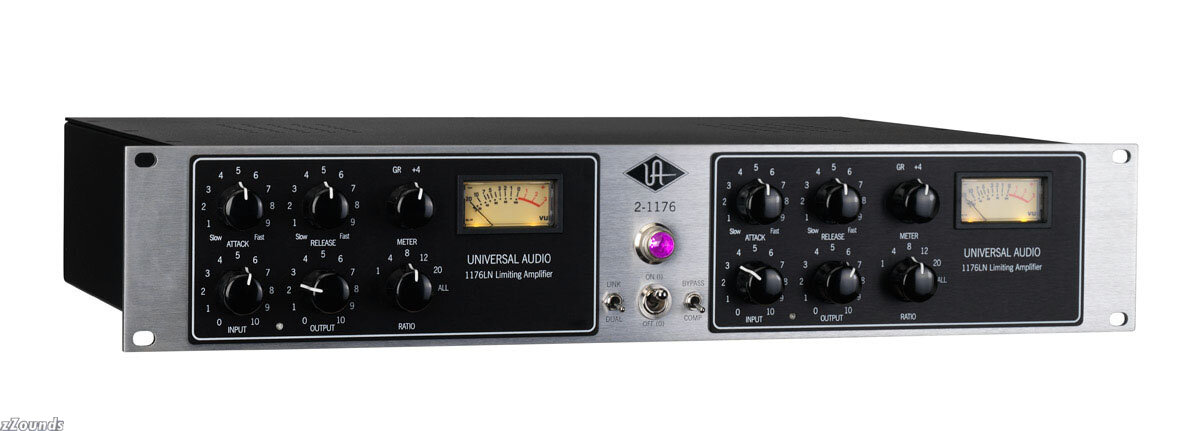

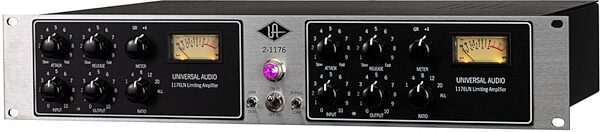

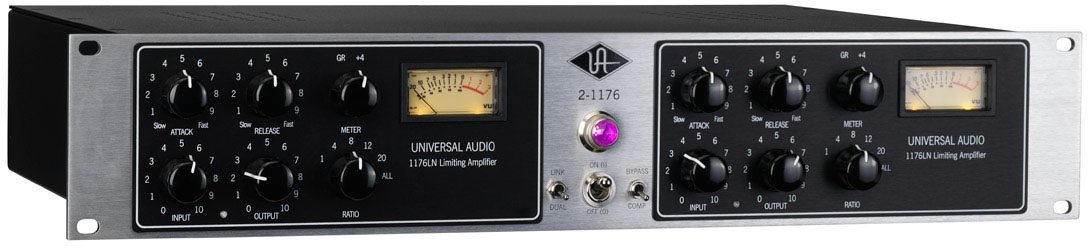

Universal Audio 2-1176 Twin Vintage Limiting Amplifier

Get the legendary sound of the original 1176 with Universal Audio's updated version, the 2-1176. (1) Rate and Review This Product
Ships to: Can ship to United States Can ship to APO/FPO
close [x]
zZounds.com 800-ZZOUNDS (800-996-8637)

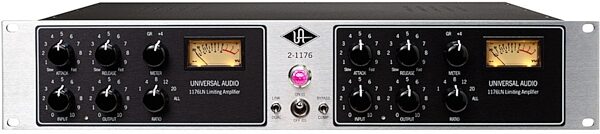

Click to Enlarge Main

Product Description

Finally, a true stereo 1176! With over 2000 units already sold to date since the year 2000 re-birth of Universal Audio's 1176LN, it is clear the public's love affair with the legendary sound of the 1176 is still as passionate as ever.

Features

- Sound and Features of the Original 1176LN
- Classic Custom 1176LN Output Transformers
- Stereo or Dual Mono Operation
- Totally Independent Compression and Gain Controls in Dual Mono Mod
- Matched FETs and Output Transformers
- Rack Space Convenience of Two 1176s in a 2U Rack Design

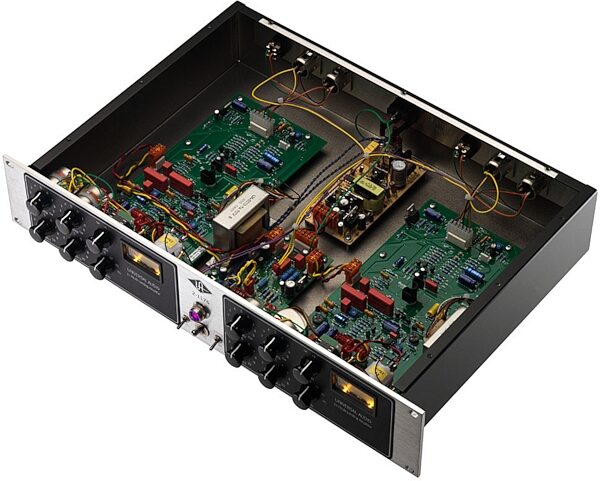

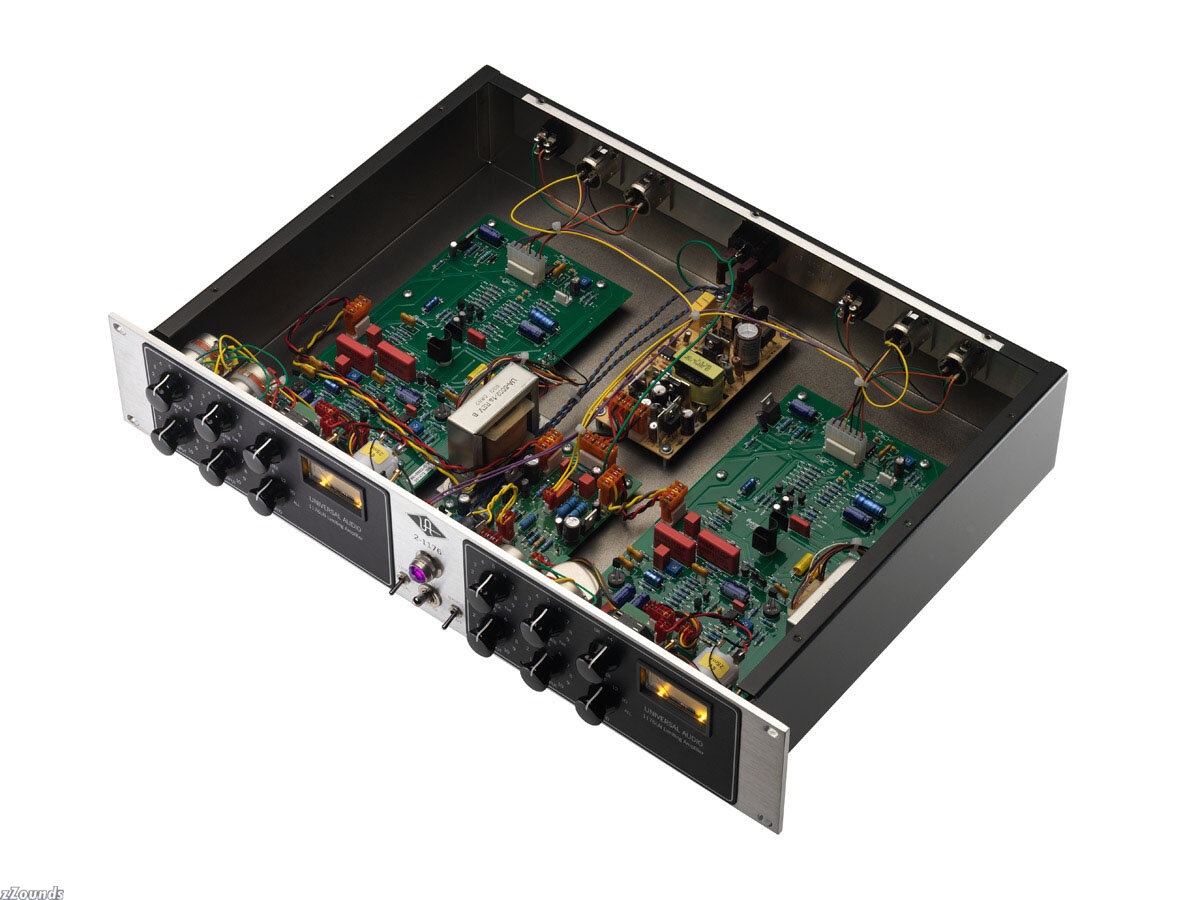

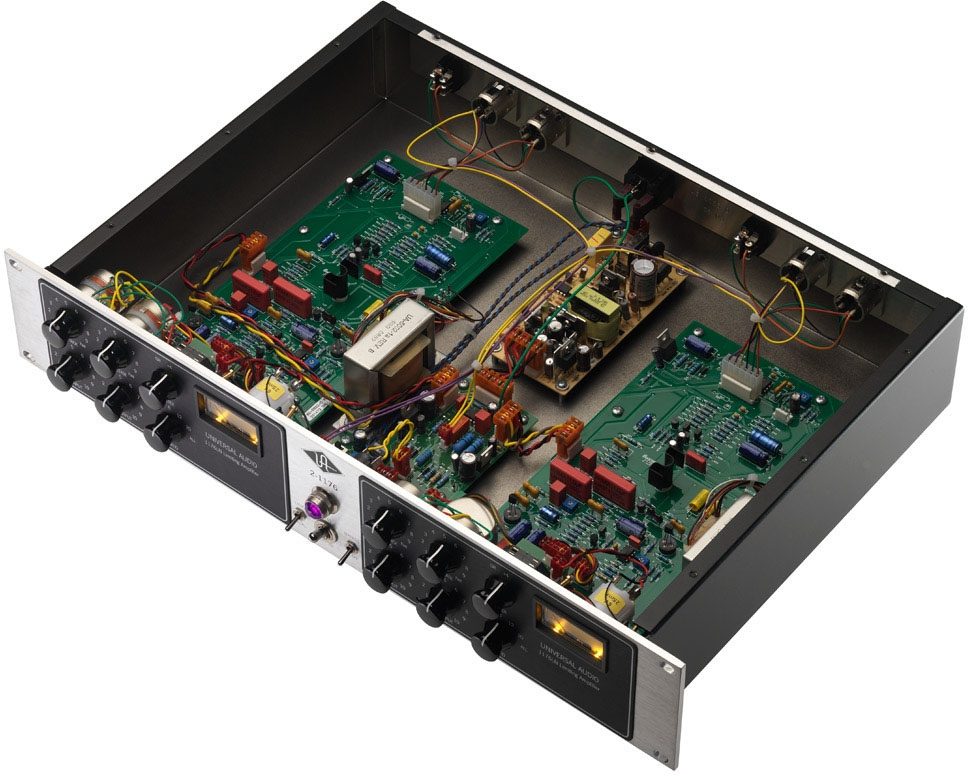

The 2-1176 builds from the circuit design of UA's hugely successful 6176 Channel Strip and combines two 1176 channels from that unit -- an uncompromising design, with all the same components - stereo matched to boot.

With the release of the 2-1176, UA once again put that sound into your rack but with twice the tone, twice the character and twice the compression -- at an unbelievable price, and half the space. As you would expect from UA, it also retains all the features and trademark sound of its ancestor, and switches easily between dual mono and stereo link.

And yes - it does have an All-Button. zZounds is an authorized dealer of Universal Audio products.
Specifications
Input Impedance: Selectable, 15k W or 600 W

Output Load Impedance: 600 ohms, floating,

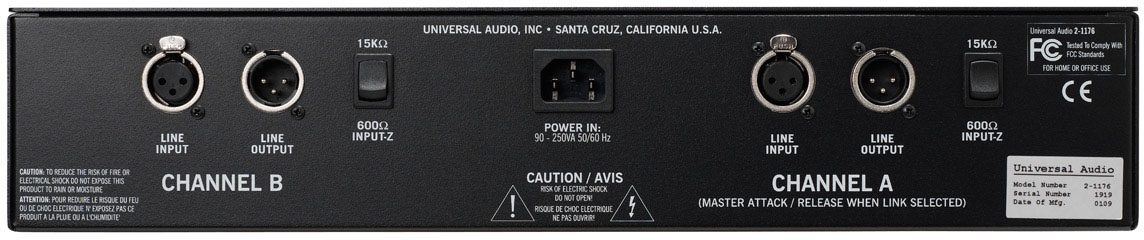

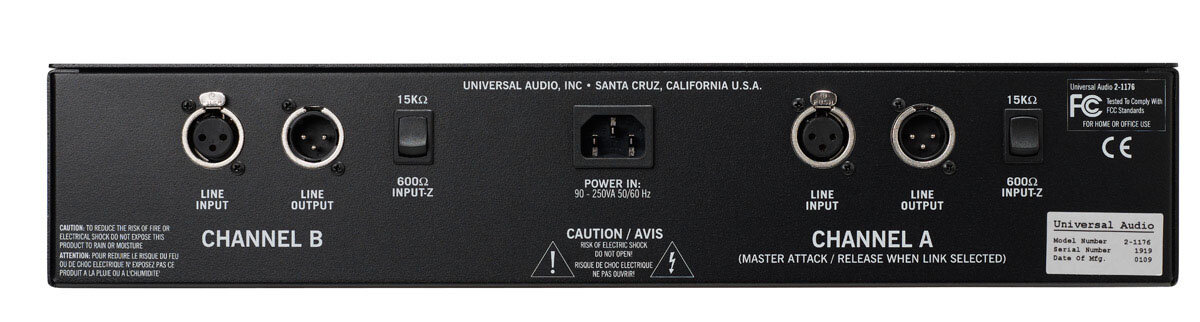

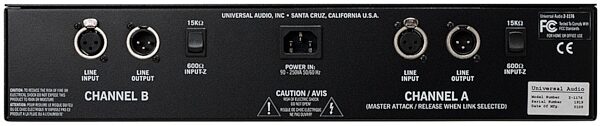

External Connections: XLR connectors

Frequency Response: +/-1 dB 20 Hz to 20kHz

Gain: 40 dB, +/- 1dB

Distortion: Less than 0.5% total harmonic distortion from 50 Hz to 15 kHz with limiting, at 1.1 seconds release setting. Output of +20 dBm with no greater than 0.5% T.H.D.

Signal to Noise Ratio: Greater than 85 dB

Attack Time: 20 microseconds to 800 microseconds

Release Time: 50 milliseconds to 1.1 seconds

Stereo Interconnection: Chan. A Attack and Release links to Chan. B via LINK mode

Meter: dB gain reduction and dB output

Power Requirements: 120/240 V

Dimensions: 19-inch Rackmount chassis, 2U

Weight (unboxed) 9.6 lbs.
Dimensions and Weight in Packaging
Shipping Weight: 15 lbs
Shipping Dimensions: 23 x 18 x 8 in
Universal Audio Warranty Universal Audio Warranty Universal Audio offers a warranty of one year parts and labor on the 2-LA-2 and all hardware items. If you have additional warranty questions, please call the manufacturer at 877-698-2834
Our extended 30-Day 100% Satisfaction Guarantee applies on this product. Buy it, and if it isn't just right for you, return it!
