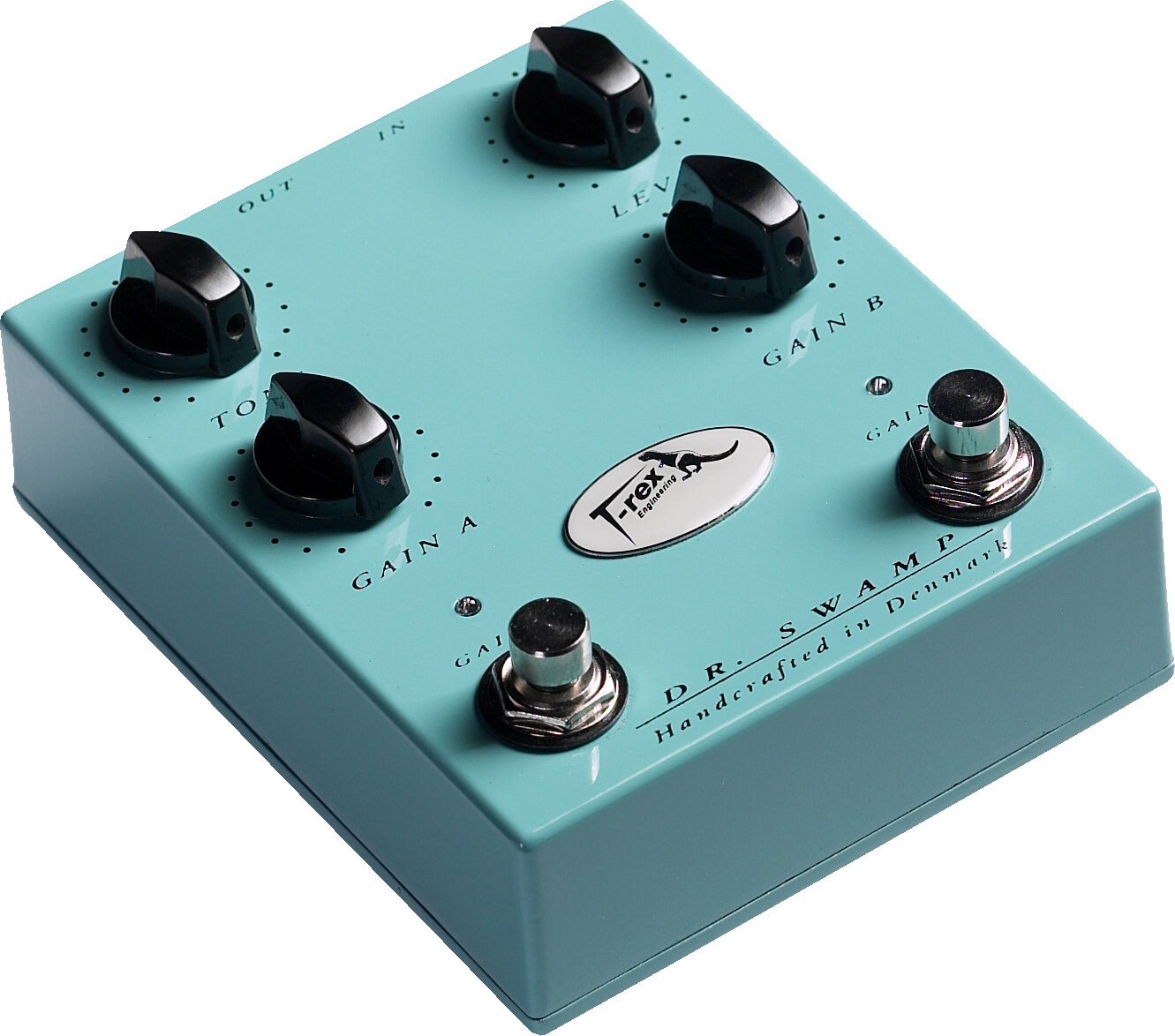

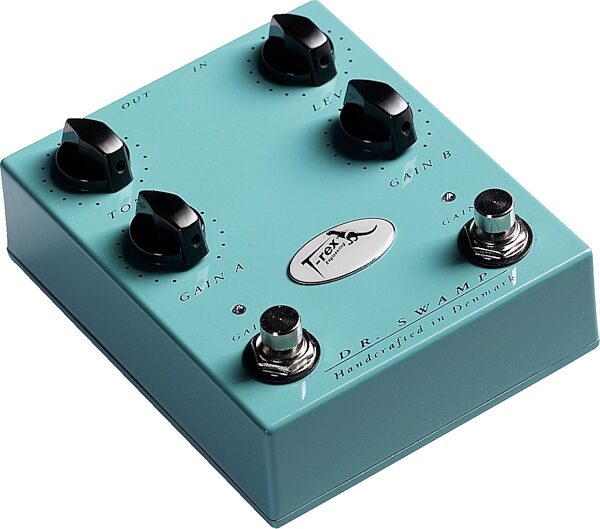

The T-Rex Dr.Swamp is a double distortion pedal. It has that rich vintage sound, T-Rex is known for. Besides the warm crunchy sound, this pedal gives a lot of steady bottom. You can flip back and forth between the two gain settings A and B - by clicking switch A or B. The lid (A or B) is indicating the active gain. The pedal is turned off, by clicking the switch (A or B) that is lid.
Features:
The Gain A knob controls the amount of distortion, when using switch A.
The Gain B knob controls the amount of distortion, when using switch B.
The Level knob sets the overall volume. In mid-position (twelve o'clock) the volume level is 1:1. When turned full over (clockwise) the input signal is boosted 15dB.
The Tone knob affects the top end (edge) of your signal without compromising sonic quality, allowing you to dial in the perfect tonal flavour for you taste.
Controls:
Gain A, Gain B, Level and Tone

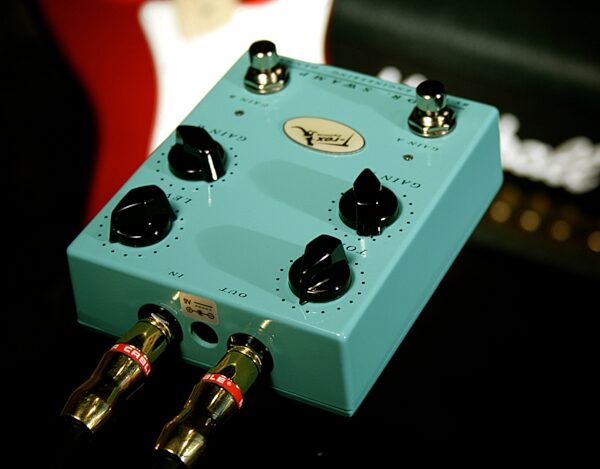

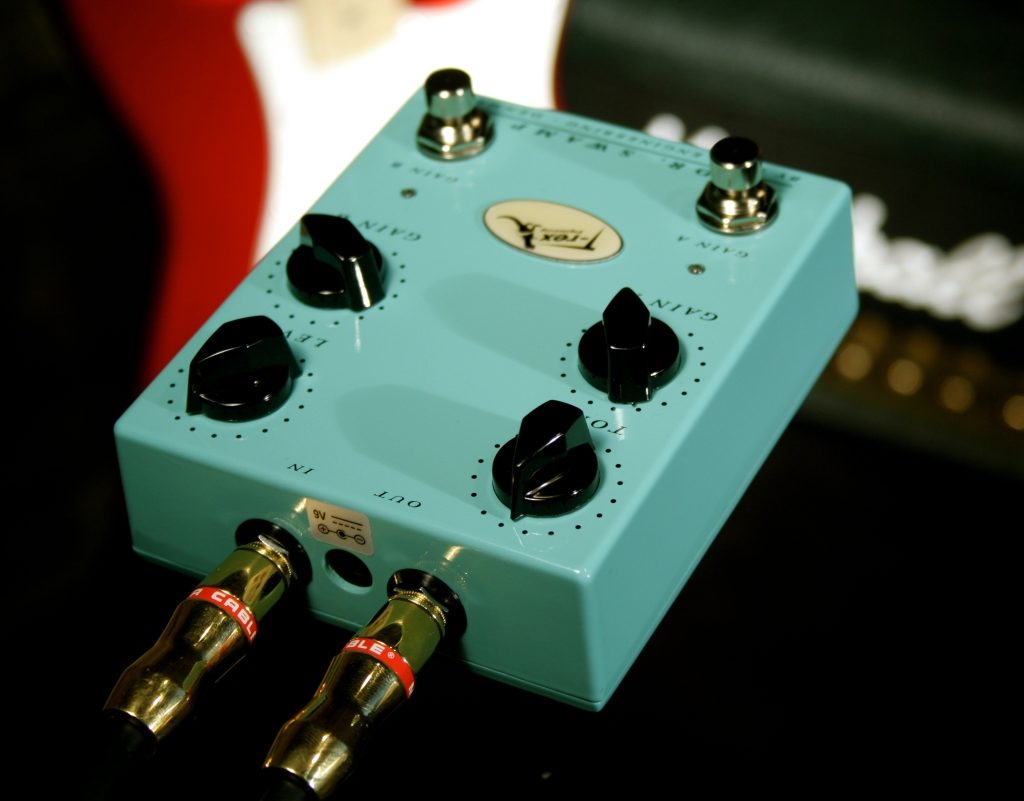

Connections:
Input-Jack 6,3 mm.
Output-Jack 6,3 mm.
DC-Jack 2 mm. pin.
Power supply:
9-12V DC or battery 9V Alkaline.
Effect usage:
20 milli Amperes
Change of Battery
Open the battery-cover on the back using a flat-tipped screwdriver in the slot. Remember to position the battery correctly.
