This product is no longer available at zZounds.

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

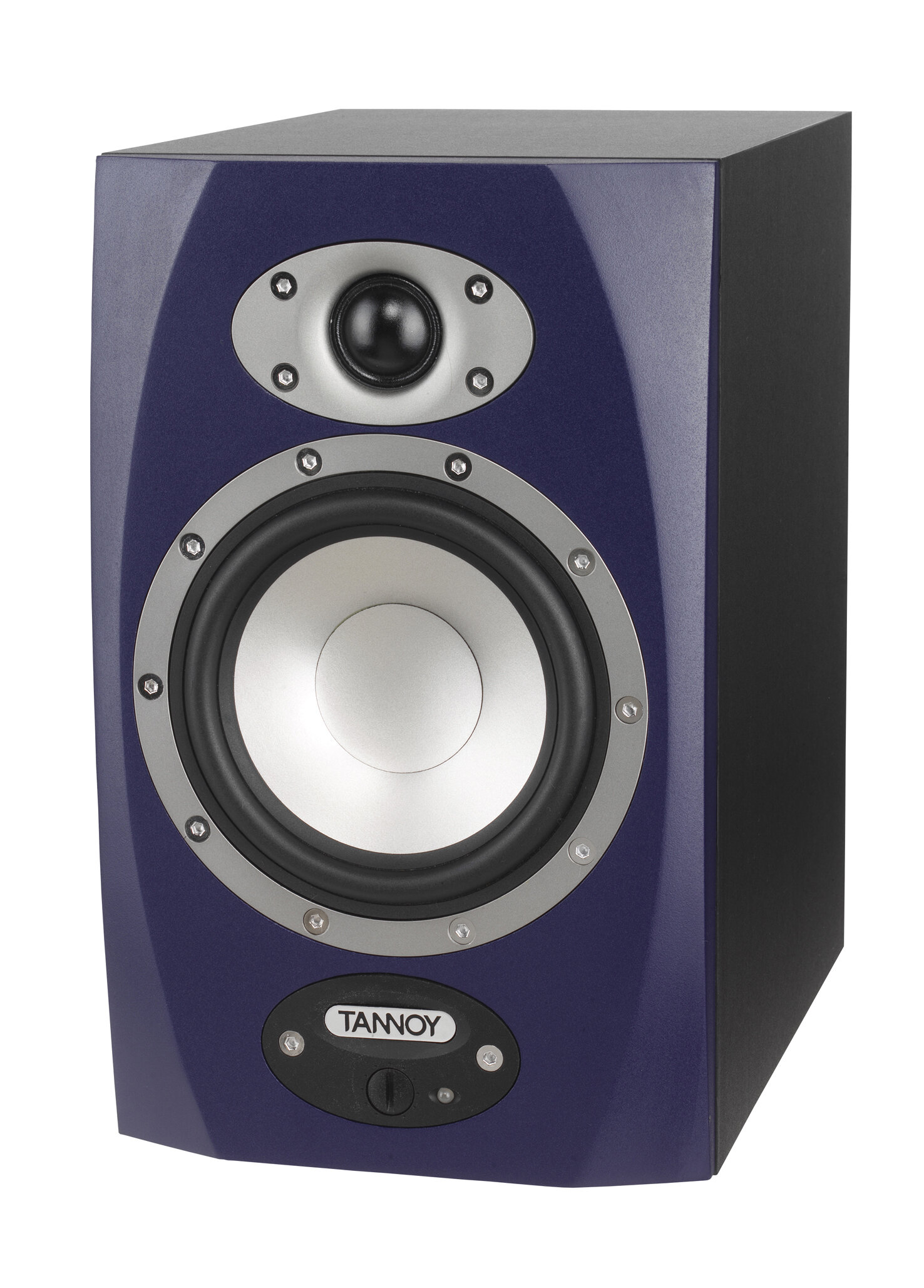

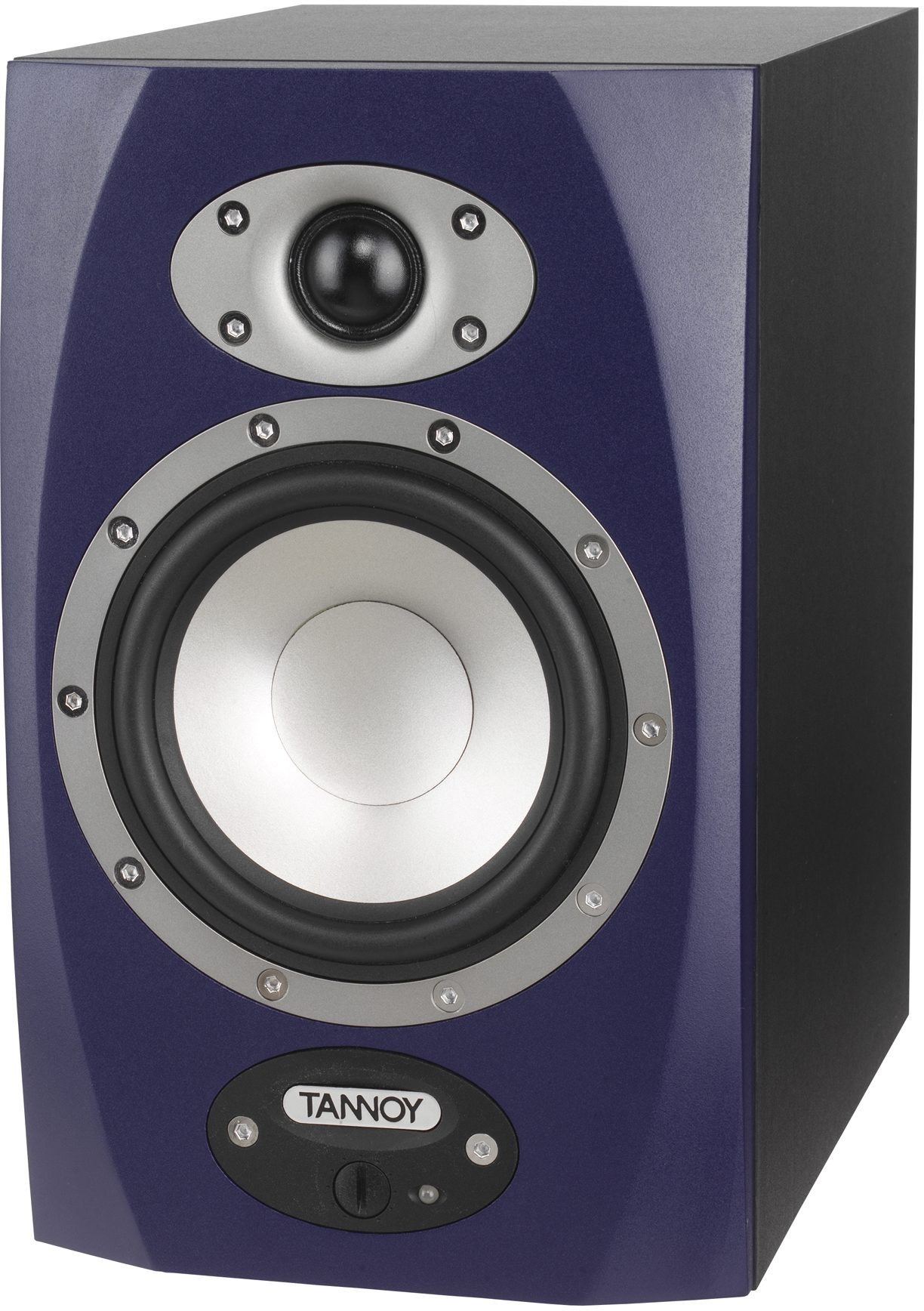

Tannoy Reveal5A Active Studio Monitor

Updated design. 9 People rated this product:

Rate and Review This Product

Roll Over to Enlarge

Main

overview specifications documents

Manufacturer's Description for Tannoy Reveal5A Active Studio Monitor

From the front:
40mm MDF sculpted baffle - stiff, heavy and rigid and minimises diffraction.

Recessed drive units flush with the baffle surface - minimises diffraction.

10 point fixing maximises contact between drive unit and baffle.

Bass unit development using Klippell analysis equipment to minimise offsets and linearise the suspension components.

New tweeter has wide band design extending the amplitude response beyond 20kHz audibility to 30kHz to correct the phase response from 8kHz to 14kHz within the audible band. This preserves the harmonic structure of sounds and the stability of the stereo image .

Smooth tweeter faceplate contours prevent diffraction and cavity effects.

On/Mute (energy saving mode) via the Tannoy logo push switch.

LED indicator shows Active/Energy Saving modes.

Front mounted volume control for convenient Home Studio and PC/MAC laptop/desktop use.

From the sides:
18mm MDF cabinet construction provides stiffness and minimises colouration.

Internal construction braces the sides and rear of the cabinet against the rear of the bass driver to provide a rigid reactive mass for the moving cone assembly. Ensures fast tight bass response and clear midrange.

Front baffle and rear panel tongued and grooved into the cabinet as a mechanical interlock for safety if wall mounted.

From the rear:
Double insulated to prevent ground loops - no safety earth required.

CSA/CE/CCC/CB full safety approvals including China.

Spare fuse in IEC mains connector.

On/Off mains isolator switch.

Substantial heat sinking for long term cool running and 24/7 reliability.

XLR and 1/4 jack Combi connector for balanced input. zZounds is an authorized dealer of Tannoy products.

PERFORMANCE
Frequency response (1)
65Hz to 30kHz

Max SPL (2)
109dB

Distortion
<0.7%

Horizontal Dispersion
(@-6dB, 10kHz horizontal) 90 degrees

DRIVE UNITS
LF/MID
130mm (5 in.) multi fibre paper pulp cone

WideBand HF
25mm (1 in.) soft dome, neodymium magnet system

Shielded
Yes

ELECTRONIC SYSTEM
Inputs
600(C) balanced XLR/Jack

Sensitivity
775mV for 40W

Crossover frequency
2.7kHz

Amplifier output power
LF - 40W, HF - 20W

User Controls
Front panel mounted on/mute/volume/led indicator.

Power Supply
Fixed mains voltage - region specific (to order) 110/220/230v

CABINET
Type
Optimised bass-reflex loaded

Construction
MDF cabinet and front baffle, Tongue and groove front and back

Finish
Grey cabinet, Blue painted baffle
(1) +/- 3 dB , measured at 1m in an anechoic chamber. (2) Peak SPL at mix position for 1 pair driven
