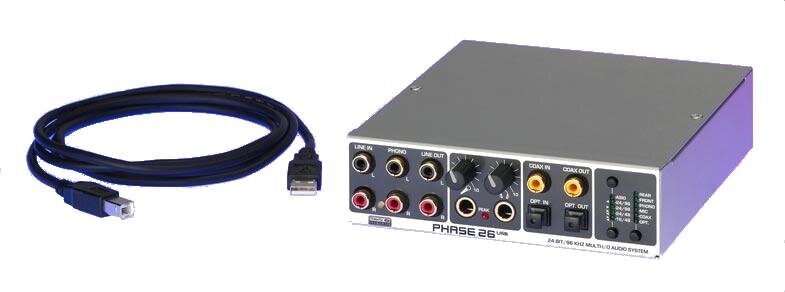

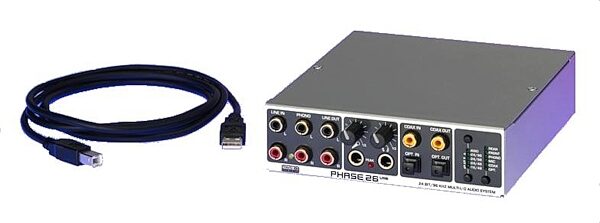

Terratec Phase 26 USB Audio Interface

24-bit / 96 kHz fidelity. Analog, digital, MIDI ins/outs. 17 People rated this product:

Rate and Review This Product

Roll Over to Enlarge

Main

overview specifications

Manufacturer's Description for Terratec Phase 26 USB Audio Interface

PHASE 26 USB is the first external studio interface to feature TerraTec's tried-and-true audio technology in 24-bit, 96-kHz resolution. This makes it the perfect mobile recording solution for all Windows notebooks or Apple PowerBooks furnished with USB ports.

The Perfect Recording System for Mobile Music Production
Featuring two analog inputs and six outputs, a MIDI interface, a microphone input, and an amplified headphones output, the PHASE 26 USB is a remarkably versatile audio system for musicians and producers. And with the popular and proven TerraTec Phono Preamp - which is designed to accept turntables with no further amplification required - it is also the first choice for DJs.

Be it music production, recording sessions, 5.1 Surround production, digital mastering, or DJing, the PHASE 26 USB offers peak performance and maximum mobility for all audio applications. An optical and a coaxial digital S/PDIF port, high-quality converters with resolutions ranging up to 24 bits/96 kHz, and a dynamic range exceeding 106 dB ensure professional audio quality for mobile laptops and fixed desktop studios.

The PHASE 26 USB can be operated with or without power unit. It can also be switched on and off on the fly while the system is running. The computer detects the Phase 26 via USB automatically, and its advanced software runs smoothly and flawlessly. Latency is extremely low, courtesy of generic drivers for Windows XP and Mac OS X. And that makes PHASE 26 USB an excellent choice for systems with real-time-enabled software synthesizers.

Features
Six (5.1) analog Surround studio level outputs

Stereo input for line/studio devices

Stereo input with preamp for turntables (record players)

Microphone input with Peak LED and Gain knob

Headphones input with volume control

96-kHz/24-bit resolution

1 digital S/PDIF optical in/out

1 digital S/PDIF coaxial in/out

MIDI interface for 16 channels

Multi-platform (MAC + PC)

Low-latency ASIO support zZounds is an authorized dealer of Terratec products.

External USB device (USB 1.1)

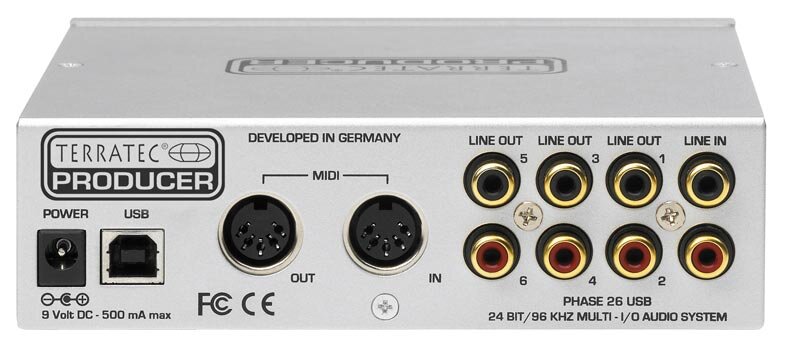

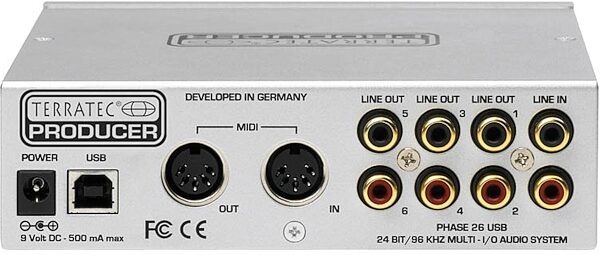

3 analog stereo outputs (rear side), line level max. 2.1 Vrms, (RCA)

1 analog stereo input (rear side), line level max. 2.1 Vrms, (RCA)

1 analog stereo input (front side), line level max. 2.1 Vrms, (RCA)

1 analoger stereo output (front side), line level max. 2.1 Vrms, (RCA)

1 analog stereo phono input (front side) for moving magnet systems max. 12 mVolt, (RCA)

1 analog mono microphone input (front side), 1/4 in. TRS jack

1 digital stereo in/output (front side), TOS-Link, optical, 24 Bit/96 kHz

1 digital stereo in/output (front side), coaxial, electrical, 24 Bit/96 kHz

1 MIDI in/output, (rear side), 5-pin DIN

Microphone input control range: 9 mV - 500 mV

Headphone output power: 36 mW

Impedance of the line outputs: 220 Ohm

Impedance of the line input: 10 kOhm

Signal-to-noise ratio of the A/D converter, weighted: 97 dB (A)

Signal-to-noise ratio of the D/A converter, weighted: 106 dB (A)

24 Bit/96 kHz A/D converter with 98 dB dynamic range

24 Bit/96 kHz D/A converter with 106 dB dynamic range

Software
Algorithmix Sound Laundry TerraTec Edition

MME and DirectSound support for Windows 2000 and Windows XP (generic USB audio driver)

Core Audio/MIDI support for MAC OS X (generic USB audio driver)

ASIO 2.0 support for Windows and MAC OS 9

WDM kernel streaming (e.g. Sonar)

DirectSound 3D

Special Control Panel for Windows 2000/XP

Firmware Flasher for Windows und MAC OS X

System Requirements
Windows: Pentium II 450 MHz, 128 MB RAM, VGA video card, 800 x 600/256 colors, Windows 2000 or Windows XP

Macintosh: G3 400 MHz, 128 MB RAM, VGA video card, 800 x 600/256 colors, OS 9 or OS X (OS 9: ASIO only, no MIDI)

Recommended Systems
Windows: Intel Pentium III 1 GHz, Celeron 900 MHz or AMD K7 Athlon 1 GHz, > 256 MB RAM, VGA video card, 1024x768 / HiColor, Windows XP (SP1)

Macintosh: VGA video card, 1024x768 / HiColor, > 256 MB RAM, MAC OS X Jaguar (10.2)
