For anyone who wants to replace their current monitors and/or has someone running monitor mixes.
Intelligible, Natural & Powerful
By employing an ICT point source driver, an efficiently designed cast aluminum case and a BASH 150 Watt amplifier, VoiceSolo VSM-200 delivers an intelligible, yet natural vocal sound. The vocal reproduction doesn't compromise VSM-200's reproduction of any other source you want to monitor.
Flexible Connections & Complete Control

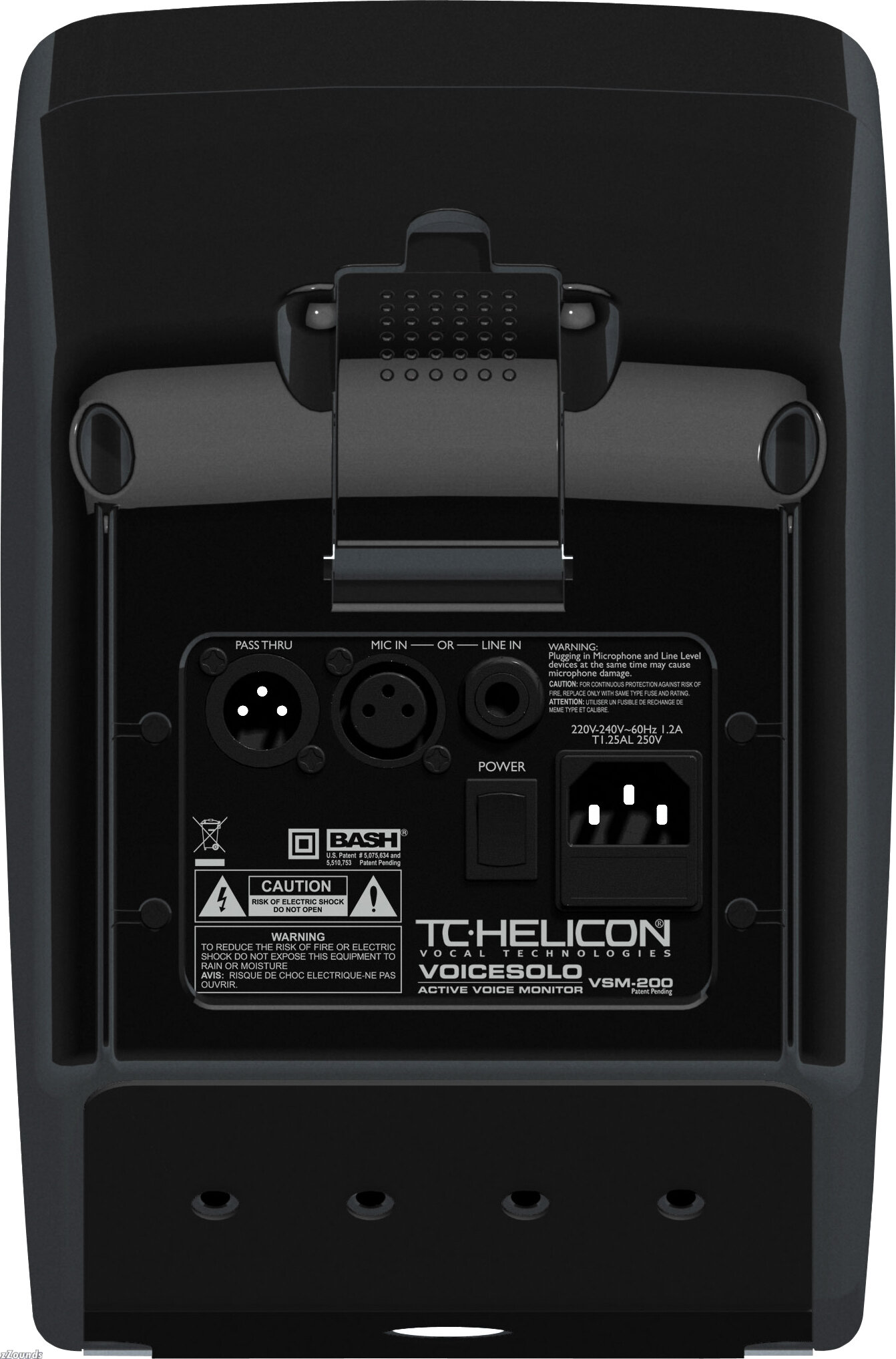

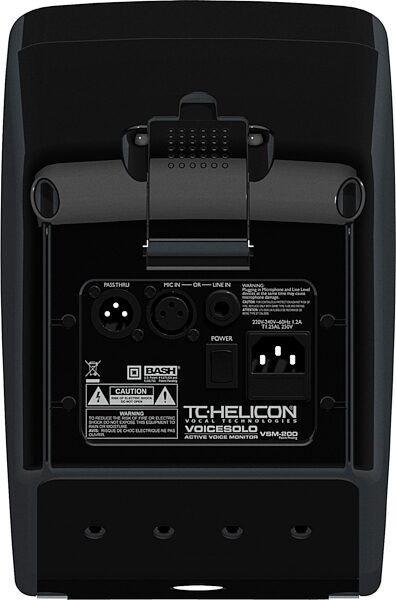

For simple setup, VSM-200 has a mic and line input on the back panel. Additionally, a pass-thru on the back panel allows multiple VSM-200 or VSM-300 to be chained in parallel. A front panel volume control puts you in control.
Portable & Versatile
Your monitoring needs can vary by venue, the size of your group and the level of your performance or practice. VSM-200 can be use in numerous mounting positions including the highly practical method of integrating VoiceSolo into your boom mic-stand, saving stage space. However, conventional options can also be used like the floor wedge position, on a stand without a boom, or stand mounted for side fill or small PA.
Can you hear yourself?
How well you sing correlates to how well you can hear your voice. A bad monitor mix, or even worse, no monitor mix, means a bad night. The VoiceSolo range of personal near-field monitors from TC-Helicon give your monitor mix an open-air, studio quality sound in a single mic-stand mounted enclosure that you can control.
A Voice Monitoring Solution
The range of VoiceSolo personal vocal monitors all employ a custom designed ICTTM true point source driver to reproduce the human voice in the most intelligible and natural way. The rugged cast aluminum enclosure offers multiple mounting options using intelligently designed adapters that make setup with standard microphone stands a simple and quick task.
VoiceSolo Technologies
Die Cast Aluminum Enclosure (VSM-300 / 200 / 200p)
The complete range of VoiceSolo Personal Vocal Monitors share a no compromise cast aluminum enclosure. The choice of material, finish and form make the VoiceSolo monitors rugged, road-worthy and portable. Additionally, cast aluminum enclosures don't suffer from cabinet resonances that plague compact plastic-cased speakers.
ICT Driver (VSM-300 / 200 / 200p)
TC-Helicon worked with industry professionals to select and customize a speaker driver that sound great for voice, but also retain a balanced mix. The ICT (Inductively Coupled Technology) contains a woofer for lows below and within the voice frequency range as well as a tweeter to reproduce the high frequency components of the voice and other instruments. The ICT driver is a point source driver, meaning all the highs and lows come from the exact same point because the tweeter sits within the woofer. This gives the benefit of a consistent sound from near, far and off-axis.
Another great benefit of the ICT driver is due to the non-electrical methods used to couple the tweeter with the woofer, it is not possible to damage the tweeter.
BASH amplifier (VSM-300 / 200)
The BASH amplifier delivers a clean and efficient 150 Watts / 200 Watts peak output to feed the ICT driver. The amplifier contains a limiter that not only protects the electronics and driver from damage, but reduces the likelihood of distortion without coloring the sound.
Simple Set-up (VSM-300 / 200 / 200p)
The VoiceSolo range of monitors are easy to set up in any application. VoiceSolo works with any standard mic/boom stand. Once the supplied adapters are connected to the stand and boom, VoiceSolo can be step in seconds - just by dropping it onto the stand and clipping on the boom.
Mic-Stand Options:

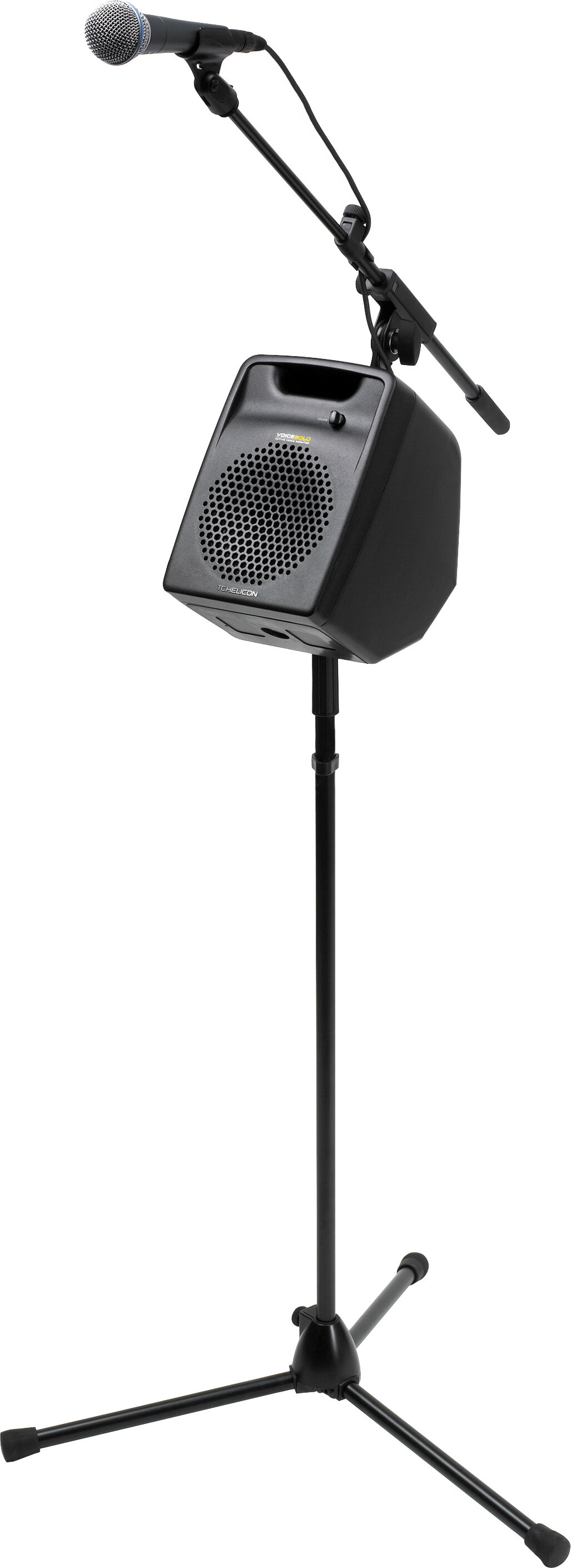

Angled position with boom attached for easy monitoring and reduced stage clutter
Angled position for near fear monitoring
Side-Fill / PA Position
With Stand Options
Angled for placement on keyboard

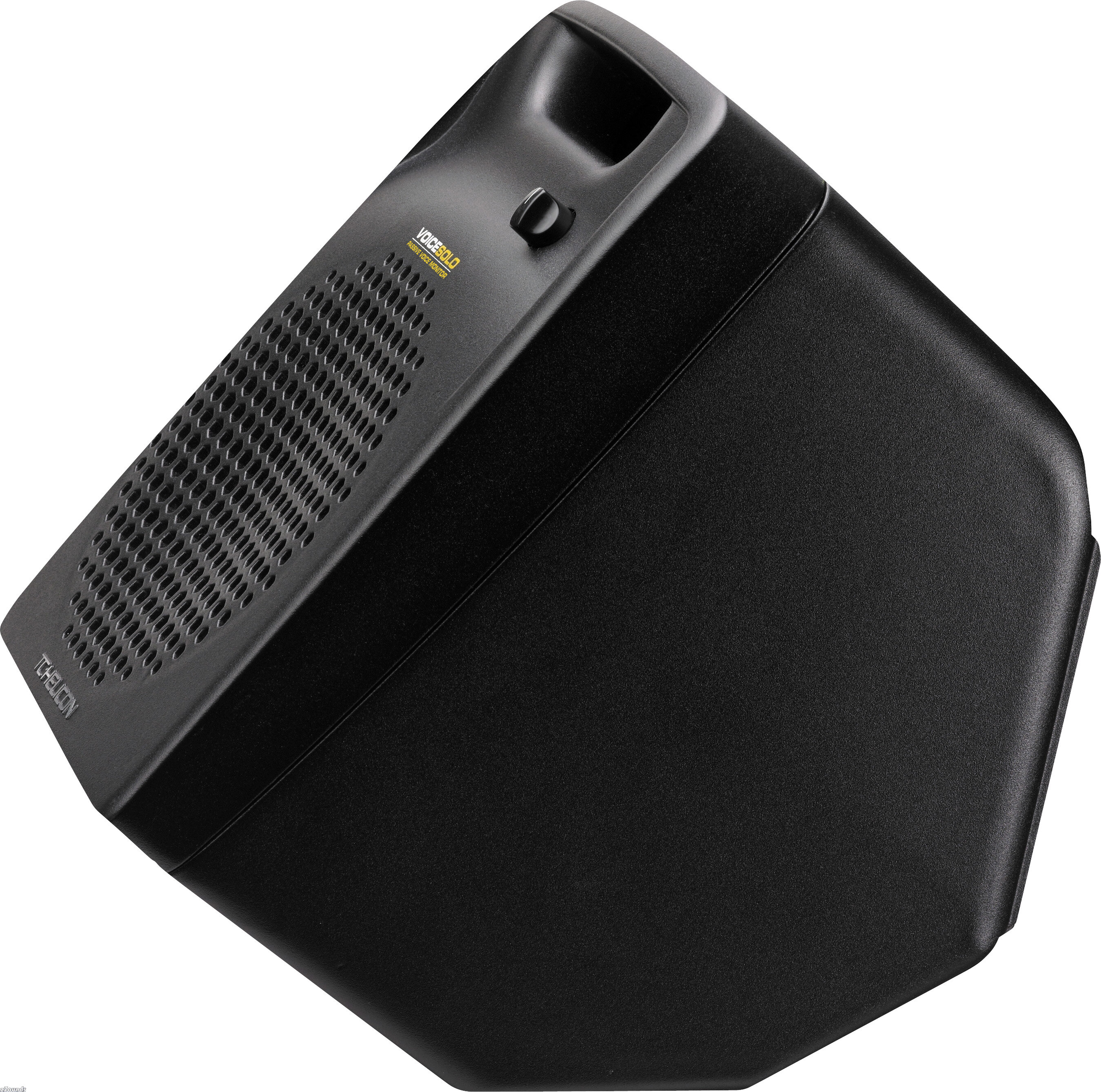

Floor-wedge angle
Side-Fill / PA position on table or shelf
Voice Shape
The Shape control is a complex filter that helps reduce proximity effect and increases the intelligibility and naturalness of the human voice. The single control should be used liberally with dynamic microphones.
Complete Mix Control (VSM-300)
The VSM-300 front panel allows dedicated controls for the mic input, the unique Voice Shape filter, line level, EQ controls and master volume. The full complement of controls allows you to create your perfect monitor mix.

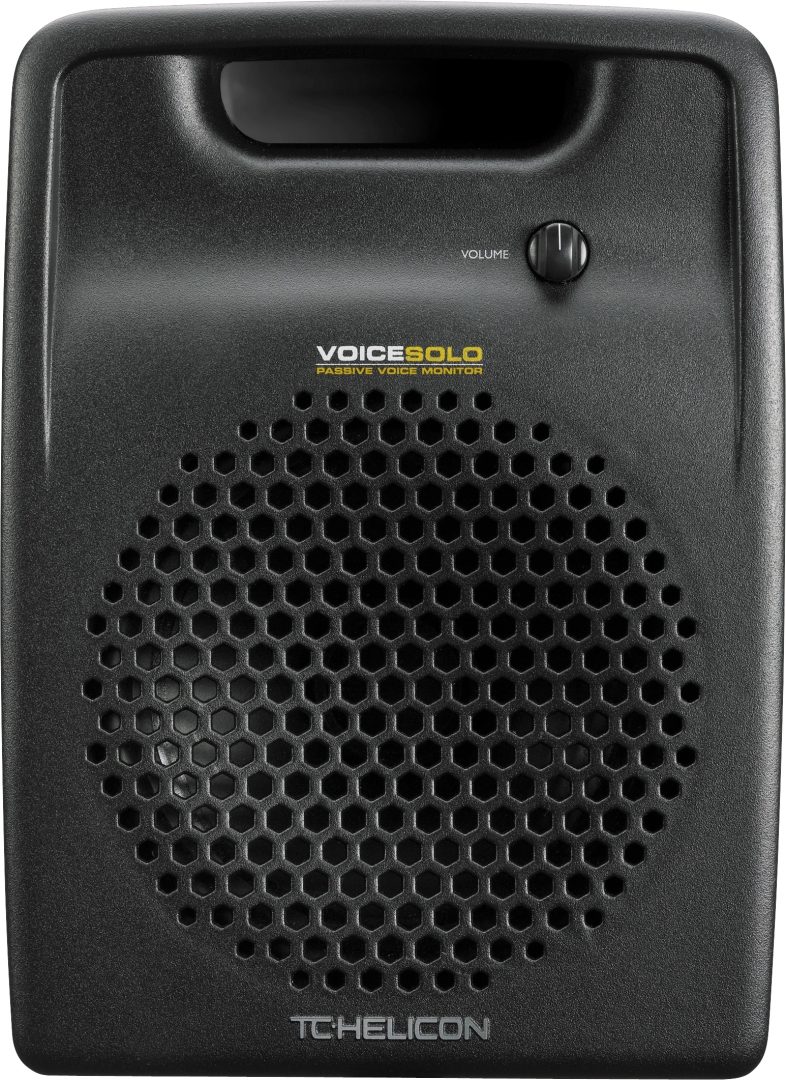

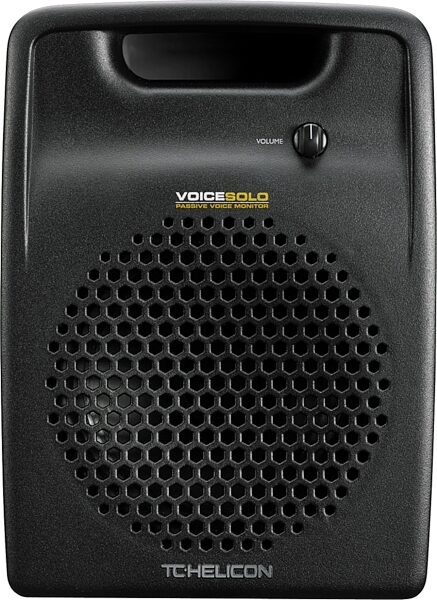

Front Panel Volume (VSM-200 / VSM-200p)
A front panel volume control puts you in control of your personal monitoring level. Additionally, the volume control does not affect the level going to any other monitor or mixing console.
IO Box (VSM-300)
VSM-300 includes a floor based I/O box that provides convenient connections for a wide range of monitor connection options. The I/O box includes a mic input, as well as stereo instrument and aux inputs. Additionally, the I/O box includes pass-thrus of each input for sending direct sound to a Front-of House engineer.
To facilitate system expansion, the I/O box also includes a subwoofer-output and a stereo link output creating a stereo system by employing another VSM-300 or VSM-200.
For simple monitoring setups, VSM-300 has separate mic and line inputs on the back panel. The mic input includes pad and phantom power.
Technical Info
Cast aluminum enclosure with simple setup with most mic stands
Point source driver with indestructible high frequency transducer
150 Watt (200 Watt Peak) efficient BASH amplifier with limiting protection
Mic and Line input with XLR cascade connector
Performance volume control
116dB peak SPL at 0.5m
Integrated tuned port doubles as carrying handle
Dimensions (H x W x D): 9 in. x 7 in. x 9.75 in. (230 cm x 180 cm x 250 cm)
