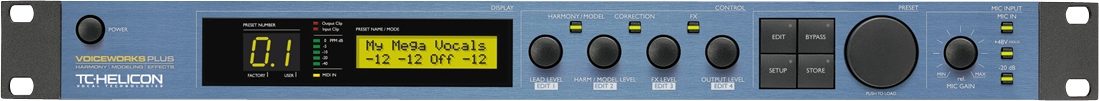

TC Helicon Voiceworks Plus Vocal Processor

VoiceWorksPlus has all of the features you need to make your vocals shine brighter. It continues on from the success of its predecessor, VoiceWorks, with an updated feature list including 4th generation TC-Helicon harmony technology, Voice Modeling™, and the Transducer and ìMod (micromod) blocks from VoicePro.

The quiet Burr Brown-based mic preamp, transparent pitch correction, TC Electronic reverb, delay and dynamics algorithms from VoiceWorks round out its capabilities. Whether you're playing live gigs with a MIDI sequencer for backup or recording songs in your studio, VoiceWorksPlus offers high quality vocal processing options and advancements allowing you to realize the perfect vocal sound you’re looking for.

Features:
Interchangeable voice modeling or harmony

Advanced harmony humanization and control

Individually-adjustable harmony voice gender

Megaphone effects with high Q band limiting

Distortion

Chorus

Microtuning

Flange with pitch feedback

Pitch correction

Reverb

Delay with tap tempo

Compressor

De-Ess

3-band EQ

Gate

Footswitch or volume pedal control

Burr Brown mic preamp with phantom power for condenser mics

Stereo or mono output

Optional Accessory: TC Electronic G-Switch 3-Button Footswitch

Technical Info

Digital Inputs and Outputs
Connectors: RCA phono (S/PDIF)

Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958

Sample rates: 44.1 kHz, 48 kHz

Frequency response DIO: DC to 22/23.9 kHz ± 0.01 dB @ 44.1/48 kHz

Connectors, balanced: Mic.: XLR, line: 1/4 in. phone jack

Impedance:
Balanced/unbalanced: Mic.: 3.6/1.8 kOhm, Line: 21/13 kOhm

Line input level @ 0 dBFS: +24 dBu to +0 dBu

Line sensitivity @ 12 dB headroom: -12 dBu to +12 dBu

Mic. in high sens @ 0 dBFS: Pad off/on 24 dBu/-4 dBu to -61 dBu/-41 dBu

Mic. in norm sens @ 0 dBFS: Pad off/on -14 dBu/6 dBu to -51 dBu/-31 dBu

Mic. in low sens @ 0 dBFS: Pad off/on -2 dBu/18 dBu to -39 dBu/-19dBu

Line, mic. @ min gain, dynamic range: > +92 dB, 20 Hz - 20 kHz

NF/Vi @ max. micamp. gain,
Rg = 200 ohm: < +2 dB / -127.4 dBu

THD: < -100 dB (0,001 %) @ 1 kHz

Line frequency response: +0/-0.1 dB, 20 Hz to 20 kHz

Mic. frequency response, max gain: -1.5 dB @ 40 Hz, +0/-0.1 dB (200 Hz to 20 kHz)

Crosstalk: < -85 dB, 20 Hz to 20 kHz

A to D conversion: 24 bit, 128 x oversampling bitstream

A to D delay: 0.65/0.70 ms @ S.R. = 48/44.1 kHz

D to A conversion: 24 bit, 128 x oversampling bitstream

D to A delay: 0.63/0.68 ms @ S.R. = 48/44.1 kHz

Connectors, balanced: 1/4 in. TRS phone jack

Output impedance: 40 ohm

Balanced/unbalanced: 20 dBu/14 dBu, R-load = 1200 ohm

Output range: variable up to +20 dBu

Dynamic range: > +104 dB, 20 Hz to 20 kHz

THD: <-98 dB (0.0013 %) @ 1 kHz

Frequency response: 20 Hz to 20 kHz, +0/-0.3 dB

Crosstalk: <-100 dB, 20 Hz to 20 kHz

Complies with: IEN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B

Control Interface
MIDI: In/out/thru: 5 pin DIN

Pedal: 1/4 in. phone jack

Supplementary
Display: 16x 2 character LCD display

Dimensions: 19 in. x 1.75 in. x 8.2 in. (483 x 44 x 195 mm)

Weight: 4.1 lb. (1.85 kg)

Mains voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)

Power consumption: <15 W

Warranty parts and labor: 1 year

Newly updated with more powerful processing! Advanced harmony technology with humanization control. Voice modeling adds character to lead or backing tracks. Includes mic preamp, pitch correction, compressor, and effects.
