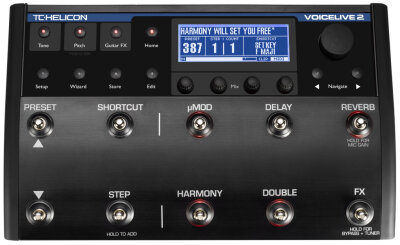

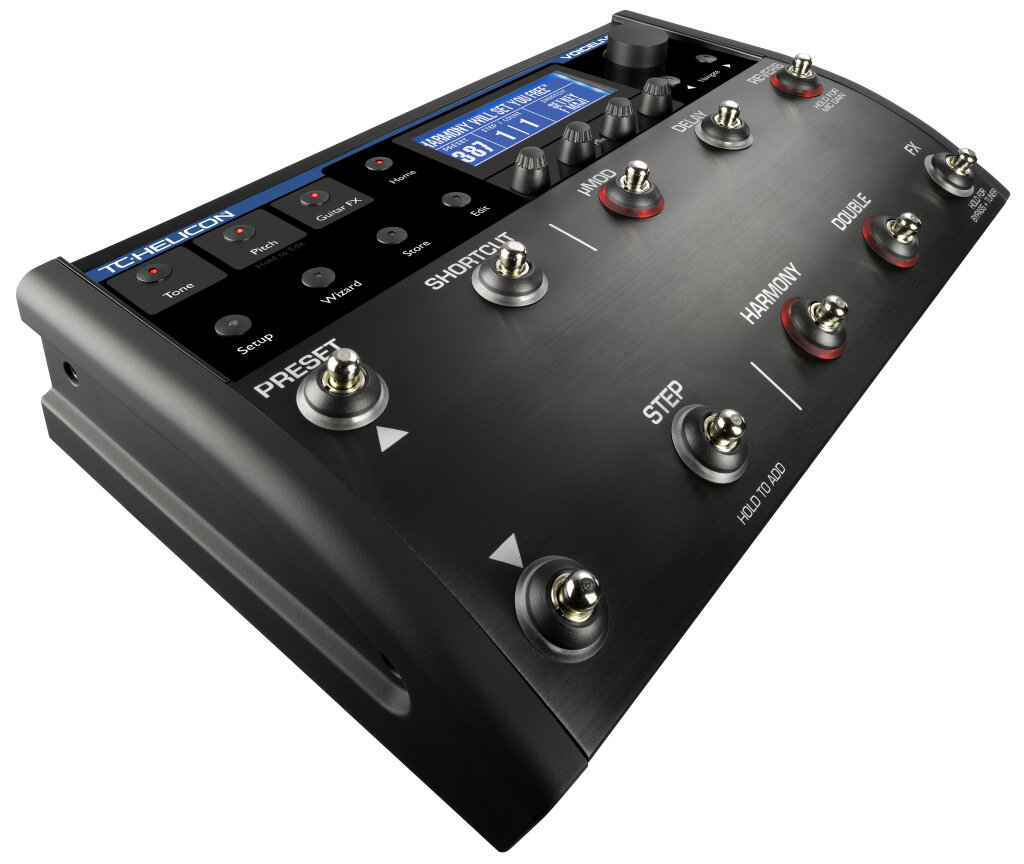

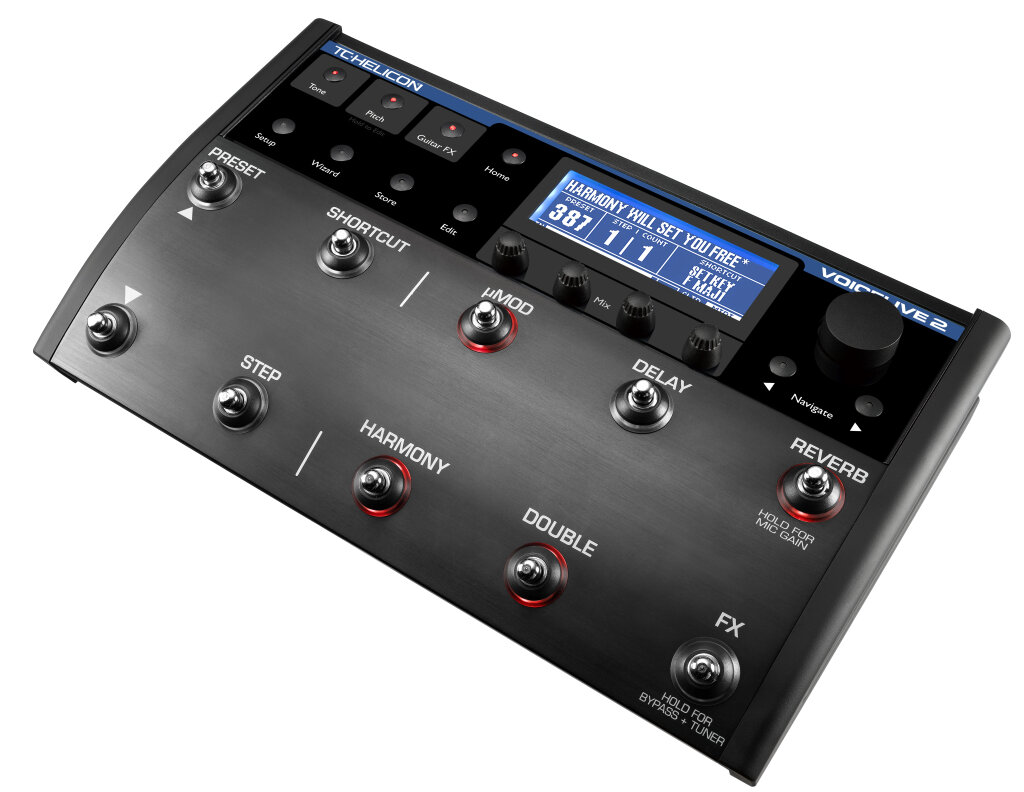

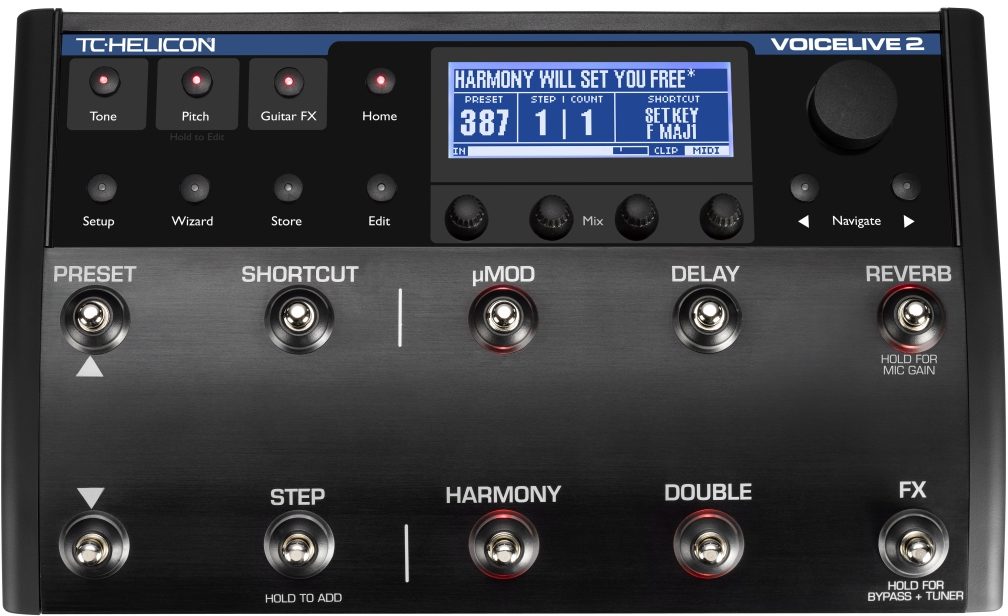

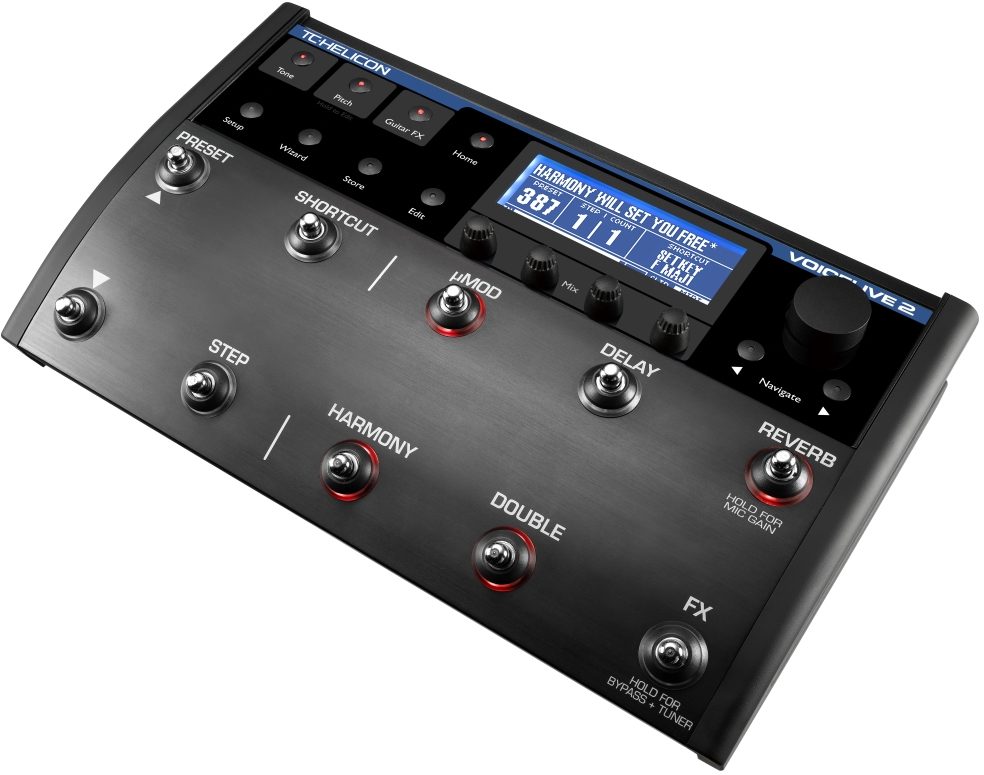

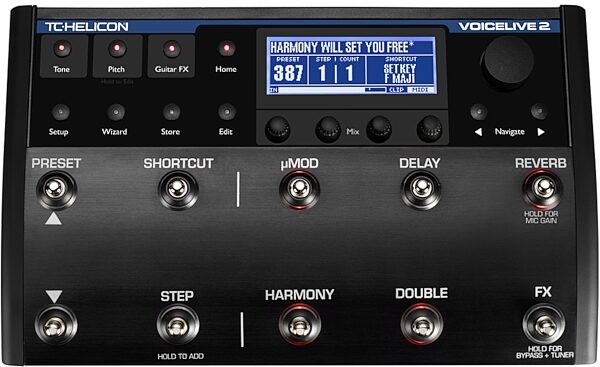

TC Helicon VoiceLive 2 Vocal Floor Processor

What does a vocalist live for? A jaw-dropping vocal sound that takes audiences over the edge. Get that sound instantly with VoiceLive 2, the ultimate floor-based vocal processor. It's more than an upgrade, it's a vocal revolution.

Easier than ever
With a completely redesigned user interface, VoiceLive 2 is easy to use whether you're looking for one preset or a creative sequence of sounds for every song.

- Wizard button helps you find the right preset

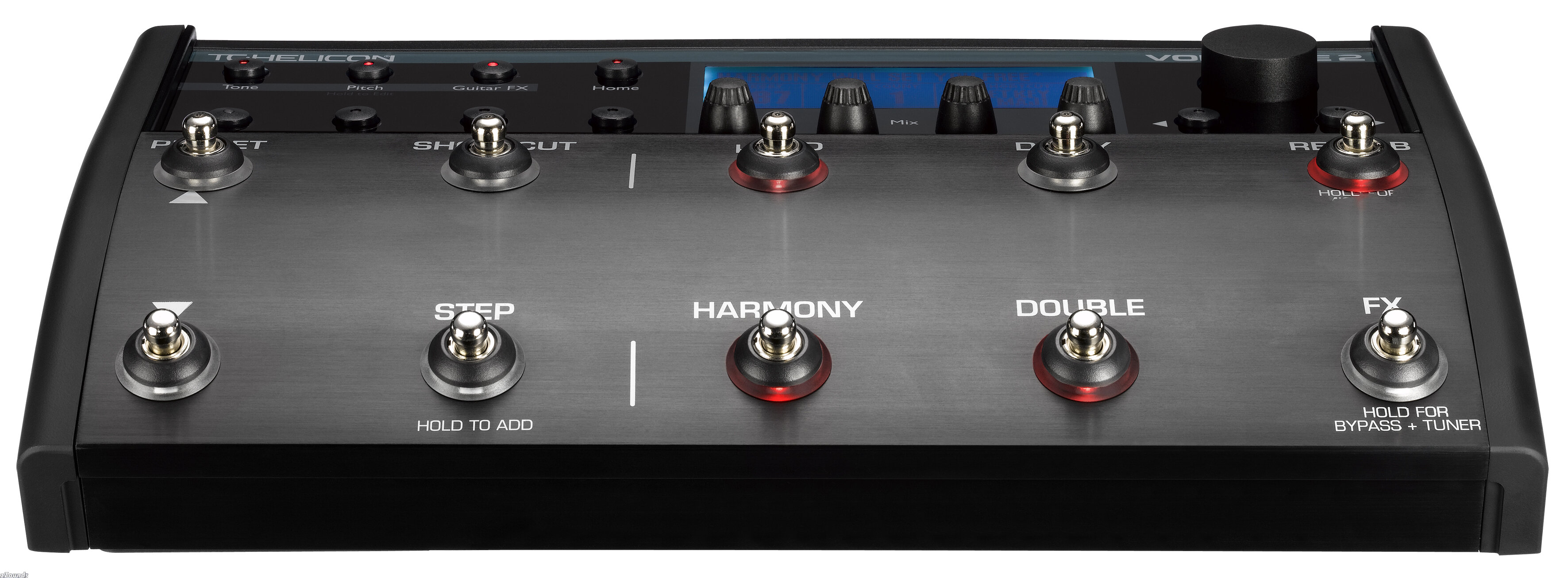

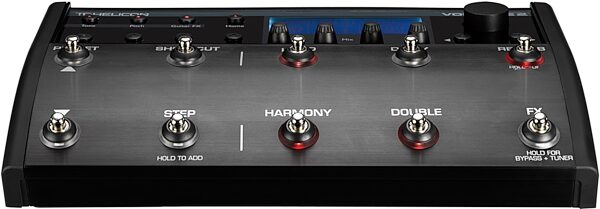

- Stompbox access to six effect blocks
- One button access to global Tone, Pitch and Guitar FX
- Easy editing of all parameters
- Simple preset chaining with Step feature
- USB for updates, back-ups and audio streaming

New NaturalPlay harmonies
Whether you play guitar, a MIDI keyboard or no instrument at all, VoiceLive 2 has brilliant vocal harmonies for you.

- Control harmonies with guitar, MIDI or MP3 input
- Up to 8 voices with MIDI keyboard control or 4 doubled harmonies
- All new algorithm is smooth and natural even for extreme vocal styles
- Auto sensing of harmony control instrument

More power, voices & effects
VoiceLive 2 contains virtually all the effects necessary to produce any vocal sounds of decades past, and into the future.

- 5X processing power of typical floor processor
- Separate harmony and doubling blocks
- New reverb, tap delay, uMod
- FX block for T-Pain effect, megaphone, distortion
- Global effects including Tone, pitch correction, and Guitar FX
- All effects can be used simultaneously

An engineer that listens
Like a great audio engineer, VoiceLive 2 listens to you and adjusts to make your voice sound smooth and produced.

- Tone tailors adaptive EQ, compression and de-ess to your voice
- Adaptive gate reduces mic input when you're not singing
- Digital mic-gain control is engaged with your feet

Solid design meets comfort
Built with your comfort in mind, VoiceLive 2 has some practical features that will make for effortless performances.

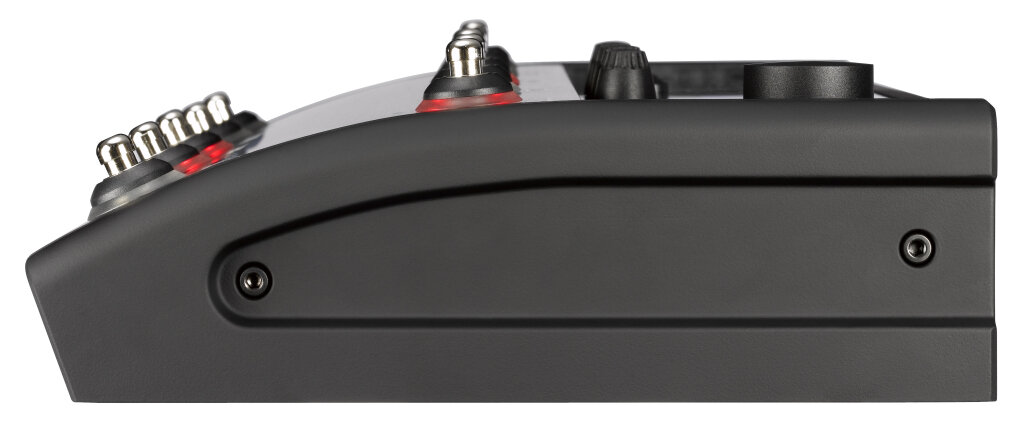

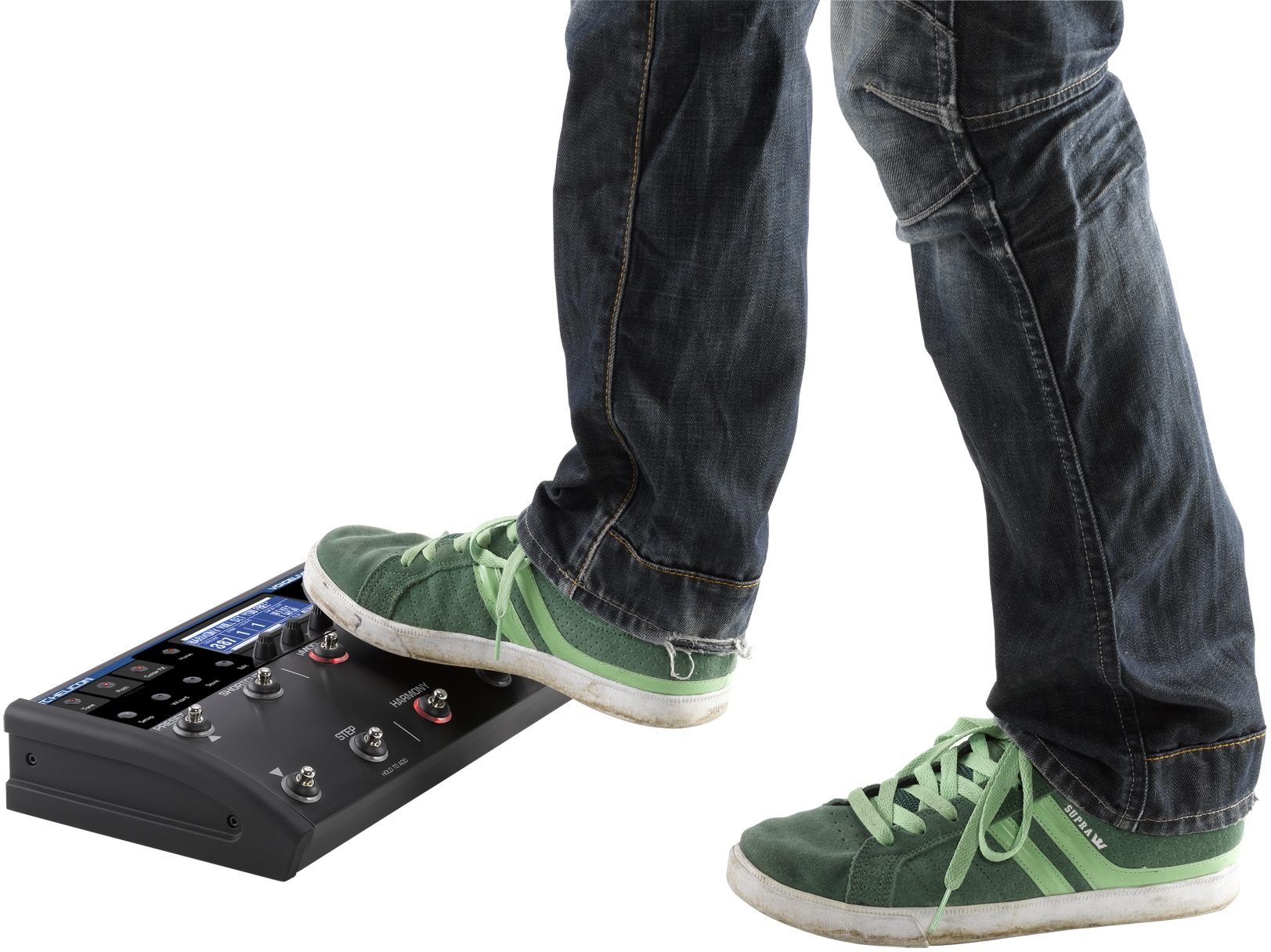

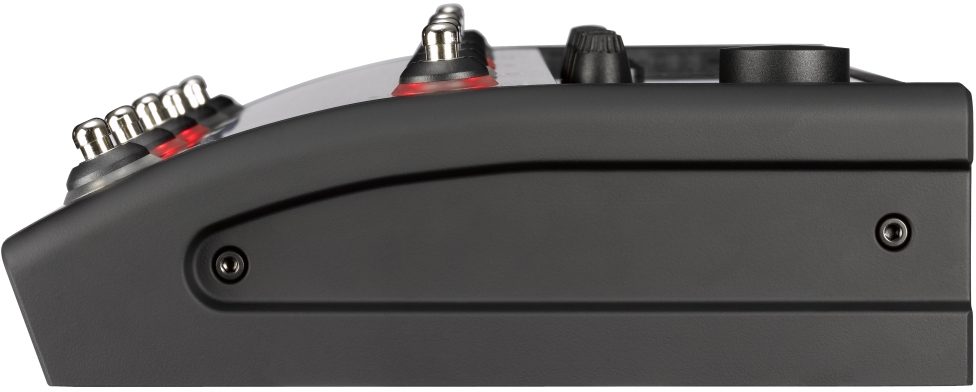

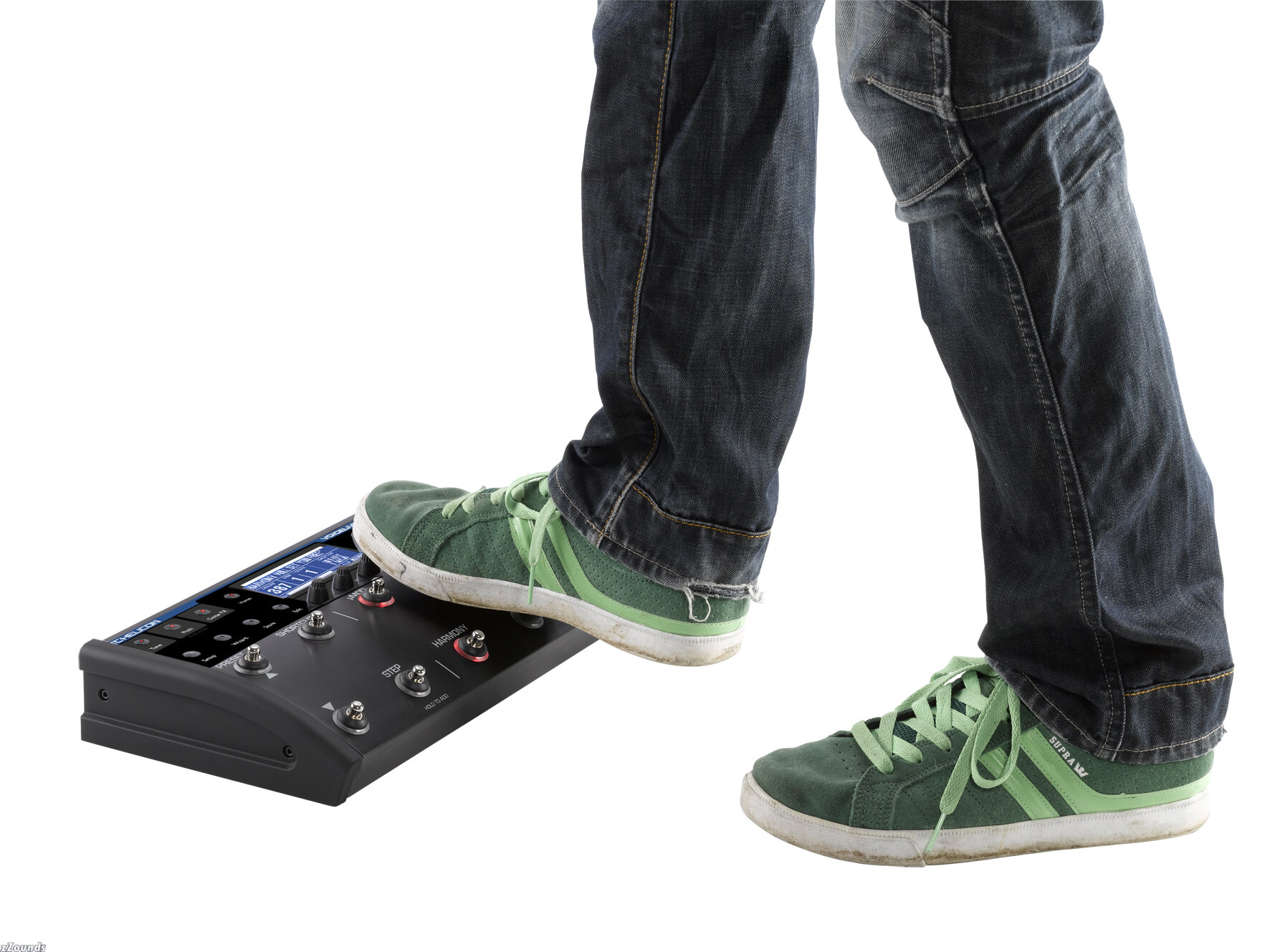

- Natural curve puts footswitches at comfortable angle

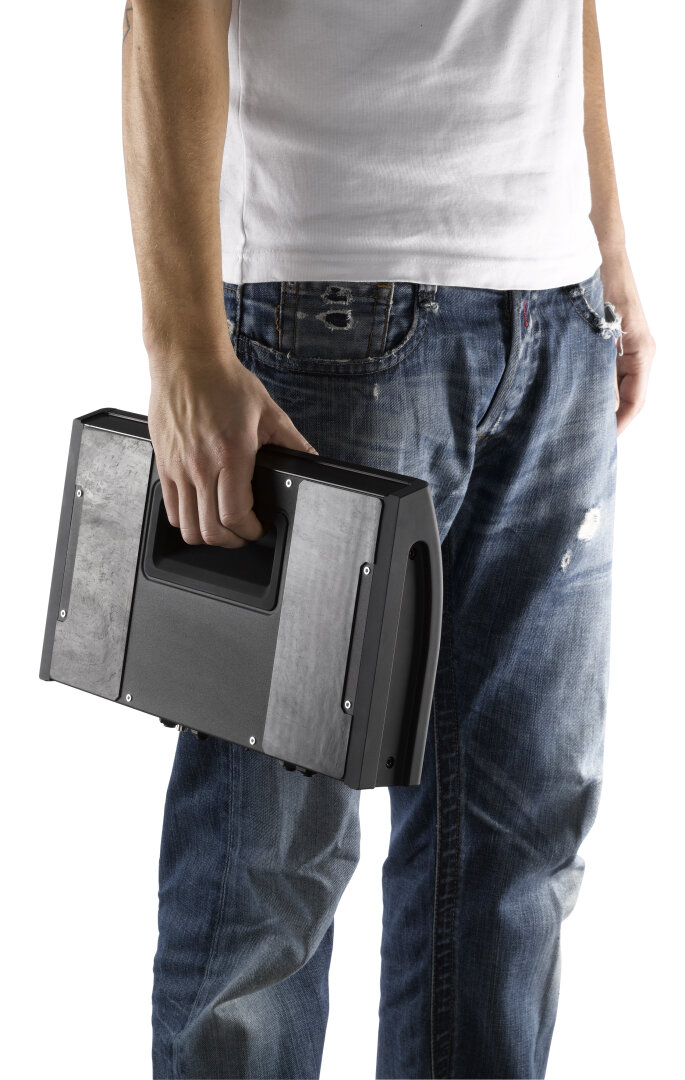

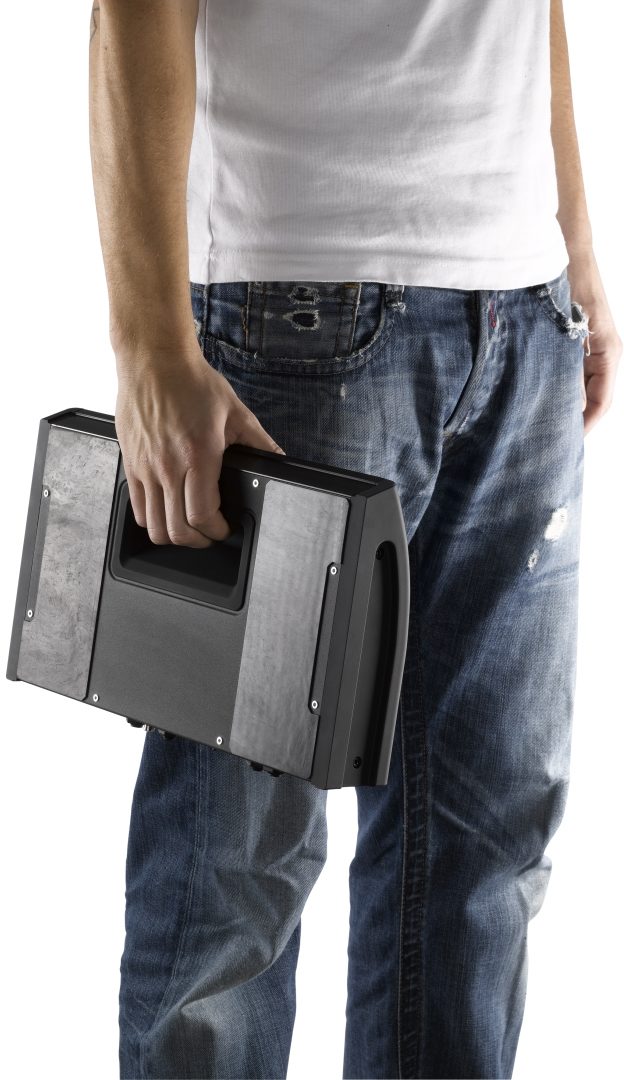

- Recessed rubberized handle
- Bright LCD and large lettering
- Rubberized end caps and edit/mix knobs
- Extruded aluminum and steel chassis

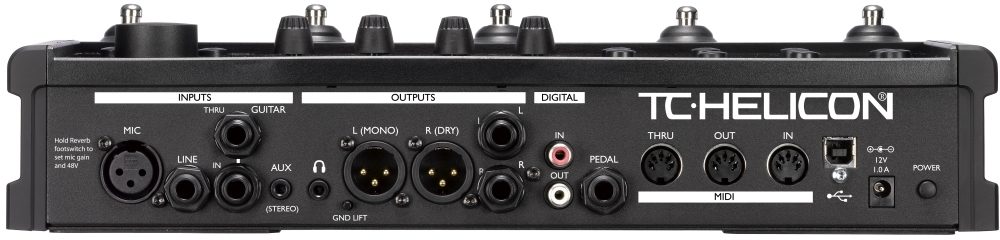

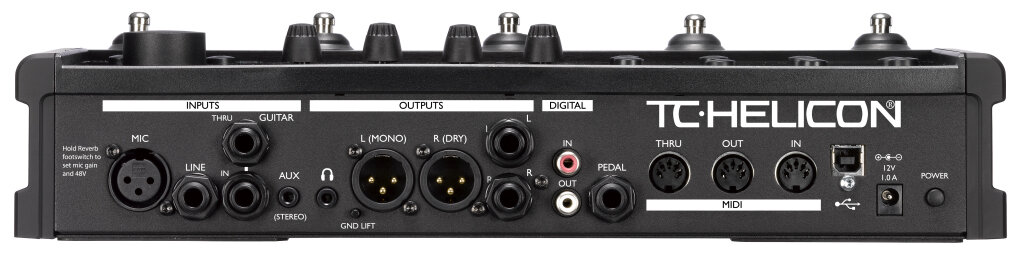

Complete Connectivity
VoiceLive 2 has the most complete connectivity of any vocal floor processor.

- Mic or Line input with digital controlled mic gain
- Guitar input with auto-mix , Guitar FX as well as transparent pass-thru
- Stereo 1/8 in. (MP3 player) input
- Stereo XLR,

Technical Info

Analog Inputs
Connectors, balanced:
- Mic.: XLR, Line: 1/4 in. phone jack,
- Guitar: 1/4 in. phone jack,
- Aux: 1/8 in. stereo mini jack

Impedance: Balanced/Unbalanced
- Mic.: 2.14/1.07 kOhm, Line: 13/6,5 kOhm

Mic Input Level @ 0 dBFS: -49dBu to +10dBu

Line Input Level @ -37 dBu to +22 dBu: -37 dBu to +22 dBu

EIN @ Max Mic Gain Rg = 150 Ohm: -126 dBu

Mic/Line Input SNR: > 107 dB

Guitar Input impedance: 1 MOhm

Guitar Input Level @ 0 dBFS: 14 dBu to -4 dBu

Guitar Input SNR: >104dB

Aux Input Level @ 0dBu: +2dBu

A to D Conversion: 24 bit, 128 x oversampling bitstream, 110dB SNR A-weighted

Analog Outputs
D to A Conversion: 24 bit, 128 x oversampling bitstream, 115dB SNR A-weighted

Connectors, balanced: XLR and 1/4 in. phone jack

Output Impedance Balanced/ Unbalanced: 100/50 Ohm

Output Range (Line/Mic Level): 16 dBu / 0dBu

Dynamic Range: > 109 dB, 20 Hz to 20 kHz

Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz

Headphone Out: 1/8 in. Mini stereo jack, 32 Ohm, +16dBu max (180mW max)

Digital Inputs and Outputs
Connectors: RCA Phono (S/PDIF)

Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958

Sample Rates: 44.1 kHz, 48 kHz, 88.2kHz, 96kHz

EMC
Complies with: EN 55103-1 and EN 55103-2 - FCC part 15, Class B, CISPR 22, Class B

Safety
Certified to: IEC 65, EN 60065, UL6500 and CSA - IEC 65, EN 60065, UL6500 and CSA

Environment
Operating Temperature: 32 F to 122 F (0 C to 50 C)
Storage Temperature: -22 F to 167 F (-30 C to 70 C)
Humidity: Max. 90 % non-condensing

Control Interface
USB: USB-B

MIDI: In/Out/Thru: 5 Pin DIN

Pedal: 1/4 in. TRS phone jack

Supplementary
Display: 192 x 64 Blue STN LCD, White Back light

Dimension: 13.8 x 3 x 8.5 in. (350 x 76 x 216 mm)

Weight: 5 lb. (2.3 kg)

External Power Supply Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)

Power Consumption: <14 W

Warranty Parts and labor: 1 year

A vocal engineer and choral ensemble in one floorboard. The redesigned version 2 interface is even easier to navigate, with a "Wizard" button guiding patch creation and stompbox-like control over the six effects blocks. 8-voice harmonizer key adjusts to incoming audio or MIDI. Adaptive noise gate, compression, and EQ "listen" adjust to your vocals.
