TC Electronic PowerCore Element DSP Card (Macintosh and Windows)

Product Description

Rackmount Quality Processing Solution for Mac and PC
Stop compromising. Unleash pro studio power inside your native recording environment. Run 24/96, multiple reverbs AND compressors AND synthesizers - without maxing out your CPU.

The Tools
Fill up your virtual racks with rackmount-quality processors right out of the box: lush TC-quality reverbs, smooth chorus/delay, vintage compression, de-essing, a complete vocal processing channel, mastering EQ and even a virtual analog synthesizer. All-inclusive and ready to run - without significant hit on the CPU. And as if that's not enough, pick your favorite tools from the growing number of 3rd parties, such as Sony, DSound, Waldorf, TC-Helicon, Access - and many more to come!

The Power

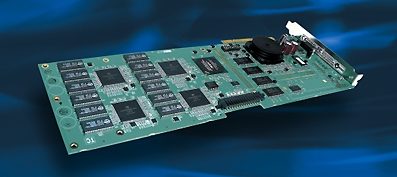

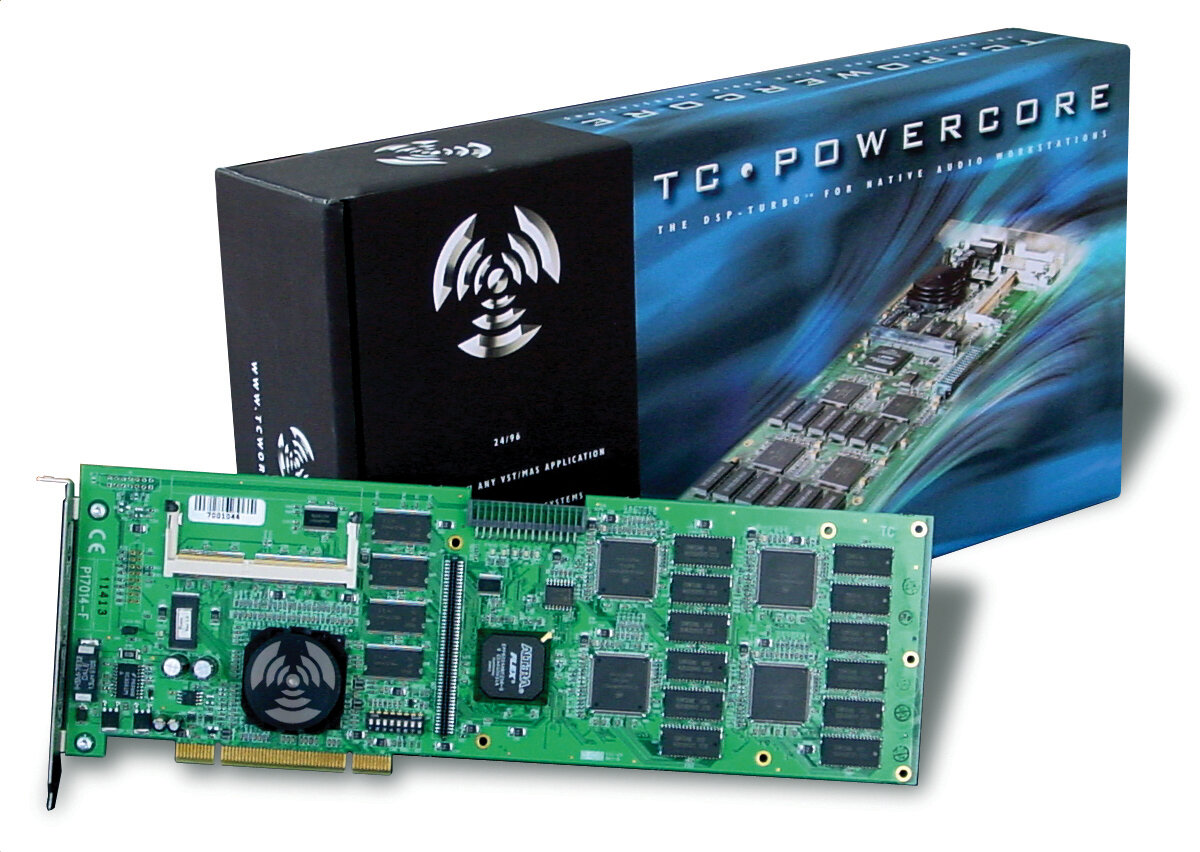

PowerCore provides you with 4 industry standard Motorola DSPs and a PowerPC. This unique configuration transforms any VST- or MAS-compatible software into a professional audio workstation! Run up to 28 Vintage Compressors, or 8 MegaReverbs or any combination of the included studio-quality effects without maxing out your computer's resources. All DSP processing is performed on the card; only the user interface requires minimal resources. This DSP-backbone will significantly enhance your existing production environment! Need even more power? Add another PowerCore. Supports most VST/MAS applications on MAC and PC. PowerCore integrates seamlessly with most I/O systems and most software that supports VST or MAS plug-ins, such as Logic, Cubase, Digital Performer, Nuendo, Live and many others. Make sure your application supports VST or MAS - and you are compatible!

Any Host
Pick any sequencer or audio application - as long as it supports VST or AudioUnits FX plug-ins (to use PowerCore instruments, the application must additionally support VST/AU instruments).

I/O
PowerCore functions with all I/O systems supported by your application, making it the perfect addition to almost any existing system. (Check that your I/O card system doesn't require ALL of the existing PCI bandwidth.)

Up To 4
Up to 4 cards may be used simultaneously in one system, though each card provides you with so much power that you probably won't need that. In fact, with 4 cards you can go as far has having a MasterX3 on every track in a 32-track production. (PowerCore is not approved for operation in PCI expansion chassis.)

Options
Third parties are an integral part of the PowerCore platform, ensuring that there will always be a growing number of professional tools available. Check the amazing Waldorf D-coder (Vocoder), Sony Oxford Inflator and Sony Oxford EQ, or DSound VL2 plug-in. They all take advantage of PowerCore's processing power to provide you with seamlessly integrated FX in your VST/AU sequencer.


Included Plug-ins
PowerCore delivers an array of powerful tools right out of the box; the ten virtual processors included feature the most complete collection of dynamics processing available.

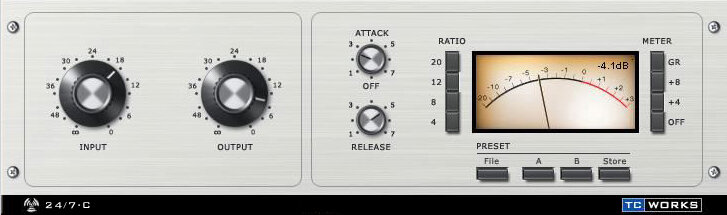

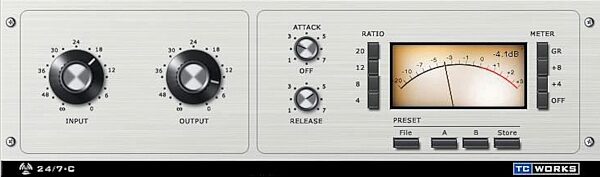

24/7-C -- Convincing vintage compression and limiting using one of the most desired vintage models for PowerCore.

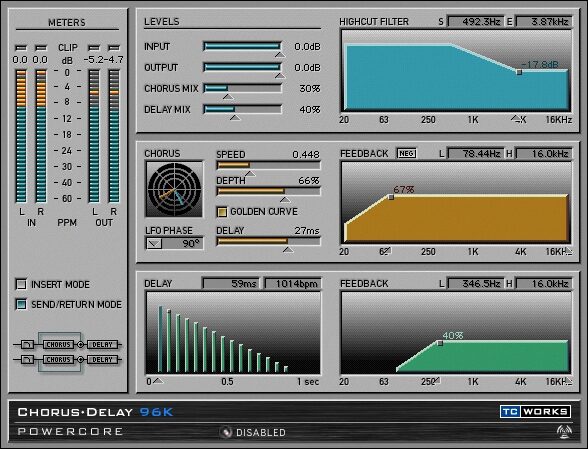

Chorus-Delay -- Modulation Multi-FX that recreates the 1210 Spatial Expander with its unique modulation images like Chorus, Flanging and Slap Delay with very flexible routing and filtering facilities.

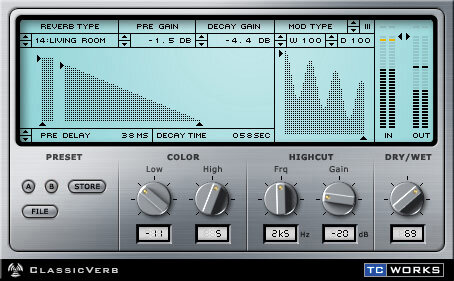

ClassicVerb -- ClassicVerb adds warm, lush reverb effects often associated with big expensive hardware processors.

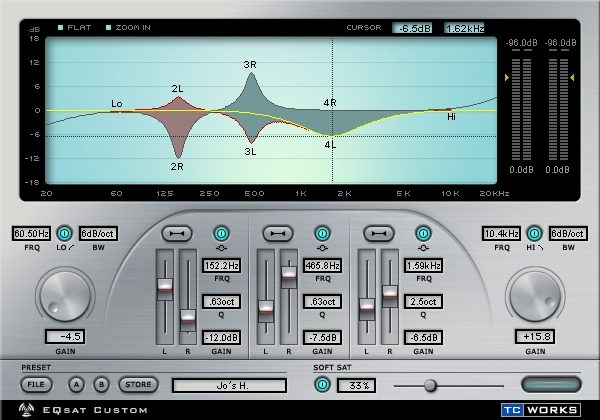

EQSat -- EQSat Custom is a very clean sounding and carefully crafted EQ-model for any application including mastering.

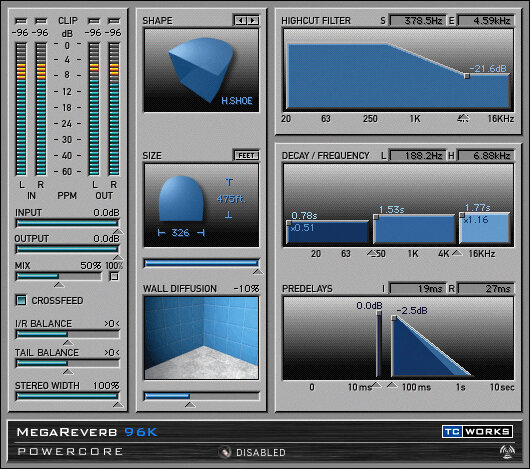

MegaReverb -- Hi-end Reverb based on years of ongoing research and the core technology of the TC Electronic M5000 hi-end studio processor.

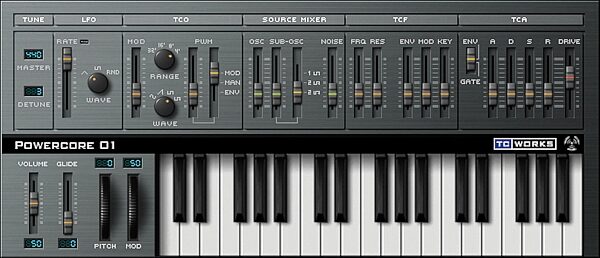

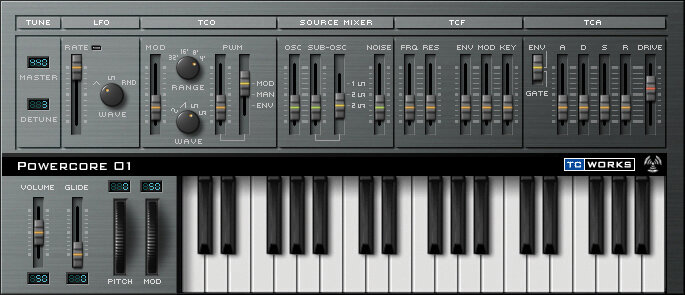

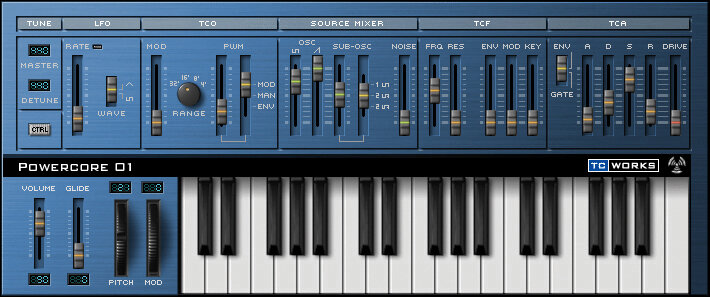

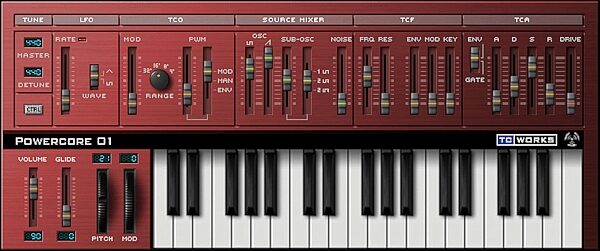

PowerCore 01 -- This mono-synth will deliver results similar to the famous SH-101, with some added features like velocity and drive.

Tubifex -- The new Tubifex guitar amp simulator brings the total number of virtual processors included with PowerCore to 10. It includes three tube stages and a speaker simulator for truly convincing amp modeling.

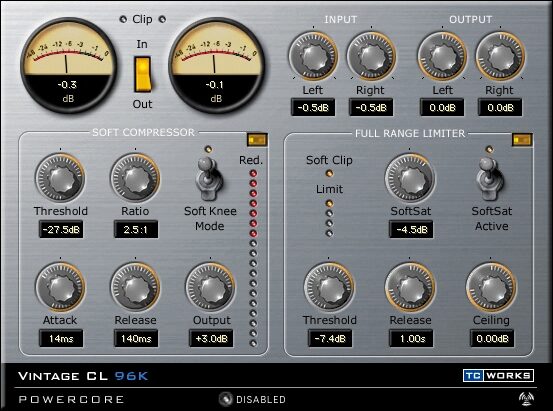

Vintage CL -- Vintage Compressor-Limiter delivers Hi-quality compression and limiting on each channel - up to 28 Vintage CLs can be run on one PowerCore card.

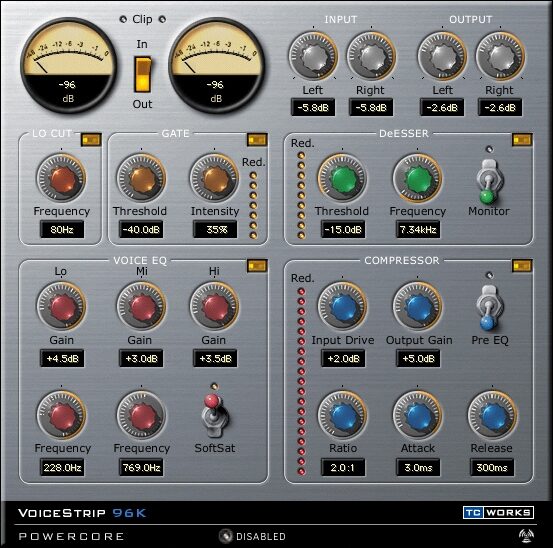

VoiceStrip -- This complete voice processing channel includes all tools required for vocal sound adjustment: Compression, De-Essing, a dedicated Voice EQ, Lo Cut Filter and Gate.

Optional Plug-ins
Aside from the included software, PowerCore users may choose from the growing number of optional TC and 3rd party tools, featuring renowned brands such as Waldorf, Sony, TC-Helicon, Dsound, Access - and many more to come. Naturally, the PCI-card and the FireWire version of PowerCore may be used in the same system. zZounds is an authorized dealer of TC Electronic and TC-Helicon products.

DSP: 4 x 100 mHz
S-Ram: 4 x 128 kWords
Power PC: 1 x 200 mHz PowerPC
D-Ram: 8 Mb
Size: PCI
Use: Desktop

Supported Plug-in formats: Audio Units and VST

Supported host software: Logic, Cubase, Nuendo, Live, Digital Performer, Garageband, Spark XL, Peak, Wavelab and many more.

System Requirements

PC
PowerCore Software
Windows XP
PIII/500 or better
256 MB RAM
VST compatible host application
PowerCore PCI requires a full length PCI-slot and a 3.3 Volts PCI Bus (spec. 2.2).

Mac
PowerCore Software
MaxOS X (10.2 or higher)
G3, G4 or G5
256 MB RAM
VST or Audio Units compatible host application
