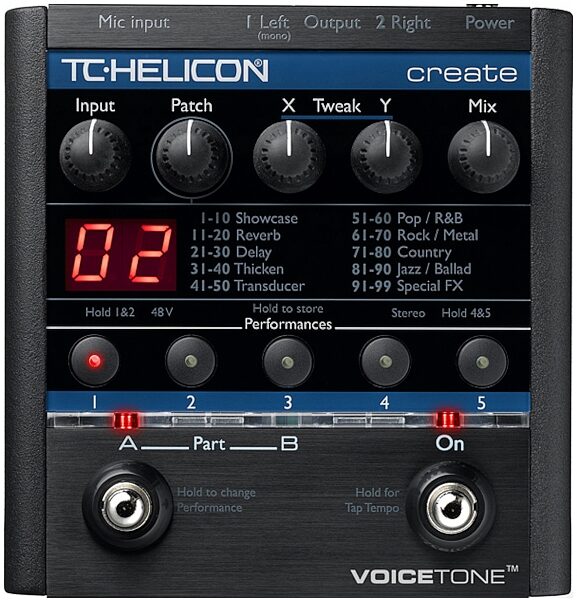

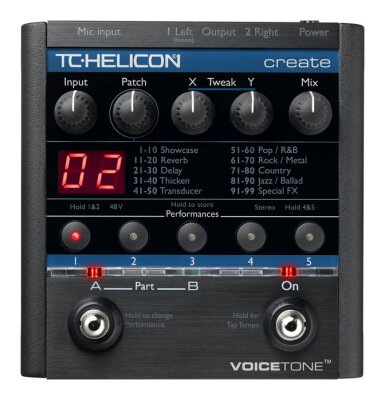

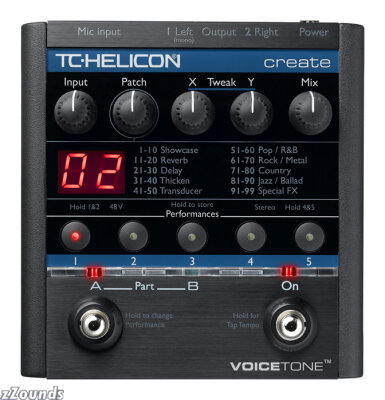

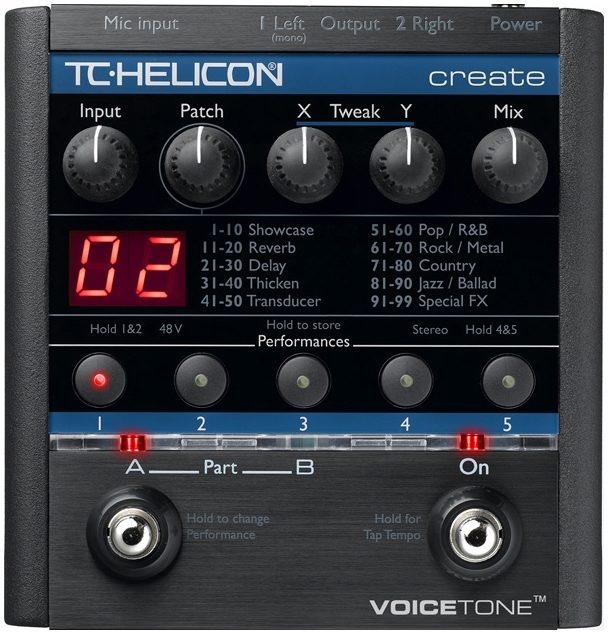

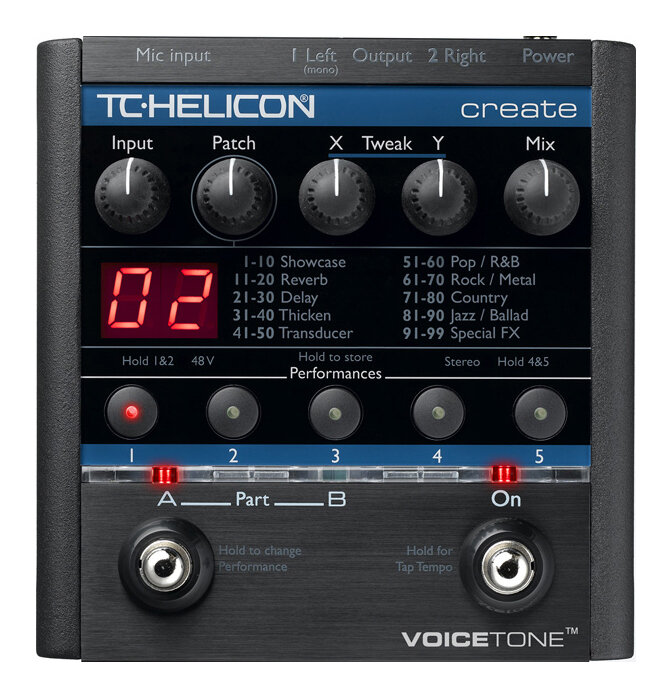

TC Helicon VoiceTone Create Vocal Effects Pedal

Producer-in-a-pedal
If you're tired of the dull, dry vocal coming back at you onstage, you're ready for the VoiceTone Create pedal. Now you can have the same pro quality ambience and ear-catching effect types that producers use in the studio to make vocals sound sweet. At its simplest, Create is a high quality voice effects unit that you bring to performances to feel confident that your style of effects, whether it’s country, rock, metal, blues or jazz, is under your control.

Create features 99 preset combinations of reverb, delay, thickening/microtuning, distortion and telephone/megaphone effects that can inspire creativity and bring the sound of the CD to the stage. The straightforward controls, A/B effects switching and simple radio button preset selection give singers easy access to a rich palette of effects.

Features
TC-quality reverb and delay processing

Contemporary vocal distortion effects

Telephone and megaphone sounds

99 music-style-based effects combinations offer fast setup

Flexible A/B effects switching

5 "favorite" user presets

Quick and easy tweaking of patches

XLR mic level I/O in stereo or mono

Clean, studio quality mic preamp with phantom power

Tap tempo

Super Edit Mode
You might wonder how the developers and product managers at TC-Helicon authored patches for VoiceTone Create. Similar to methods used on other products, a special mode was created for setting advanced parameters. In and around the office, this mode in VoiceTone Create was called Super Edit Mode.

Super Edit Mode allows access to dozens of parameters per effect. These parameters are used to design any of the 99 patches in Create. While using this mode during final design we recognized it’s a powerful feature for an advanced or curious user.

Technical Info

Analog Inputs
Connectors: Balanced XLR
Input Impedance: 1 kOhm
Mic Input Sensitivity @ 0 dBFS: -44 dBu to +2 dBu
Mic Input Sensitivity @ 12 dB headroom: -56 dBu to -10 dBu
EIN: -128 dBu @ max. mic amp gain, Rg = 150 Ohm

Analog Outputs
Connectors: Balanced XLR
Output Impedance: 40 Ohm
Output Level @ 0dBFS: +2dBu

Input to Output Analog Audio Performance
Dynamic Range, Mic. @ Min gain: >108 dB, 20 Hz - 20 kHz (A-weighted)
Dynamic Range, Mic. @ -18dBu sensitivity: > 104dB, 20hz – 20kHz (A-weighted)
THD+ Noise, Mic. @ Min gain: <-90dB
Frequency Response, max gain: -1.5 dB @ 40 Hz, +0/-0.3 dB (200 Hz to 20 kHz)

Conversion Characteristics
Sample Rate: 48 kHz
Converter: AKM AK4620B
A to D / D to A Conversion: 24 bit, 128x oversampling bitstream
A to D Delay: 0.65 ms
D to A Delay: 0.63 ms
EMC: Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B

Safety Certified to: IEC 65, EN 60065, UL6500 and CSA E60065 CSA FILE #LR108093

Environment
Operating Temperature: 32° F to 122° F (0° C to 50° C)
Storage Temperature: -22° F to 167° F (-30° C to 70° C)
Humidity: Max. 90% non-condensing

Supplementary
Dimensions (WxHxD): 130 x 41 x 132 mm (5 x 1.5 x 5.25 in.)
Weight: 1.5 lbs. (0.72 kg)
Warranty Parts and labor: 1 year

Add ambience and effects to your tracks for professional results! Includes 99 preset reverb, tap tempo delay, distortion, and megaphone effects specifically for vocals. Store your favorites in 5 user presets. Includes mic preamp with phantom power. Balanced XLR I/O.
