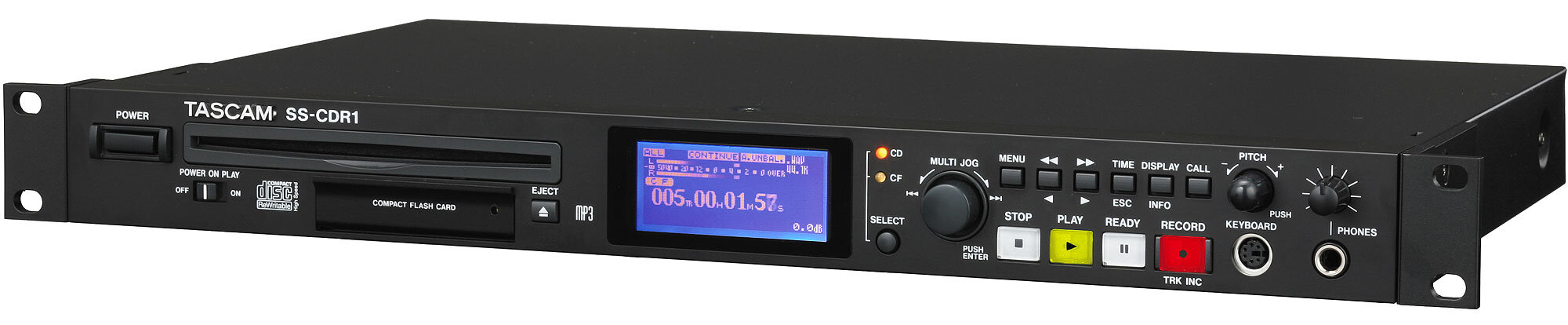

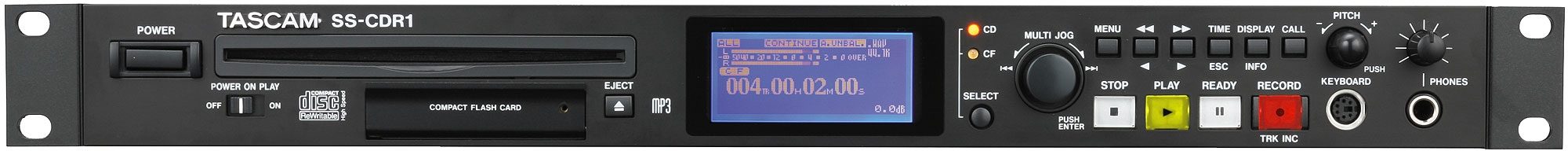

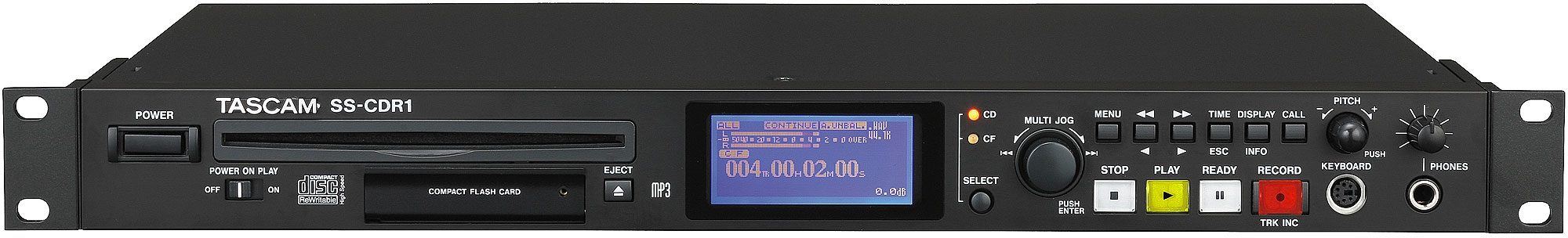

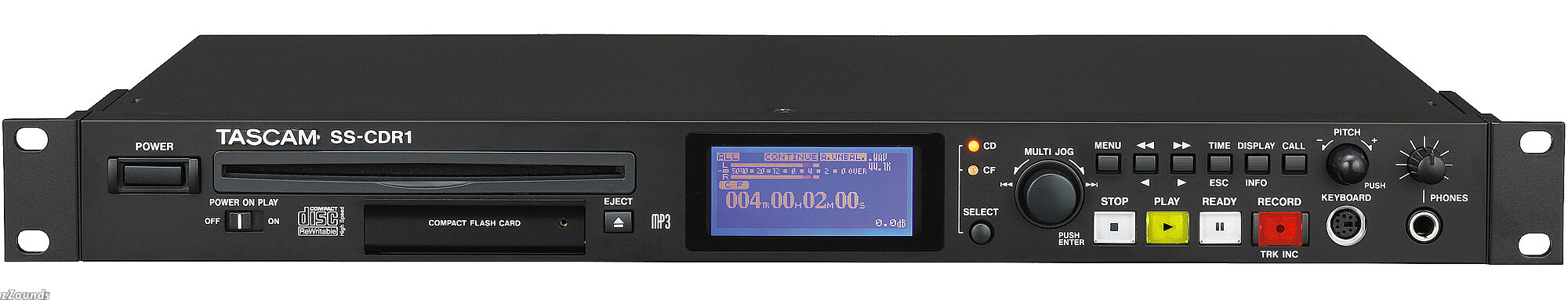

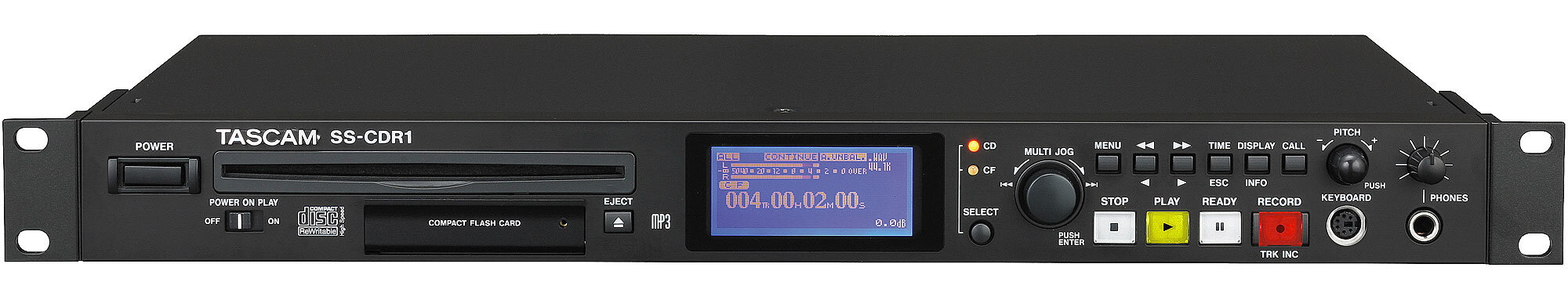

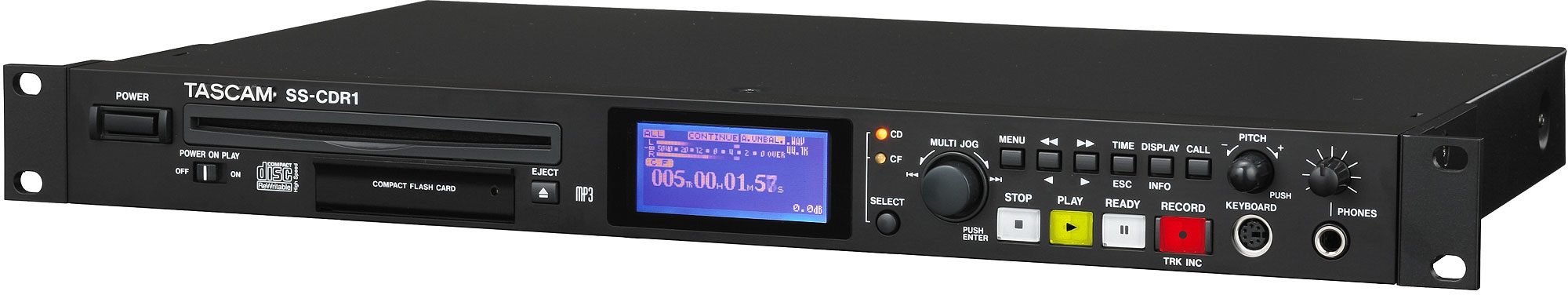

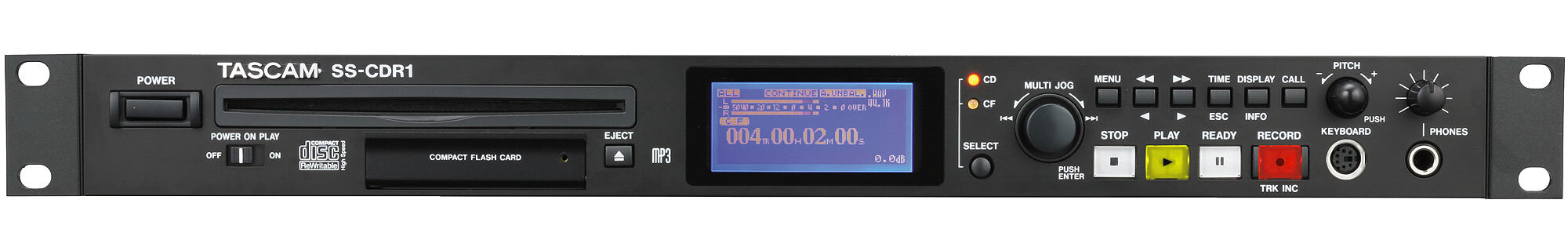

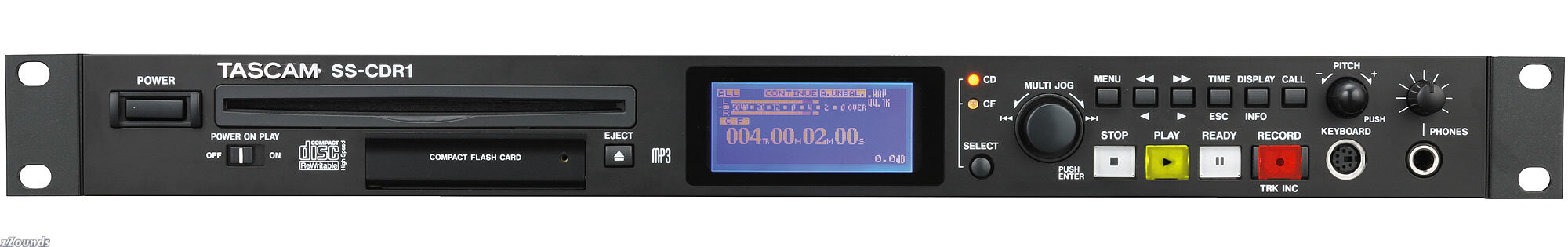

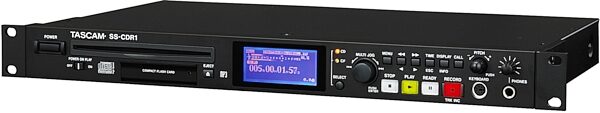

Tascam SS-CDR1 Compact Flash and CD Recorder

The Tascam SSCDR1 combines Compact Flash and Compact Disc recording into a single rackspace. Designed for applications that previously used a cassette or MiniDisc recorder, the SSCDR1 records in WAVE or MP3 formats to Compact Flash media. A slot-loading CD transport is provided CD recording, MP3 conversion and audio transfer. The recorder includes balanced and unbalanced audio inputs and outputs, RS232 and parallel control and a wired remote control.

Also available are the SSR1 for Compact Flash recording without the CD and the HDR1, which replaces the CD drive with Ethernet protocol and microphone inputs.

Technical Info

Solid state recording to Compact Flash media

CD-RW Recording and Playback

One-rack-space compact design

Records in WAVE or MP3 format to CF Card

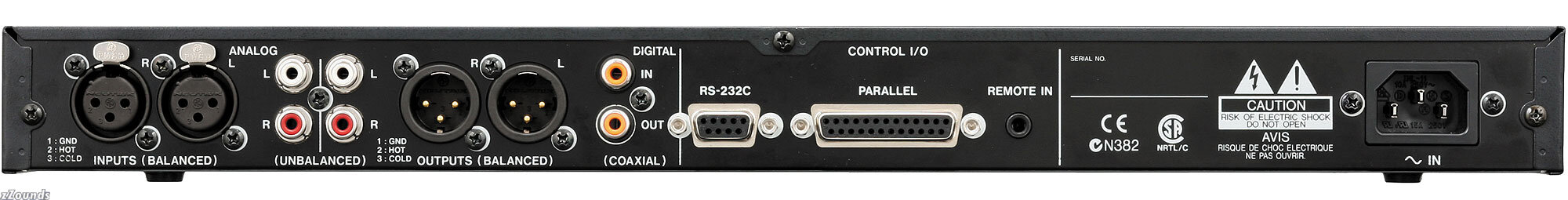

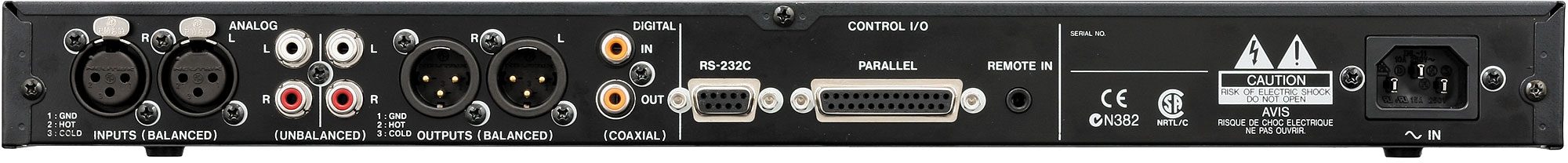

Balanced XLR and unbalanced RCA line input and output

S/PDIF coaxial digital in and out with sample rate converter

Power on play

Auto track increment (level or time)

PS/2 keyboard input for folder/file naming and remote control

RS232C serial control

DB25 parallel control port

Dimensions (W x H x D): 483 x 44 x 300 (mm)

Archives all your audio! Records WAV or MP3 files to Compact Flash or CD media in a 1U rack design. Balanced XLR, unbalanced RCA, and S/PDIF I/O connections offer easy integration into any audio system. SSCDR1 records to either CF media and CD-RW discs, and can transfer between the two! Auto track increment; PS/2 keyboard port for folder/file naming. Includes wired remote control. Accepts Compact Flash and CD-RW media.
