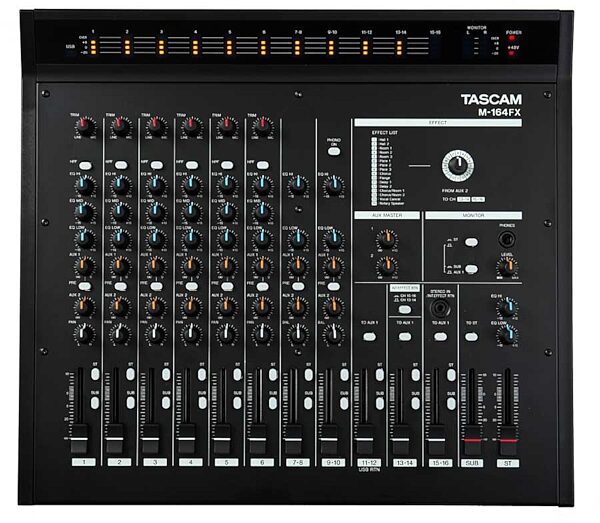

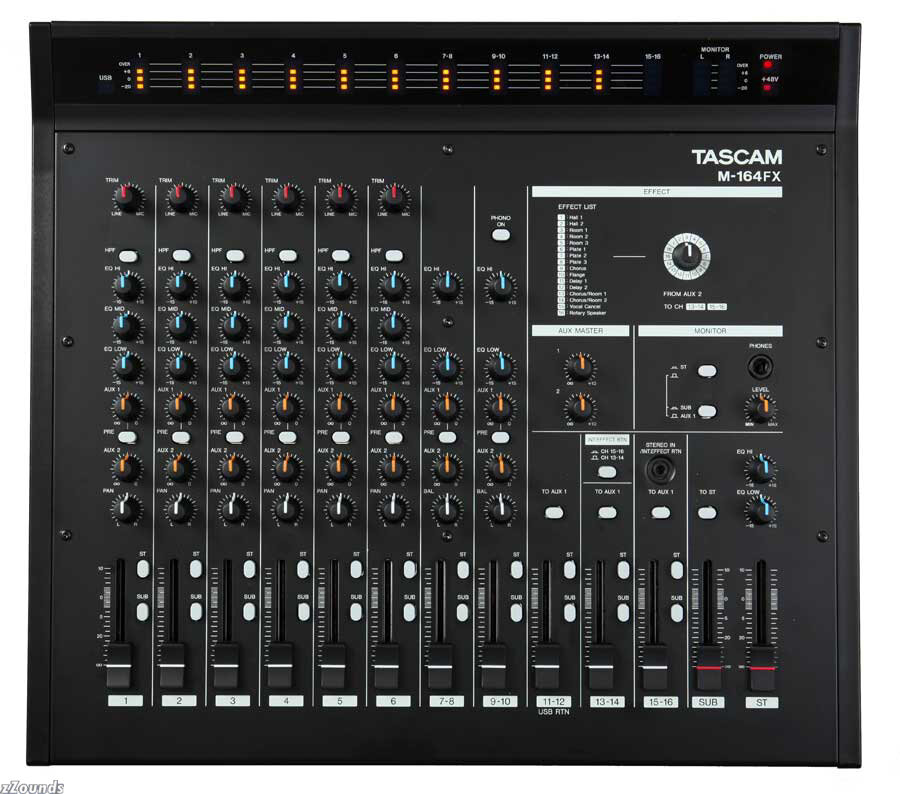

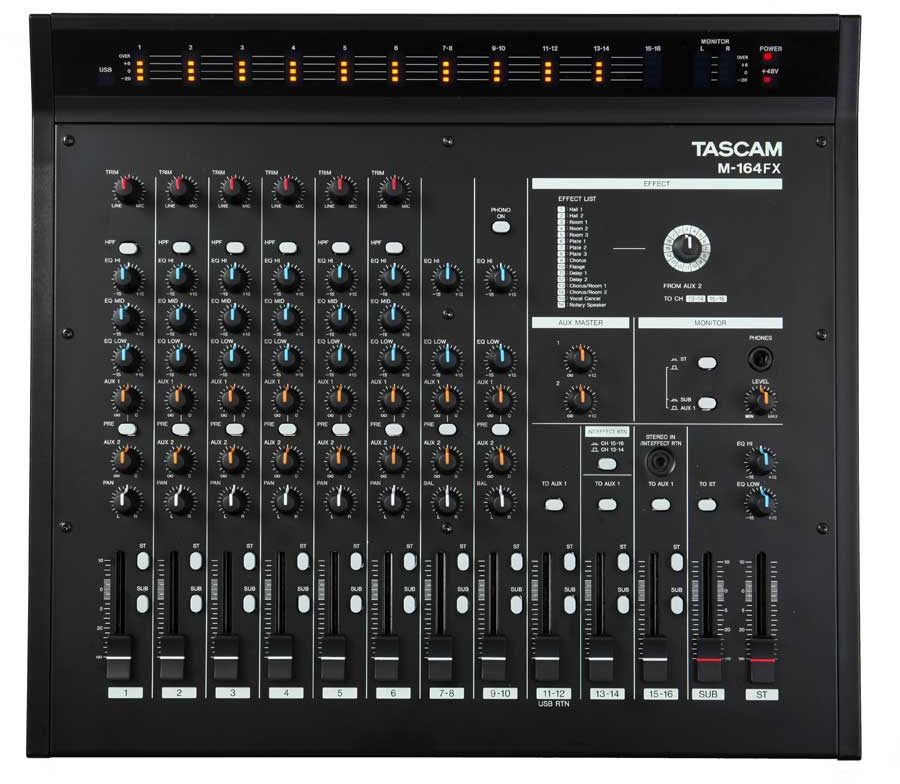

Tascam M-164FX 16-Channel Mixer with Effects

The M164FX mixer boasts six Tascam mic inputs with XLR inputs and phantom power for great-sounding tracks. Mic inputs additionally have 3-band EQ with hipass filters for sculpting the mix. Five stereo line inputs bring the total count to 16 inputs, and several channels add EQ and RIAA phono preamps for adding flexibility. With versatile routing the M164FX has two output busses (main and sub) as well as a pair of aux sends for monitors and effects. With a stereo effects processor featuring 16 programs of reverb, delay, chorus and other great-sounding effects.

Technical Info

Specifications
16-channel mixing

6 XLR microphone inputs with phantom power and hipass filter

5 stereo line inputs

3-band EQ on mic channels 1-6

2-band EQs on line channels 7-10 and main output

RIAA phono preamp on channels 9-10 (RCA)

Unique design with built-in meter bridge

Sub and Main output busses (1/4-inch outputs)

Separate stereo and mono outputs for main and aux (1/4-inch)

Two aux sends (1/4-inch outputs)

Stereo effects processor with 16 presets for reverb, delay, chorus and other effects
